2010 PEUGEOT 308 SW BL mirror controls
[x] Cancel search: mirror controlsPage 4 of 336
Instrument panels 22
Indicator and warning lamps 26
Indicators 34
Instrument panel buttons 38 „
„
„
„
Ventilation 56
Heating 58
Manual air conditioning 58
Rear screen demist - defrost 60
Dual-zone digital
air conditioning 61
Front seats 63
Rear seats 67
Seat modularity 73
Mirrors 75
Steering wheel adjustment 77 „
„
„
„
„
„
„
„
„
„
COMFORT 56 Î 77
Remote control key 78
Alarm 82
Electric windows 84
Doors 86
Boot 88
Opening rear screen 89
Panoramic sunroof 90
Fuel tank 91 „
„
„
„
„
„
„
„
ACCESS 78 Î 92
Lighting controls 93
Automatic illumination of
headlamps 95
Headlamp adjustment 96
Directional lighting 97
Wiper controls 98
Automatic rain sensitive wipers 100
Courtesy lamps 101
Interior mood lighting 102
Boot lamp 102 „
„
„
„
„
„
„
„
„
VISIBILITY 93 Î 102
Child seats 118
ISOFIX child seats 123
Child lock 127 „
„
„
CHILD
SAFETY 118 Î 127 FAMILIARISATION 4 Î 21
INSTRUMENTS and
CONTROLS 22 Î 39
Screens without
audio equipment 40
Screens with
audio equipment 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 47
16/9 high defi nition retractable
colour screen (Peugeot Connect
Media) 49
Trip computer 52 „
„
„
„
„
MULTIFUNCTION
SCREENS 40 Î 55
Interior fi ttings 103
Front armrest 106
Mats 107
Boot fi ttings 109 „
„
„
„
FITTINGS 103 Î 11 7
Page 11 of 336
1.
Audio and telematics system
steering mounted controls.
2.
Steering lock and ignition.
3.
Wiper/screenwash/trip computer
control stalk.
4.
Instrument panel.
5.
Driver’s airbag.
Horn.
6.
Gear lever.
7.
Parking brake.
8.
Panoramic sunroof blind control.
9.
Heated seat control.
10.
Door mirror controls.
Electric window controls.
11 .
Passenger’s airbag deactivation
switch.
12.
Manual headlamp height
adjustment.
13.
Side adjustable air vent.
14.
Front side window demisting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting vent.

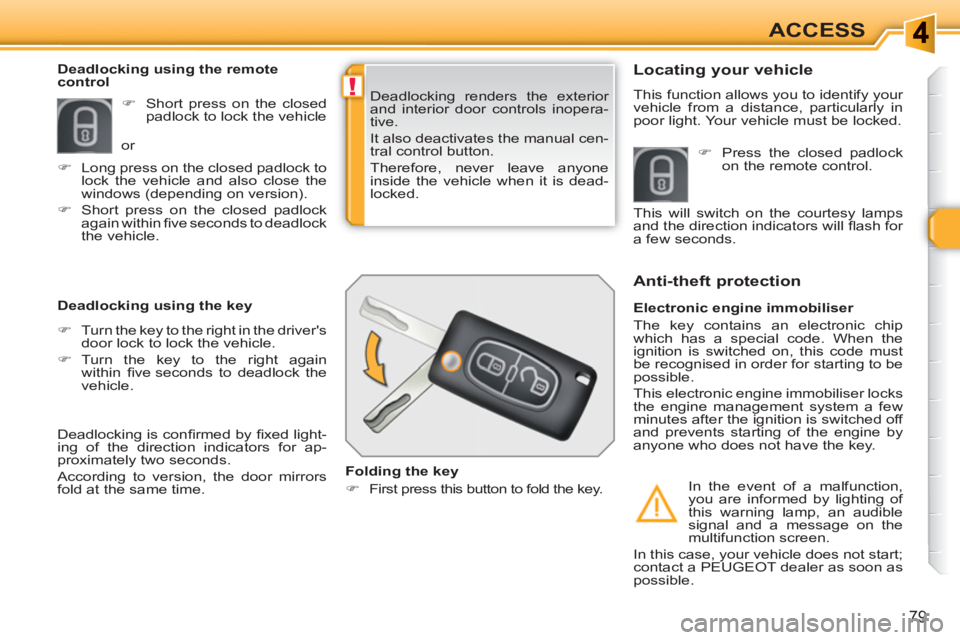

Page 81 of 336
!
79
ACCESS
Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tral control button.
Therefore, never leave anyone
inside the vehicle when it is dead-
locked.
Deadlocking using the remote
control
Deadlocking using the key
)
Short press on the closed
padlock to lock the vehicle
or
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
)
Turn the key to the right in the driver's
door lock to lock the vehicle.
)
Turn the key to the right again
within fi ve seconds to deadlock the
vehicle.
Folding the key
)
First press this button to fold the key.
Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
)
Long press on the closed padlock to
lock the vehicle and also close the
windows (depending on version).
)
Short press on the closed padlock
again within fi ve seconds to deadlock
the vehicle.
)
Press the closed padlock
on the remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Page 189 of 336
1
187
PRACTICAL INFORMATION
Dashboard fuses
The fusebox is placed in the lower
dashboard, left-hand side, inside the
glove box.
Access to the fuses
)
refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N°
Rating
Functions
F1
15 A
Rear wiper.
F2
30 A
Locking and deadlocking earth.
F3
5 A
Airbags and pretensioners control unit.
F4
10 A
Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.
F5
30 A
Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.
F6
30 A
Rear one-touch electric windows, trailer fusebox.
F7
5 A
Front and rear courtesy lamps, map reading lamps,
rear reading lampd, sun visor illumination, glove
box illumination, torch.
F8
20 A
Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection.
F9
30 A
Front 12 V socket.
F10
15 A
Steering mounted controls, alarm siren, alarm
control unit.
F11
15 A
Low current ignition switch.

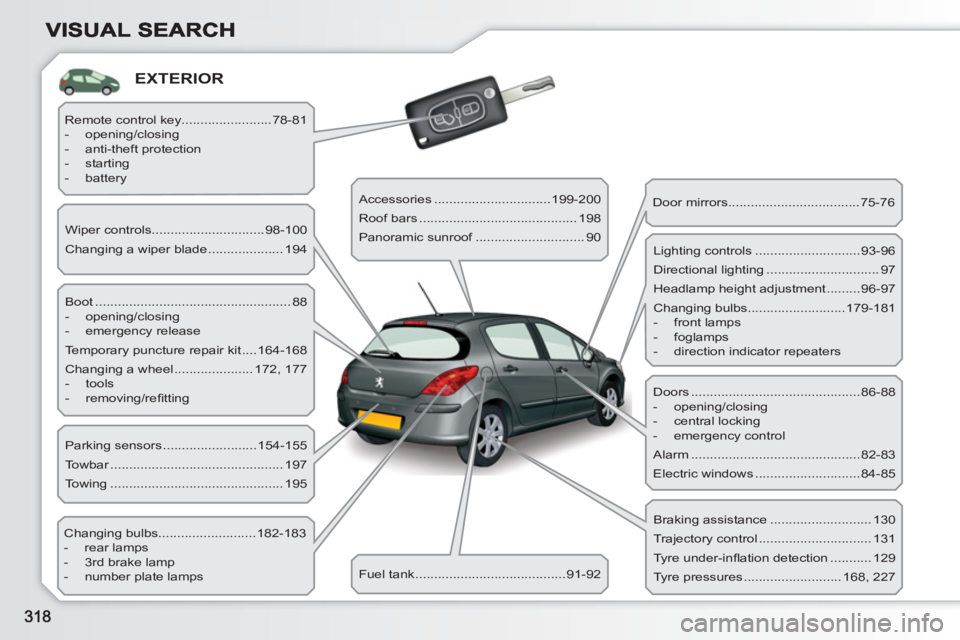

Page 320 of 336
EXTERIOR
Boot .................................................... 88
- opening/closing
- emergency release
Temporary puncture repair kit ....164-168
Changing a wheel ..................... 172, 177
- tools
- removing/refi tting Wiper controls..............................98-100
Changing a wiper blade .................... 194
Changing bulbs..........................182-183
- rear lamps
- 3rd brake lamp
- number plate lamps Parking sensors .........................154-155
Towbar .............................................. 197
Towing .............................................. 195 Remote control key........................78-81
- opening/closing
- anti-theft protection
- starting
- battery
Accessories ...............................199-200
Roof bars .......................................... 198
Panoramic sunroof ............................. 90
Fuel tank ........................................91-92 Door mirrors ...................................75-76
Doors .............................................86-88
- opening/closing
- central locking
- emergency control
Alarm .............................................82-83
Electric windows ............................84-85 Lighting controls ............................93-96
Directional lighting .............................. 97
Headlamp height adjustment .........96-97
Changing bulbs..........................179-181
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ........................... 130
Trajectory control .............................. 131
Tyre under-infl ation detection ........... 129
Tyre pressures .......................... 168, 227

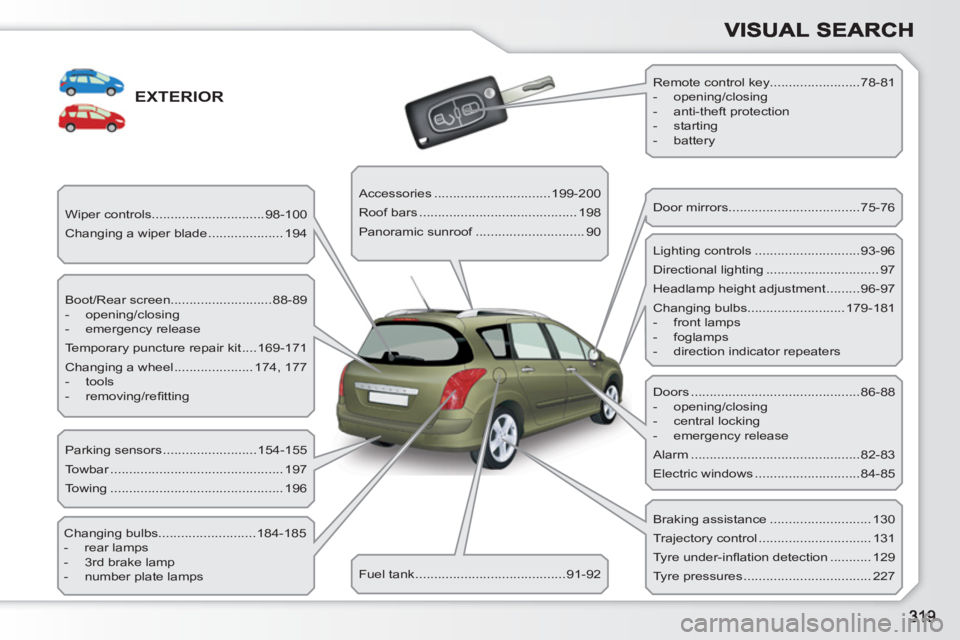

Page 321 of 336
EXTERIOR
Boot/Rear screen...........................88-89
- opening/closing
- emergency release
Temporary puncture repair kit ....169-171
Changing a wheel ..................... 174, 177
- tools
- removing/refi tting Wiper controls..............................98-100
Changing a wiper blade .................... 194
Changing bulbs..........................184-185
- rear lamps
- 3rd brake lamp
- number plate lamps Parking sensors .........................154-155
Towbar .............................................. 197
Towing .............................................. 196 Remote control key........................78-81
- opening/closing
- anti-theft protection
- starting
- battery
Accessories ...............................199-200
Roof bars .......................................... 198
Panoramic sunroof ............................. 90
Fuel tank ........................................91-92 Door mirrors ...................................75-76
Doors .............................................86-88
- opening/closing
- central locking
- emergency release
Alarm .............................................82-83
Electric windows ............................84-85 Lighting controls ............................93-96
Directional lighting .............................. 97
Headlamp height adjustment .........96-97
Changing bulbs..........................179-181
- front lamps
- foglamps
- direction indicator repeaters
Braking assistance ........................... 130
Trajectory control .............................. 131
Tyre under-infl ation detection ........... 129
Tyre pressures .................................. 227

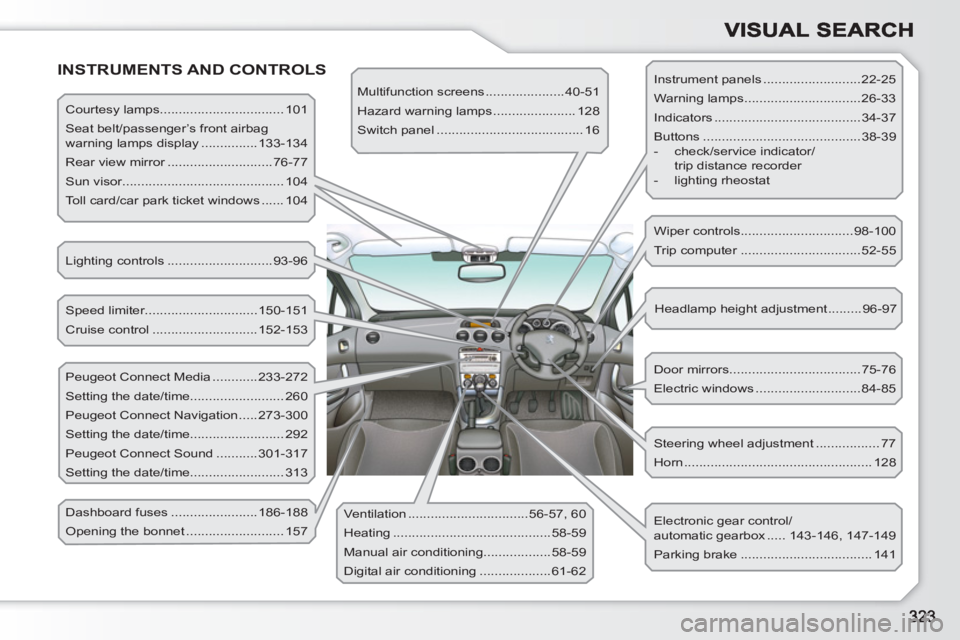

Page 325 of 336
INSTRUMENTS AND CONTROLS
Courtesy lamps................................. 101
Seat belt/passenger’s front airbag
warning lamps display ...............133-134
Rear view mirror ............................76-77
Sun visor........................................... 104
Toll card/car park ticket windows ...... 104
Lighting controls ............................93-96
Speed limiter..............................150-151
Cruise control ............................152-153
Peugeot Connect Media ............233-272
Setting the date/time......................... 260
Peugeot Connect Navigation .....273-300
Setting the date/time......................... 292
Peugeot Connect Sound ...........301-317
Setting the date/time......................... 313
Dashboard fuses .......................186-188
Opening the bonnet .......................... 157 Ventilation ................................56-57, 60
Heating ..........................................58-59
Manual air conditioning..................58-59
Digital air conditioning ...................61-62 Multifunction screens .....................40-51
Hazard warning lamps ...................... 128
Switch panel ....................................... 16
Steering wheel adjustment ................. 77
Horn .................................................. 128 Door mirrors ...................................75-76
Electric windows ............................84-85 Headlamp height adjustment .........96-97 Wiper controls..............................98-100
Trip computer ................................52-55
Electronic gear control/
automatic gearbox ..... 143-146, 147-149
Parking brake ................................... 141 Instrument panels ..........................22-25
Warning lamps ...............................26-33
Indicators .......................................34-37
Buttons ..........................................38-39
- check/service indicator/
trip distance recorder
- lighting rheostat

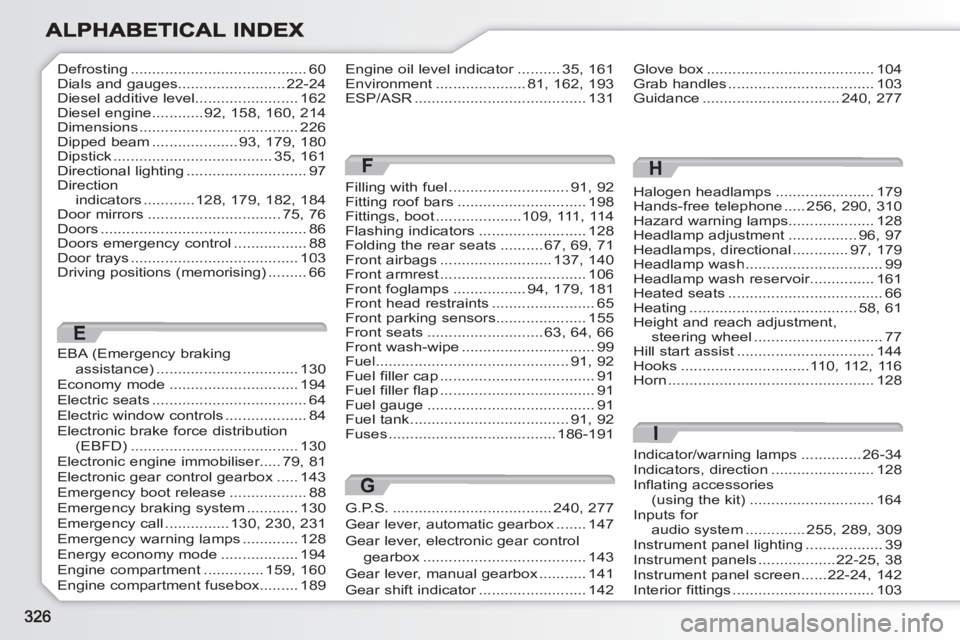

Page 328 of 336
Halogen headlamps.......................179Hands-free telephone.....256,290,310Hazard warning lamps....................128Headlamp adjustment................96,97Headlamps, directional.............97,179Headlamp wash ................................99Headlamp wash reservoir...............161Heated seats ....................................66Heating.......................................58, 61Height and reach adjustment,steering wheel..............................77Hill start assist ................................144Hooks ..............................110,112,116Horn ................................................128
H
EBA (Emergency braking assistance).................................130Economy mode..............................194Electric seats ....................................64Electric window controls...................84Electronic brake force distribution(EBFD).......................................130Electronic engine immobiliser.....79,81Electronic gear control gearbox.....143Emergency boot release ..................88Emergency braking system............130Emergency call ...............130,230,231Emergency warning lamps.............128Energy economy mode ..................194Engine compartment..............159,160Engine compartment fusebox.........189
F
Filling with fuel............................91, 92Fitting roof bars..............................198Fittings, boot....................109,111, 114Flashing indicators.........................128Folding the rear seats..........67, 69, 71Front airbags..........................137, 140Front armrest..................................106Front foglamps.................94,179,181Front head restraints........................65Front parking sensors.....................155Front seats...........................63, 64, 66Front wash-wipe...............................99Fuel.............................................91, 92Fuel filler cap....................................91Fuel filler flap....................................91Fuel gauge.......................................91Fuel tank.....................................91, 92Fuses.......................................186-191
Glove box .......................................104Grab handles..................................103Guidance ................................240,277
Defrosting .........................................60Dials and gauges.........................22-24Diesel additive level........................162Diesel engine ............92, 158,160, 214Dimensions .....................................226Dipped beam ....................93,179,180Dipstick.....................................35,161Directional lighting ............................97Direction indicators............128, 179,182,184Door mirrors...............................75,76Doors ................................................86Doors emergency control .................88Door trays .......................................103Driving positions (memorising) .........66
Engine oil level indicator..........r35, 161Environment.....................81, 162, 193ESP/ASR ........................................131
E
G
G.P.S......................................240, 277
Gear lever, automatic gearbox.......147
Gear lever, electronic gear control
gearbox ......................................143
Gear lever, manual gearbox...........141
Gear shift indicator.........................r142
I
Indicator/warning lamps..............26-34Indicators, direction........................128Inflating accessories (using the kit).............................164Inputs for audio system..............255,289,309Instrument panel lighting ..................39Instrument panels..................22-25,38Instrument panel screen......22-24,142Interior fittings.................................103
