2010 MITSUBISHI LANCER EVOLUTION Owners Manual

9-4 Specifications
9

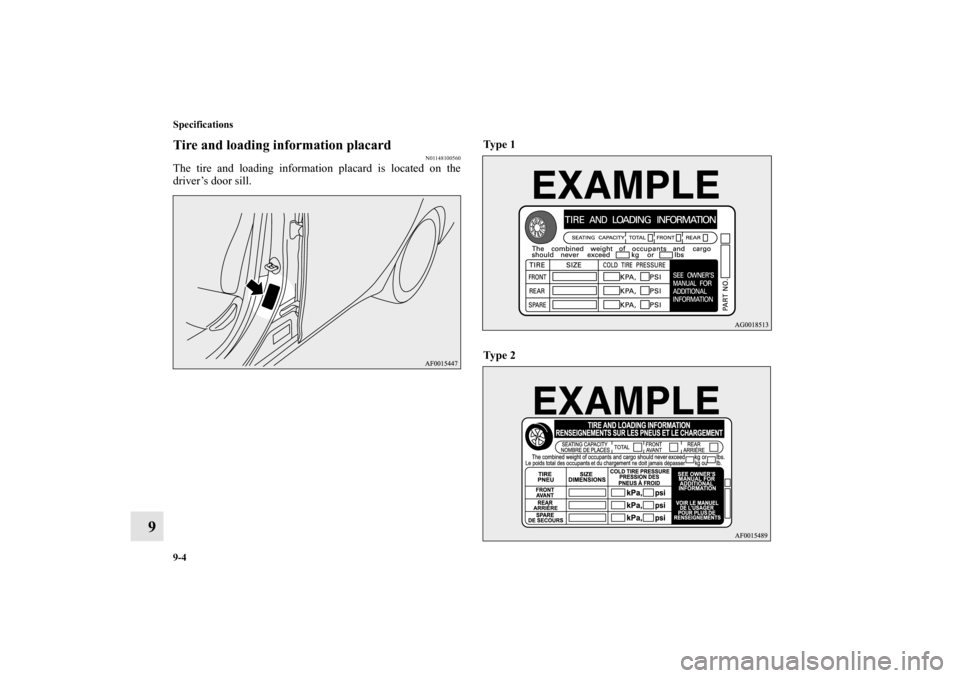

Tire and loading information placard
N01148100560
The tire and loading information placard is located on the
driver’s door sill. Ty p e 1

Ty p e 2
BK0105501US.book 4 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Specifications
9-5
9
Certification label
N01148200213
The certification label (A) is located on the driver’s door sill.
Vehicle dimensions
N01147500352
Overall length 177.0 in (4,495 mm)Overall width 71.3 in (1,810 mm) Overall height 58.3 in (1,480 mm)Wheel base 104.3 in (2,650 mm)
BK0105501US.book 5 ページ ２００９年８月１０日　月曜日　午前１０時３２分

9-6 Specifications

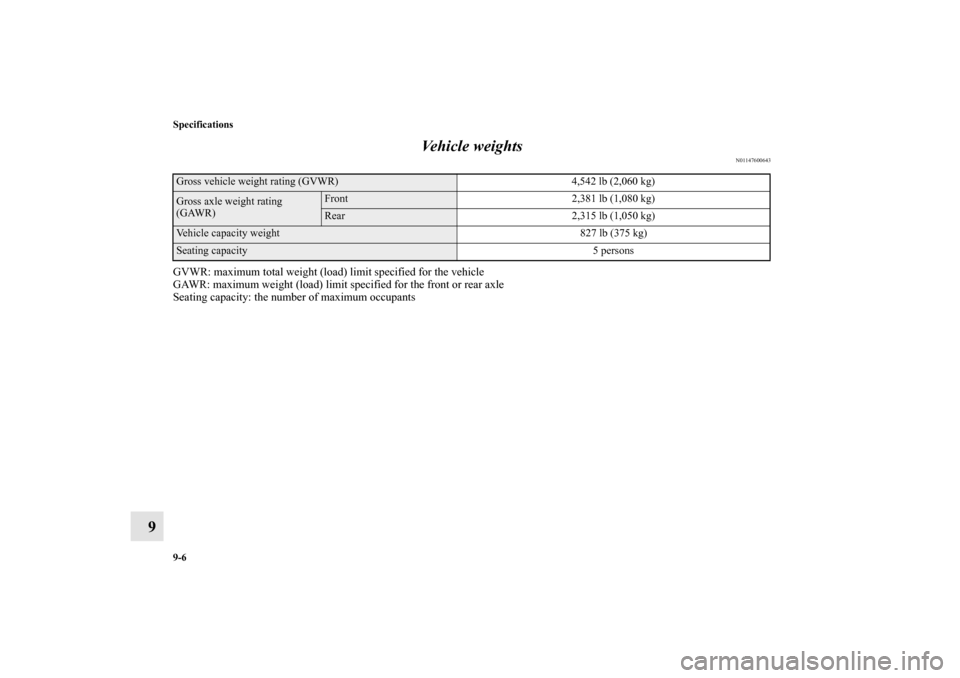

9Vehicle weights
N01147600643
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupantsGross vehicle weight rating (GVWR) 4,542 lb (2,060 kg)Gross axle weight rating
(GAWR)
Front 2,381 lb (1,080 kg)Rear 2,315 lb (1,050 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 personsBK0105501US.book 6 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Specifications
9-7
9 Engine specifications
N01147700413
NOTE

At high altitude locations, the idle speed may be higher than the idle speed described in the vehicle emission control informa-
tion label. This is done in order to stabilize the idle speed when the power steering system and other systems operate. It does
not indicate a malfunction.
Engine model 4B11Engine displacement 121.9 CID (1,998 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm)Stroke 3.39 in (86.0 mm)Compression ratio 9.0Thermostat valve opening temperature 180 °F (82 °C)Spark plugs
NGK ILKR8E6
Spark plug gap .020 to .023 in (0.5 to 0.6 mm)Firing order 1-3-4-2Ignition timing, idle speed, mixture Refer to the “Vehicle emission control information label” inside panel of the engine hood.
BK0105501US.book 7 ページ ２００９年８月１０日　月曜日　午前１０時３２分

9-8 Specifications
9Battery
N01147800212
Battery is a 12 volt type.NOTE

This is a Valve Regulated Lead Acid type battery, which is
a special type of sealed battery.

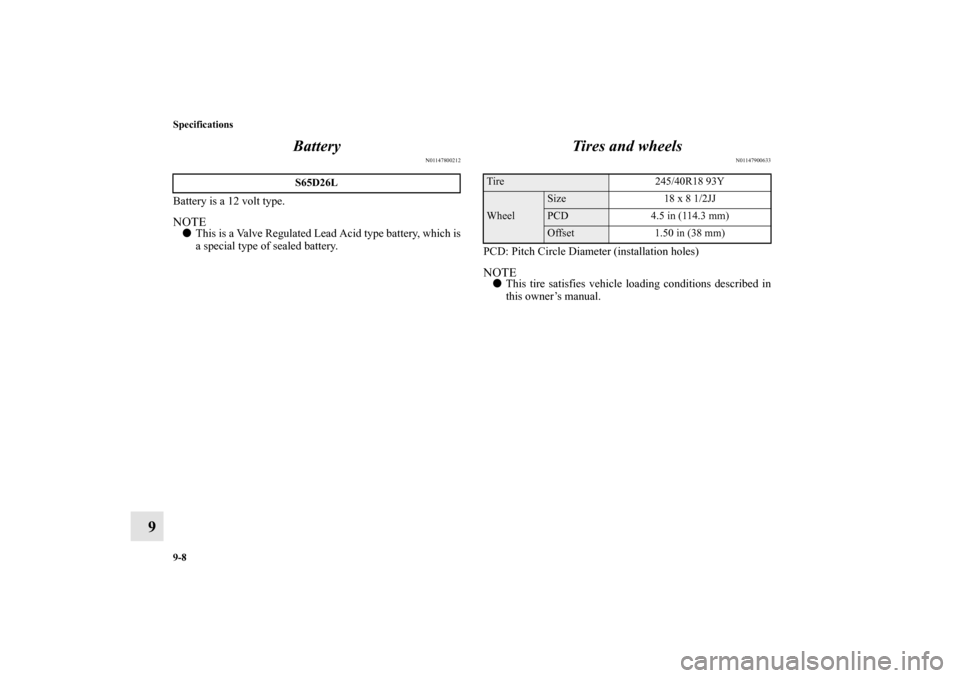

Tires and wheels
N01147900633
PCD: Pitch Circle Diameter (installation holes)NOTE

This tire satisfies vehicle loading conditions described in
this owner’s manual.
S65D26L
Tire 245/40R18 93YWheel
Size 18 x 8 1/2JJPCD 4.5 in (114.3 mm)Offset 1.50 in (38 mm)
BK0105501US.book 8 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Specifications
9-9
9 Refill capacities
N01148000862
Item
Capacity
Lubricants
Fuel (approximate) 14.5 gal (55.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 5.0 qt (4.8 L) Engine oils displaying the ILSAC certification mark
(“starburst” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)Oil cooler .53 qt (0.5 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Twin Clutch SST8.0 qt (7.6 L) {Include .53 qt
(0.5 L) in oil cooler}DiaQueen SSTF-IManual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-80Transfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC Control fluid1.57 qt (1.0 L) {Includes
hydraulic piping}MITSUBISHI MOTORS Genuine ATF SP IIIAY C f l u i d
For differential
mechanism.58 qt (0.55 L) DiaQueen LSD gear oilFor torque transfer
mechanism.63 qt (0.6 L) MITSUBISHI MOTORS Genuine ATF SP III
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant7.9 qt (7.5 L) {Includes .63 qt
(0.65 L) in reserve tank}Long Life Antifreeze Coolant or an equivalentWasher fluid 4.3 qt (4.0 L) —
BK0105501US.book 9 ページ ２００９年８月１０日　月曜日　午前１０時３２分

9-10 Specifications
9

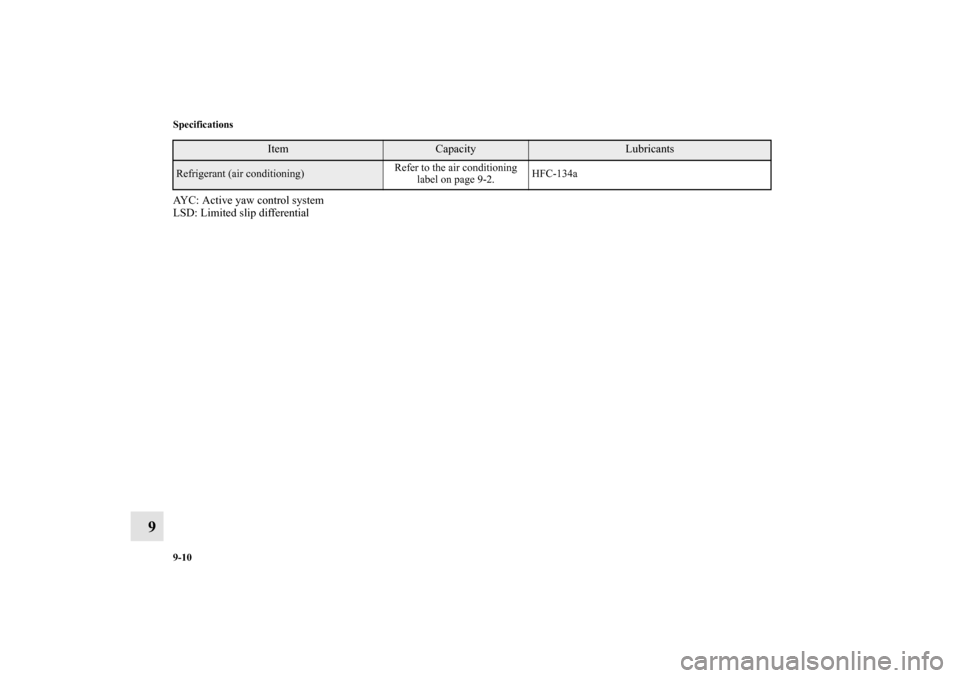

AYC: Active yaw control system
LSD: Limited slip differentialRefrigerant (air conditioning)Refer to the air conditioning
label on page 9-2.HFC-134a
Item
Capacity
Lubricants
BK0105501US.book 10 ページ ２００９年８月１０日　月曜日　午前１０時３２分
