2010 MITSUBISHI LANCER EVOLUTION Owners Manual

5-96 Comfort controls
5Digital clock
(if so equipped)
N00755000049
The time is displayed when the ignition switch is in the “ON”
or “ACC” position.To set the time1. Press and hold the CLOCK button and the clock display
flashes.
2. Press the various buttons to adjust.3. When the time is set, press the DISP button to stop the
clock display from flashing. After time signal setting,
however, the clock display automatically stops flashing.
NOTE

Reset the time after the battery terminals are disconnected
and reconnected.


Seconds do not appear in the clock display, but after
adjusting the “Minutes” setting and time signal setting,
the clock begins to operate from 0 seconds.
H — “Hour” setting
Press this button to fast-forward the “hours”.
M — “Minutes” setting
Press this button to fast-forward the “minutes”.
CLOCK DISP H M :00
:00 — Time signal setting
At the same time the button is pressed, the fol-
lowing modifications are made.
10:00 - 10:29 ......Change to 10:00
10:30 - 10:59 ......Change to 11:00
BK0105501US.book 96 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Comfort controls
5-97
5 General information about your radio
N00733900338
Your vehicle’s radio receives both AM and FM stations.
The quality of your reception is affected by distance, obstacles,
and signal interference.Signal transmissionFM signals do not follow the earth surface nor are they
reflected by the upper atmosphere. For this reason, FM broad-
casts cannot be received over long distances. AM signals fol-
low the earth’s surface and are reflected by the upper
atmosphere. For this reason, AM broadcasts can be received
over longer distances.
Weak reception (fading)Because of the limited range of FM signals and the way FM
waves transmit, you may experience weak or fading FM recep-
tion. When the broadcast is blocked by mountains or similar
obstructions, reception can be disturbed.ReflectionThe reason why one can hear FM but not AM in parking
garages, under bridges etc., is that FM signals, unlike AM sig-
nals, are reflected by solid objects such as buildings, etc.
Because FM signals are easily reflected by buildings, this can
also cause reception disturbances.
The direct signal from the broadcast station reaches the antenna
slightly before the reflected signal. This time difference may
cause some reception disturbance or flutter.
This problem occurs primarily in urban areas.
FM AM
25 to 40 mile radius
(40 to 64 km)100 mile radius
(160 km)
BK0105501US.book 97 ページ ２００９年８月１０日　月曜日　午前１０時３２分

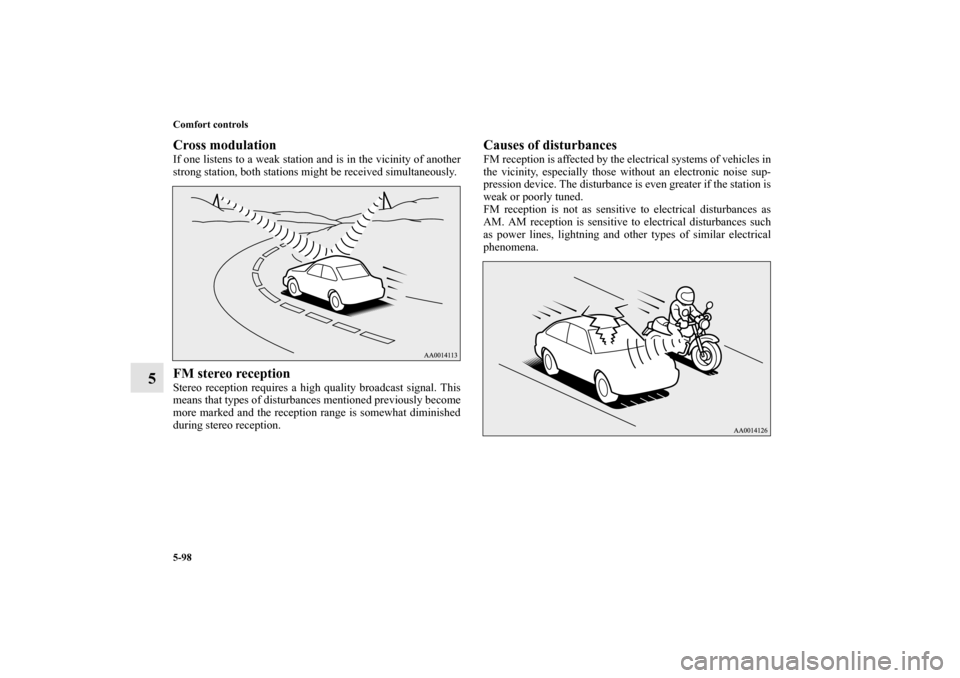

5-98 Comfort controls
5
Cross modulationIf one listens to a weak station and is in the vicinity of another
strong station, both stations might be received simultaneously.FM stereo receptionStereo reception requires a high quality broadcast signal. This
means that types of disturbances mentioned previously become
more marked and the reception range is somewhat diminished
during stereo reception.
Causes of disturbancesFM reception is affected by the electrical systems of vehicles in
the vicinity, especially those without an electronic noise sup-
pression device. The disturbance is even greater if the station is
weak or poorly tuned.
FM reception is not as sensitive to electrical disturbances as
AM. AM reception is sensitive to electrical disturbances such
as power lines, lightning and other types of similar electrical
phenomena.
BK0105501US.book 98 ページ ２００９年８月１０日　月曜日　午前１０時３２分

6
For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2
Jump-starting the engine . . . . . . . . . . . . . . . . . . . .6- 2
Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 6
Tools and jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 7
How to change a tire . . . . . . . . . . . . . . . . . . . . . . .6- 9
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 18
Operation under adverse driving conditions . . . . .6- 20
BK0105501US.book 1 ページ ２００９年８月１０日　月曜日　午前１０時３２分

6-2 For emergencies
6If the vehicle breaks down
N00836300073
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly, with
the hazard lights flashing, until you come to a safe stopping
place. Keep the flashers flashing. If the engine stops/fails If the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.

The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.


Since there is no power steering assist, the steering wheel
will be hard to turn. Turning the steering wheel requires
more effort than usual.
When the engine fails at the intersection Get help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe zone.
Jump-starting the engine
N00836400670
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables. NOTE

Although the battery in your vehicle is located in the trunk
(refer to page 7-18), use the joint terminal in the engine
compartment to jump start the engine.
1. Take off any metal jewelry such as watch bands or brace-
lets that might make an accidental electrical contact.
WA R N I N G
!

Follow the procedure described in this section when
using the jump cable to start the engine. Failure to
follow these instructions can cause serious injury or
death.CAUTION
!

Do not try to start your vehicle by pushing or tow-
ing. Vehicles with Twin Clutch SST cannot be
started this way. Pushing or towing a vehicle that
has a manual transaxle may overheat and damage
the catalytic converter. Also, there is more risk of an
accident when a vehicle is being pushed or towed.
BK0105501US.book 2 ページ ２００９年８月１０日　月曜日　午前１０時３２分

For emergencies
6-3
6
2. Position the vehicles close enough together so that the
jumper cables can reach, but be sure the vehicles aren’t
touching each other.
3. You could be injured if the vehicles move. Set the parking
brake firmly on each vehicle. Put an automatic transaxle,
Twin Clutch SST or CVT in “P” (PARK) or a manual
transaxle in “N” (Neutral). Turn the ignition switch to the
“LOCK” position. NOTE

Turn off all lights, heater, and other electrical loads. This
will avoid sparks and help save both batteries. 4. Remove the joint terminal cover (A).
CAUTION
!

Check the other vehicle. It must have a 12-volt bat-
tery. If the other system isn’t 12-volt, both systems
can be damaged.WA R N I N G
!

Turn the ignition switch to the “LOCK” position on
both vehicles. Make sure that the cables or your
clothes cannot be caught by the fan or drive belt.
Personal injury could result.
BK0105501US.book 3 ページ ２００９年８月１０日　月曜日　午前１０時３２分

6-4 For emergencies
6
5. Connect one end of one jumper cable to the positive (+)
terminal of the joint terminal, and the other end to the pos-
itive (+) terminal of the booster battery.NOTE

Open the joint terminal cover before connecting the
jumper cable to the positive terminal of the joint terminal.


Use the proper cables suitable for the battery size.
Otherwise heat damage to the cables could result.


Check the jumper cables for damage and corrosion before
use.6. Connect one end of the other jumper cable to the negative
(-) terminal of the booster battery, and the other end to the
engine block of the vehicle with the low battery.
7. Start the engine in the vehicle providing the boost. Let the
engine idle a few minutes, then start the engine in the
vehicle with the low battery.
Booster
battery
Joint terminal
WA R N I N G
!

Be sure to follow the proper order when connecting
the batteries, of: →→→.


Make sure that the connection is made to the
engine properly. If the connection is directly made to
the negative side of the battery, the flammable gases
from inside the battery might catch fire and explode,
causing personal injury.


When connecting the jumper cable, do not connect
the positive (+) cable to the negative (-) terminal.
Otherwise sparks can make the battery explode.CAUTION
!

Make sure that the jumper cable will not be caught
in the cooling fans or other moving parts in the
engine compartment.
BK0105501US.book 4 ページ ２００９年８月１０日　月曜日　午前１０時３２分

For emergencies
6-5
6
8. After the engine is started, disconnect the cables in the
reverse order from the way you connected them.
As your vehicle has anti-lock brakesIf you drive your vehicle with a low battery charge, after the
engine has been started by using jumper cables, the engine may
misfire. This can cause the anti-lock braking system warning
light to blink on and off. This is only due to the low battery
voltage. It is not a problem with the brake system. If this hap-
pens, fully charge the battery and ensure the charging system is
operating properly.
WA R N I N G
!

Be sure to have an authorized Mitsubishi Motors
dealer charge the battery. Do not charge the battery
yourself.
Flammable gases may leak from the battery and
explode.


Electrolyte (battery acid) is corrosive diluted sulfu-
ric acid. If electrolyte comes in contact with your
hands, eyes, clothes, or the painted surface of your
vehicle, thoroughly flush with water. If electrolyte
gets in your eyes, flush them immediately and thor-
oughly with water, and get prompt medical atten-
tion.


Always wear protective clothing and goggles when
working near the battery.


Keep the battery out of the reach of children.


Never remove the battery label, upper cover,
exhaust tube, or pipe. Flammable gases may leak
and explode.


This vehicle is equipped with a maintenance-free
battery located in the trunk.
To assure proper battery installation and venting of
flammable gases, the battery must be serviced
and/or replaced by an authorized Mitsubishi dealer
only.
