2010 MITSUBISHI LANCER EVOLUTION Owners Manual

7-56 Vehicle care and maintenance
7
3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (except for
vehicles with high intensity discharge headlights)
N00917300411
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.*- Front of the vehicle
BK0105501US.book 56 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-57
7
2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0105501US.book 57 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-58 Vehicle care and maintenance
7
4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (for vehi-
cles with high intensity discharge headlights)
N00917300466
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), clip (B) and screw (C) to turn up
the cover (D).
BK0105501US.book 58 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-59
7
3. Turn the socket (E) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
BK0105501US.book 59 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-60 Vehicle care and maintenance
7

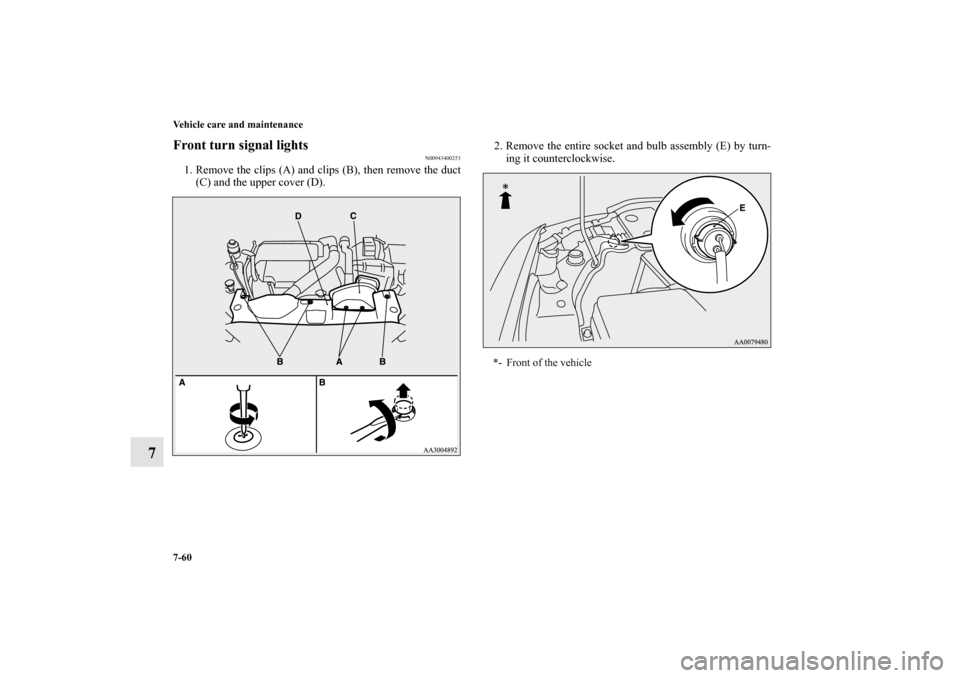

Front turn signal lights
N00943400253
1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.
*- Front of the vehicle
BK0105501US.book 60 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-61
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front fog lights
N00943600646
1. Remove the clips (A) and clips (B), then turn up the cover
(C).
BK0105501US.book 61 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-62 Vehicle care and maintenance
7
2. While pressing the tab (D), pull out the socket (E).
3. Turn the bulb (F) counterclockwise to remove it.4. To install the bulb, perform the removal steps in reverse.
CAUTION
!

Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0105501US.book 62 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-63
7

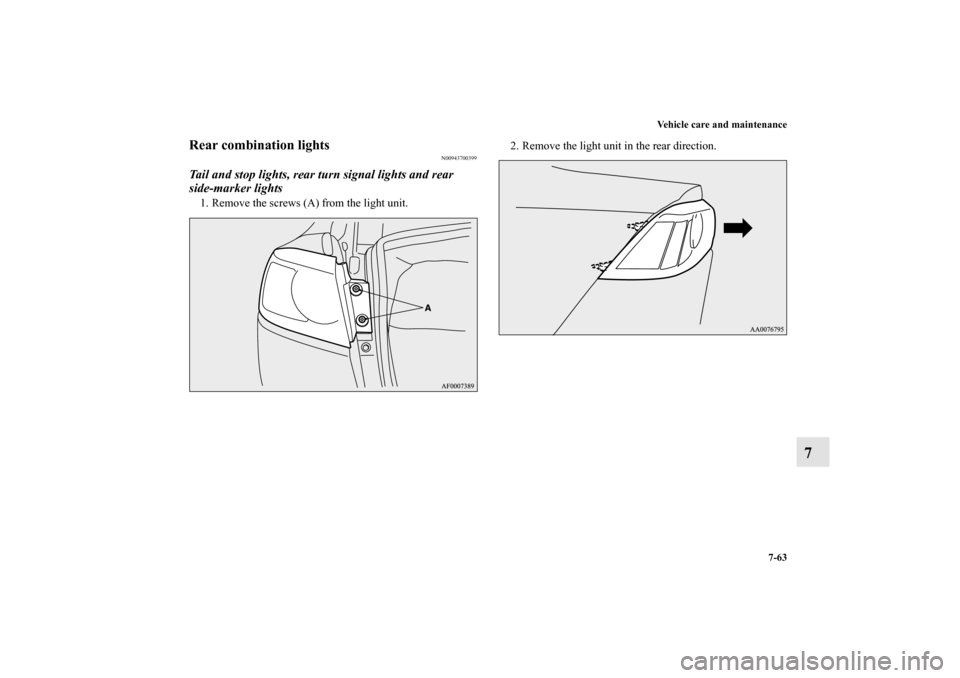

Rear combination lights
N00943700399
Tail and stop lights, rear turn signal lights and rear
side-marker lights1. Remove the screws (A) from the light unit.2. Remove the light unit in the rear direction.
BK0105501US.book 63 ページ ２００９年８月１０日　月曜日　午前１０時３２分
