2010 CHRYSLER PT CRUISER Owners Manual

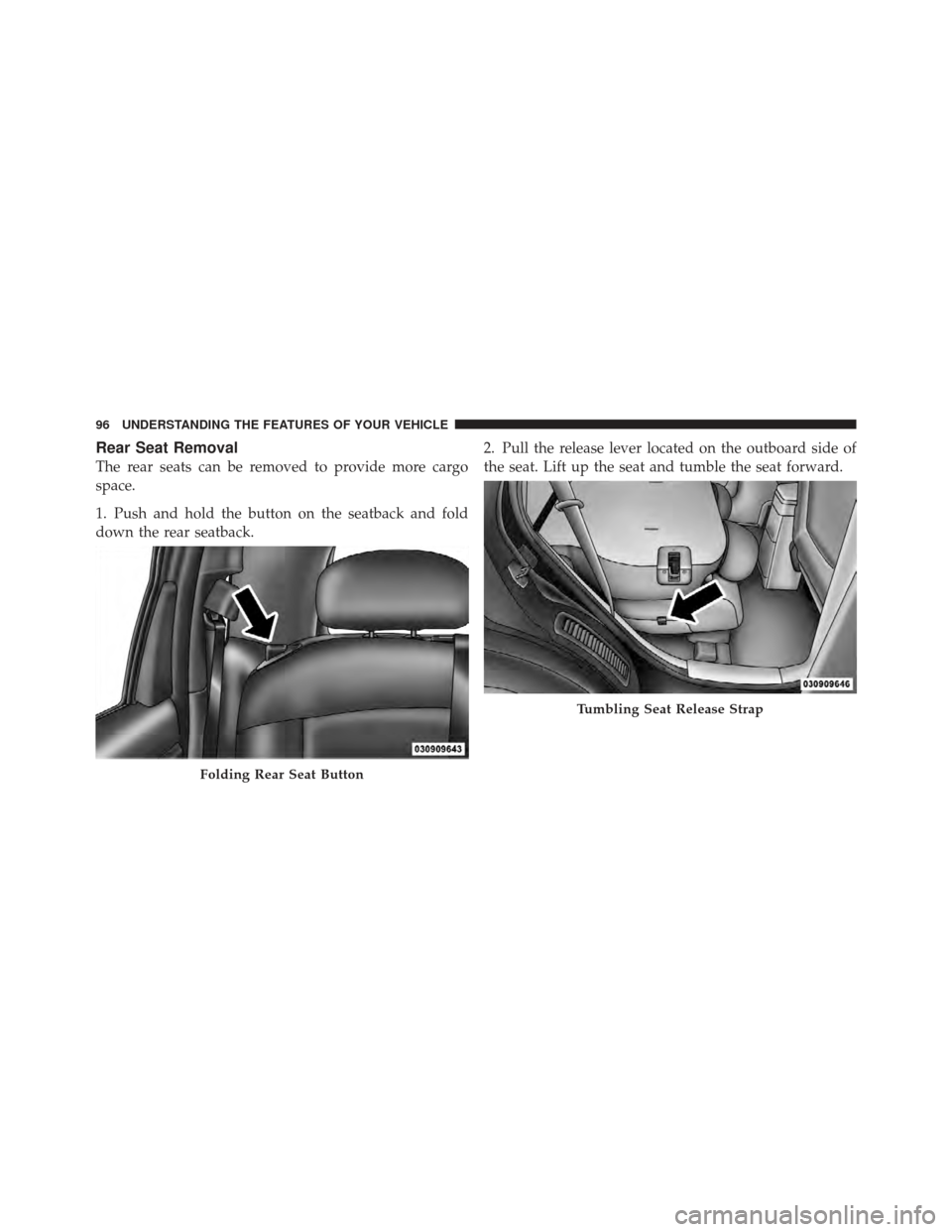

Rear Seat Removal
The rear seats can be removed to provide more cargo
space.
1. Push and hold the button on the seatback and fold
down the rear seatback.2. Pull the release lever located on the outboard side of
the seat. Lift up the seat and tumble the seat forward.
Folding Rear Seat Button
Tumbling Seat Release Strap
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

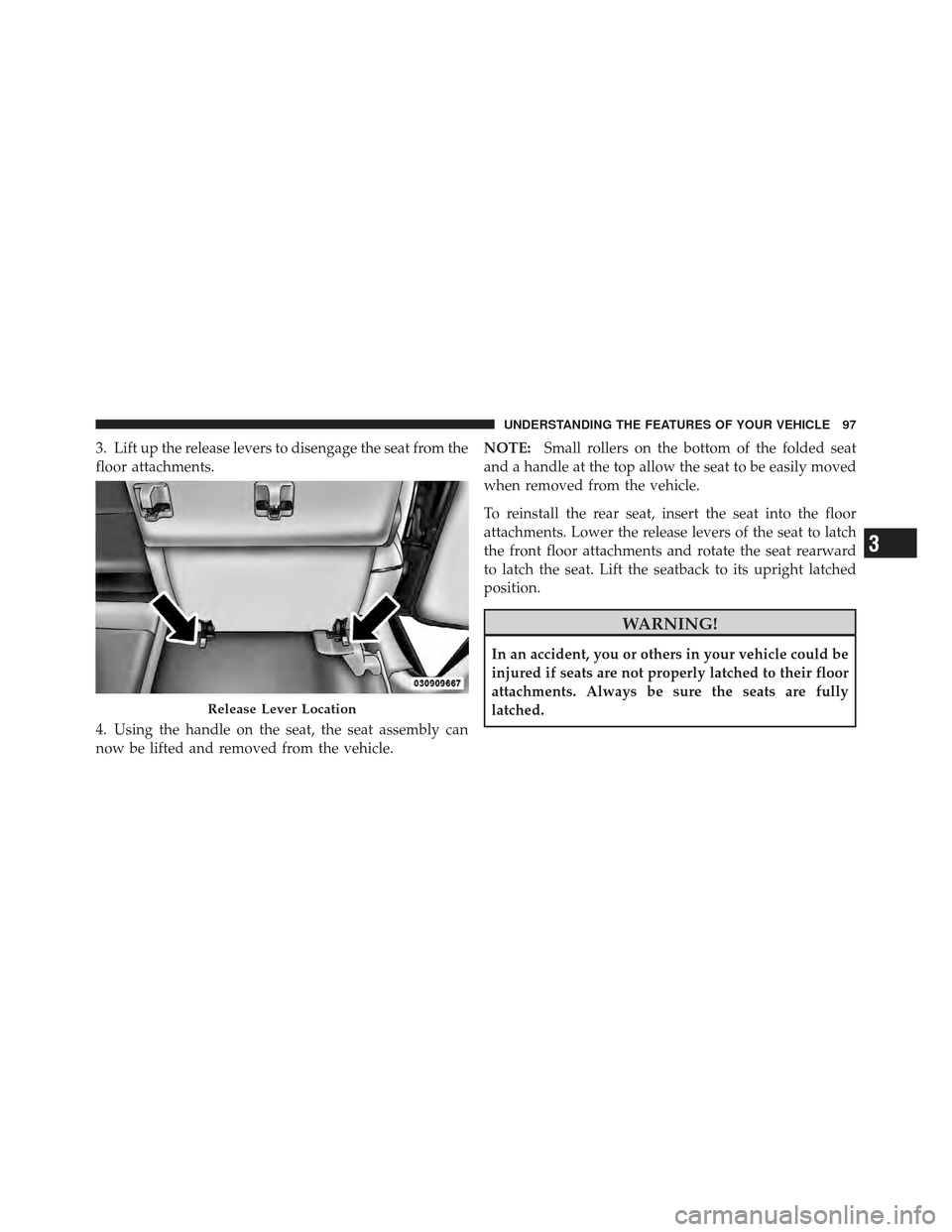

3. Lift up the release levers to disengage the seat from the
floor attachments.
4. Using the handle on the seat, the seat assembly can
now be lifted and removed from the vehicle.NOTE:
Small rollers on the bottom of the folded seat
and a handle at the top allow the seat to be easily moved
when removed from the vehicle.
To reinstall the rear seat, insert the seat into the floor
attachments. Lower the release levers of the seat to latch
the front floor attachments and rotate the seat rearward
to latch the seat. Lift the seatback to its upright latched
position.
WARNING!
In an accident, you or others in your vehicle could be
injured if seats are not properly latched to their floor
attachments. Always be sure the seats are fully
latched.
Release Lever Location
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

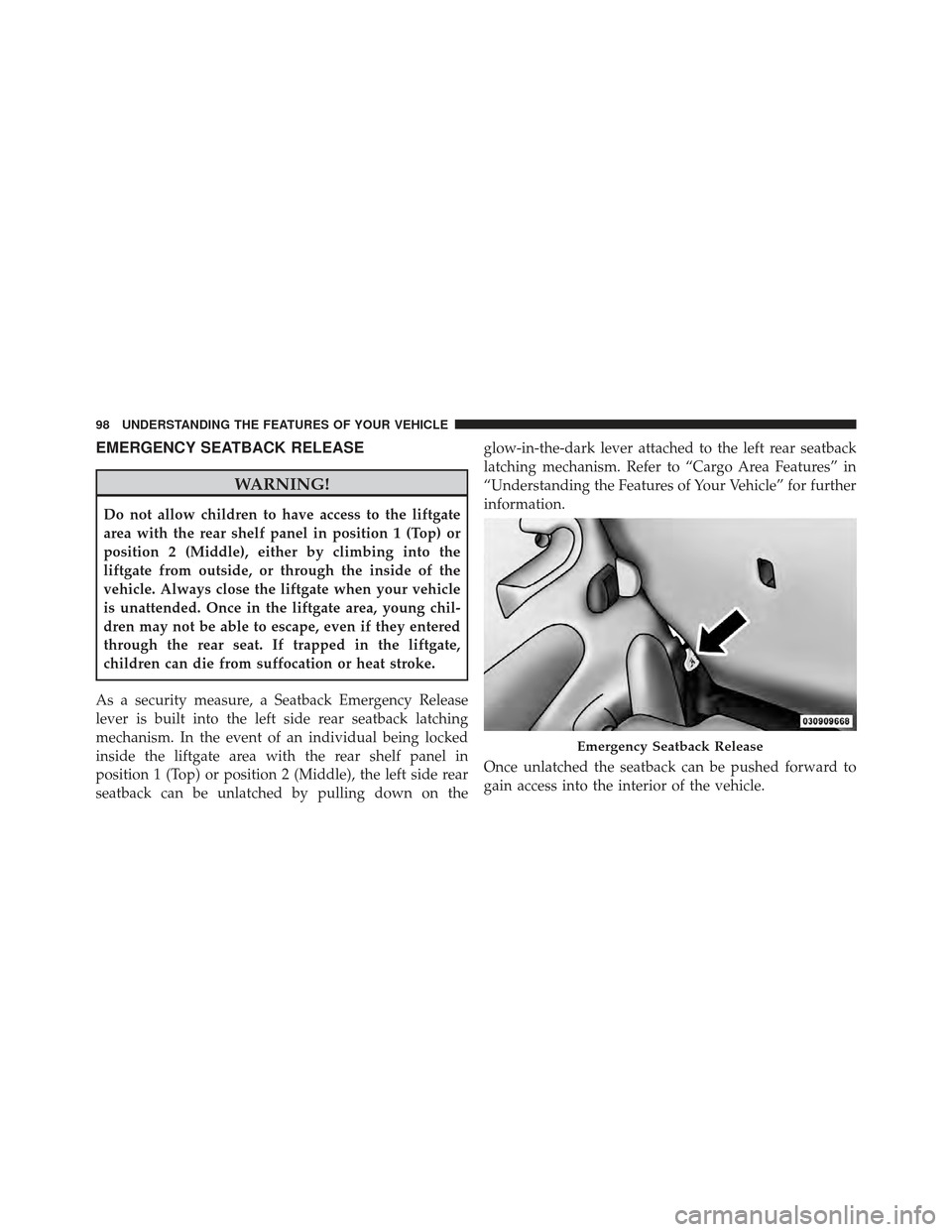

EMERGENCY SEATBACK RELEASE
WARNING!
Do not allow children to have access to the liftgate
area with the rear shelf panel in position 1 (Top) or
position 2 (Middle), either by climbing into the
liftgate from outside, or through the inside of the
vehicle. Always close the liftgate when your vehicle
is unattended. Once in the liftgate area, young chil-
dren may not be able to escape, even if they entered
through the rear seat. If trapped in the liftgate,
children can die from suffocation or heat stroke.
As a security measure, a Seatback Emergency Release
lever is built into the left side rear seatback latching
mechanism. In the event of an individual being locked
inside the liftgate area with the rear shelf panel in
position 1 (Top) or position 2 (Middle), the left side rear
seatback can be unlatched by pulling down on the glow-in-the-dark lever attached to the left rear seatback
latching mechanism. Refer to “Cargo Area Features” in
“Understanding the Features of Your Vehicle” for further
information.
Once unlatched the seatback can be pushed forward to
gain access into the interior of the vehicle.
Emergency Seatback Release
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Make sure that the elastic loop is around the
emergency release handle at all times. If the handle is
pulled downward, entirely through the elastic loop, the
handle will not return to its original position and the
seatback may not operate properly.

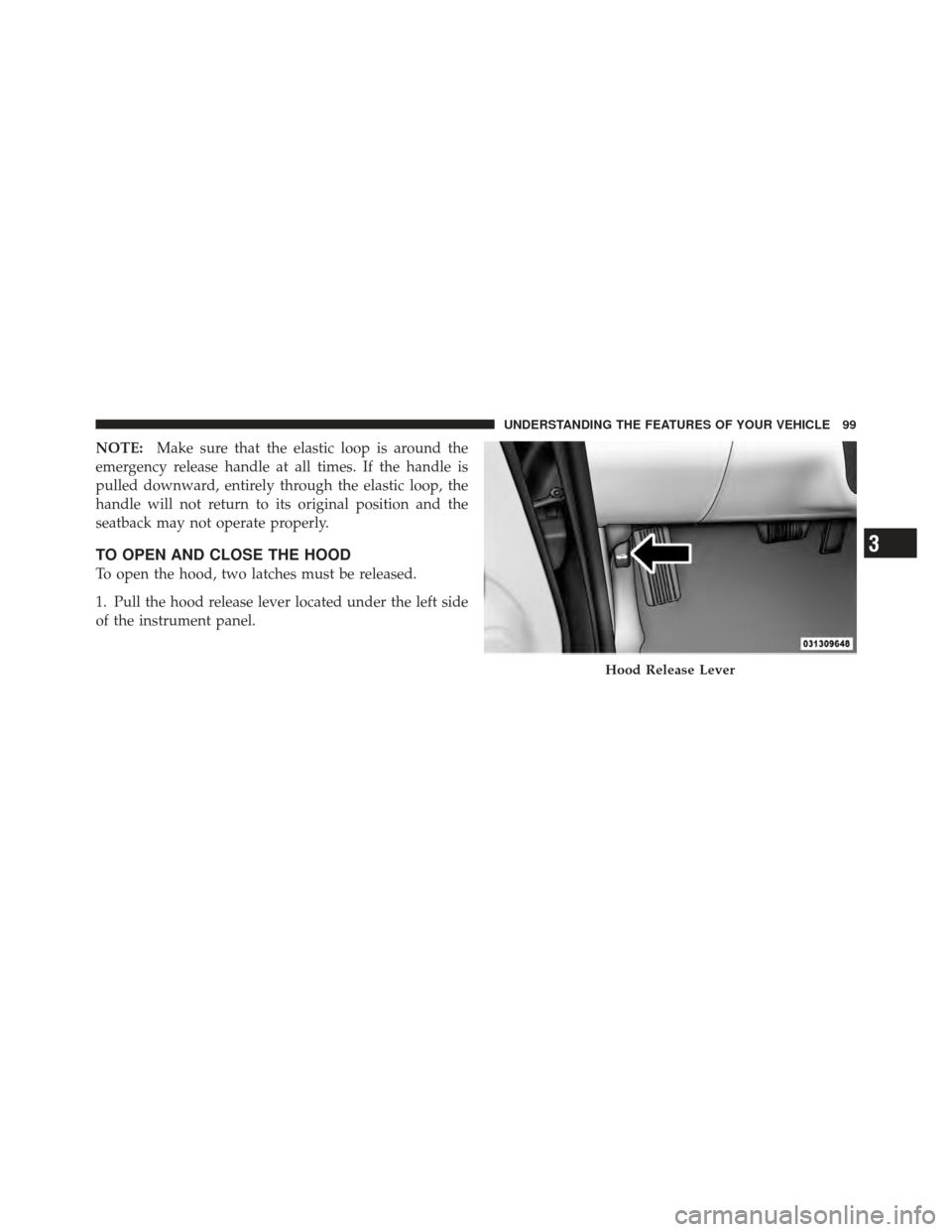

TO OPEN AND CLOSE THE HOOD
To open the hood, two latches must be released.
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

2.Move the safety latch, located under the front edge of
the hood, slightly to the right of center and raise the hood.
Use the hood prop rod clipped to the driver’s side of the
engine compartment to secure the hood in the open
position. Place the hood prop at the location stamped into
the inner hood surface.
CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approxi-
mately 8 in (20 cm) and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Safety Latch
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

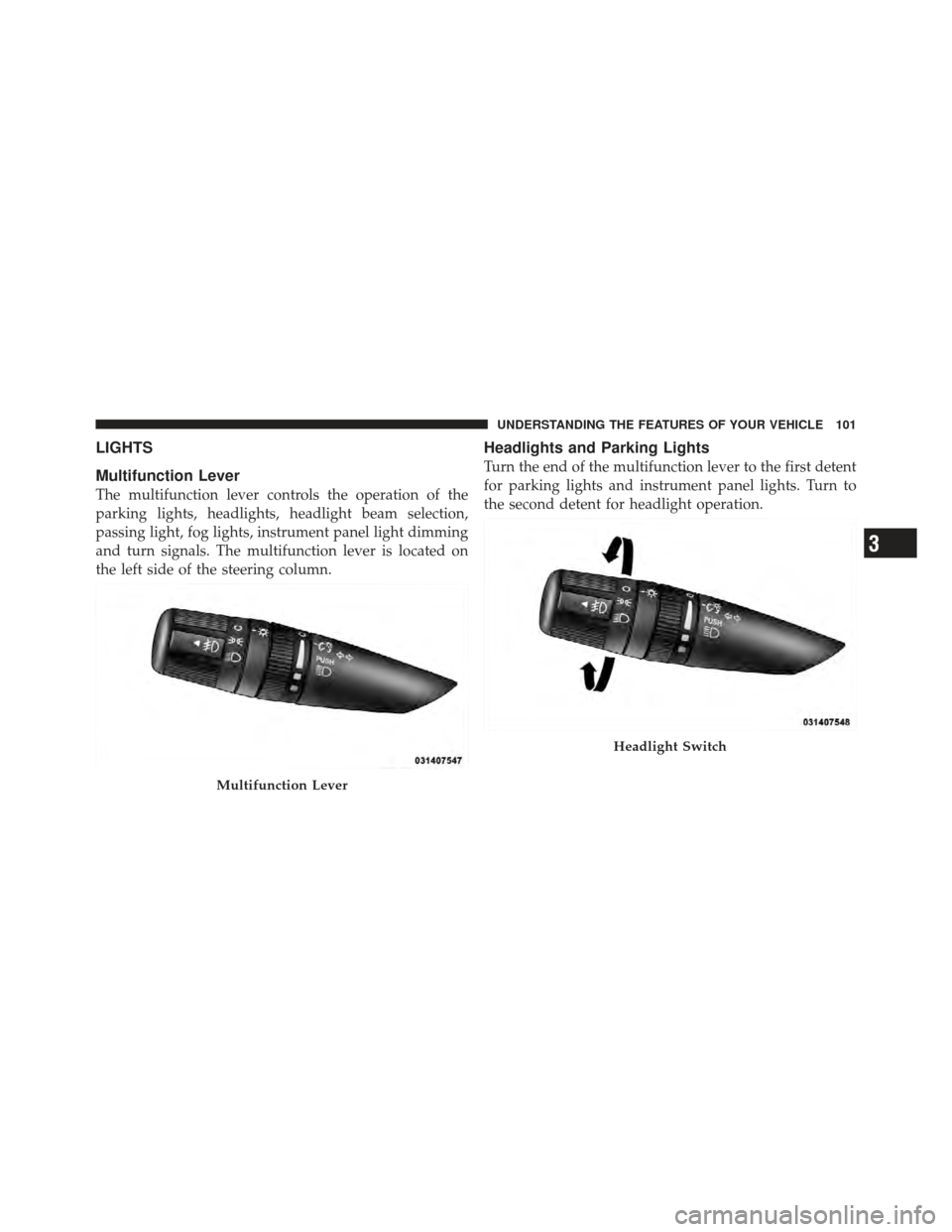

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
parking lights, headlights, headlight beam selection,
passing light, fog lights, instrument panel light dimming
and turn signals. The multifunction lever is located on
the left side of the steering column.
Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking lights and instrument panel lights. Turn to
the second detent for headlight operation.
Multifunction Lever
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.
NOTE:If the driver’s door is left open, and the head-
lights or parking lights are left on, a chime will sound.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on. Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
Dimmer Control
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beams. Pull the lever toward you
to switch the headlights back to low beams.
Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is in the multifunction
lever. To activate the front fog lights, turn on the
parking or low beam headlights and pull out the
end of the lever. NOTE:
The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
Fog Light Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103
