2010 CHRYSLER PT CRUISER Owners Manual

The lower storage area can be used for storing up to six
compact discs (CDs) and other miscellaneous items.
Storage Pockets
There are storage pockets located on each door trim
panel.
CONSOLE FEATURES
The console has two front cupholders, a removable coin
holder, 12 Volt power outlet and a front storage tray.
There are three additional cupholders; one is molded in
the center of the console to hold large cups, and the
others are in the rear of the console to serve passengers in
the rear seat. The floor console power outlet will also
operate a conventional cigar lighter unit (if equipped
with an optional Smoker’s Package).
CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.(Continued)
Lower Storage Bin
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION! (Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high-power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
REAR SHELF PANEL — IF EQUIPPED
The Rear Shelf Panel attaches to guides in the rear cargo
area. The rear shelf panel may be installed in one of five
different positions.NOTE:
The liftgate may be opened or closed with the
rear cargo shelf panel in position 1, position 2, position 3
or position 4.
WARNING!
•To avoid tipping, lock the shelf securely in all
positions.
•Do not drive this vehicle with the liftgate open, or
use the shelf as a seat.
•Failure to follow these warnings could result in
serious or fatal injury.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129

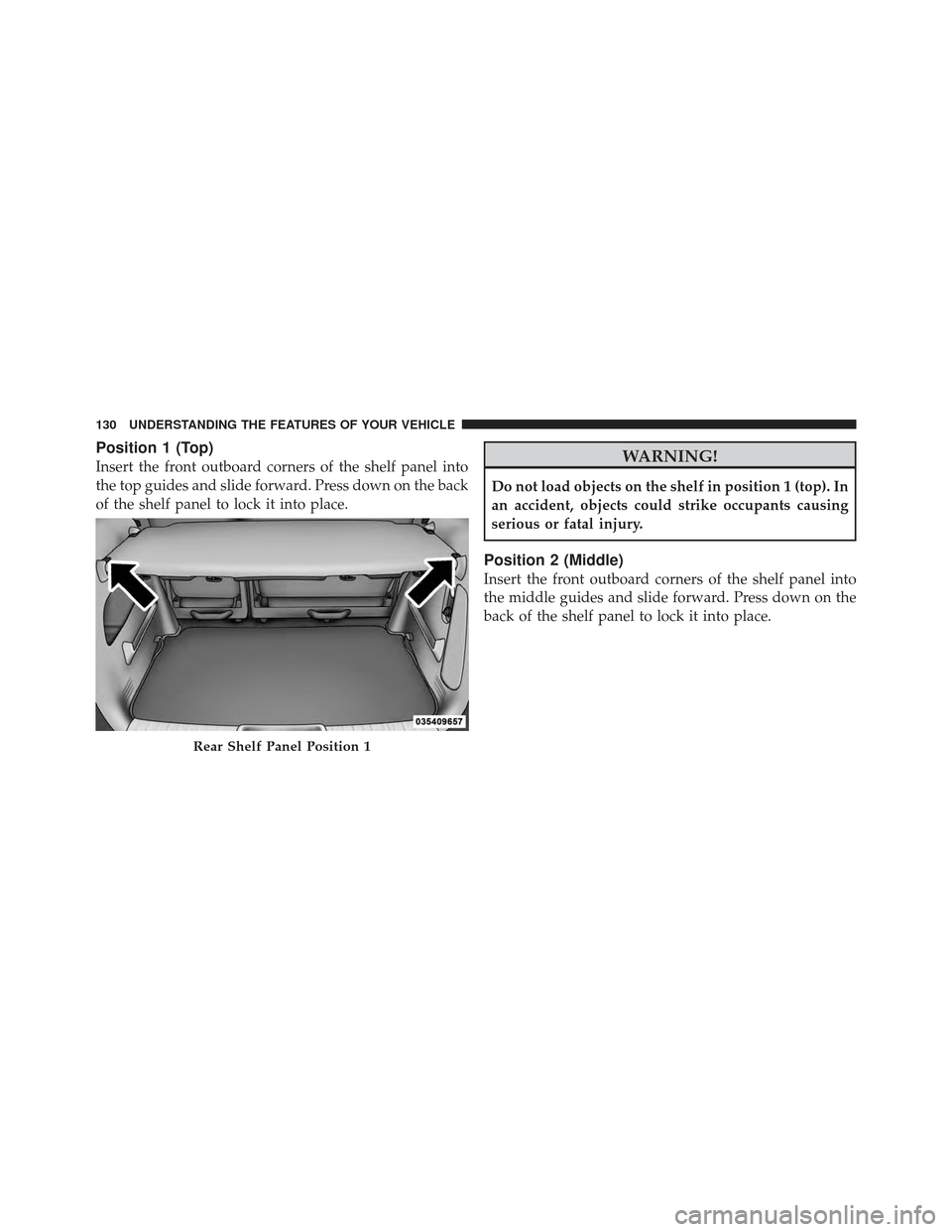

Position 1 (Top)
Insert the front outboard corners of the shelf panel into
the top guides and slide forward. Press down on the back
of the shelf panel to lock it into place.WARNING!
Do not load objects on the shelf in position 1 (top). In
an accident, objects could strike occupants causing
serious or fatal injury.
Position 2 (Middle)
Insert the front outboard corners of the shelf panel into
the middle guides and slide forward. Press down on the
back of the shelf panel to lock it into place.
Rear Shelf Panel Position 1
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

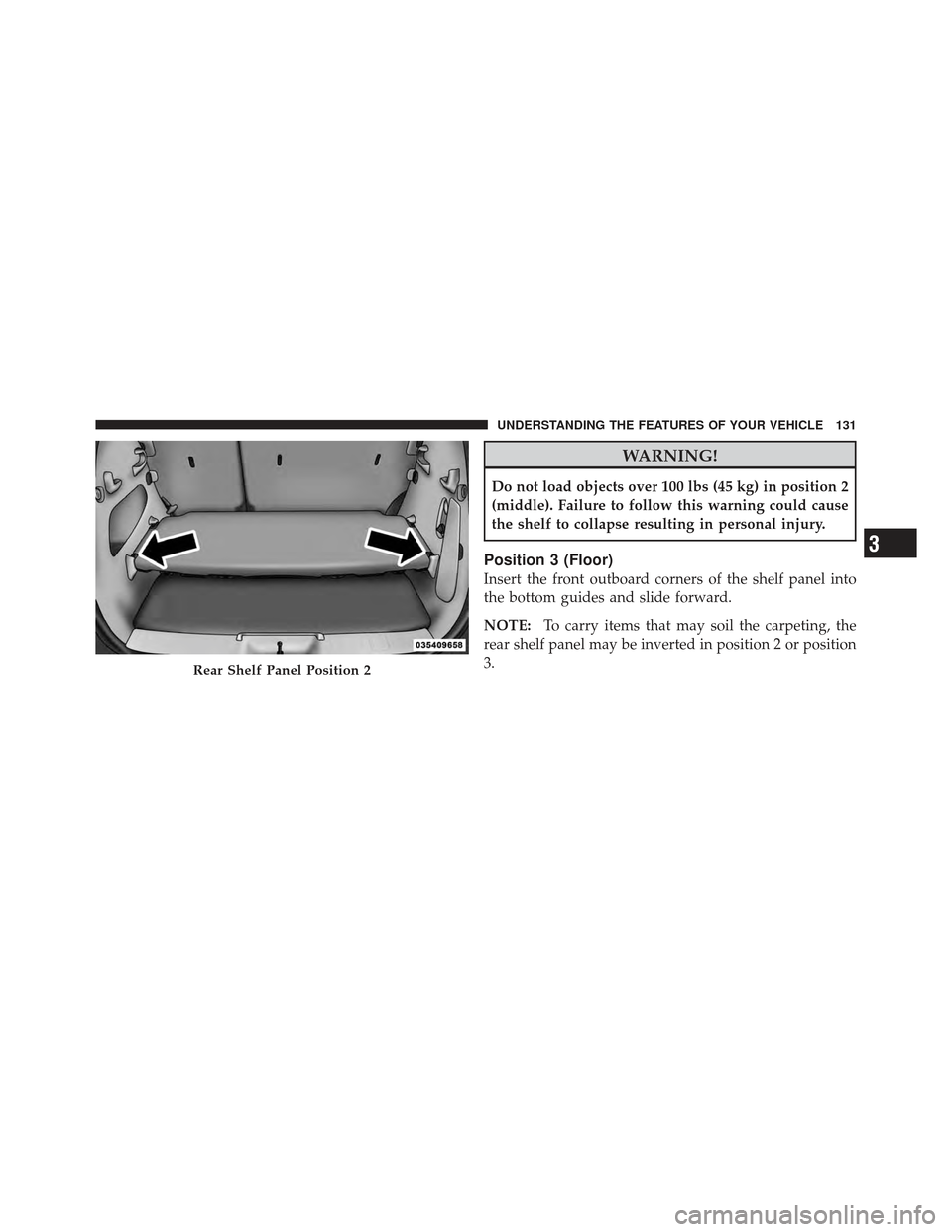

WARNING!
Do not load objects over 100 lbs (45 kg) in position 2
(middle). Failure to follow this warning could cause
the shelf to collapse resulting in personal injury.
Position 3 (Floor)
Insert the front outboard corners of the shelf panel into
the bottom guides and slide forward.
NOTE:To carry items that may soil the carpeting, the
rear shelf panel may be inverted in position 2 or position
3.
Rear Shelf Panel Position 2
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

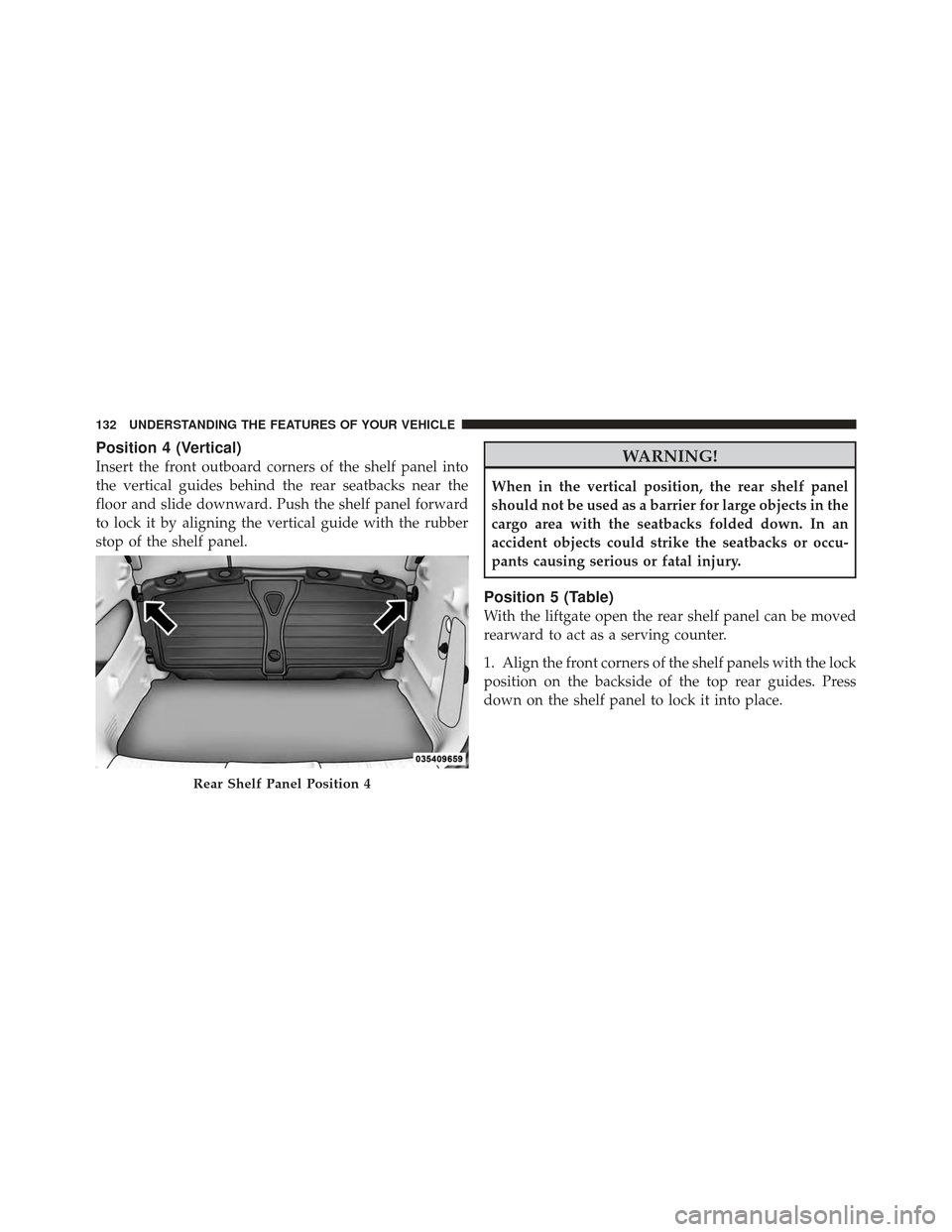

Position 4 (Vertical)
Insert the front outboard corners of the shelf panel into
the vertical guides behind the rear seatbacks near the
floor and slide downward. Push the shelf panel forward
to lock it by aligning the vertical guide with the rubber
stop of the shelf panel.WARNING!
When in the vertical position, the rear shelf panel
should not be used as a barrier for large objects in the
cargo area with the seatbacks folded down. In an
accident objects could strike the seatbacks or occu-
pants causing serious or fatal injury.
Position 5 (Table)
With the liftgate open the rear shelf panel can be moved
rearward to act as a serving counter.
1. Align the front corners of the shelf panels with the lock
position on the backside of the top rear guides. Press
down on the shelf panel to lock it into place.
Rear Shelf Panel Position 4
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

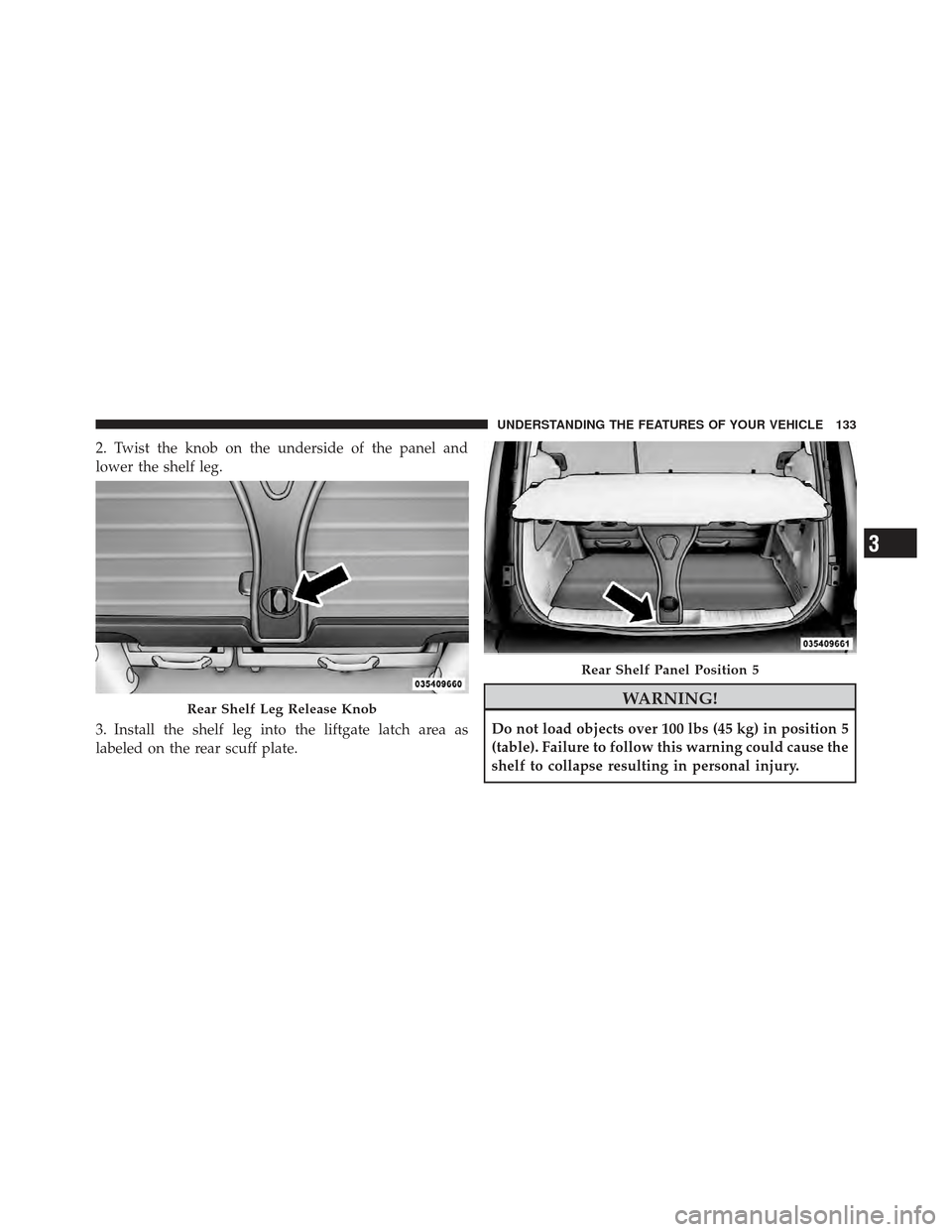

2. Twist the knob on the underside of the panel and
lower the shelf leg.
3. Install the shelf leg into the liftgate latch area as
labeled on the rear scuff plate.
WARNING!
Do not load objects over 100 lbs (45 kg) in position 5
(table). Failure to follow this warning could cause the
shelf to collapse resulting in personal injury.
Rear Shelf Leg Release Knob
Rear Shelf Panel Position 5
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear window wiper/washer control is located on the
right side of the steering column.Rotate the switch upward to the “on” position will
activate the rear wiper.
Rotate the switch upward to the “washer” position
will activate that rear washer. The washer pump
will continue to operate as long as the lever or ring
is engaged. Upon release, the wipers will cycle three
times before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Window Wiper/Washer Control
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•Turn the rear wiper off when driving through an
automatic car wash. Damage to the rear wiper may
result if the rear wiper switch is left in the on
position.
•In cold weather, always turn off the rear wiper
switch and allow the rear wiper to return to the
park position before turning off the engine. If the
rear wiper switch is left on and the rear wiper
freezes to the window, damage to the rear wiper
motor may occur when the vehicle is restarted.
•Always remove any buildup of snow that prevents
the rear wiper blade from returning to the park
position. If the rear wiper control is turned off and
the blade cannot return to the park position, dam-
age to the rear wiper motor may occur.
Rear Window Defroster
The rear window defroster button is located on the
climate control panel. Press this button to turn on
the rear window defroster and the heated outside mirrors
(if equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately
10 minutes.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
