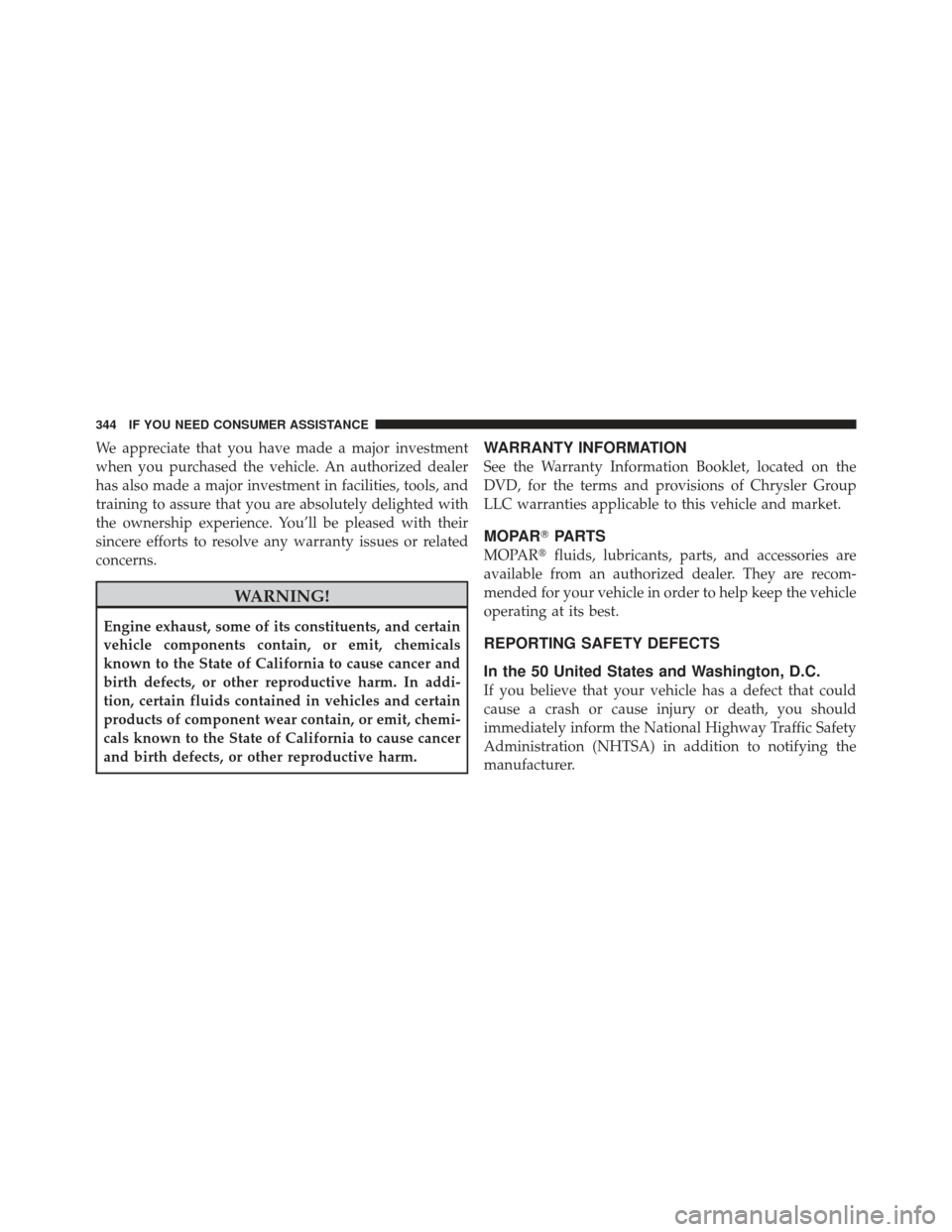

2010 CHRYSLER PT CRUISER Owners Manual

We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
the ownership experience. You’ll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addi-
tion, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemi-
cals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of Chrysler Group
LLC warranties applicable to this vehicle and market.
MOPARPARTS
MOPAR fluids, lubricants, parts, and accessories are
available from an authorized dealer. They are recom-
mended for your vehicle in order to help keep the vehicle
operating at its best.
REPORTING SAFETY DEFECTS
In the 50 United States and Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
344 IF YOU NEED CONSUMER ASSISTANCE

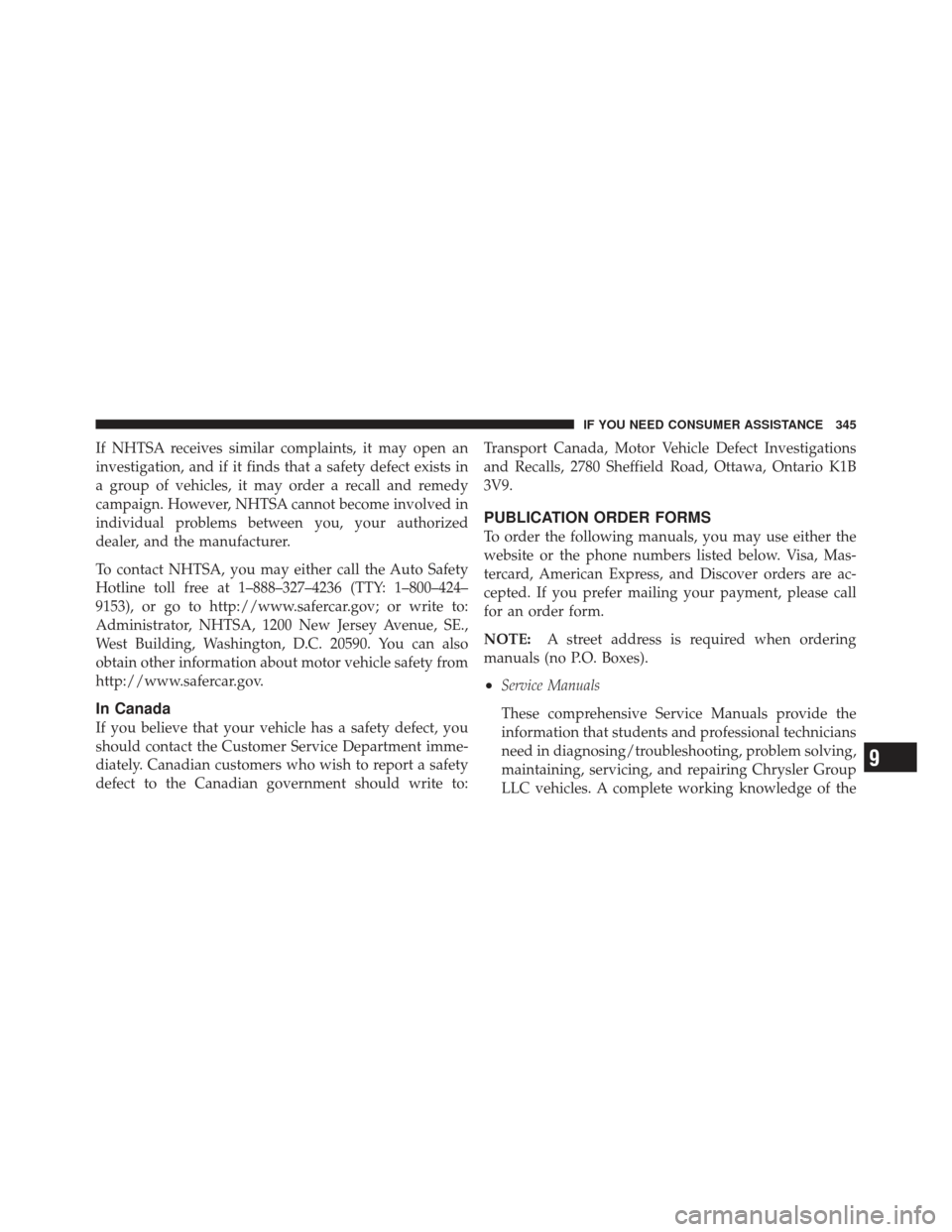

If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your authorized
dealer, and the manufacturer.
To contact NHTSA, you may either call the Auto Safety
Hotline toll free at 1–888–327–4236 (TTY: 1–800–424–
9153), or go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
West Building, Washington, D.C. 20590. You can also
obtain other information about motor vehicle safety from
http://www.safercar.gov.
In Canada
If you believe that your vehicle has a safety defect, you
should contact the Customer Service Department imme-
diately. Canadian customers who wish to report a safety
defect to the Canadian government should write to:Transport Canada, Motor Vehicle Defect Investigations
and Recalls, 2780 Sheffield Road, Ottawa, Ontario K1B
3V9.
PUBLICATION ORDER FORMS
To order the following manuals, you may use either the
website or the phone numbers listed below. Visa, Mas-
tercard, American Express, and Discover orders are ac-
cepted. If you prefer mailing your payment, please call
for an order form.
NOTE:
A street address is required when ordering
manuals (no P.O. Boxes).
•Service Manuals
These comprehensive Service Manuals provide the
information that students and professional technicians
need in diagnosing/troubleshooting, problem solving,
maintaining, servicing, and repairing Chrysler Group
LLC vehicles. A complete working knowledge of the
9
IF YOU NEED CONSUMER ASSISTANCE 345

vehicle, system, and/or components is written in
straightforward language with illustrations, diagrams,
and charts.
•Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with dia-
grams, charts and detailed illustrations. These practi-
cal manuals make it easy for students and technicians
to find and fix problems on computer-controlled ve-
hicle systems and features. They show exactly how to
find and correct problems the first time, using step-by-
step troubleshooting and drivability procedures,
proven diagnostic tests and a complete list of all tools
and equipment.
•Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists toacquaint you with specific Chrysler Group LLC ve-
hicles. Included are starting, operating, emergency
and maintenance procedures as well as specifications,
capabilities and safety tips.
Call toll free at:
•1–800–890–4038 (U.S.)
•1–800–387–1143 (Canada)
Or
Visit us on the Worldwide Web at:
•www.techauthority.com
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
346 IF YOU NEED CONSUMER ASSISTANCE

in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop onwet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
9
IF YOU NEED CONSUMER ASSISTANCE 347

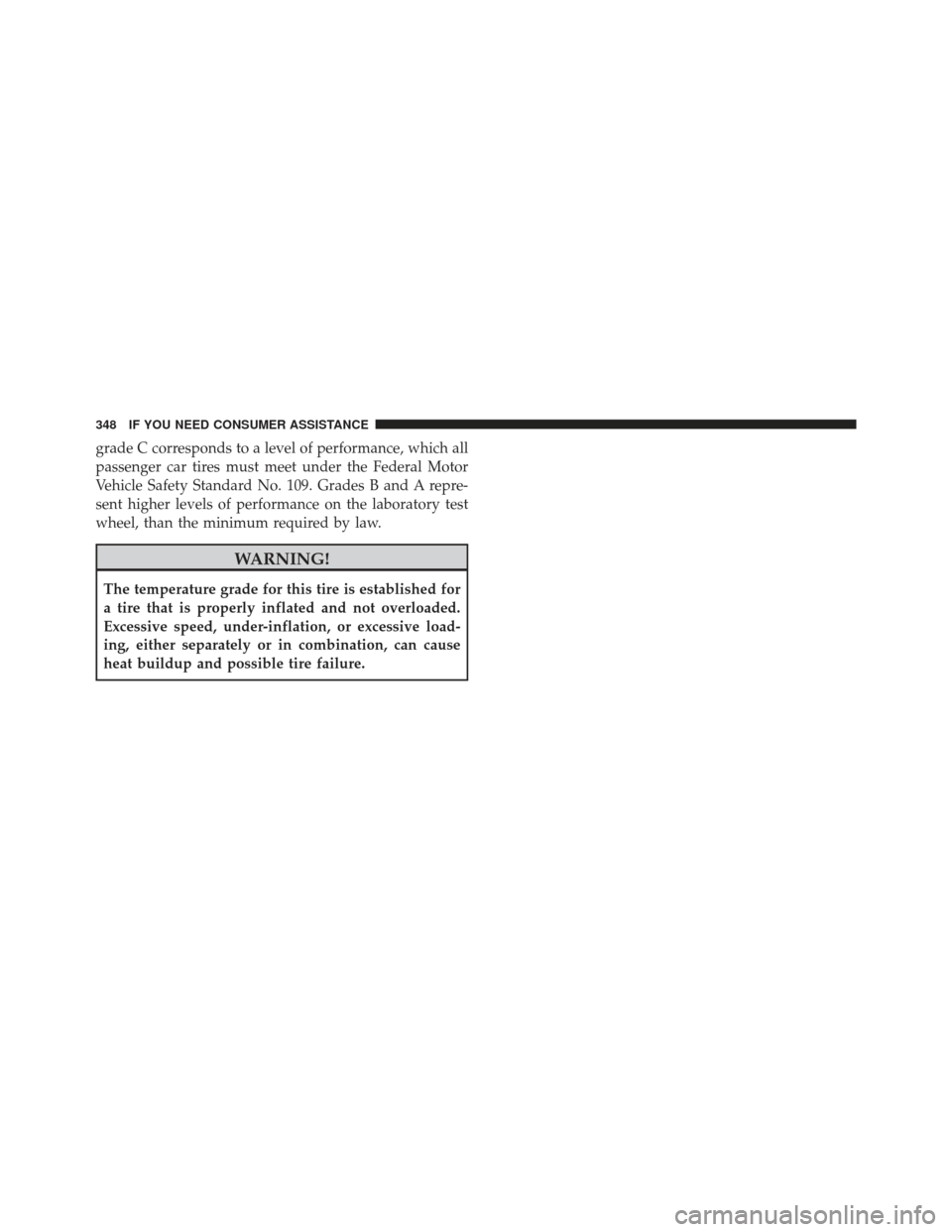

grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
348 IF YOU NEED CONSUMER ASSISTANCE

INDEX
10

ABS (Anti-Lock Brake System).............. 210
Adding Engine Coolant (Antifreeze) .......... 294
Adding Fuel ........................... 241
Additives, Fuel ......................... 239
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 285
Air Conditioner Maintenance ............... 287
Air Conditioning Controls ................. 180
Air Conditioning, Operating Tips ............ 185
Air Conditioning Refrigerant .............287,288
Air Conditioning System ................180,287
Air Pressure, Tires ....................... 224
Airbag ................................ 46
Airbag Deployment ....................... 58
Airbag Light ....................... 61,75,153
Airbag Maintenance ....................... 60
Airbag, Side ............................ 56
Alarm Light ........................... 152
Alarm, Panic ............................ 22 Alarm System (Security Alarm)
............... 18
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 178
Antifreeze (Engine Coolant) ...........293,316,317
Capacities ........................... 316
Disposal ............................ 296
Anti-Lock Brake System (ABS) .............. 210
Anti-Lock Warning Light .................. 153
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 302
Auto Down Power Windows ................ 32
Automatic Door Locks ................... 28,29
Automatic Transaxle ..............12,192,194,299
Adding Fluid ......................... 300
Filter ............................... 301
Fluid and Filter Changes ................. 301
Fluid Level Check ..................... 300
Interlock System ..................... 15,196
Reset Mode .......................... 197
350 INDEX

Special Additives...................... 301
Autostick ............................. 200
Back-Up Lights ......................... 315
Battery ............................... 286
Keyless Transmitter Replacement (RKE) ....... 25
Belts, Seat .............................. 75
Body Mechanism Lubrication ............... 288
B-Pillar Location ........................ 219
Brake, Parking .......................... 207
Brake System ........................ 209,298
Anti-Lock (ABS) ....................... 210
Fluid Check .......................... 298
Master Cylinder ....................... 298
Parking ............................. 207
Warning Light ........................ 150
Brakes ............................... 209
Brake/Transmission Interlock ............... 195
Break-In Recommendations, New Vehicle ........ 72Bulb Replacement
..................... 31 1,312
Bulbs, Light .......................... 77,311
Calibration, Compass ...............157,162,167
Capacities, Antifreeze (Engine Coolant) ........ 316
Capacities, Fluid ........................ 316
Caps, Filler Fuel ............................... 242
Oil (Engine) ....................... 277,284
Power Steering ........................ 206
Radiator (Coolant Pressure) ............... 295
Car Washes ............................ 303
Carbon Monoxide Warning ...............74,241
CD (Compact Disc) Player ................. 168
Cellular Phone .......................... 180
Center High Mounted Stop Light ............ 315
Chains, Tire ............................ 231
Changing A Flat Tire ..................... 262
Chart, Tire Sizing ........................ 215
10
INDEX 351
