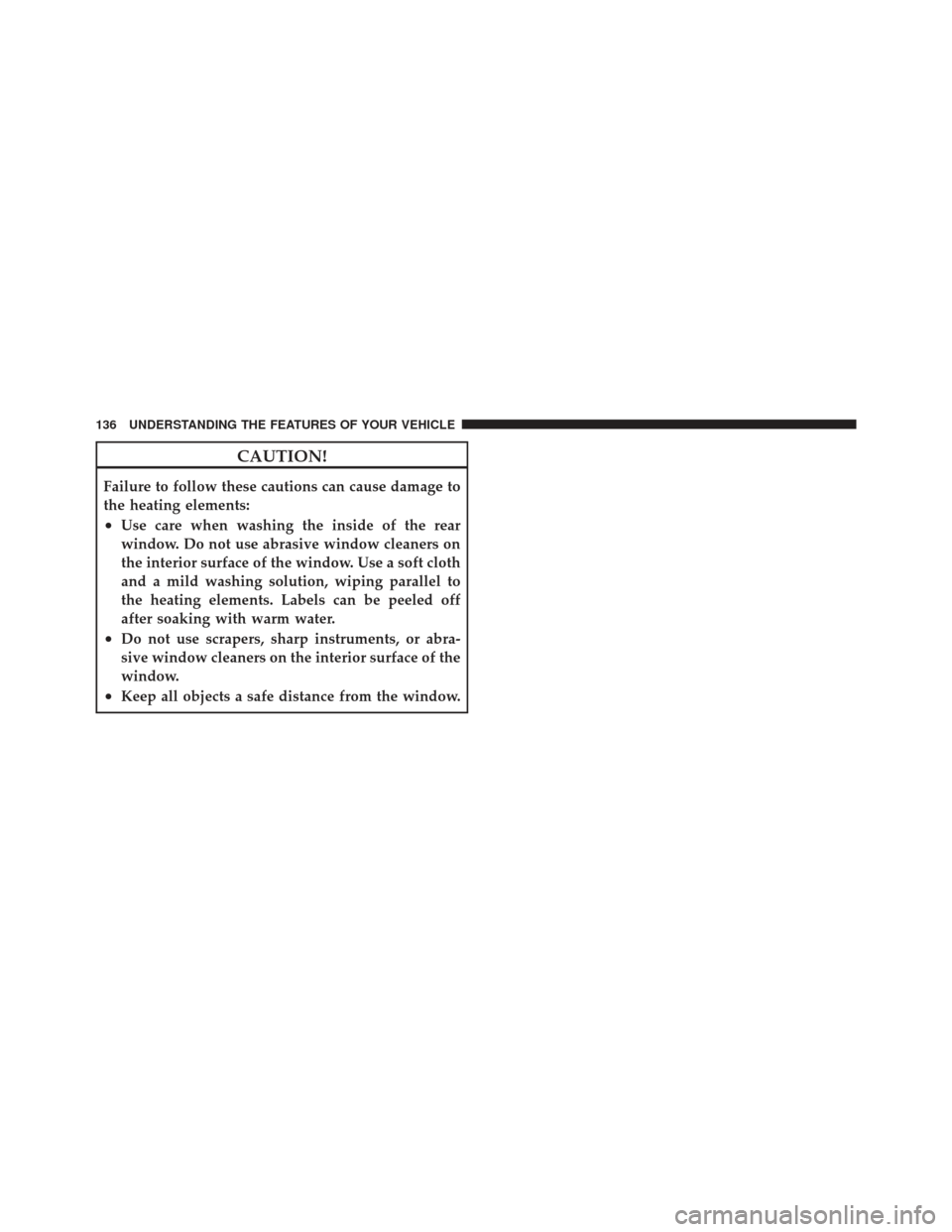

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 140
 Instrument Cluster — Base ............... 141
 Instrument Cluster — Premium ........... 142
 Instrument Cluster Descriptions ........... 143
 Compass Mini-Trip Computer (CMTC) — If
Equipped ............................ 155
▫ Compass Mini-Trip Computer Reset Button . . 155
▫ Compass/Temperature Display .......... 156
▫ Odometer Display .................... 158 ▫
Trip Odometer (ODO) ................. 158
 Electronic Vehicle Information Center (EVIC) –
If Equipped .......................... 159
▫ EVIC Functions ..................... 160
▫ To Reset The Display ................. 161
▫ Compass/Temperature/Audio ........... 161
▫ Average Fuel Economy ................ 161
▫ Distance To Empty (DTE) .............. 162
▫ Elapsed Time ....................... 162
4

▫Compass Variance .................... 162
▫ Tire Pressure Monitor (TPM) ............ 163
▫ Personal Settings (Customer-Programmable
Features) .......................... 164
▫ Automatic Compass Calibration .......... 166
▫ Manual Compass Calibration ............ 167
 Setting The Analog Clock ................ 168
 Sales Code REF — AM/FM/CD (Single-Disc)
Radio With Optional Uconnect™ Multimedia
(Satellite Radio) And Uconnect™ Phone
Capability ........................... 168
▫ Operating Instructions — Radio Mode ..... 169
▫ Operating Instructions — CD Mode ....... 172
▫ Operating Instructions — Auxiliary Mode . . . 174 ▫
Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 175
▫ Operating Instructions — Uconnect™
Multimedia (Satellite Radio) — If Equipped . . 175
 Uconnect™ Multimedia (Satellite Radio) — If
Equipped ............................ 176
▫ System Activation .................... 176
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 176
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode In REF, And RAQ, Radios .......... 177
▫ Selecting a Channel ................... 177
▫ Storing And Selecting Pre-Set Channels ..... 178
▫ Using The PTY (Program Type) Button (If
Equipped) ......................... 178
138 UNDERSTANDING YOUR INSTRUMENT PANEL

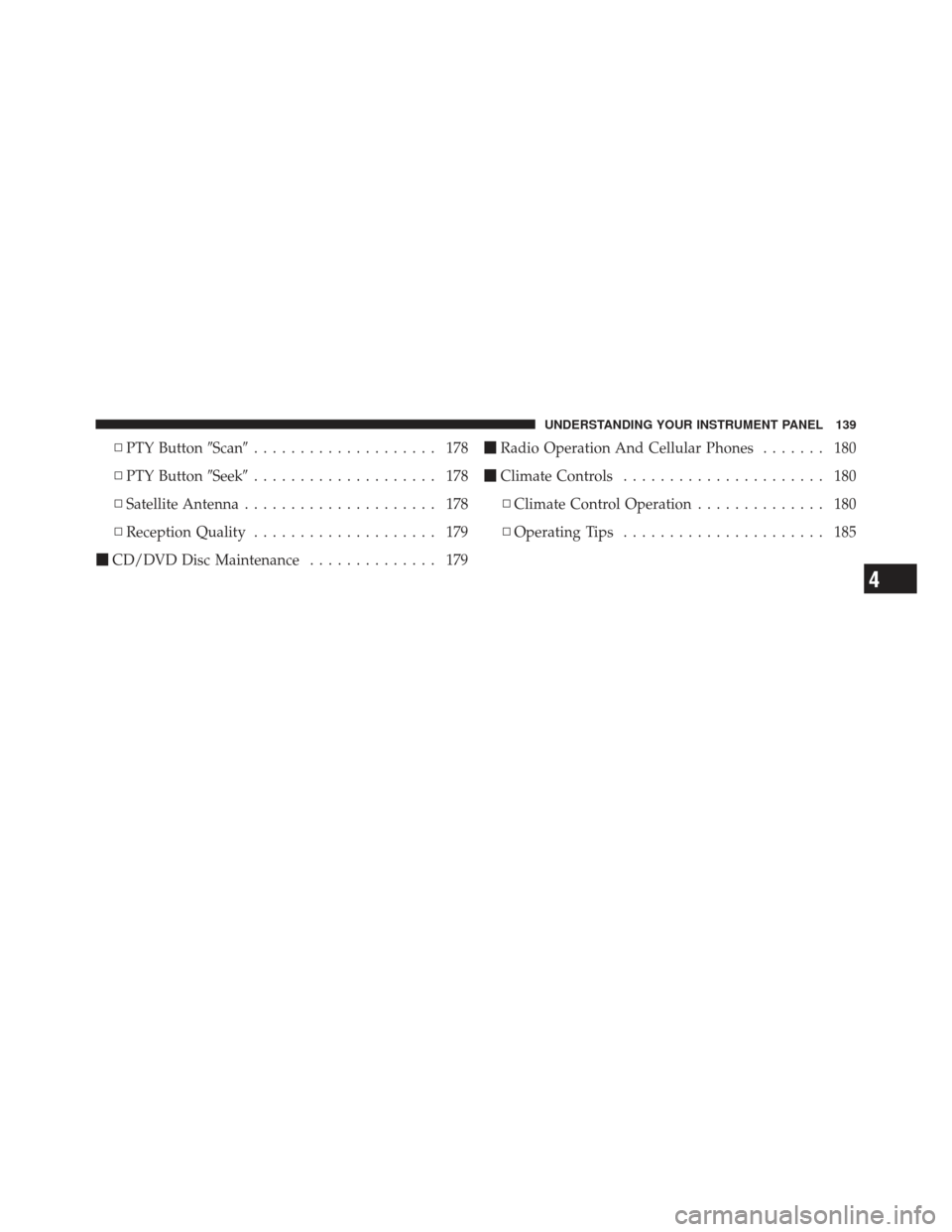

▫PTY Button Scan.................... 178
▫ PTY Button Seek.................... 178
▫ Satellite Antenna ..................... 178
▫ Reception Quality .................... 179
 CD/DVD Disc Maintenance .............. 179
Radio Operation And Cellular Phones ....... 180
 Climate Controls ...................... 180
▫ Climate Control Operation .............. 180
▫ Operating Tips ...................... 185
4
UNDERSTANDING YOUR INSTRUMENT PANEL 139

INSTRUMENT PANEL FEATURES
1 — Air Vent5 — Glove Compartment9 — Storage Cubby
2 — Instrument Cluster 6 — Power Windows10 — Lower Switch Bank
3 — Analog Clock 7 — Radio11 — Side Mirror Control *
4 — Assist Handle 8 — Climate Controls* If Equipped
140 UNDERSTANDING YOUR INSTRUMENT PANEL

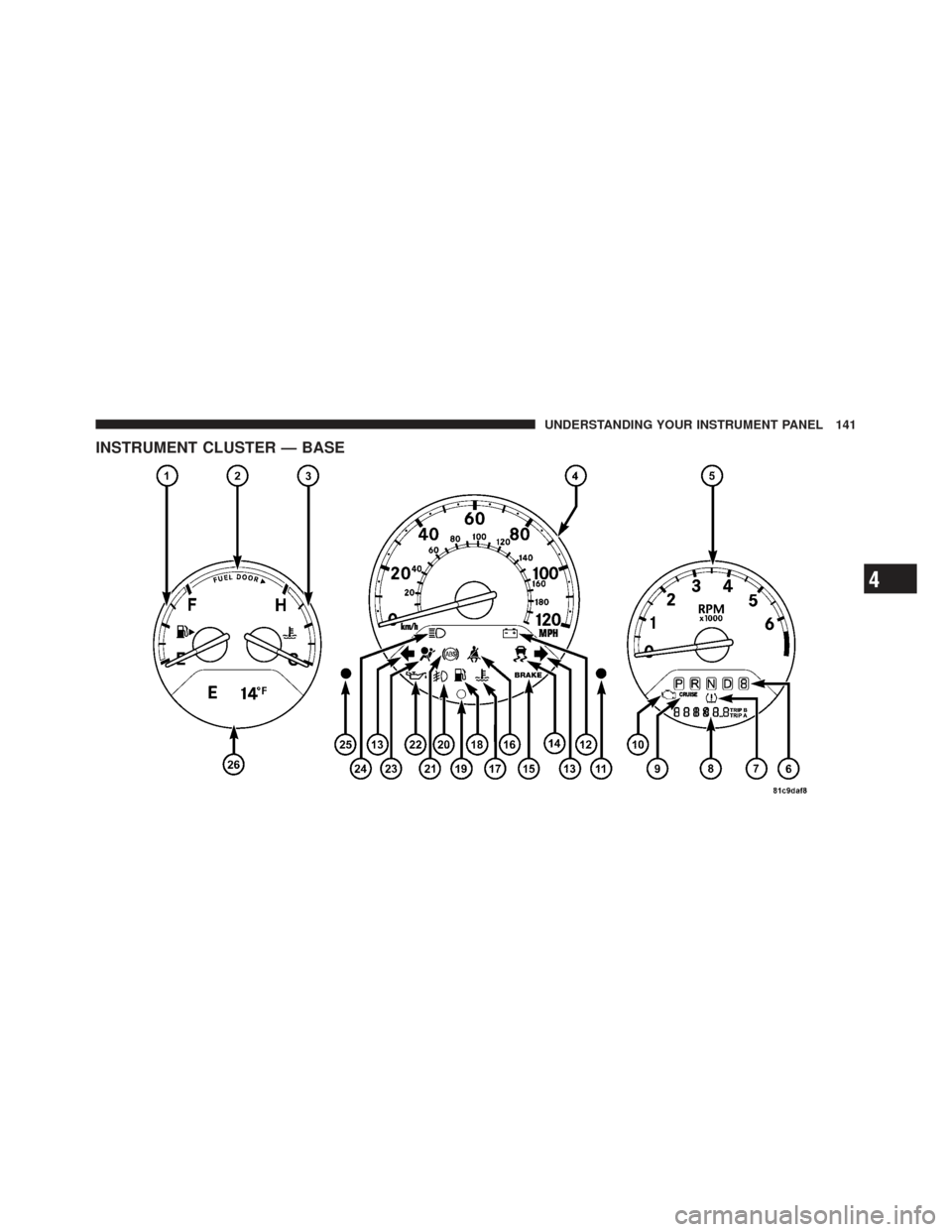

INSTRUMENT CLUSTER — BASE
4
UNDERSTANDING YOUR INSTRUMENT PANEL 141

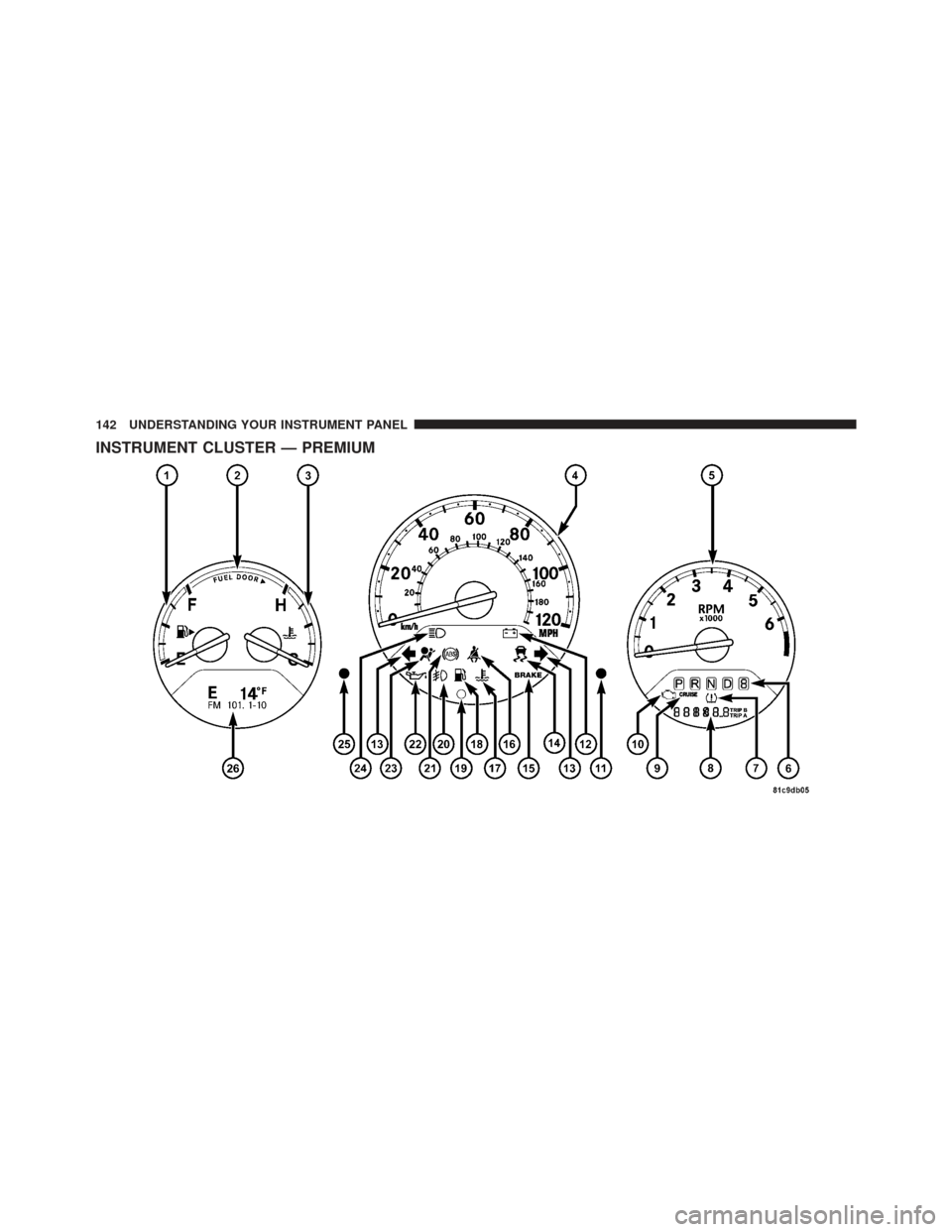

INSTRUMENT CLUSTER — PREMIUM
142 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
When the ignition switch is in the ON position, the
pointer will show the level of fuel remaining in the fuel
tank.
2. Fuel Door Reminder
This is a reminder that the Fuel Filler Door is located on
the front passenger’s (right) side of the vehicle.
3. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H” and you hear continuous chimes, turn the
engine off immediately, and call an authorized deal-
ership for service.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 143
