2010 CHRYSLER PT CRUISER Owners Manual

CAUTION!
DO NOT place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.

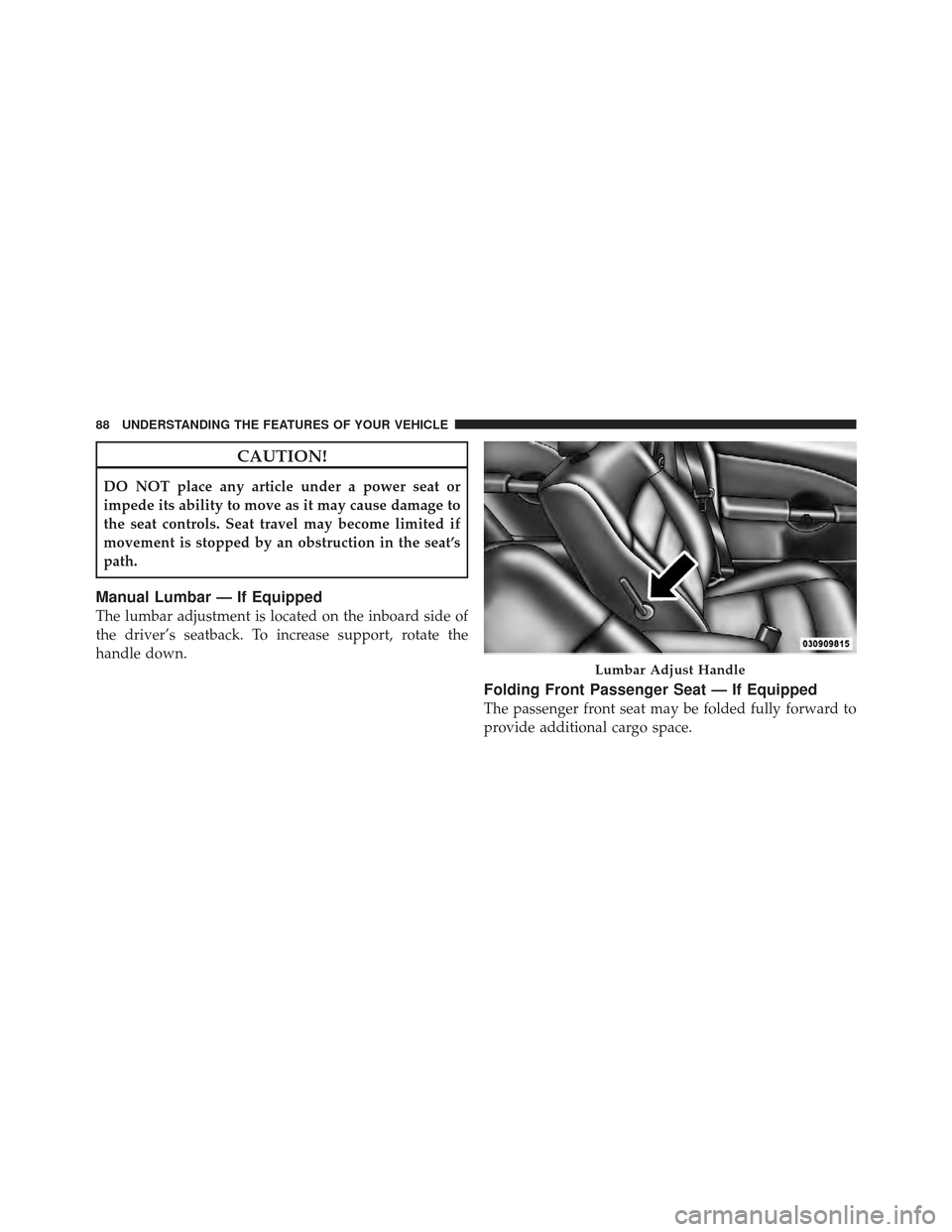

Manual Lumbar — If Equipped
The lumbar adjustment is located on the inboard side of
the driver’s seatback. To increase support, rotate the
handle down.
Folding Front Passenger Seat — If Equipped
The passenger front seat may be folded fully forward to
provide additional cargo space.
Lumbar Adjust Handle
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To fold the seat forward, pull up on the recliner lever
located on the outboard side of the seat.
Adjustable Head Restraints
Head restraints can reduce the risk of injury in the event
of a rear impact. Adjust the height of a head restraint to
a position that the top of the head restraint is locatedabove the top of your ear. To raise a head restraint, pull
up on the head restraint. To lower a head restraint, push
in the button that is part of the head restraint rod guide,
and push down on the head restraint.
Folding Seat Control Lever
Head Restraint Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89

Heated Seats — If Equipped
The heaters provide the same heat level for both cushion
and seatback. The driver and front passenger seats are
heated. The controls for each heater are located near the
bottom center of the instrument panel.
After turning the ignition ON, you can choose from High,
Low, or Off heat settings. Amber indicator lights in each
switch indicate the level of heat in use. Two indicator
lights will illuminate for High, one for Low, and none for
Off.Press the switch once to select High-level heat-
ing. Press the switch a second time to select
Low-level heating. Press the switch a third time
to shut Off the heating elements.
If High-level heating is selected, the system automatically
switches to Low-level heating and turns one indicator
light off after 30 minutes of continuous operation. It will
turn the heater and the remaining indicator light off after an additional 30 minutes of continuous operation. If
Low-level heating is selected, the system automatically
turns the heater and the indicator light off after 30 min-
utes of continuous operation.
NOTE:
Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion or other physical condition must exercise
care when using the seat heater. It may cause burns
even at low temperatures, especially if used for
long periods of time.
(Continued)
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING! (Continued)
•Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This
may cause the seat heater to overheat. Sitting in a
seat that has been overheated could cause serious
burns due to the increased surface temperature of
the seat.
CAUTION!
Repeated overheating of the seat could damage the
heating element and/or degrade the material of the
seat.

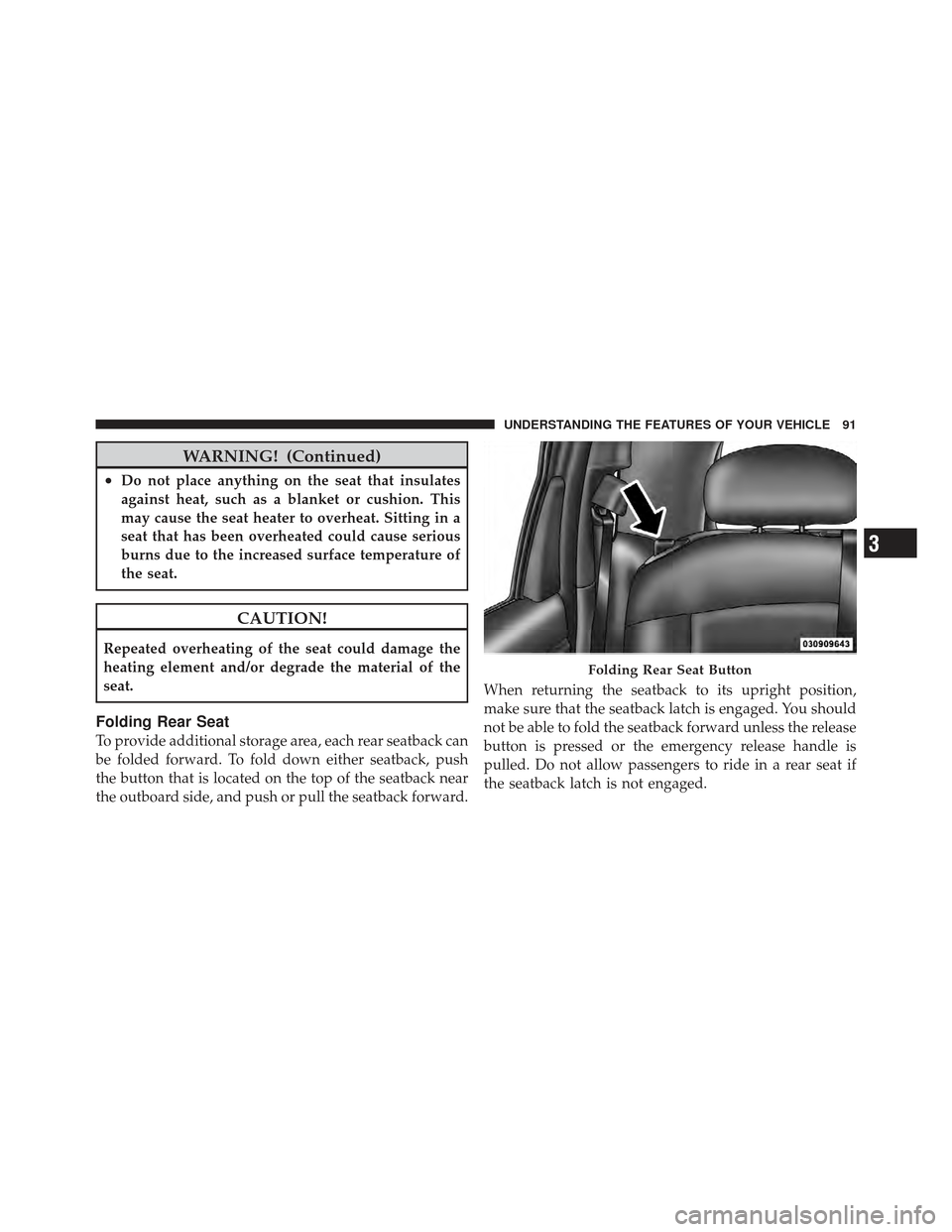

Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. To fold down either seatback, push
the button that is located on the top of the seatback near
the outboard side, and push or pull the seatback forward.When returning the seatback to its upright position,
make sure that the seatback latch is engaged. You should
not be able to fold the seatback forward unless the release
button is pressed or the emergency release handle is
pulled. Do not allow passengers to ride in a rear seat if
the seatback latch is not engaged.
Folding Rear Seat Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

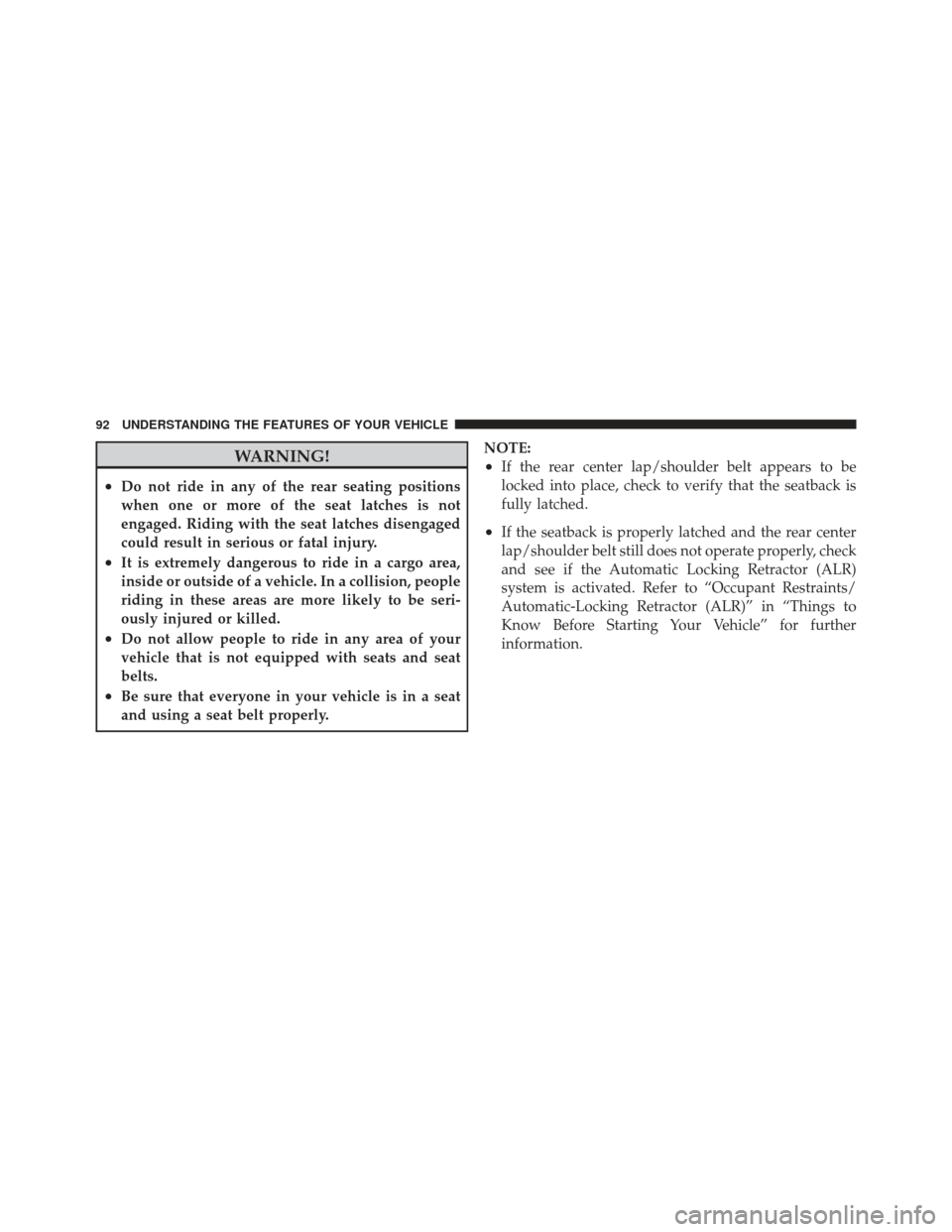

WARNING!
•Do not ride in any of the rear seating positions
when one or more of the seat latches is not
engaged. Riding with the seat latches disengaged
could result in serious or fatal injury.
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure that everyone in your vehicle is in a seat
and using a seat belt properly.NOTE:
•If the rear center lap/shoulder belt appears to be
locked into place, check to verify that the seatback is
fully latched.
•If the seatback is properly latched and the rear center
lap/shoulder belt still does not operate properly, check
and see if the Automatic Locking Retractor (ALR)
system is activated. Refer to “Occupant Restraints/
Automatic-Locking Retractor (ALR)” in “Things to
Know Before Starting Your Vehicle” for further
information.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
The rear center lap/shoulder belt is equipped with a
lockout feature to ensure that the seatback is in the
fully upright and locked position when occupied. If
the rear seatback is not fully upright and locked and
the rear center lap/shoulder belt can be pulled out of
the retractor, the vehicle should immediately be
taken to an authorized dealer for service. Failure to
follow this warning could result in serious or fatal
injury.
Tumbling Rear Seat
To provide additional storage in the cargo area, each rear
seat can be tumbled forward.
CAUTION!
It is important that the front seats be pulled forward
to the midpoint of the seat track to avoid contact
between the rear seat and the front seatback. If the
front seat is not pulled forward the two seats will
make contact during the tumbling motion and cause
damage to the rear seat material. After the rear seat is
tumbled forward and secured the front seat can then
be repositioned to the preferred position.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

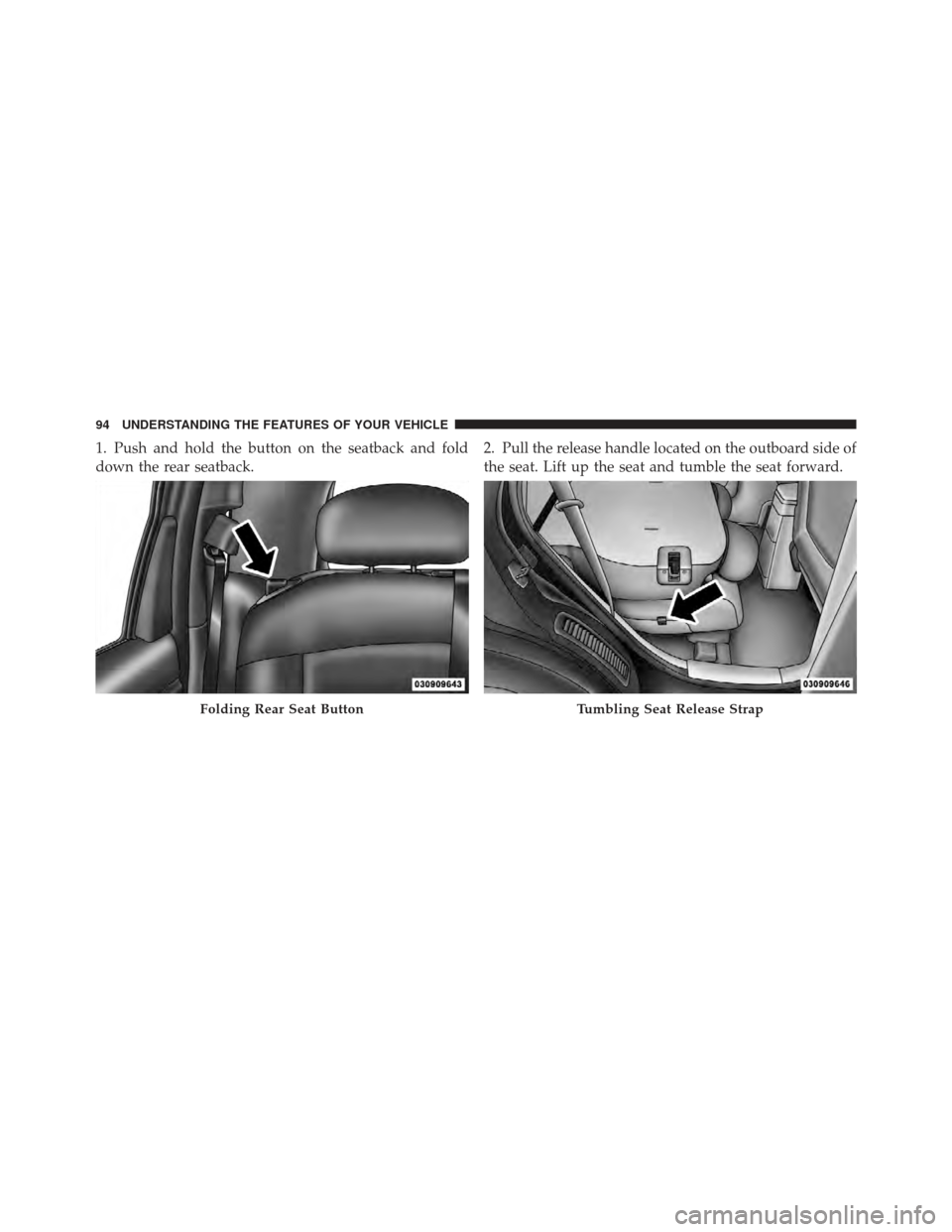

1. Push and hold the button on the seatback and fold
down the rear seatback.2. Pull the release handle located on the outboard side of
the seat. Lift up the seat and tumble the seat forward.
Folding Rear Seat ButtonTumbling Seat Release Strap
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Attach the tether, located at the base of the seat
cushion, onto the hook bar on the center trim panel to
hold the seat in place.
To return the rear seat to its upright latched position,
rotate the seat cushion rearward to latch the seat. Then
lift the seatback to its upright latched position.When returning the seatback to its upright position,
make sure that the seat latches are engaged. You should
not be able to fold the seatback forward and/or tumble
the seat unless the release button is pressed, the emer-
gency release handle is pulled and/or the tumbling seat
release strap is pulled. Do not allow passengers to ride in
a rear seat if one or more of the seat latches is not
engaged.
WARNING!
Do not ride in any of the rear seating positions when
one or more of the seat latches is not engaged. Riding
with the seat latches disengaged could result in
serious or fatal injury.
NOTE: The tumbling seat tether should be clipped onto
the elastic strap provided on the base of the seat cushion
before returning the seat to its normal position.
Tumbling Seat Tether
3
