2010 CHRYSLER PT CRUISER Owners Manual

longer than 10 seconds), a fault has been detected in the
electronics and the vehicle should be serviced as soon as
possible by an authorized dealer.
NOTE:The Sentry Key Immobilizer System is not
compatible with remote starting systems. Use of these
systems may result in vehicle starting problems and loss
of security protection.
All of the keys provided with a new vehicle have been
programmed to that vehicle’s electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
This PIN is required for replacement of keys by an
authorized dealer. Duplication of keys must be per-
formed at an authorized dealer. This procedure consists
of programming a blank key to the vehicle electronics. A
blank key is one which has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to the
authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Sentry KeyProgramming
If you have two valid Sentry Keys , you can program
new Sentry Keys to the system by performing the
following procedure:
1. Cut the additional Sentry Key Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key. 4. Insert a blank Sentry Key
into the ignition switch.
Turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the indicator
light will turn on again for three seconds and then turn
off.
The new Sentry Key has been programmed. The Re-
mote Keyless Entry (RKE) transmitter will also be
programmed during this procedure. Repeat this proce-
dure to program up to a total of eight keys. If you do not
have a programmed Sentry Key, contact your autho-
rized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to the autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors, liftgate,
and ignition switch for unauthorized operation. The
Vehicle Security Alarm provides both audible and visible
signals when activated. If something triggers the Vehicle Security Alarm, it signal
for about 18 minutes. For the first three minutes the horn
will sound and the headlights, park lights, tail lights and
the Vehicle Security Light in the cluster will flash. Then
the exterior lights will flash for another 15 minutes.
If the disturbance that triggered the alarm is no longer
present (doors, liftgate, ignition switch), the alarm will
continue to sound until three minutes of alarm time is
reached.
To Set the Alarm
1. Remove the key from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch,
or the Remote Keyless Entry (RKE) transmitter, and close
all doors.
3. The Vehicle Security Light in the instrument cluster
will flash rapidly for 16 seconds. This shows that the
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Vehicle Security Alarm is arming. During this period, if a
door is opened, the ignition switch is turned ON, or the
power door locks are unlocked by either the power door
lock switch or the RKE transmitter, the Vehicle Security
Alarm will automatically disarm. After 16 seconds, the
Vehicle Security Light will flash slowly. This shows that
the Vehicle Security Alarm is fully armed.
To Disarm the Alarm
Unlock a front door using the RKE transmitter.
Starting the vehicle with a valid Sentry Keywill disarm
the Vehicle Security Alarm. A valid key is one that is
programmed to that particular vehicle. A valid key will
disarm the Vehicle Security Alarm. An invalid key will
trigger the alarm.
Tamper Alert
If the horn sounds three times when you unlock a front
door using the RKE transmitter, the alarm has been
activated. Check the vehicle for tampering.

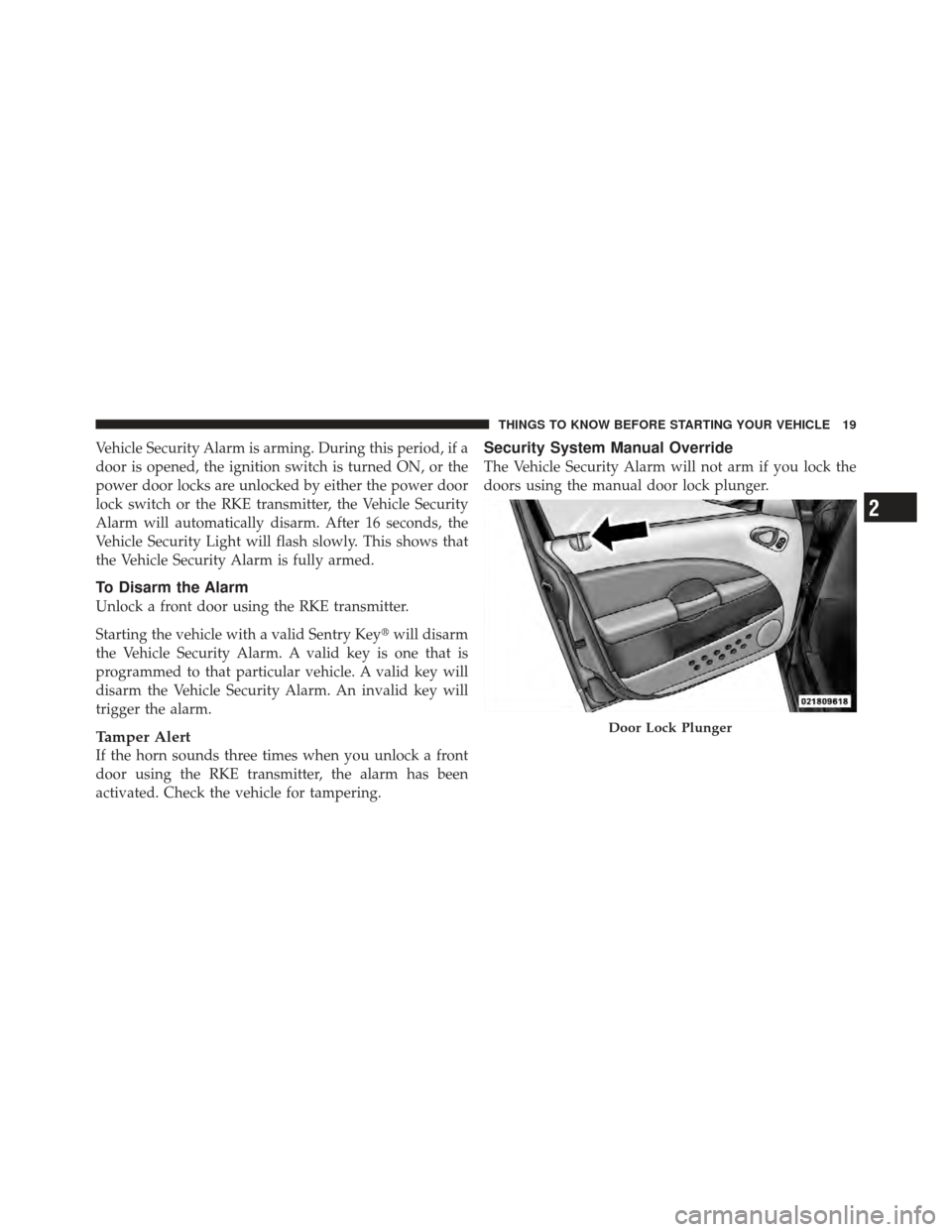

Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
Door Lock Plunger
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate, or activate the Panic Alarm from distances ap-
proximately 66 ft (20 m) using a hand-held RKE trans-
mitter. The RKE transmitter does not need to be pointed
at the vehicle to activate the system.NOTE:
The line of transmission must not be blocked
with metal objects.
To Unlock the Doors and Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors and liftgate. When the UNLOCK
button is pressed, the illuminated entry will initiate and
the parking lights will flash on twice. The time for this
feature is programmable on vehicles equipped with
Electronic Vehicle Information Center (EVIC). Refer to
“Electronic Vehicle Information Center (EVIC)/Personal
Settings (Customer-Programmable Features)” in “Under-
standing Your Instrument Panel” for further information.
NOTE: The system can also be programmed to unlock
all doors on the first press of the UNLOCK button. For
Three Button Remote Keyless Entry (RKE) Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

EVIC-equipped vehicles refer to “Electronic Vehicle In-
formation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information. For non-EVIC-
equipped vehicles, perform the following steps:
1. Press and hold the LOCK button on a programmed
RKE transmitter.
2. Continue to hold the LOCK button at least four
seconds, but not longer than 10 seconds, then press and
hold the UNLOCK button. A single chime will sound to
indicate that this feature has changed.
3. Release both buttons at the same time.
4. Test the feature while outside of the vehicle, by
pressing the LOCK/UNLOCK button on the RKE trans-
mitter.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the Security Alarm. Opening a door with the Security Alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the Security Alarm.
5. If the desired programming was not achieved or to
reactivate this feature, repeat the above steps.
To Lock the Doors and Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp once to acknowledge the lock signal.
If desired, the “Sound Horn on Lock” feature can be
turned on or off. For EVIC-equipped vehicles, refer to
“Electronic Vehicle Information Center (EVIC) — If
Equipped/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel” for
further information. For non-EVIC-equipped vehicles,
perform the following steps:
1. Press the LOCK button for 4 to 10 seconds.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

2. While the LOCK button is pressed (after four seconds),
press the PANIC button. Release both buttons.
The “Sound Horn on Lock” feature can be reactivated by
repeating this procedure.
To Turn Off “Flash Lights with Lock”
NOTE:The “Flash Lights with Lock” feature can be
turned on or off. For EVIC-equipped vehicles refer to
“Electronic Vehicle Information Center (EVIC) — If
Equipped/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel” for
further information. For non-EVIC-equipped vehicles,
perform the following steps:
1. Press the UNLOCK button for 4 to 10 seconds.
2. While the UNLOCK button is pressed, (after four
seconds) press the LOCK button. Release both buttons. 3. Test the “Flash Lights with Lock” feature while out-
side of the vehicle by pressing the LOCK button on the
RKE transmitter with the ignition in the LOCK position,
and the key removed.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are in the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
The “Flash Lights on Lock” features can be reactivated by
repeating this procedure.
Panic Alarm
The Panic Alarm mode flashes the park lights, and
sounds the horn for about three minutes or until the
alarm is turned off.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Using The Panic Alarm
To turn the Panic Alarm feature ON or OFF, press and
hold the PANIC button on the RKE transmitter for at
least one second and release. When the Panic Alarm is on,
the headlights and park lights will flash, the horn will
pulse on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:When you turn off the Panic Alarm by pressing
the PANIC button a second time, you may have to be
closer to the vehicle due to the Radio Frequency (RF)
noises of the system.
To Program Additional Transmitters
Each vehicle is shipped from the assembly plant with two
RKE transmitters programmed only for that vehicle. A total of eight RKE transmitters can be programmed to
your vehicle through the use of a currently-programmed
RKE transmitter.
NOTE:
If vehicle is equipped with the optional EVIC in
the instrument cluster, the RKE transmitters may also be
programmed through the EVIC display.
Use the following procedure to program additional RKE
transmitters if the vehicle is not equipped with Sentry
Key:
NOTE: When entering program mode using currently-
programmed RKE transmitter, all other programmed
transmitters will be erased and you will have to repro-
gram them for your vehicle.
1. Gather every transmitter that is to be used with the
vehicle, including any transmitters that are currently
programmed.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
