2009 TOYOTA PRIUS Owners Manual

73
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_U_(OM47614U)
■To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
CAUTION
■ While driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, or result-
ing in death or serious injury.
To ensure correct functioning of the sen-
sors, do not touch or cover the sensors.

74
1-4. Adjustable components (seats, mirrors, steering wheel)
PRIUS_U_(OM47614U)

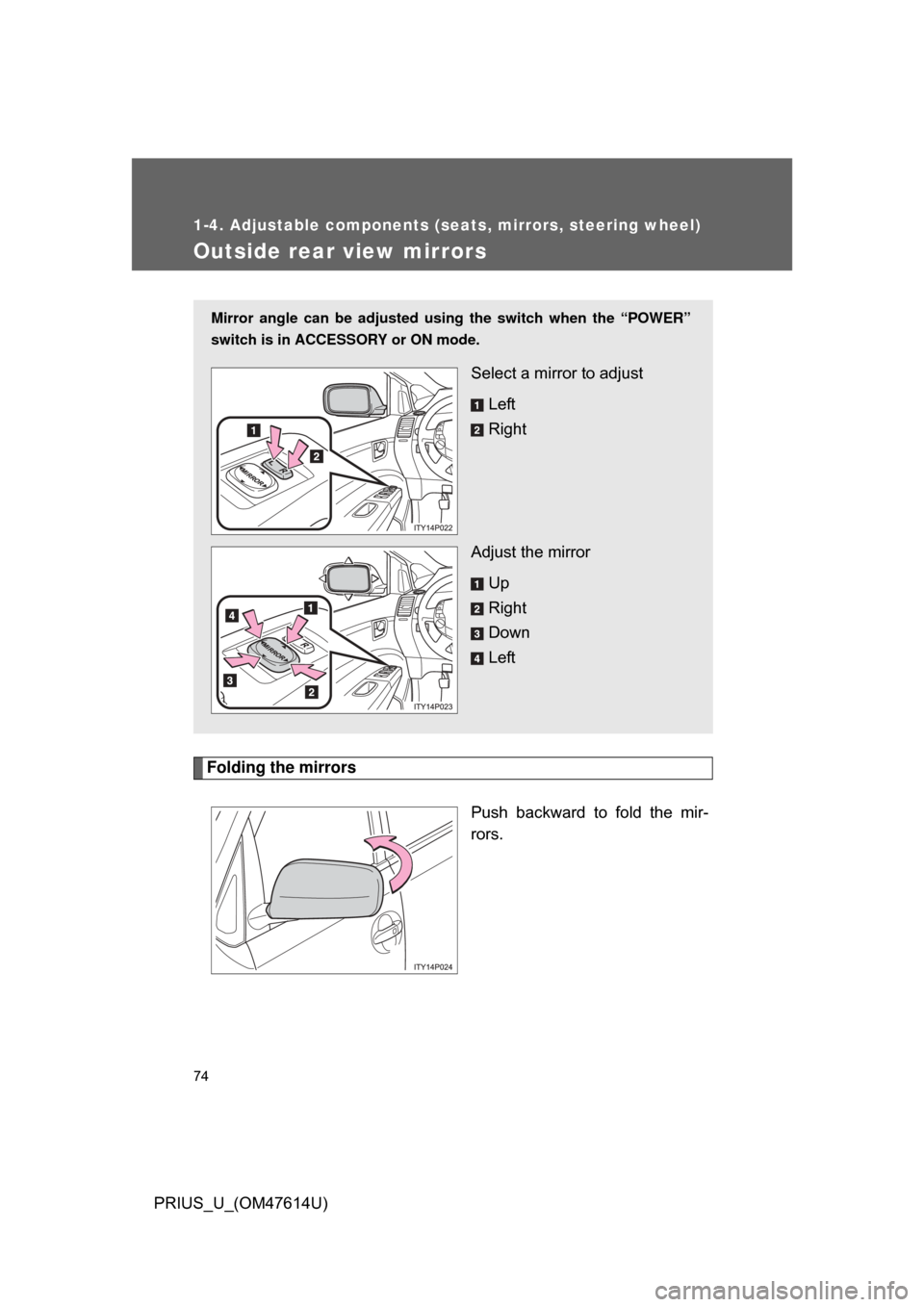

Outside rear view mirrors
Folding the mirrorsPush backward to fold the mir-
rors.
Mirror angle can be adjusted usin g the switch when the “POWER”
switch is in ACCESSORY or ON mode.
Select a mirror to adjust
Left
Right
Adjust the mirror Up
Right
Down
Left

75
1-4. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
PRIUS_U_(OM47614U)
■When the mirrors are fogged up (vehicle with mirror defoggers)
Turn on the mirror heaters to defog the mirrors. (P. 213)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
● Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend mirrors and make an adjustment prop-
erly.
■ When the mirror defoggers are operating
Do not touch the mirror surface as the mirror surface becomes hot.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

76
PRIUS_U_(OM47614U)
1-5. Opening and closing the windows and moon roof

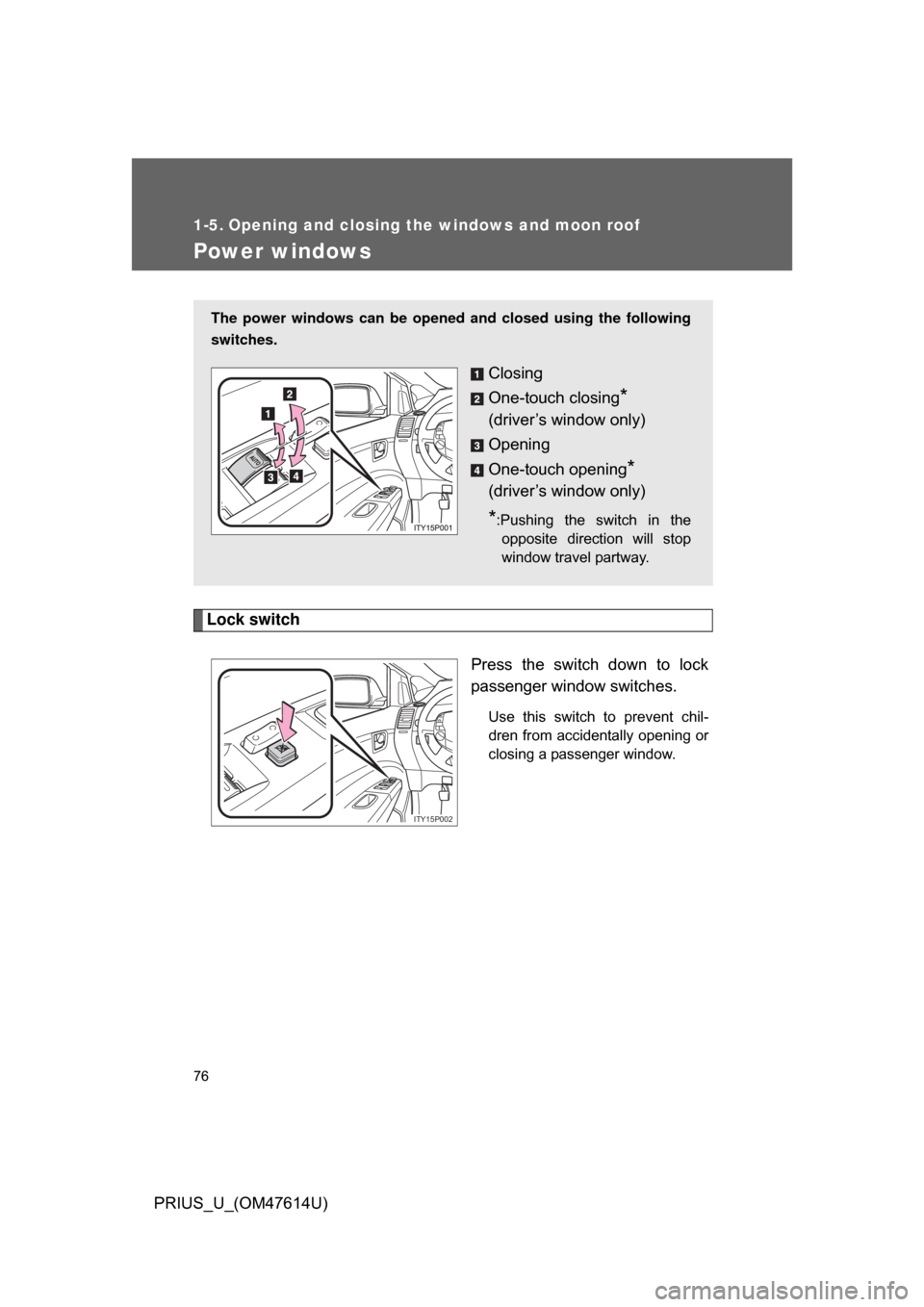

Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
(driver’s window only)
Opening
One-touch opening
*
(driver’s window only)
*:Pushing the switch in the opposite direction will stop
window travel partway.
ITY15P002

77
1-5. Opening and closing the windows and moon roof
1
Before driving
PRIUS_U_(OM47614U)
■
The power windows can be operated when
The “POWER” switch is in ON mode.
■ Operating the power wi ndows after turning the “POWER” switch OFF
The power windows can be operated for approximately 45 seconds even
after the “POWER” switch is switc hed to ACCESSORY mode or turned OFF.
They cannot, however, be operated once the driver’s or front passenger’s
door is opened.
■ Jam protection function (driver’s window only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the 12 volt battery is disconnected
The power windows must be initialized in order to ensure proper operation.
(driver’s window only)
Open the window halfway.
Fully close the window by pulling the switch up and continue hold-
ing the switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on
when initial settings are complete.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 486)
STEP1
STEP2

78 1-5. Opening and closing the windows and moon roof
PRIUS_U_(OM47614U)
CAUTION
■When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function driver’s window only
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

79
1
Before driving
PRIUS_U_(OM47614U)
1-6. Refueling

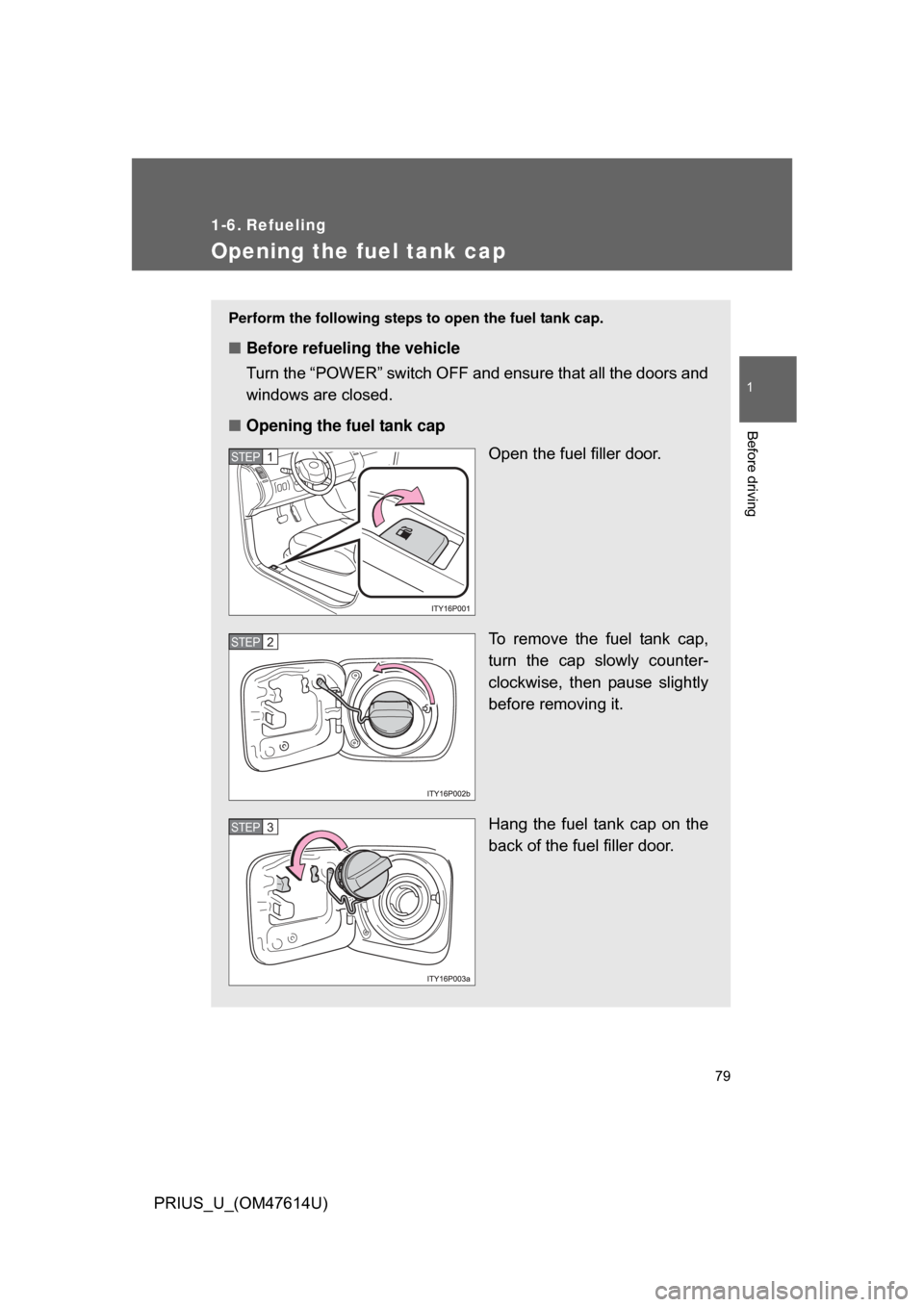

Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Turn the “POWER” switch OFF and ensure that all the doors and
windows are closed.
■ Opening the fuel tank cap
Open the fuel filler door.
To remove the fuel tank cap,
turn the cap slowly counter-
clockwise, then pause slightly
before removing it.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

80 1-6. Refueling
PRIUS_U_(OM47614U)
Closing the fuel tank capAfter refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly
in the opposite direction once
released.
■ Fuel types
Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or
higher)
■ Fuel tank capacity
Approximately 11.9 gal. (45 L, 9.9 Imp. gal.)
