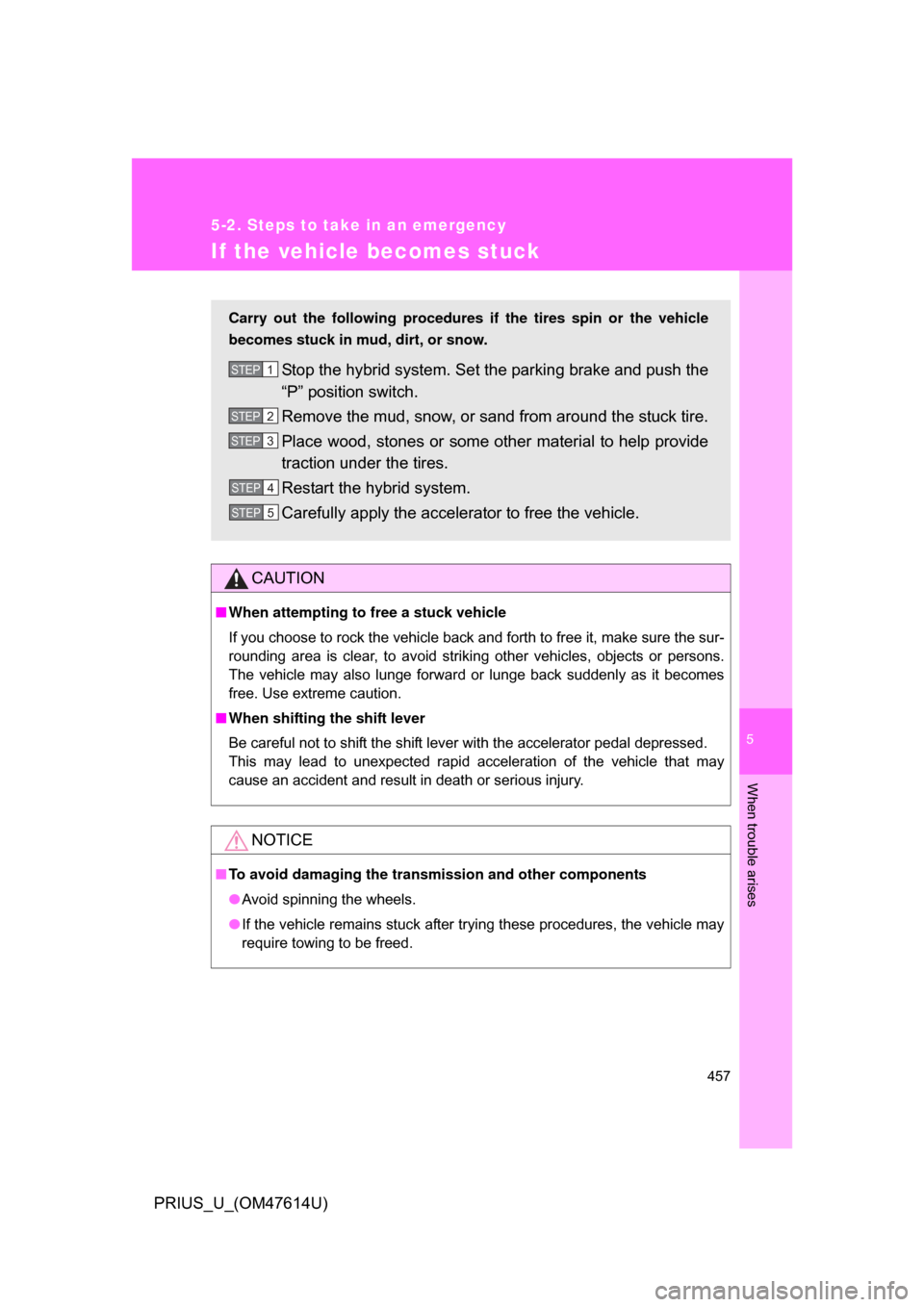

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
● Avoid spinning the wheels.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the hybrid system. Set t he parking brake and push the
“P” position switch.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the hybrid system.
Carefully apply the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5

458 5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)

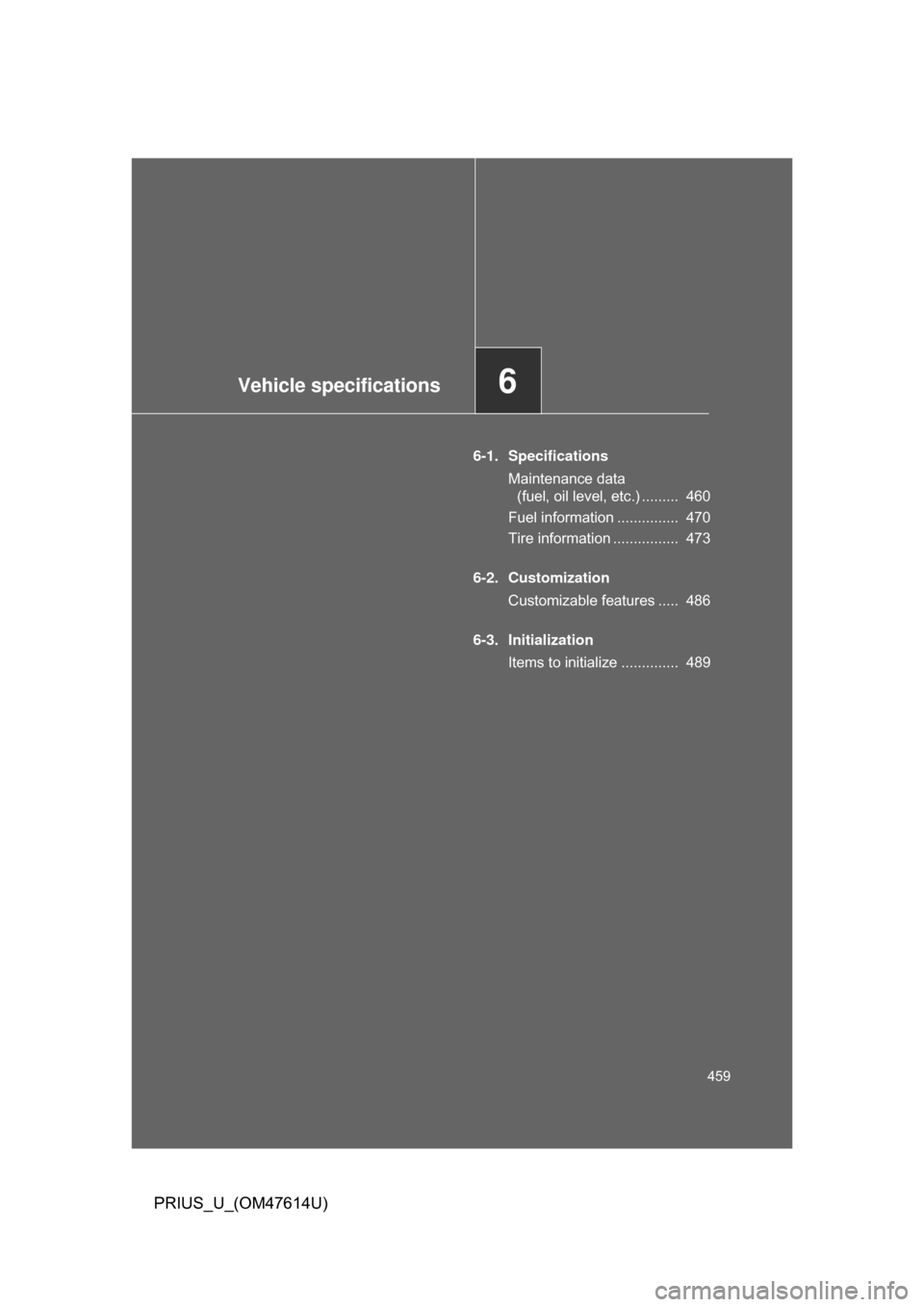

Vehicle specifications6
459
PRIUS_U_(OM47614U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 460
Fuel information ............... 470
Tire information ................ 473
6-2. Customization Customizable features ..... 486
6-3. Initialization Items to initialize .............. 489

460
PRIUS_U_(OM47614U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*:Unladen vehicle
Overall length175.0 in. (4445 mm)
Overall width67.9 in. (1725 mm)
Overall height *58.7 in. (1490 mm)
Wheelbase106.3 in. (2700 mm)
TreadFront59.3 in. (1505 mm)
Rear58.3 in. (1480 mm)
Vehicle capacity weight
(Occupants + luggage) 810 lb. (365 kg)

461
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(OM47614U)

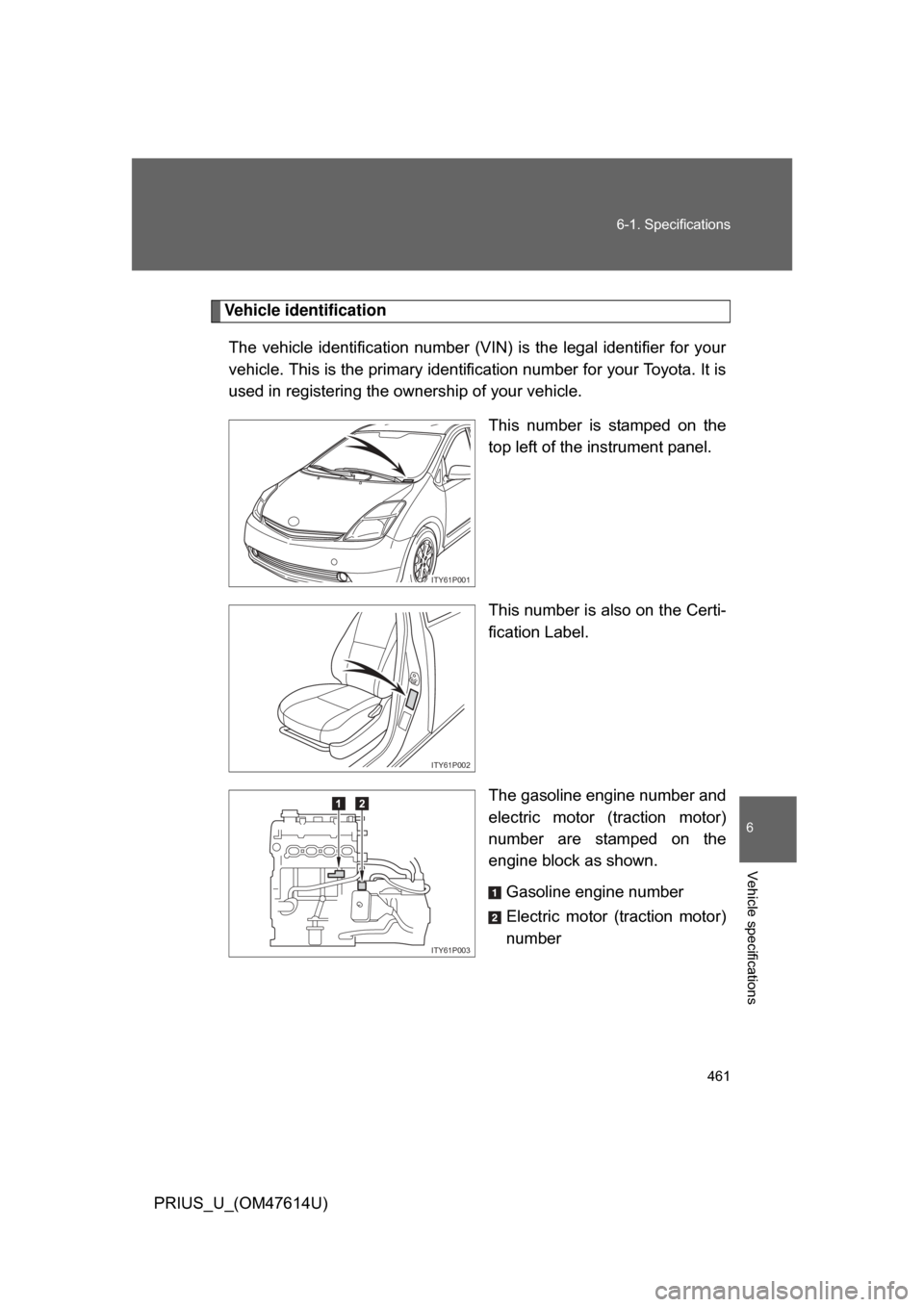

Vehicle identification
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
The gasoline engine number and
electric motor (traction motor)
number are stamped on the
engine block as shown.Gasoline engine number
Electric motor (traction motor)
number
ITY61P001
ITY61P002
ITY61P003

462 6-1. Specifications
PRIUS_U_(OM47614U)

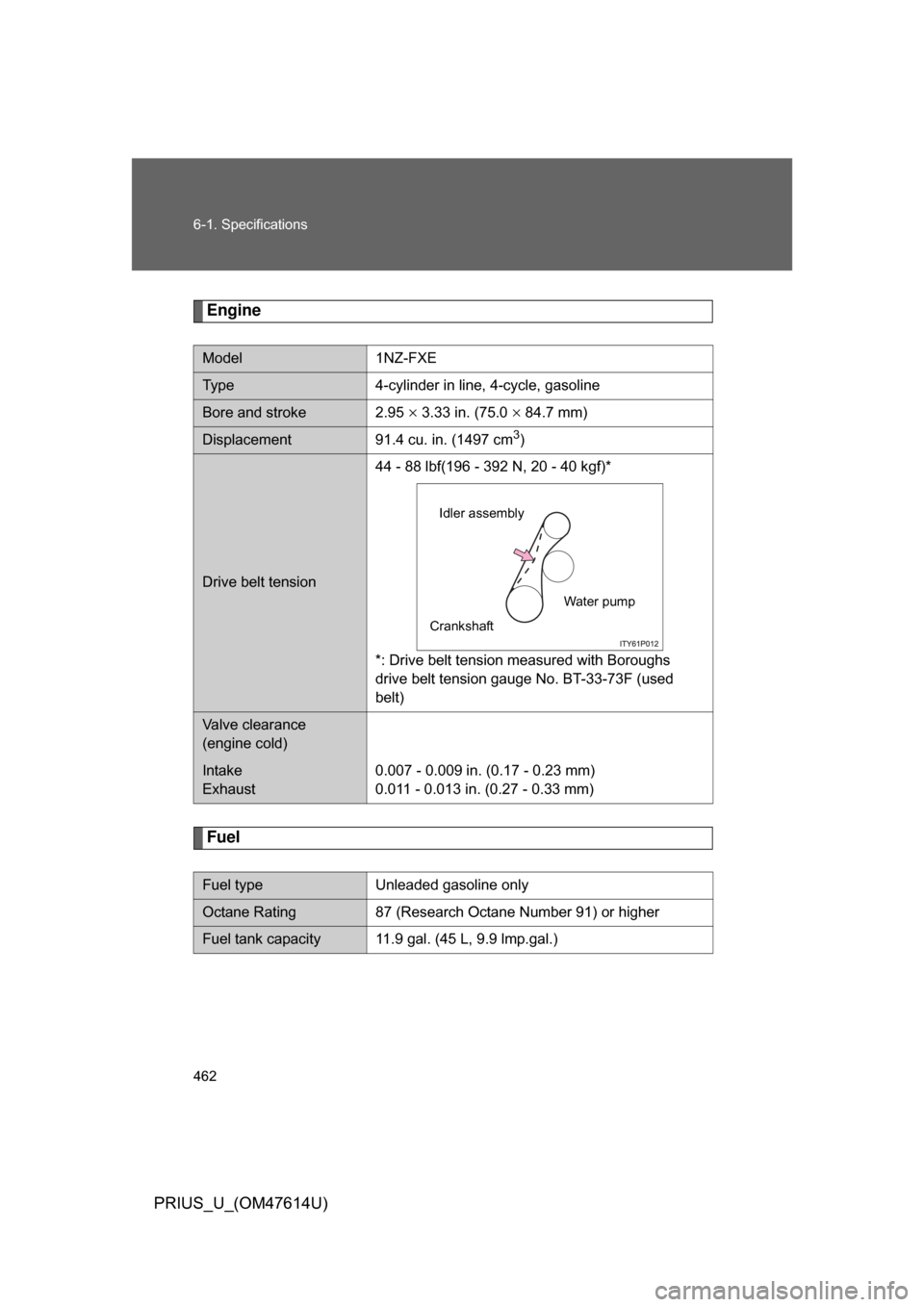

Engine
Fuel
Model1NZ-FXE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95  3.33 in. (75.0  84.7 mm)
Displacement91.4 cu. in. (1497 cm3)
Drive belt tension 44 - 88 lbf(196 - 392 N, 20 - 40 kgf)*
*: Drive belt tension measured with Boroughs
drive belt tension gauge No. BT-33-73F (used
belt)
Valve clearance
(engine cold)
Intake
Exhaust
0.007 - 0.009 in. (0.17 - 0.23 mm)
0.011 - 0.013 in. (0.27 - 0.33 mm)
Fuel typeUnleaded gasoline only
Octane Rating
87 (Research Octane Number 91) or higher
Fuel tank capacity 11.9 gal. (45 L, 9.9 lmp.gal.)
Idler assembly
Crankshaft Water pump

463
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(OM47614U)

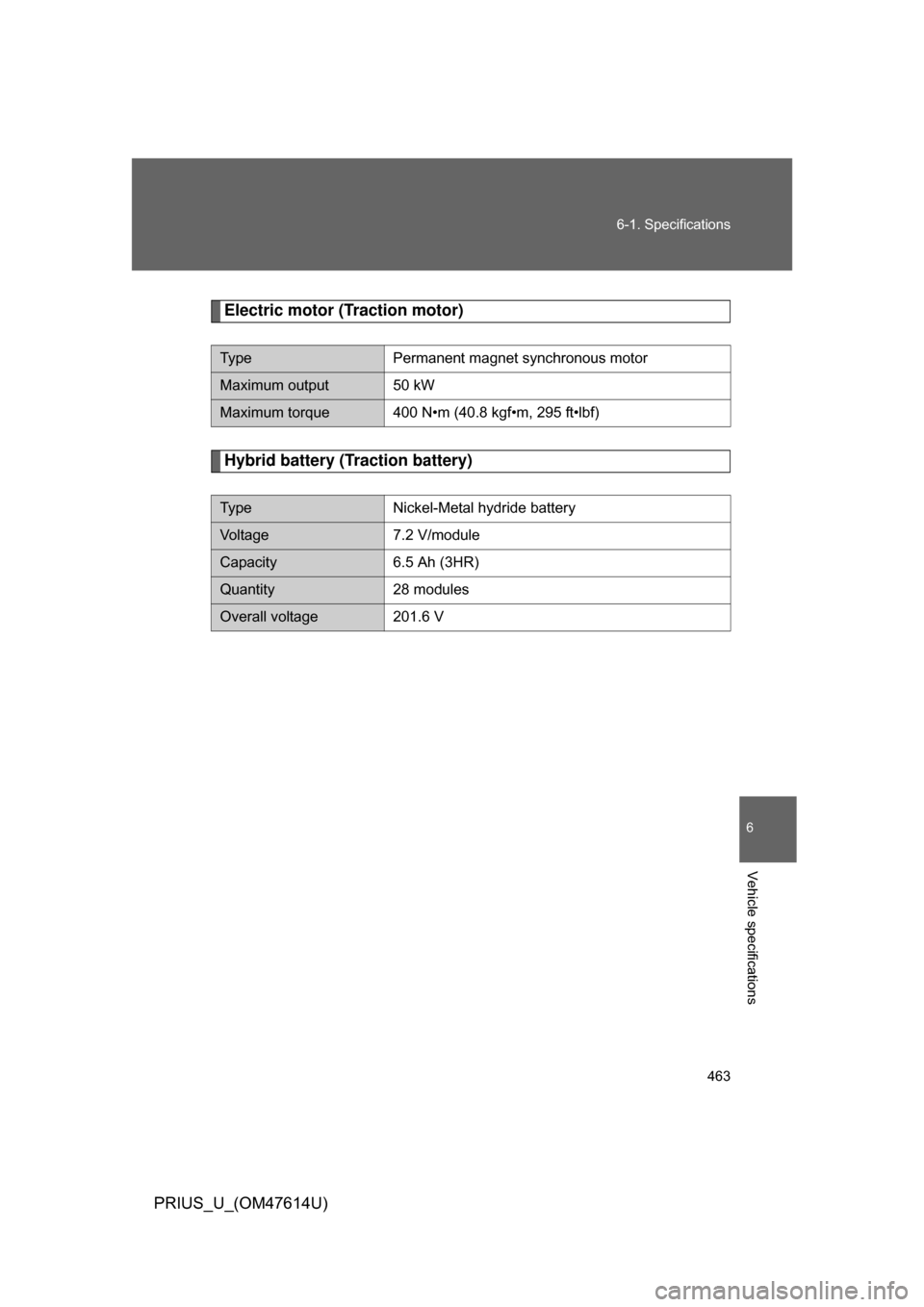

Electric motor (Traction motor)
Hybrid battery (Traction battery)
Ty p ePermanent magnet synchronous motor
Maximum output 50 kW
Maximum torque 400 N•m (40.8 kgf•m, 295 ft•lbf)
Ty p eNickel-Metal hydride battery
Voltage
7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V

464 6-1. Specifications
PRIUS_U_(OM47614U)
Lubrication system
*:5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity:
● The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Oil capacity
drain and refill
with filter
without filter 3.9 qt. (3.7 L, 3.3 lmp.qt.)
3.6 qt. (3.4 L, 3.0 lmp.qt.)
Oil grade
ILSAC multigrade engine oil
Recommended oil
viscosityUse Toyota approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the grade and viscosity shown
below.
Outside temperature
