4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■
Luggage compartment

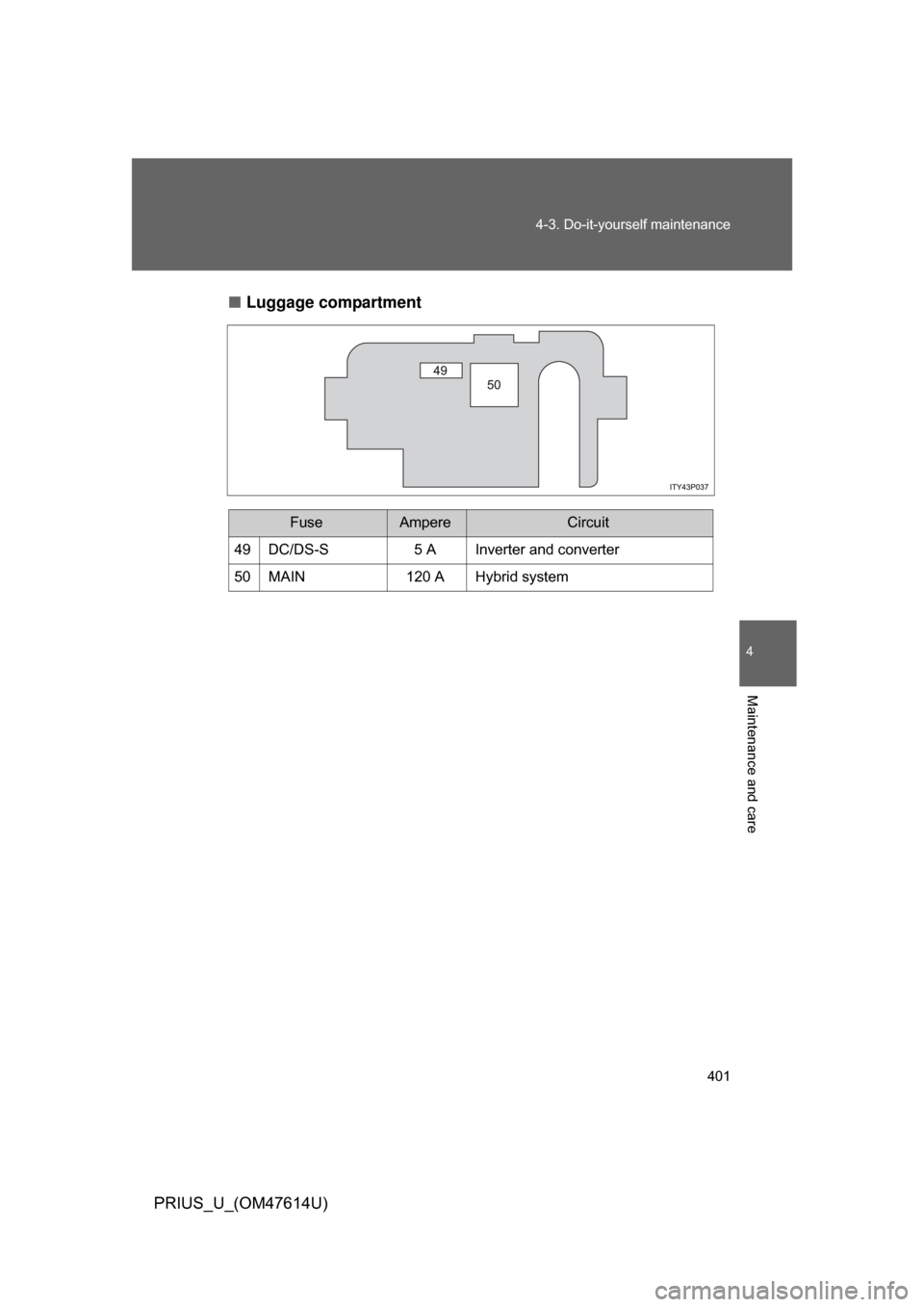

FuseAmpereCircuit
49 DC/DS-S 5 A Inverter and converter
50 MAIN 120 A Hybrid system

402 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer.

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs, contact your Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 469)
■ Remove the engine compartment cover if necessary.
 P. 3 6 1

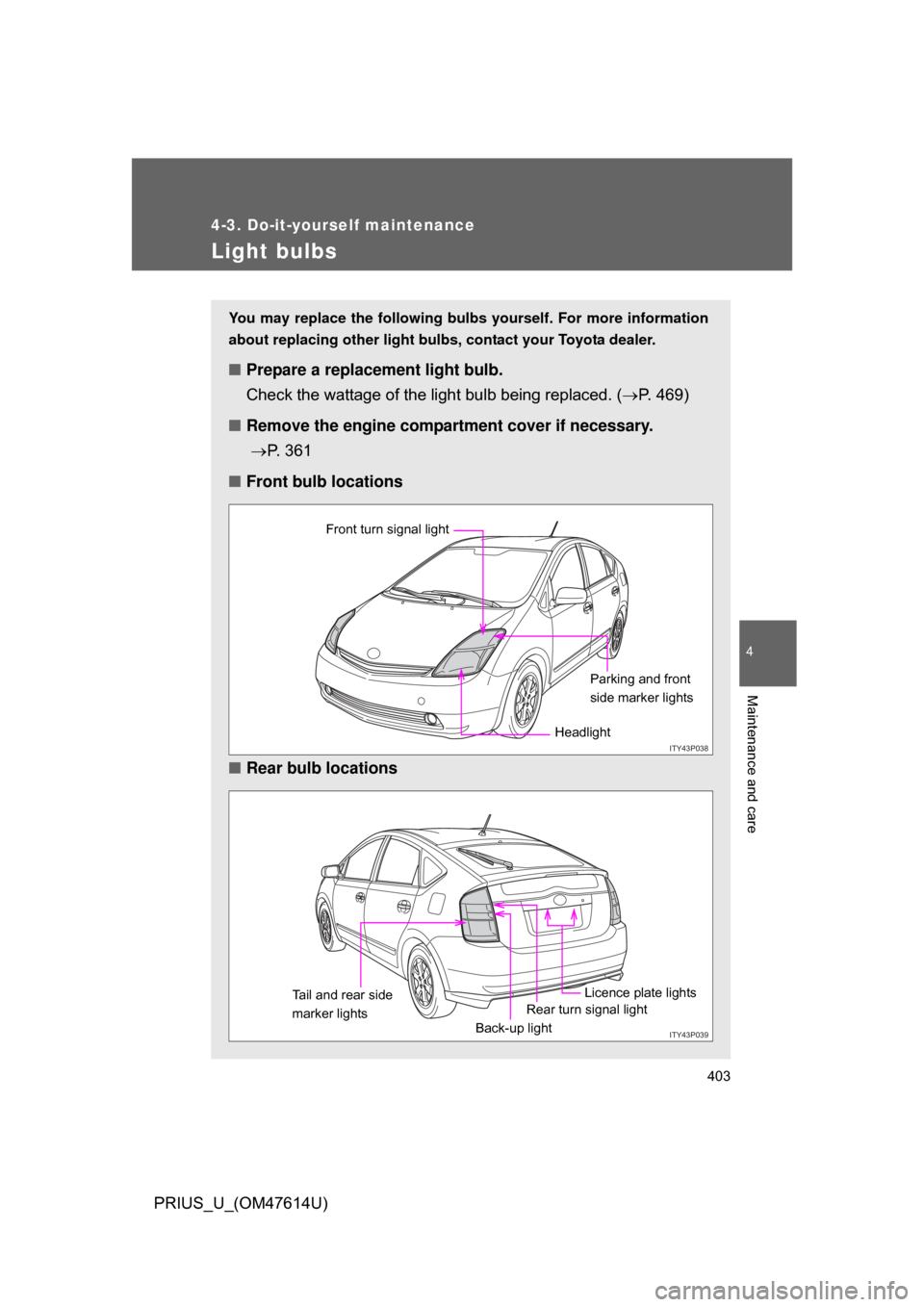

■ Front bulb locations
■ Rear bulb locations
ITY43P038
Parking and front
side marker lights
Headlight
Front turn signal light
ITY43P039
Rear turn signal light
Back-up light Licence plate lights
Tail and rear side
marker lights

404 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)
Replacing light bulbs■ Headlights (vehicles with halogen bulbs)

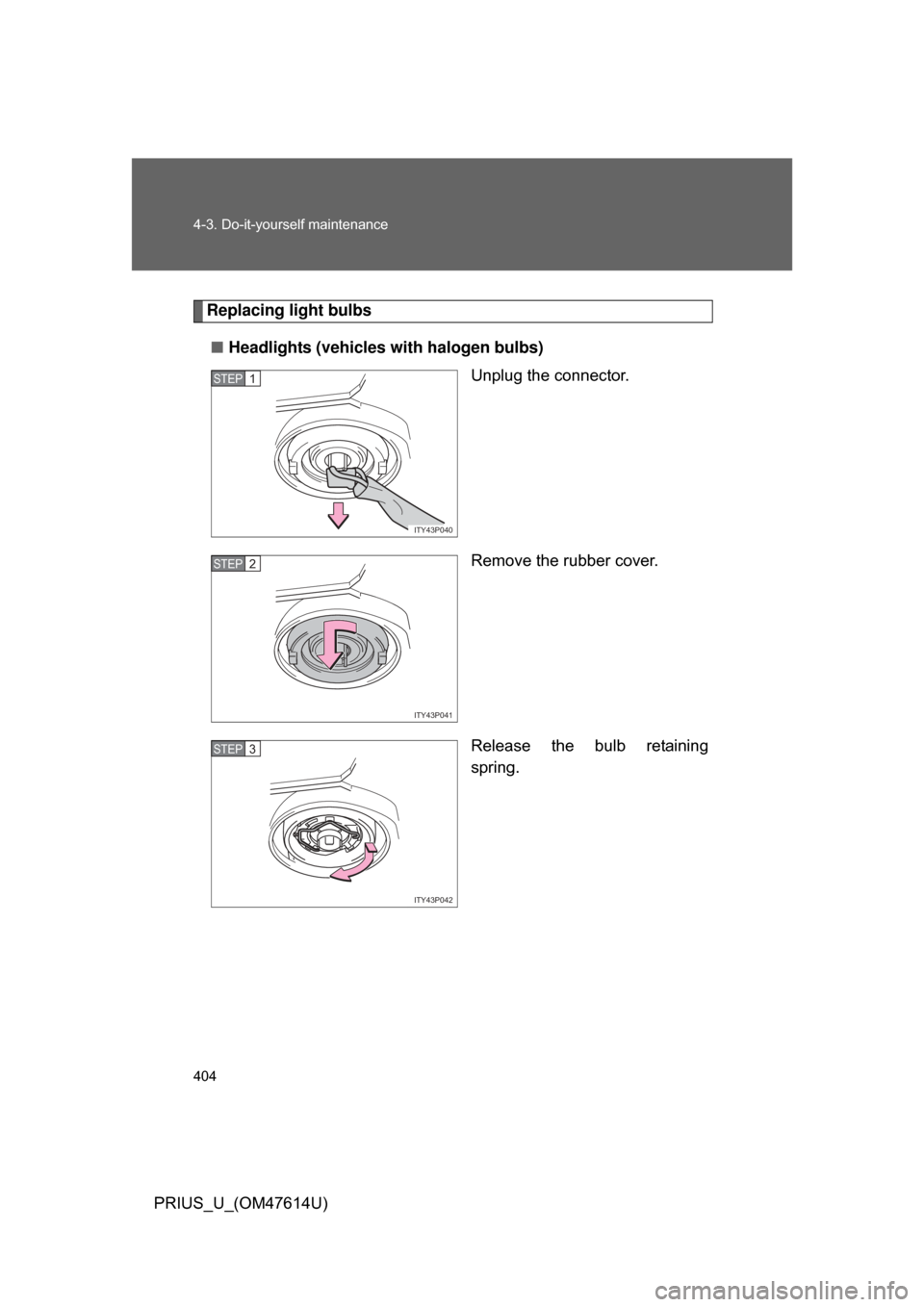

Unplug the connector.
Remove the rubber cover.
Release the bulb retaining
spring.
ITY43P040
STEP1
ITY43P041
STEP2
ITY43P042
STEP3

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)

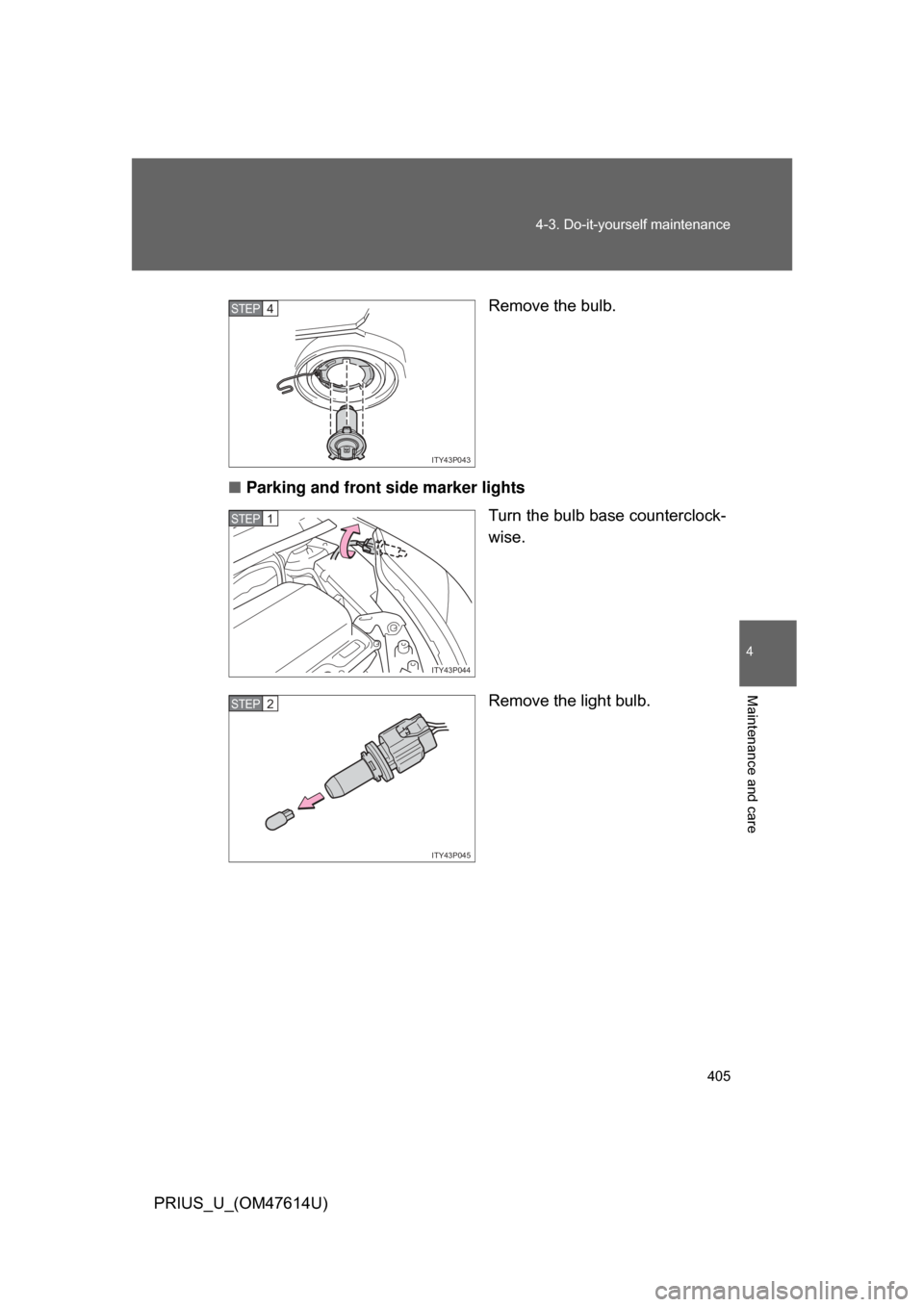

Remove the bulb.
■ Parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43P043
STEP4
ITY43P044
STEP1
ITY43P045
STEP2

406 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)■

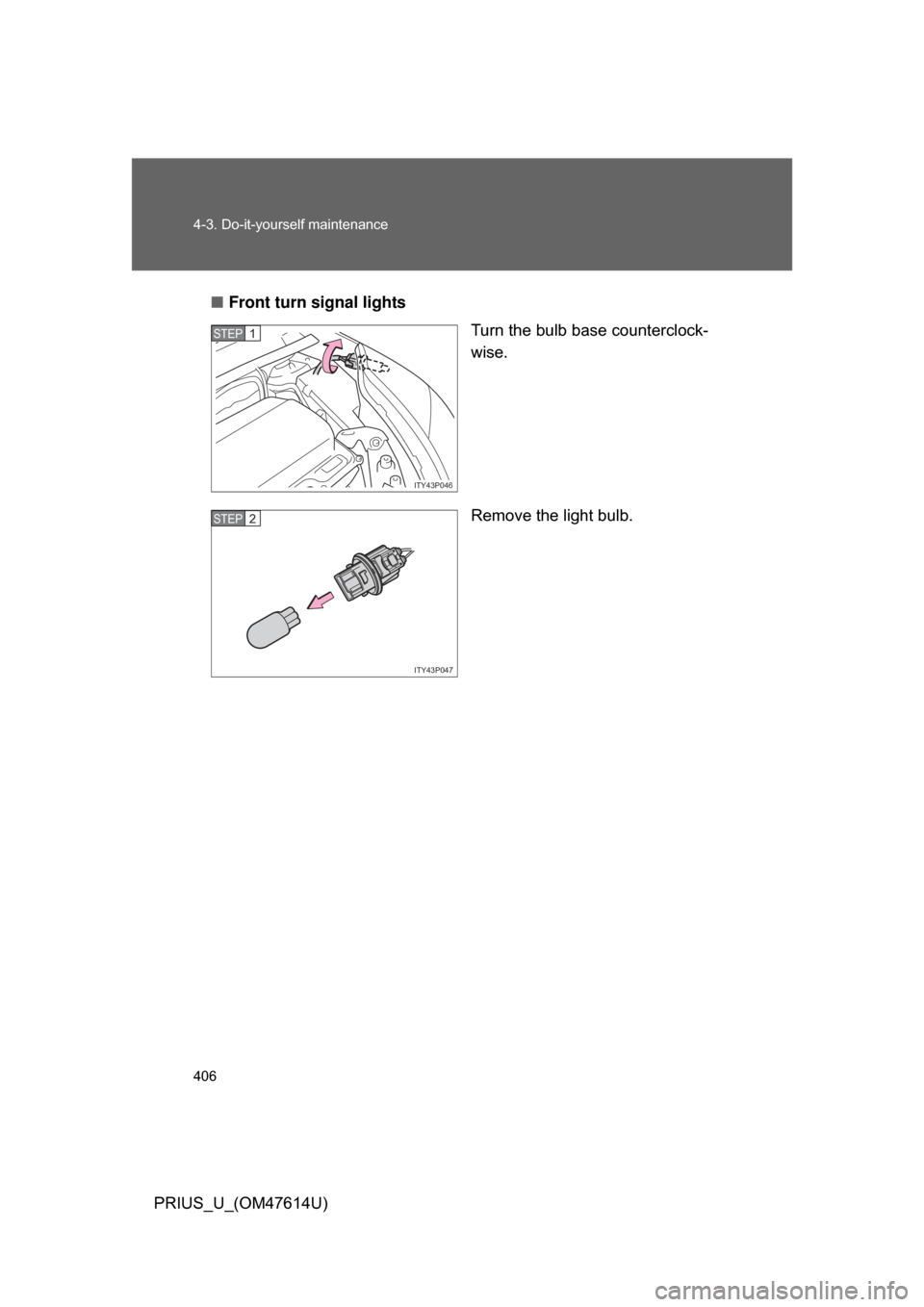

Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43P046
STEP1
ITY43P047
STEP2

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■
Back-up lights, tail and rear side maker lights, rear turn signal
light

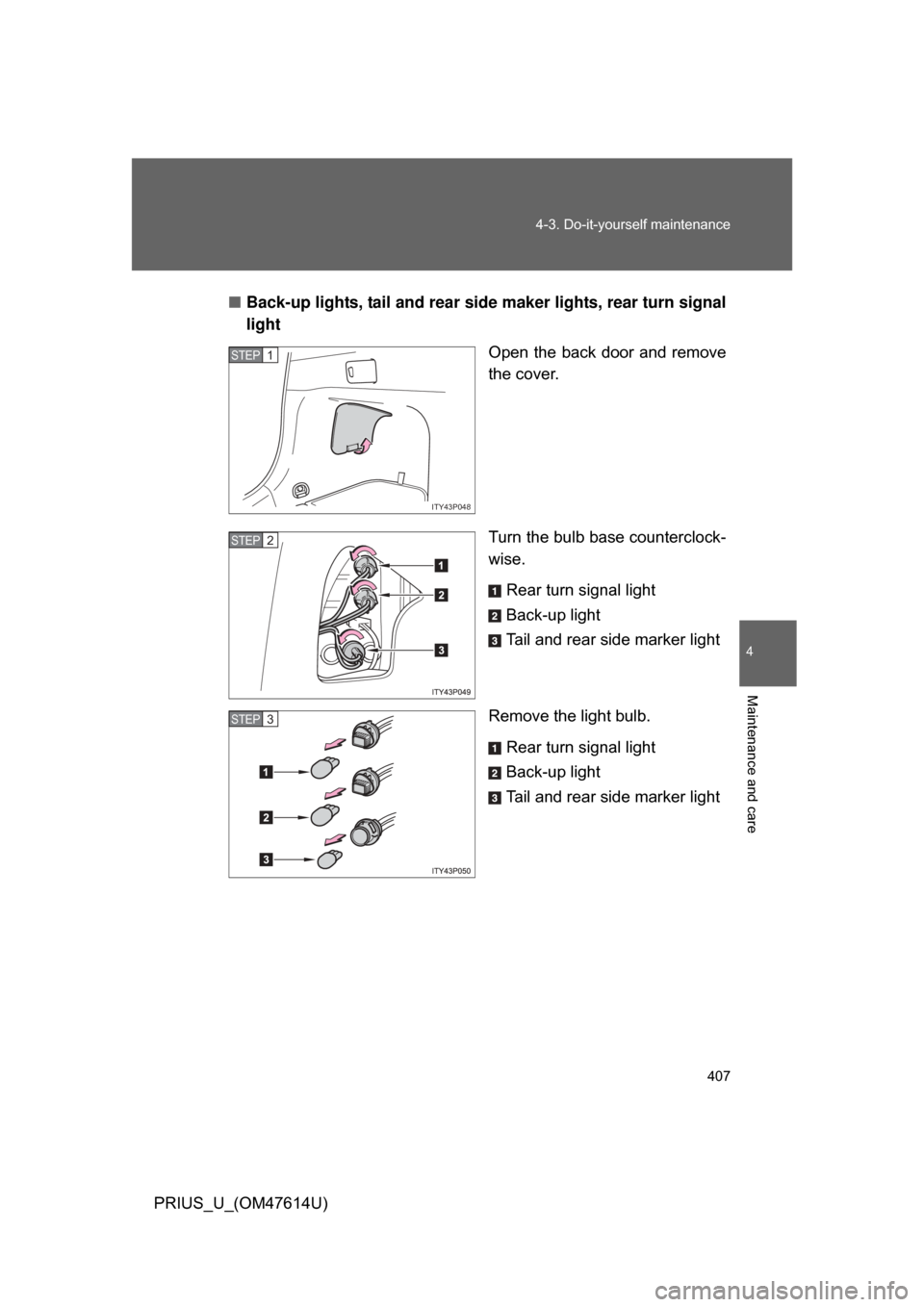

Open the back door and remove
the cover.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Tail and rear side marker light
Remove the light bulb. Rear turn signal light
Back-up light
Tail and rear side marker light
ITY43P048
STEP1
STEP2
STEP3

408 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)■
License plate lights
Remove the upper trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front fog lights
If the high mounted stoplight has burnt out, have it replaced by
your Toyota dealer.

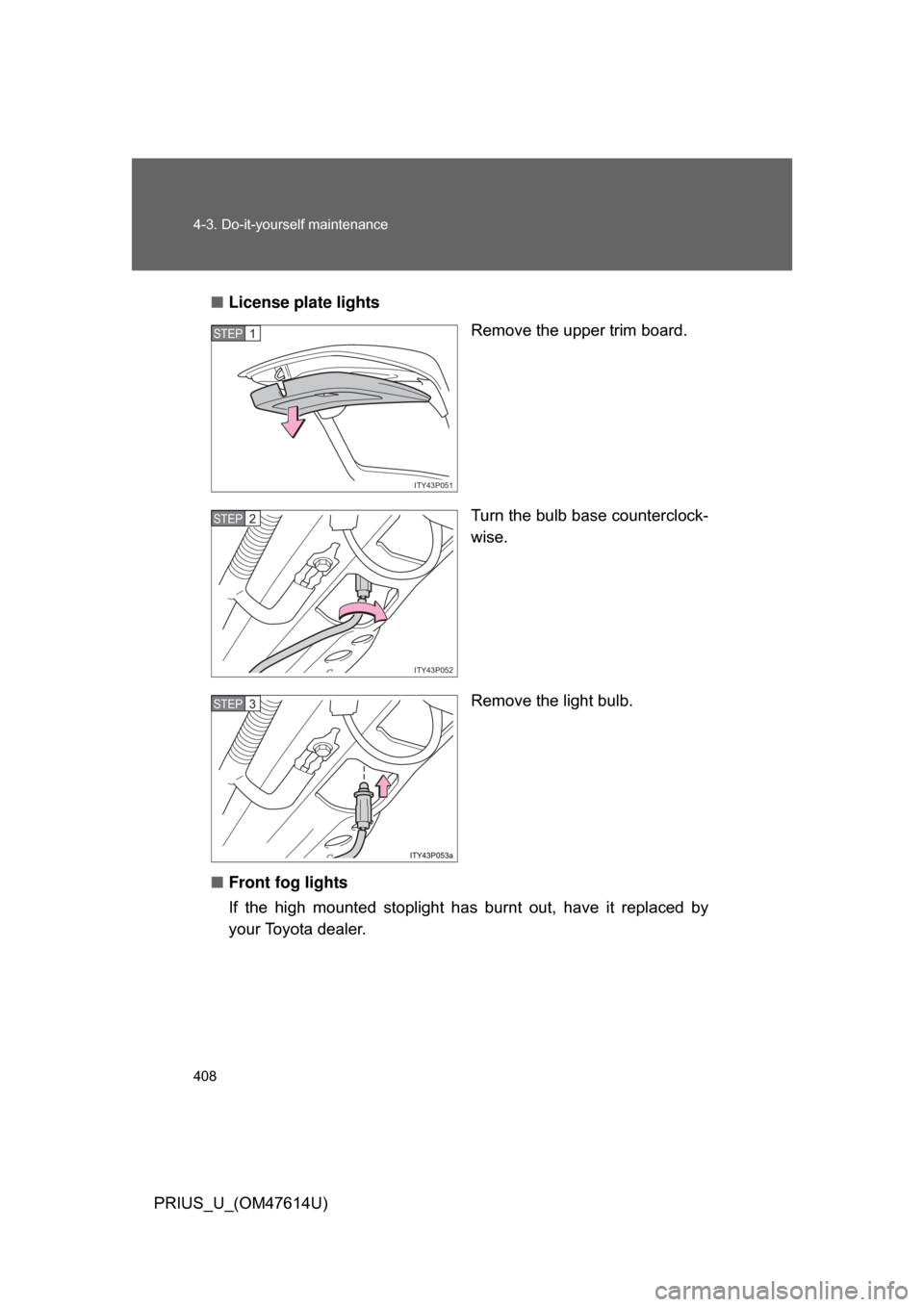

ITY43P051
STEP1
ITY43P052
STEP2
STEP3
