2009 TOYOTA PRIUS Owners Manual

153
2-3. Operating the lights and windshield wipers
2
When driving
PRIUS_U_(OM47614U)
■
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the hybrid system is started
and the parking brake is released. Daytime running lights are not designed
for use at night.
■ Headlight control sensor (if equipped)
■ Automatic light off system
Opening the driver’s door with the “POWER” switch in ACCESSORY mode
or OFF will turn the headlights and tail lights off.
To turn the lights on again, switch to ON mode, or turn the light switch “OFF”
once and then back to the or position.
■ Automatic headlight leveling system (Vehicle with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ If the indicator flashes...
It may indicate a malfunction in the system. Contact your Toyota dealer.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 486)
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight con-
trol system to malfunction.

154 2-3. Operating the lights and windshield wipers
PRIUS_U_(OM47614U)
NOTICE
■To prevent 12 volt battery discharge
Do not leave the lights on longer than necessary if the hybrid system is not
operating.

155
2-3. Operating the lights and windshield wipers
2
When driving
PRIUS_U_(OM47614U)

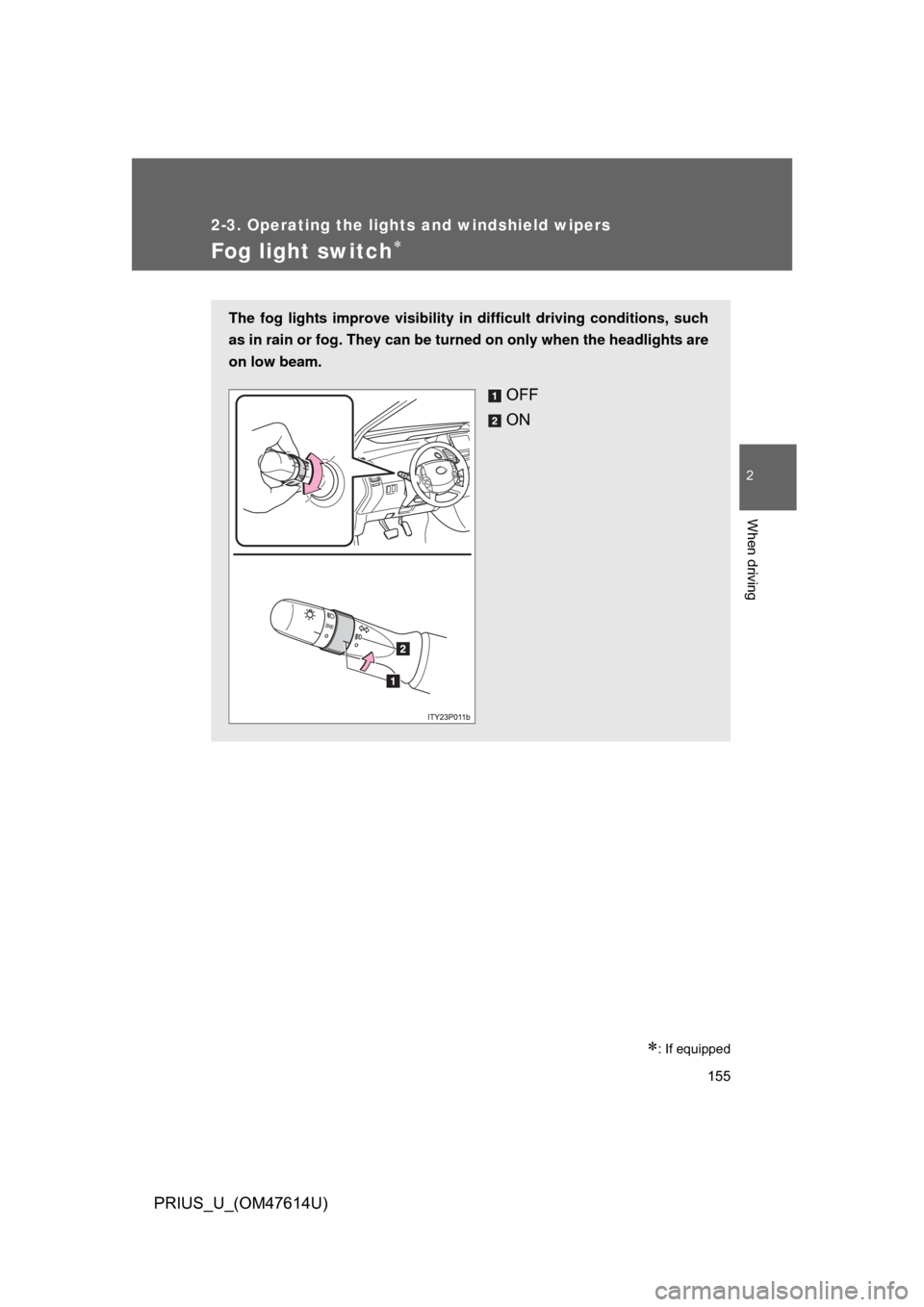

Fog light switch
: If equipped
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. They can be turned on only when the headlights are
on low beam.
OFF
ON

156
2-3. Operating the lights and windshield wipers
PRIUS_U_(OM47614U)

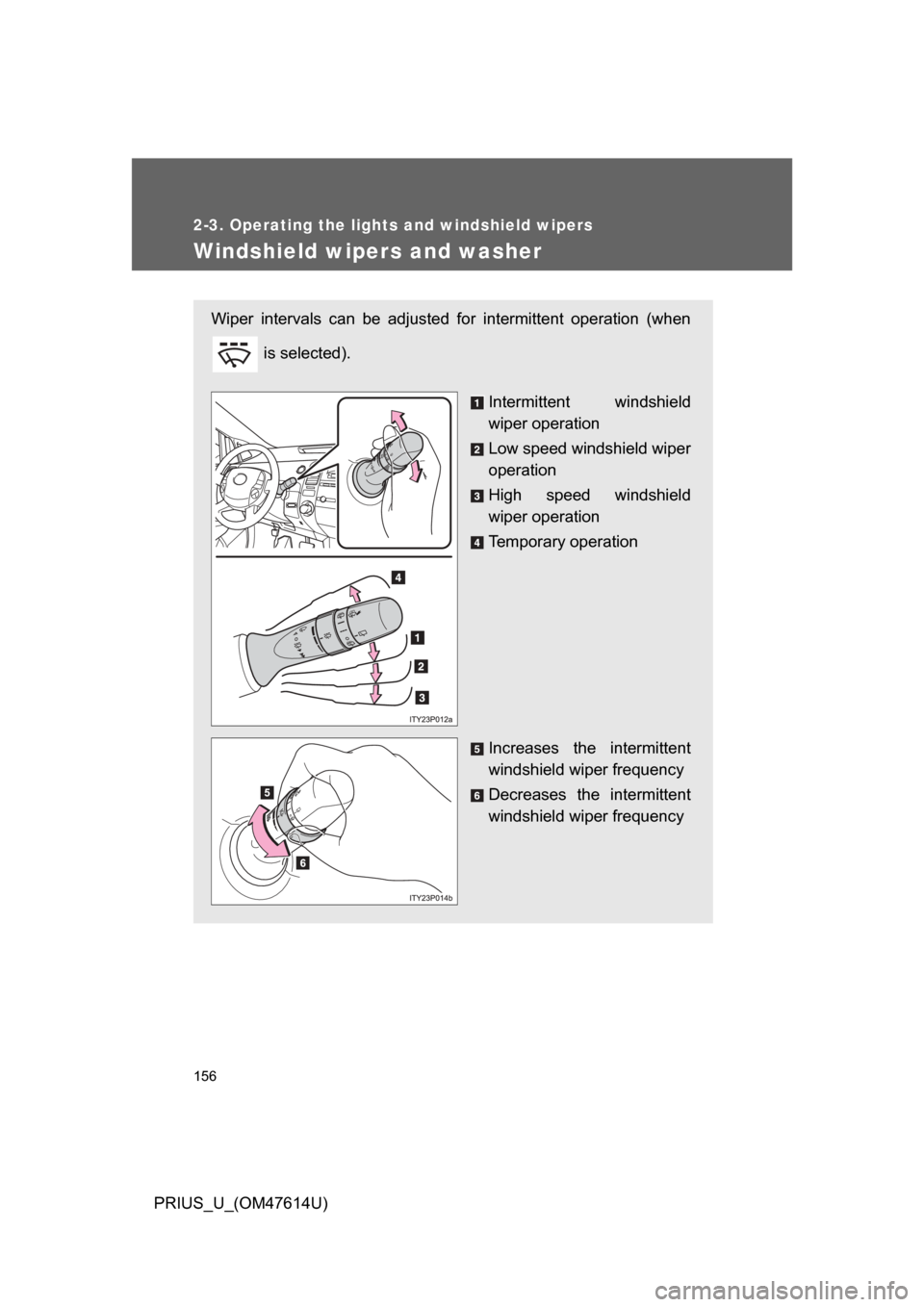

Windshield wipers and washer
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

157
2-3. Operating the lights and windshield wipers
2
When driving
PRIUS_U_(OM47614U)
■
The windshield wiper and washer can be operated when
The “POWER” switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.
Wash/wipe operation
Wipers operate automatically.

158
2-3. Operating the lights and windshield wipers
PRIUS_U_(OM47614U)
Rear window wiper and washer
■The rear window wiper and w asher can be operated when
The “POWER” switch is in ON mode.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion

159
2
When driving
PRIUS_U_(OM47614U)
2-4. Using other driving systems

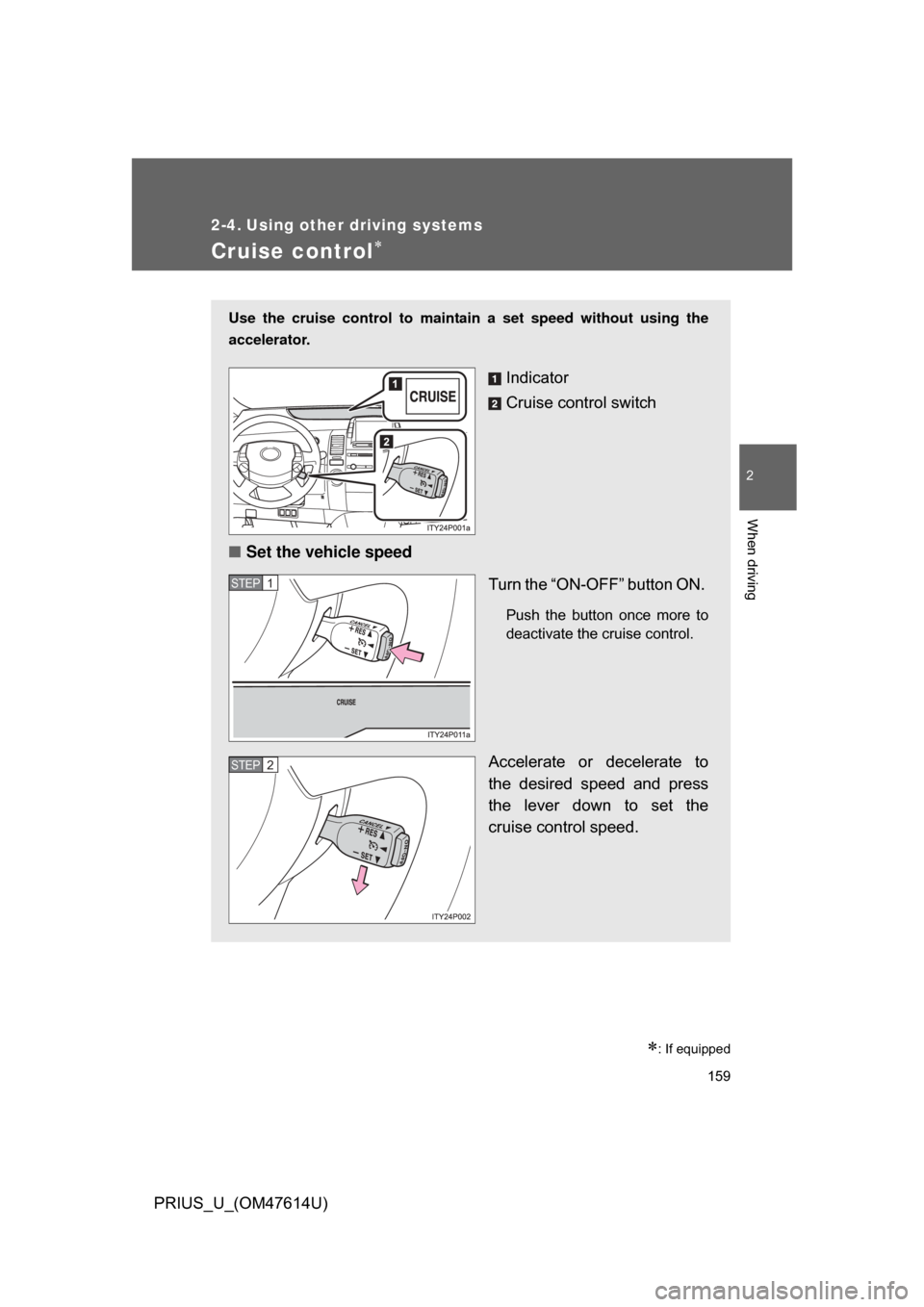

Cruise control
: If equipped
Use the cruise control to maintain a set speed without using the
accelerator.
Indicator
Cruise control switch
■ Set the vehicle speed
Turn the “ON-OFF” button ON.
Push the button once more to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed and press
the lever down to set the
cruise control speed.
STEP1
STEP2

160 2-4. Using other driving systems
PRIUS_U_(OM47614U)

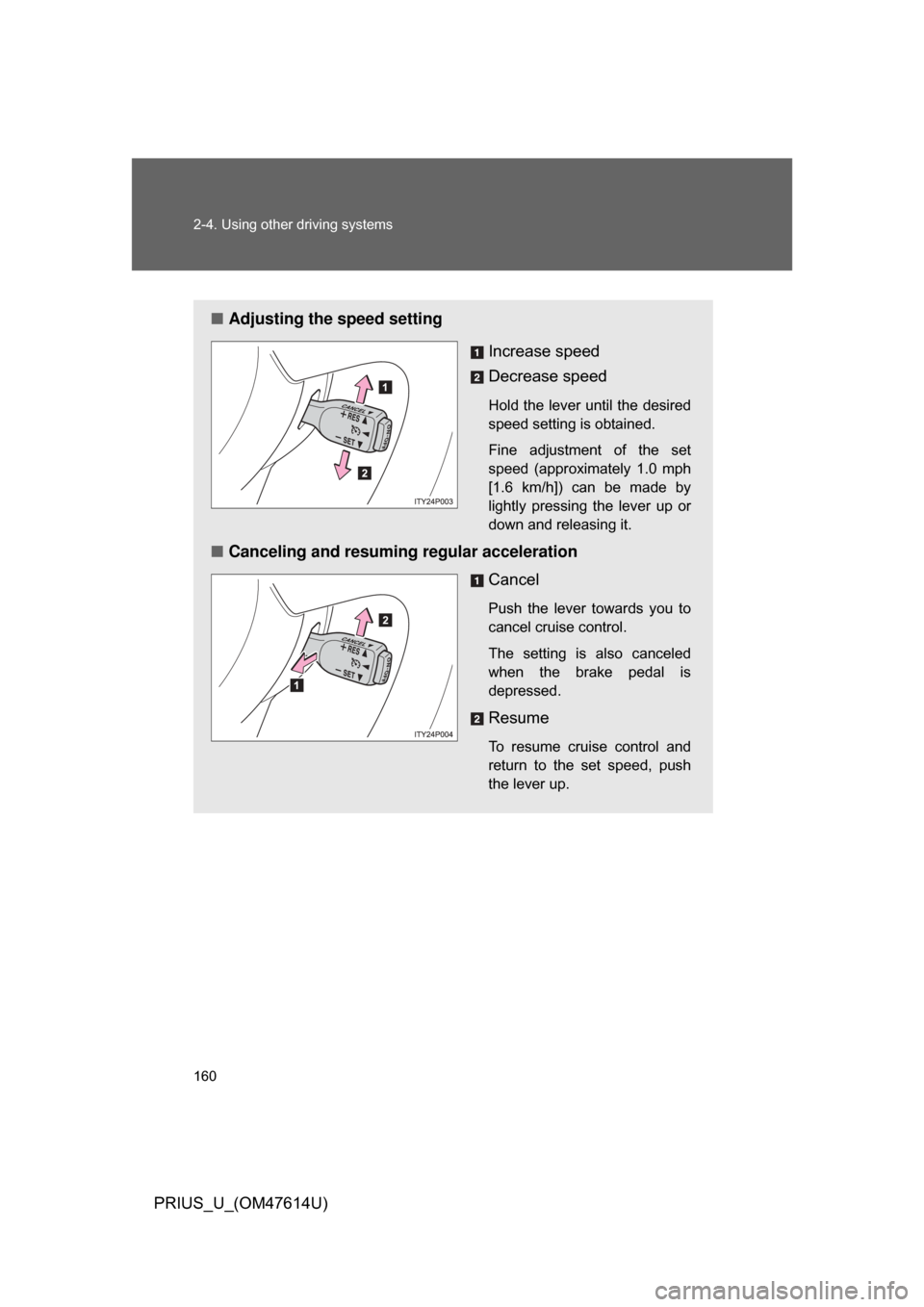

■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pressing the lever up or
down and releasing it.
■Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The setting is also canceled
when the brake pedal is
depressed.
Resume
To resume cruise control and
return to the set speed, push
the lever up.
