2009 TOYOTA PRIUS Owners Manual

273
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
CAUTION:
Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth, for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive expo-
sure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 7.9 in (20 cm) and more between the radiator and person’s
body (excluding extremities: hands, wrists, feet and legs).
Co-location:
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
CAUTION
■Caution while driving
Do not use a cellular phone or connect the Bluetooth
® phone.
NOTICE
■When leaving the vehicle
Do not leave your mobile phone in the vehicle. The inside of the vehicle may
become hot, causing damage to the phone.

274
3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)

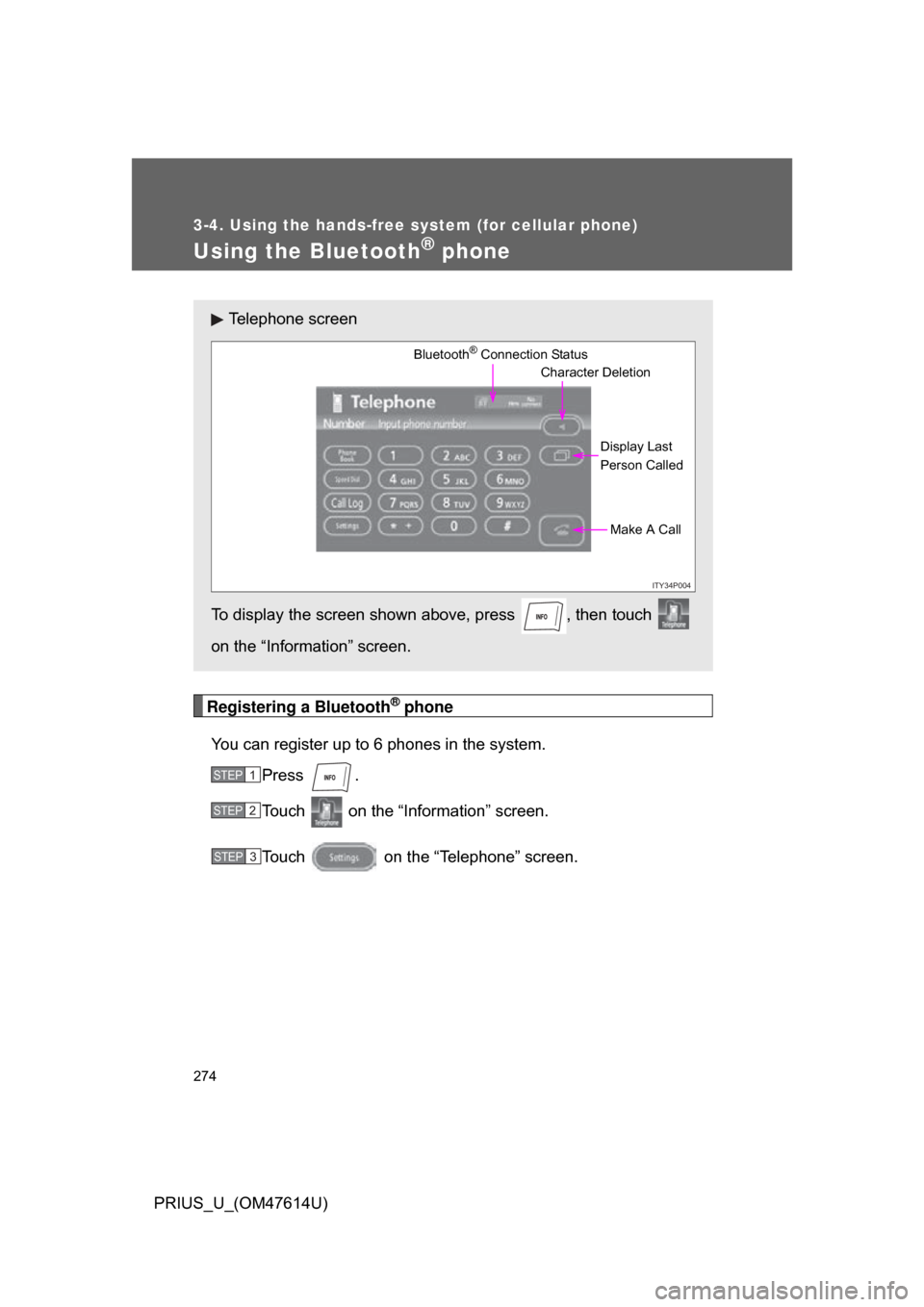

Using the Bluetooth® phone
Registering a Bluetooth® phone
You can register up to 6 phones in the system. Press .
Touch on the “Inf ormation” screen.
Touch on the “Telephone” screen.
Telephone screen
To display the screen shown above, press , then touch
on the “Information” screen.
ITY34P004
Bluetooth® Connection Status Display Last
Person CalledMake A Call
Character Deletion
STEP1
STEP2
STEP3

275
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U) Touch .
Touch .
Input the passkey displayed on
screen into your phone.
If the message “Bluetooth* con-
nection successful” is displayed,
registration is complete.
If the message “Bluetooth
* con-
nection failed. Please check the
“Passkey” and the settings of the
telephone” is displayed, start
again from the beginning.
*:Bluetooth is a registered trade- mark of Bluetooth SIG. Inc.
ITY34P005
STEP4
ITY34P006
STEP5
ITY34P007
STEP6

276 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)
Bluetooth® phone connection
There are two connection method s available—automatic and man-
ual.
Press .
Touch on the “Inf ormation” screen.
Touch on the “Telephone” screen.
Choose one of the following methods. Automatic connection
If the “POWER” switch is in the
ACCESSORY or ON mode, the
system will automatically connect
to the Bluetooth
* phone. Touch-
ing automatic connection will turn
it ON/OFF.
Manual connection
If automatic connection fails or is
turned OFF, connection must be
made manually.
If the message “Bluetooth* con-
nection successful” is displayed,
connection is complete.
*:Bluetooth is a registered trade- mark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
STEP4
ITY34P008
■ Reconnecting to the Bluetooth® phone
If the system cannot connect due to poor signal strength with the “POWER”
switch in the ACCESSORY or ON mode, the system will automatically
attempt to reconnect.
If the phone is turned off, the system will not attempt to reconnect. In this
case, connection must be made manually, or the phone must be re-selected.

277
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)
Making a call
Once the Bluetooth
® phone is registered, you can make a call using
the following procedure.
■ Dialing
Press .
Touch on the “Information” screen.
Inputting the phone number.
To delete the input phone num-
ber, touch .
To dial the last input phone num-
ber, touch .
Touch or press the on the steering wheel.
STEP1
STEP2
ITY34P009
STEP3
STEP4

278 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)■
Dialing from the phone book
You can dial a number from the phone book data imported from
your mobile phone. Up to 1000 entries may be stored in the phone
book. ( P. 298)
Press .
Touch on the “Inf ormation” screen.
Touch on the “Telephone” screen. Choose the data to call from the
list.
Choose the number and then
touch or press the on
the steering wheel.
STEP1
STEP2
STEP3
ITY34P010
STEP4
ITY34P011
STEP5

279
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)■
Dialing from history
You can make a call from past dialed numbers or received calls.
Up to 5 numbers are stored, with the last recent number being
deleted to make room for a new number.
Press .
Touch on the “Information” screen.
Touch on the “Telephone” screen. Choose the number to call from
the list.
To choose a number from the
incoming calls history, touch and choose a number to
call.
Touch or press the
on the steering wheel.
STEP1
STEP2
STEP3
ITY34P012
STEP4
ITY34P013
STEP5

280 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)■
Calling using speed dial
You can make a call using numbers registered from the phone
book and call history. ( P. 289)
Press .
Touch on the “Inf ormation” screen.
Touch on the “Telephone” screen. Choose the desired number to
make a call.
To change the page, touch or .
STEP1
STEP2
STEP3
ITY34P014
STEP4
