2009 TOYOTA PRIUS Owners Manual

465
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(OM47614U)
Cooling system
Ignition system
Capacity
Gasoline engine
Power control unit
9.0 qt. (8.6 L, 7.5 lmp.qt.)
2.9 qt. (2.7 L, 2.4 lmp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO NGK SK16R11
IFR5A11
Gap
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

466 6-1. Specifications
PRIUS_U_(OM47614U)

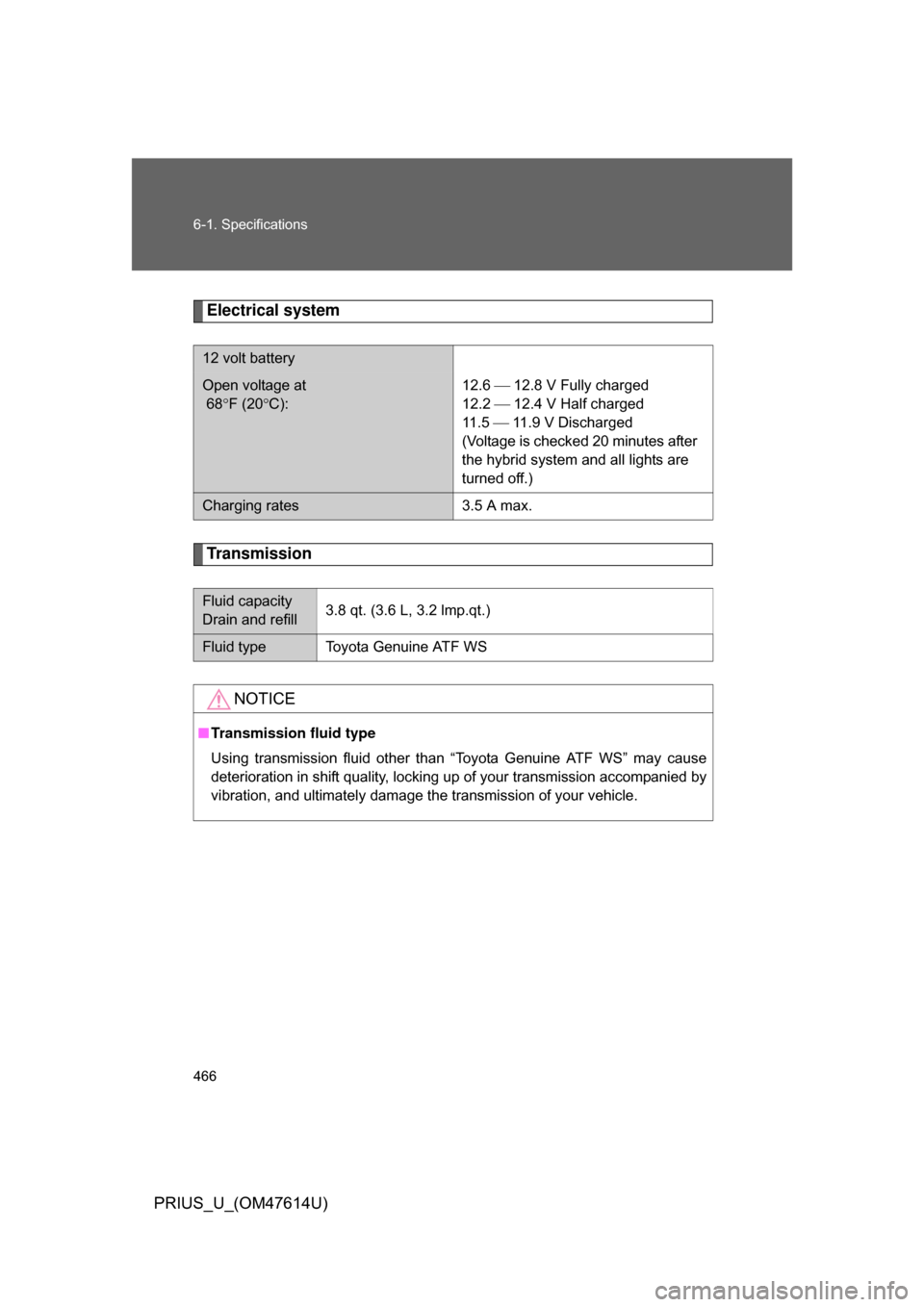

Electrical system
Transmission
12 volt battery
Open voltage at
68F (20 C): 12.6 
12.8 V Fully charged
12.2  12.4 V Half charged
11 . 5  11.9 V Discharged
(Voltage is checked 20 minutes after
the hybrid system and all lights are
turned off.)
Charging rates 3.5 A max.
Fluid capacity
Drain and refill3.8 qt. (3.6 L, 3.2 lmp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

467
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(OM47614U)

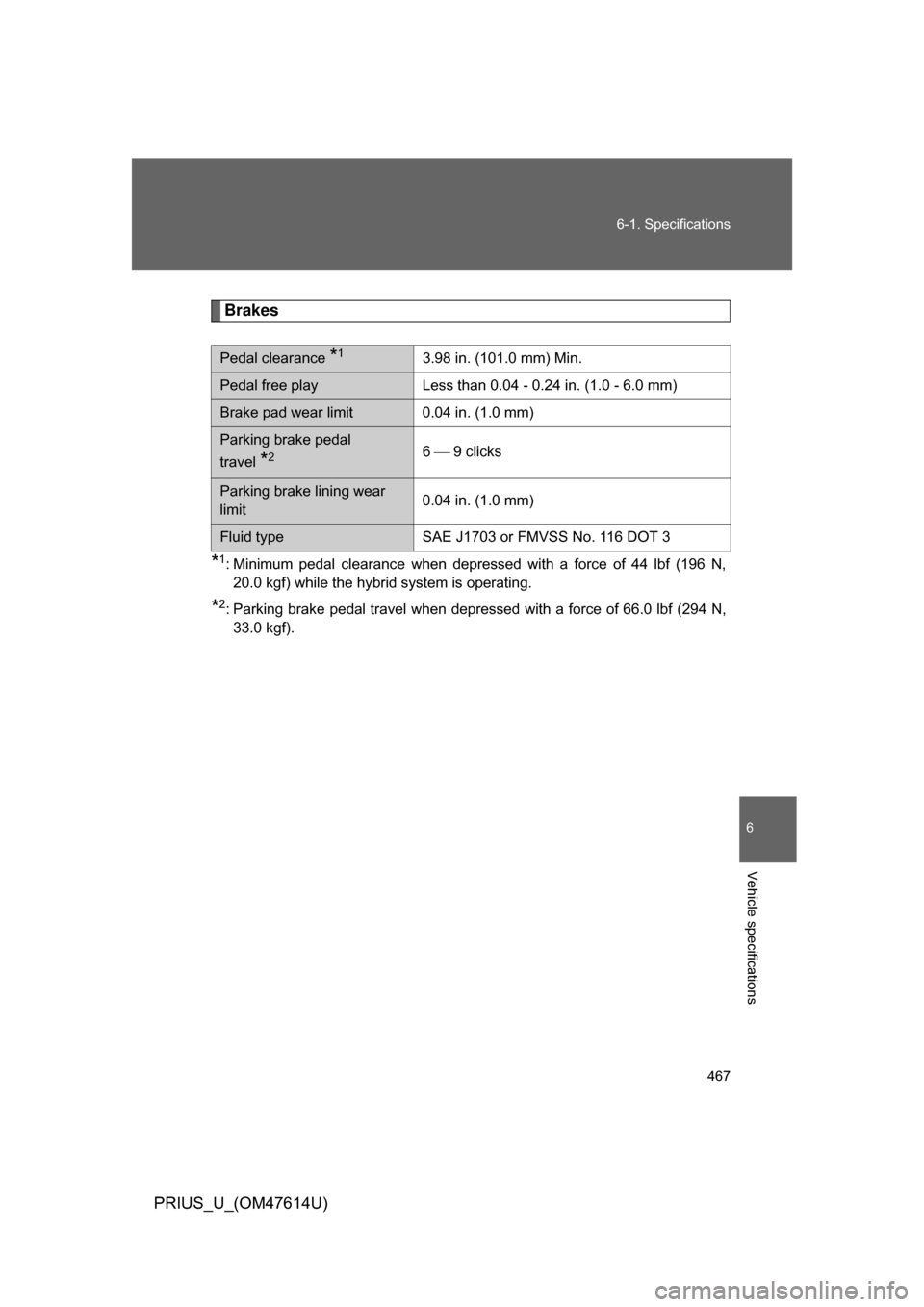

Brakes
*1: Minimum pedal clearance when depressed with a force of 44 lbf (196 N,
20.0 kgf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 66.0 lbf (294 N,33.0 kgf).
Pedal clearance *13.98 in. (101.0 mm) Min.
Pedal free play Less than 0.04 - 0.24 in. (1.0 - 6.0 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake pedal
travel
*26  9 clicks
Parking brake lining wear
limit 0.04 in. (1.0 mm)
Fluid type
SAE J1703 or FMVSS No. 116 DOT 3

468 6-1. Specifications
PRIUS_U_(OM47614U)

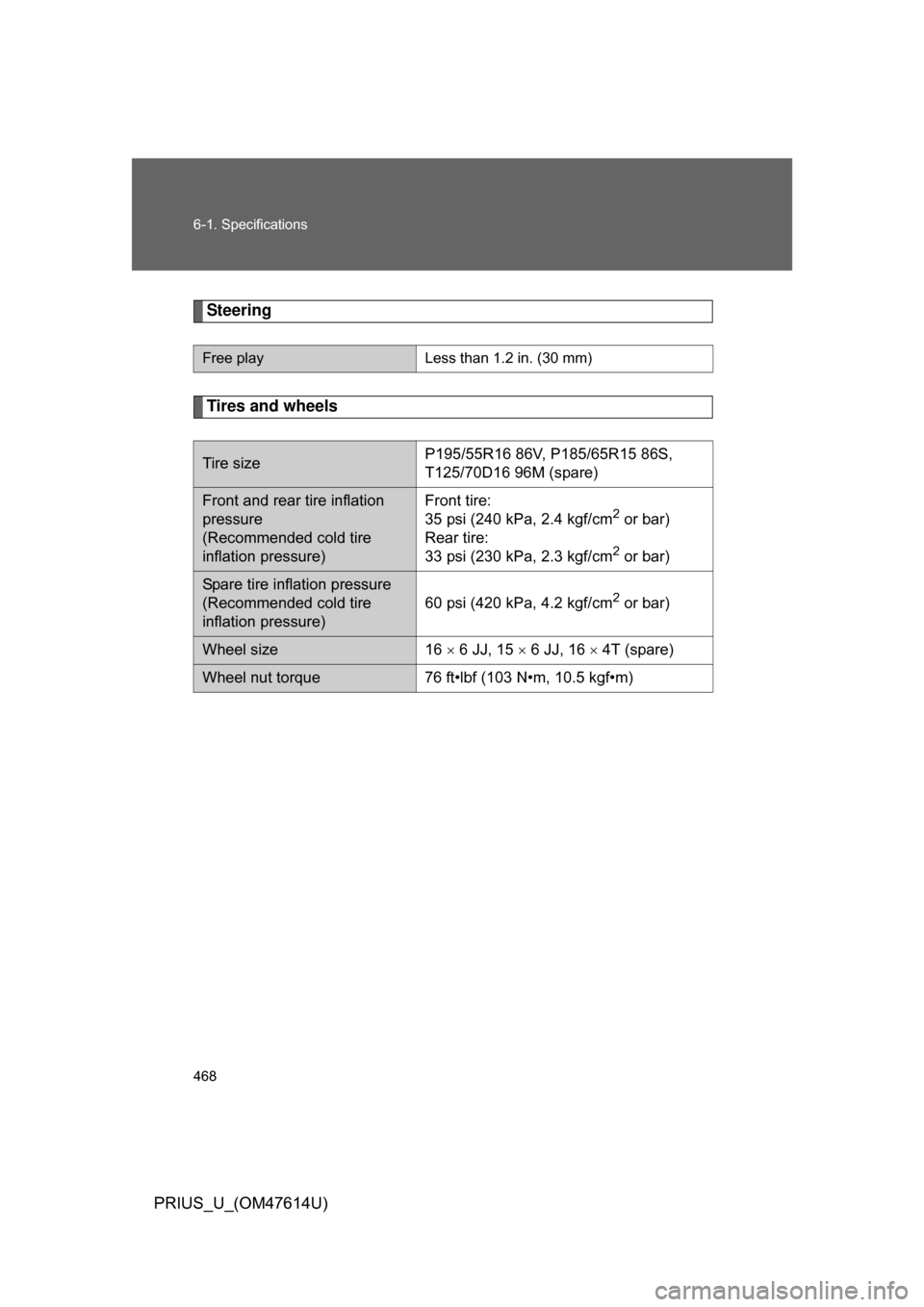

Steering
Tires and wheels
Free playLess than 1.2 in. (30 mm)
Tire sizeP195/55R16 86V, P185/65R15 86S,
T125/70D16 96M (spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)Front tire:
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear tire:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare tire inflation pressure
(Recommended cold tire
inflation pressure) 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size
16  6 JJ, 15  6 JJ, 16  4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

469
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(OM47614U)
Light bulbs
A: D4R discharge bulbs
B: HB2 halogen bulbs
C: HB4 halogen bulbs
D: Wedge base bulbs
E: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
Discharge bulbs
Halogen bulbs 
35
60/55 A
B
Front fog lights 9006 51 C
Parking/front side marker
lights 
5D
Front turn signal lights 21 D
Rear turn signal lights 21 D
Back-up lights 7440 21 D
Tail lights/rear side marker
lights 
5D
License plate lights 5D
InteriorInterior lights
8E
Personal lights 5D
Door courtesy lights 5D
Vanity lights 5E
Luggage compartment light 5E

470
6-1. Specifications
PRIUS_U_(OM47614U)

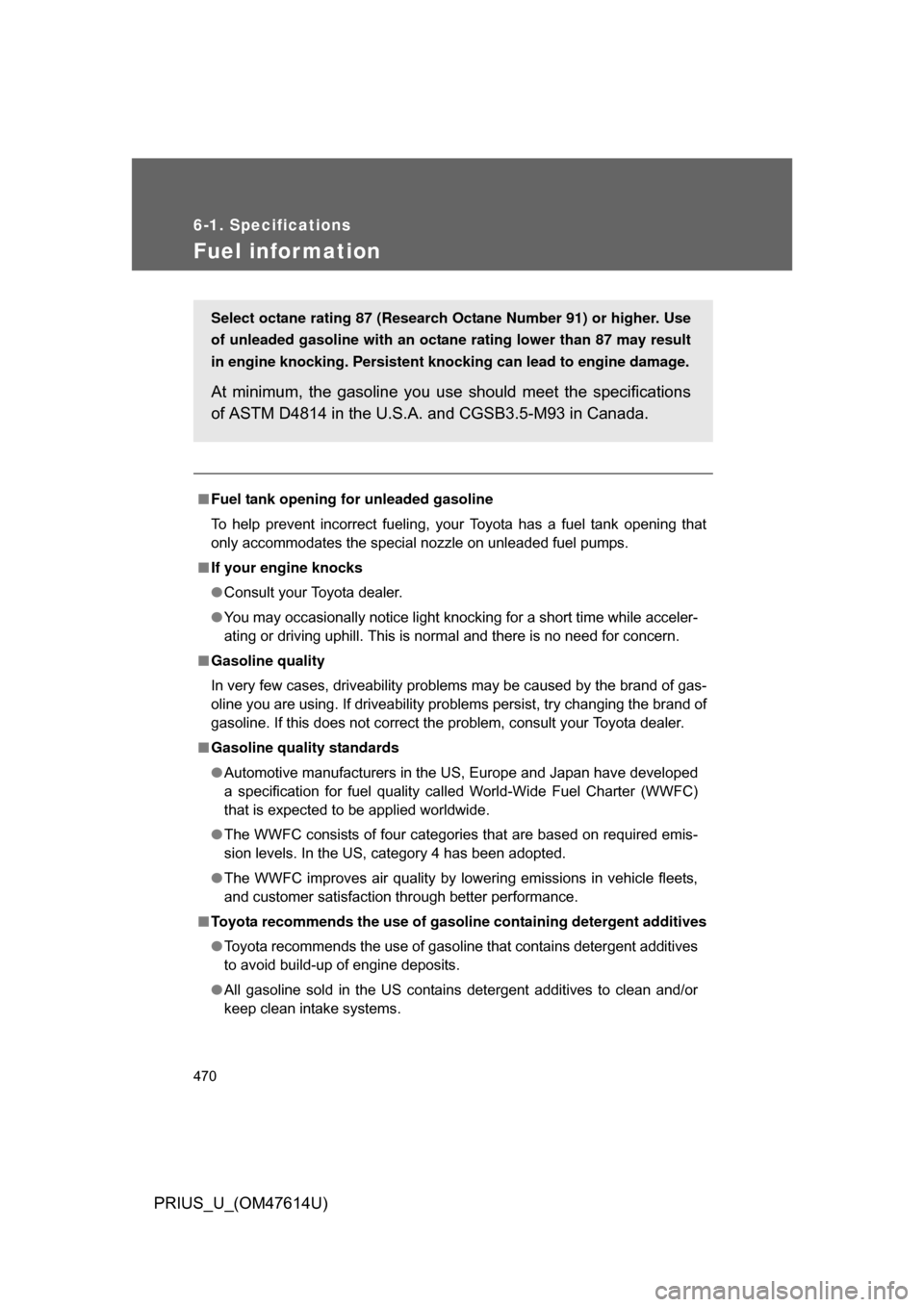

Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
● Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
■ Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
Select octane rating 87 (Research Octane Number 91) or higher. Use
of unleaded gasoline with an octane rating lower than 87 may result
in engine knocking. Persistent kno cking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

471
6-1. Specifications
6
Vehicle specifications
PRIUS_U_(OM47614U)
■
Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline
● Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota DOES NOT recommend the use of gasoline containing methanol.
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

472 6-1. Specifications
PRIUS_U_(OM47614U)
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related p oor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.
