2009 TOYOTA 4RUNNER Owners Manual

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
23 TRN-HAZ
15 ATurn signal lights, emergency
flashers
24 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
25 EFI 20 AMultiport fuel injection system/
sequential multiport fuel injection
system
26 DR/LCK 20 A Power door lock system
27 TOWING 30 A Towing converter
28 RADIO NO.2 20 A Audio system
29 A/PUMP 50 AMultiport fuel injection system/
sequential multiport fuel injection
system
30 AIRSUS 50 A Rear height control air suspension
31 AM1 50 AACC, CIG, IG1, ECU-IG, FR WIP-
WSH, RR-WSH, 4WD, and STA
fuses
32 TOWING BRK 30 A Trailer brake controller
33 J/B 50 APWR OUTLET, D P/SEAT, P P/
SEAT, POWER, TAIL, SECU/
HORN fuses
34 BATT CHG 30 A Trailer sub battery
35 TOWING 40 A Trailer lights (tail lights)
36 ABS MTR 40 AAnti-lock brake system, traction
control system (2WD models),
active traction control system (4WD
models), vehicle stability control
system
37 AM2 30 AStarter system, IGN, GAUGE,
STA NO.2, SRS fuses
FuseAmpereCircuit

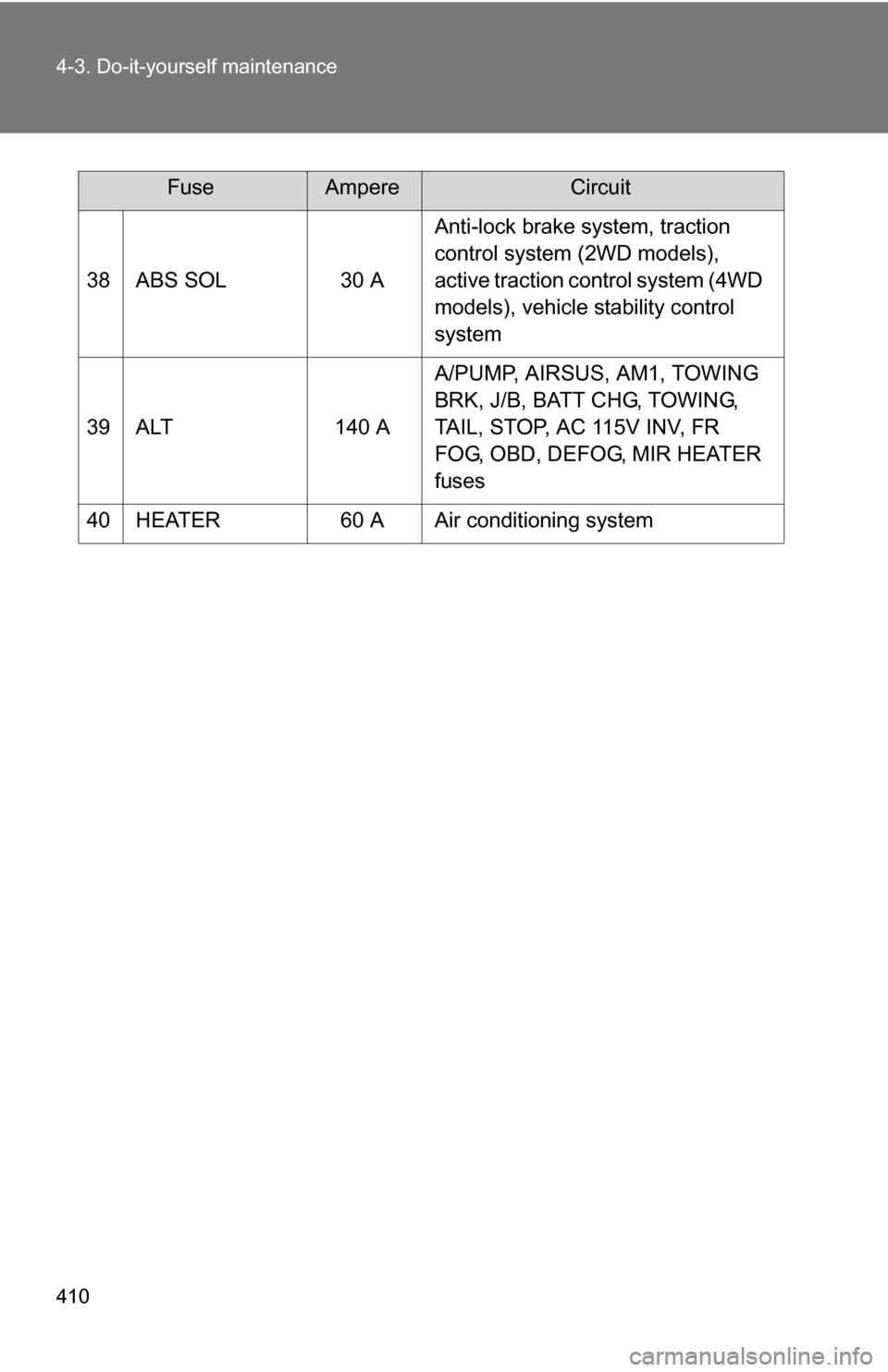

410 4-3. Do-it-yourself maintenance
38 ABS SOL30 AAnti-lock brake system, traction
control system (2WD models),
active traction control system (4WD
models), vehicle stability control
system
39 ALT 140 AA/PUMP, AIRSUS, AM1, TOWING
BRK, J/B, BATT CHG, TOWING,
TAIL, STOP, AC 115V INV, FR
FOG, OBD, DEFOG, MIR HEATER
fuses
40 HEATER 60 A Air conditioning system
FuseAmpereCircuit

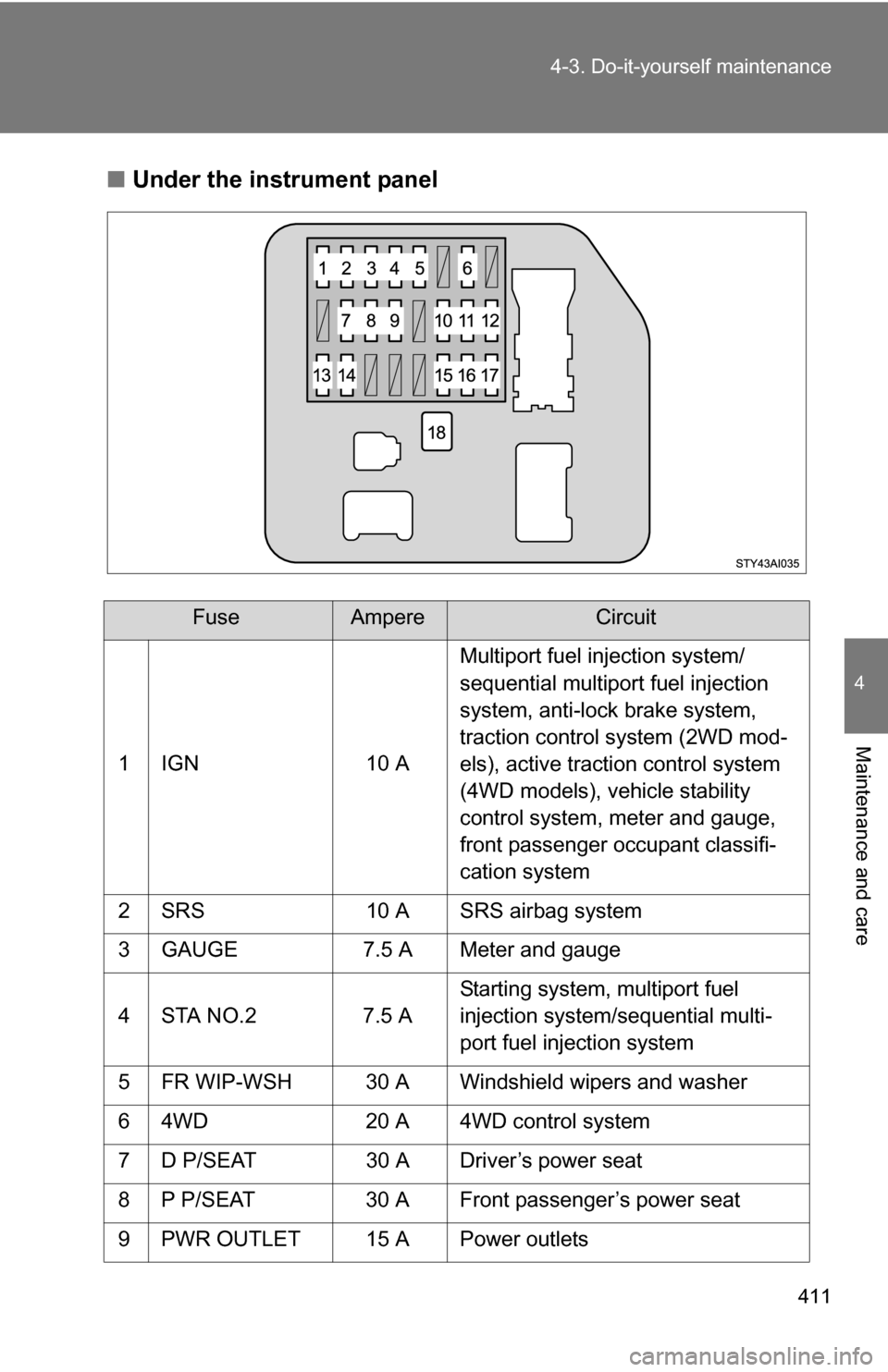

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Under the instrument panel
FuseAmpereCircuit
1 IGN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, anti-lock brake system,
traction control system (2WD mod-
els), active traction control system
(4WD models), vehicle stability
control system, meter and gauge,
front passenger occupant classifi-
cation system
2 SRS 10 A SRS airbag system
3 GAUGE 7.5 A Meter and gauge
4 STA NO.2 7.5 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
5 FR WIP-WSH 30 A Windshield wipers and washer
6 4WD 20 A 4WD control system
7 D P/SEAT 30 A Driver’s power seat
8 P P/SEAT 30 A Front passenger’s power seat
9 PWR OUTLET 15 A Power outlets

412 4-3. Do-it-yourself maintenance
10 RR WSH15 ABack window washer, multiplex
communication system
11 ECU-IG 10 AShift lock control system, power
windows, anti-lock brake system,
traction control system (2WD mod-
els), active traction control system
(4WD models), vehicle stability
control system, electric moon roof,
multiplex communication system,
theft deterrent system, rear height
control air suspension, tire pres-
sure warning system, driving posi-
tion memory system
12 IG1 15 AAnti-lock brake system, traction
control system (2WD models),
active traction control system (4WD
models), vehicle stability control
system, air conditioning system,
charging system, back window
defogger, back-up lights, emer-
gency flashers, seat heaters, AC
inverter, instrument panel light con-
trol, auto anti-glare inside rear view
mirror, seat belt tension reducer
13 STA 7.5 A No circuit
14 SECU/HORN 10 A Theft deterrent system
15 TAIL 10 ATail lights, license plate lights, park-
ing lights, instrument panel light
control, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, instrument panel
lights, meter and gauge, glove box
light
FuseAmpereCircuit

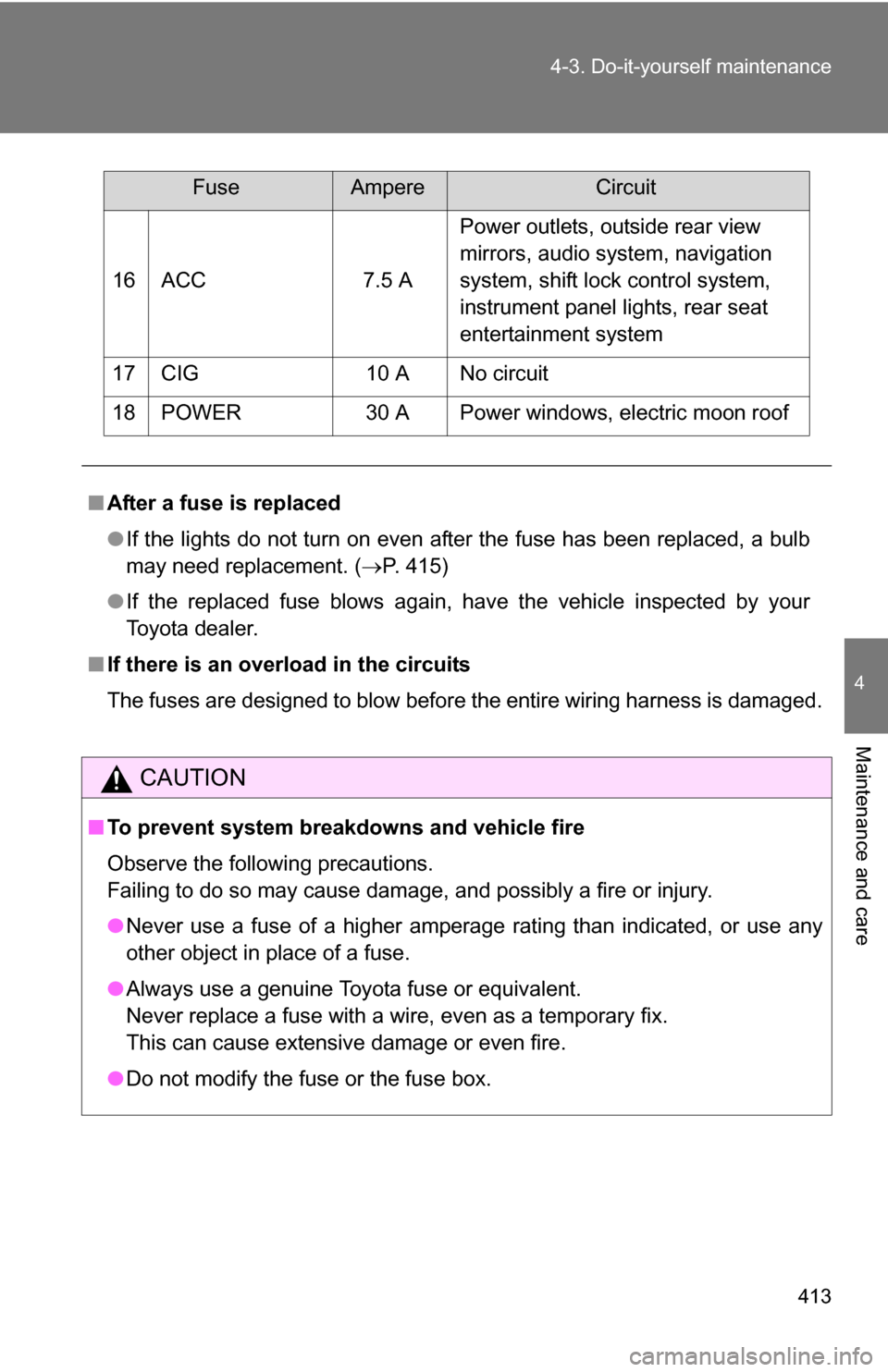

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
16 ACC
7.5 APower outlets, outside rear view
mirrors, audio system, navigation
system, shift lock control system,
instrument panel lights, rear seat
entertainment system
17 CIG 10 A No circuit
18 POWER 30 A Power windows, electric moon roof
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 415)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
FuseAmpereCircuit

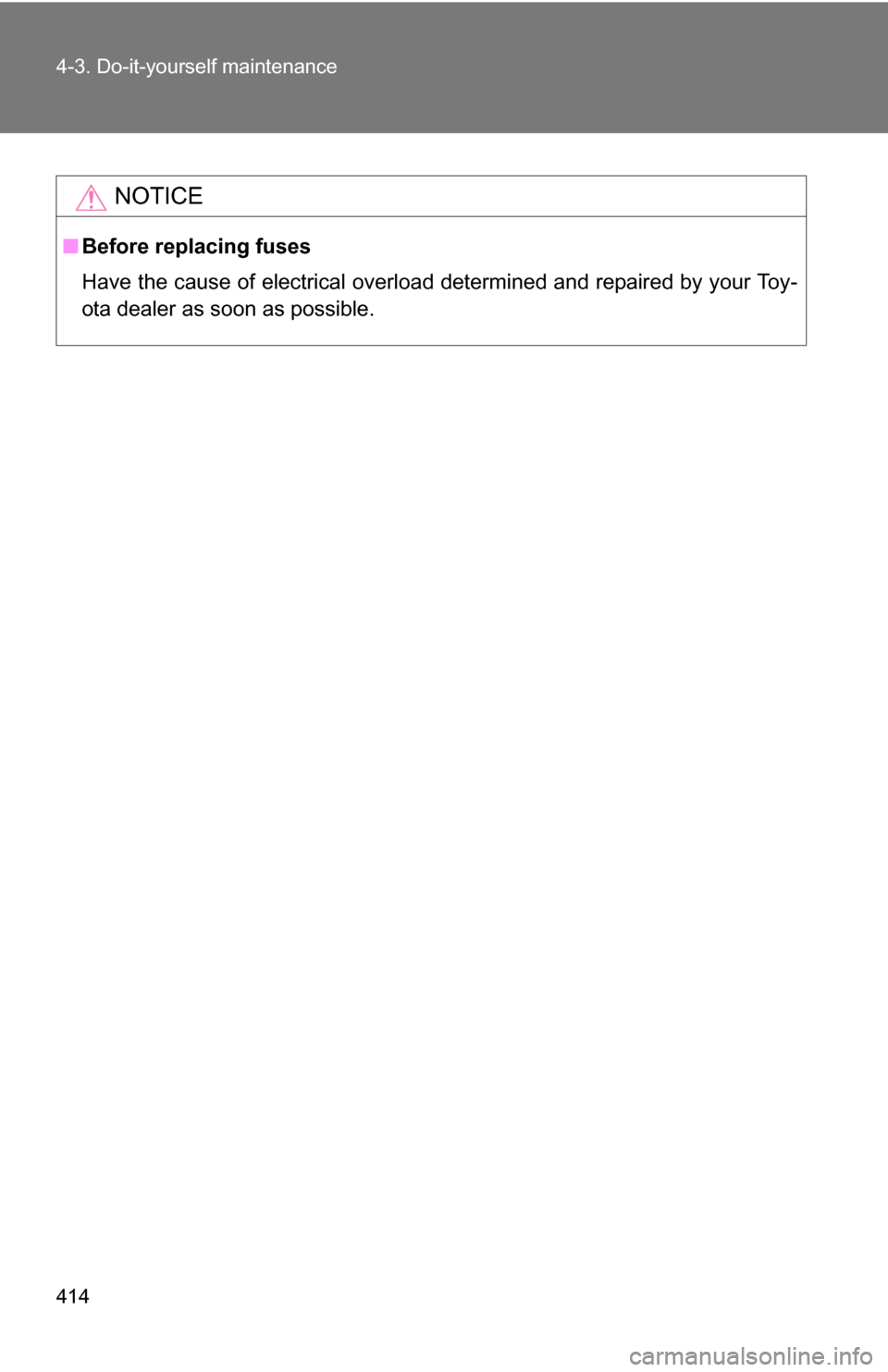

414 4-3. Do-it-yourself maintenance
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.

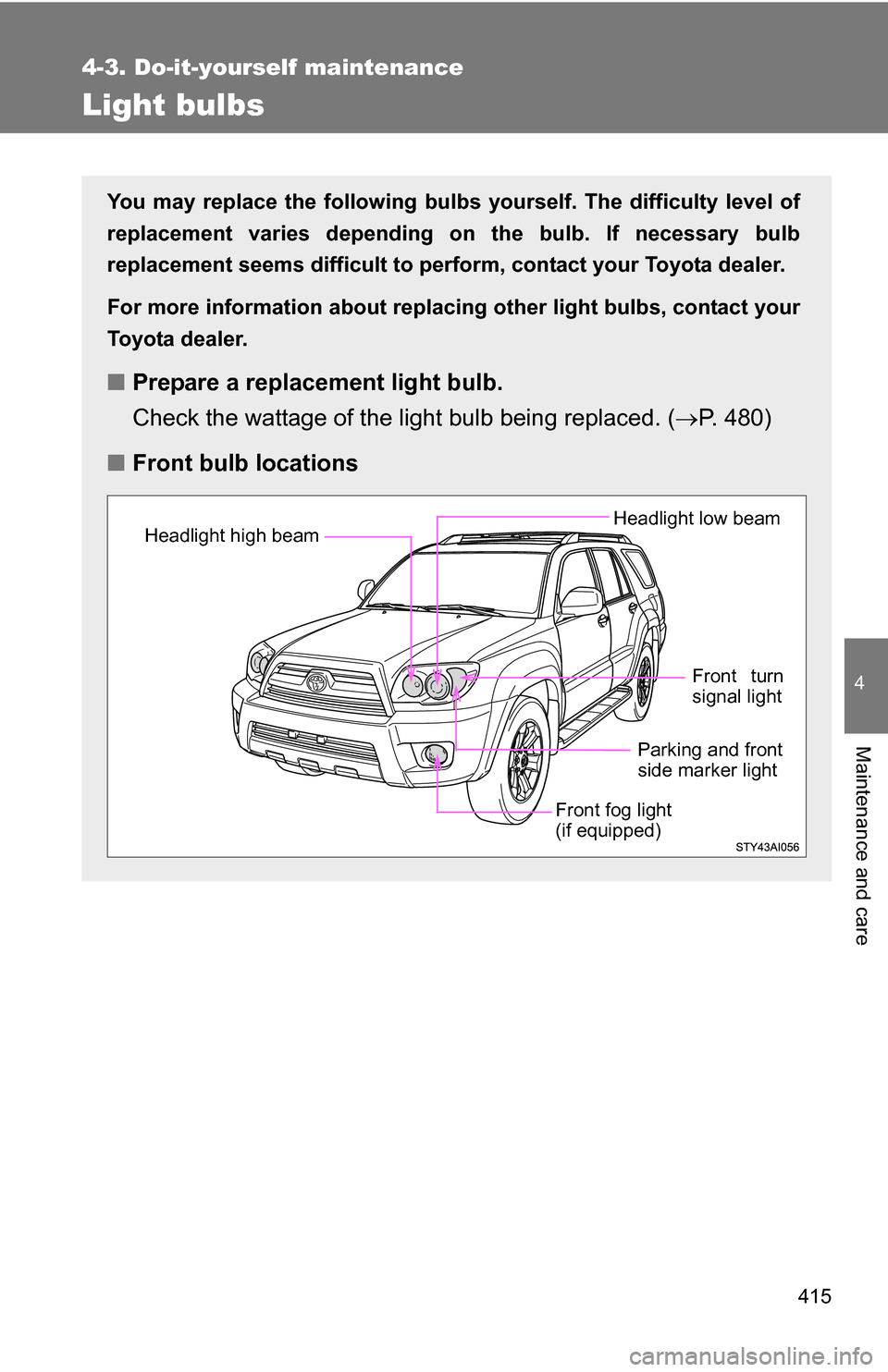

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 480)
■ Front bulb locations
Headlight high beam
Parking and front
side marker lightHeadlight low beamFront turn
signal light
Front fog light
(if equipped)

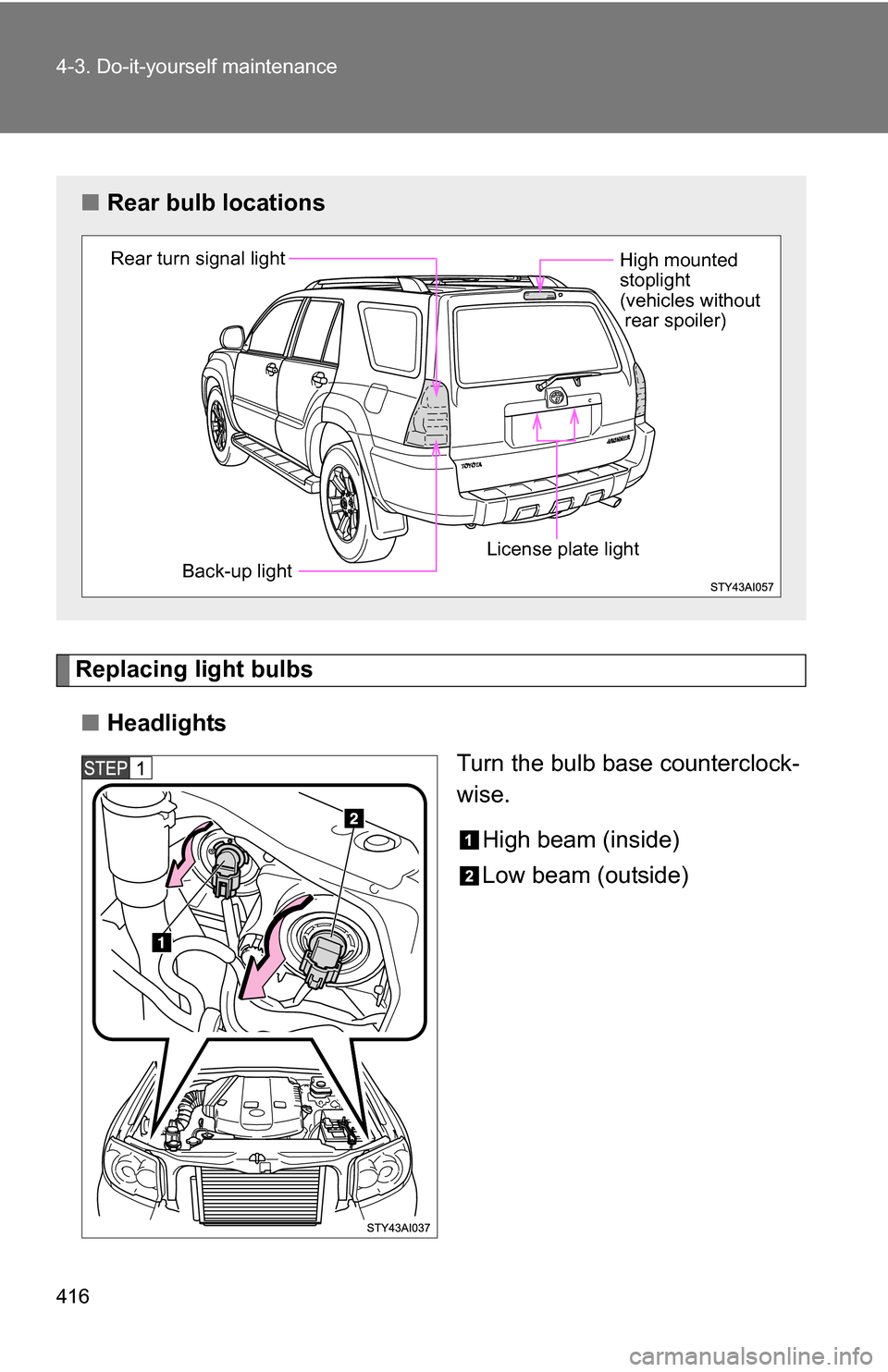

416 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlights
Turn the bulb base counterclock-
wise.
High beam (inside)
Low beam (outside)
■Rear bulb locations
High mounted
stoplight
(vehicles without
rear spoiler)
Rear turn signal light
License plate lightBack-up light
