1-7. Safety information
1
Before driving

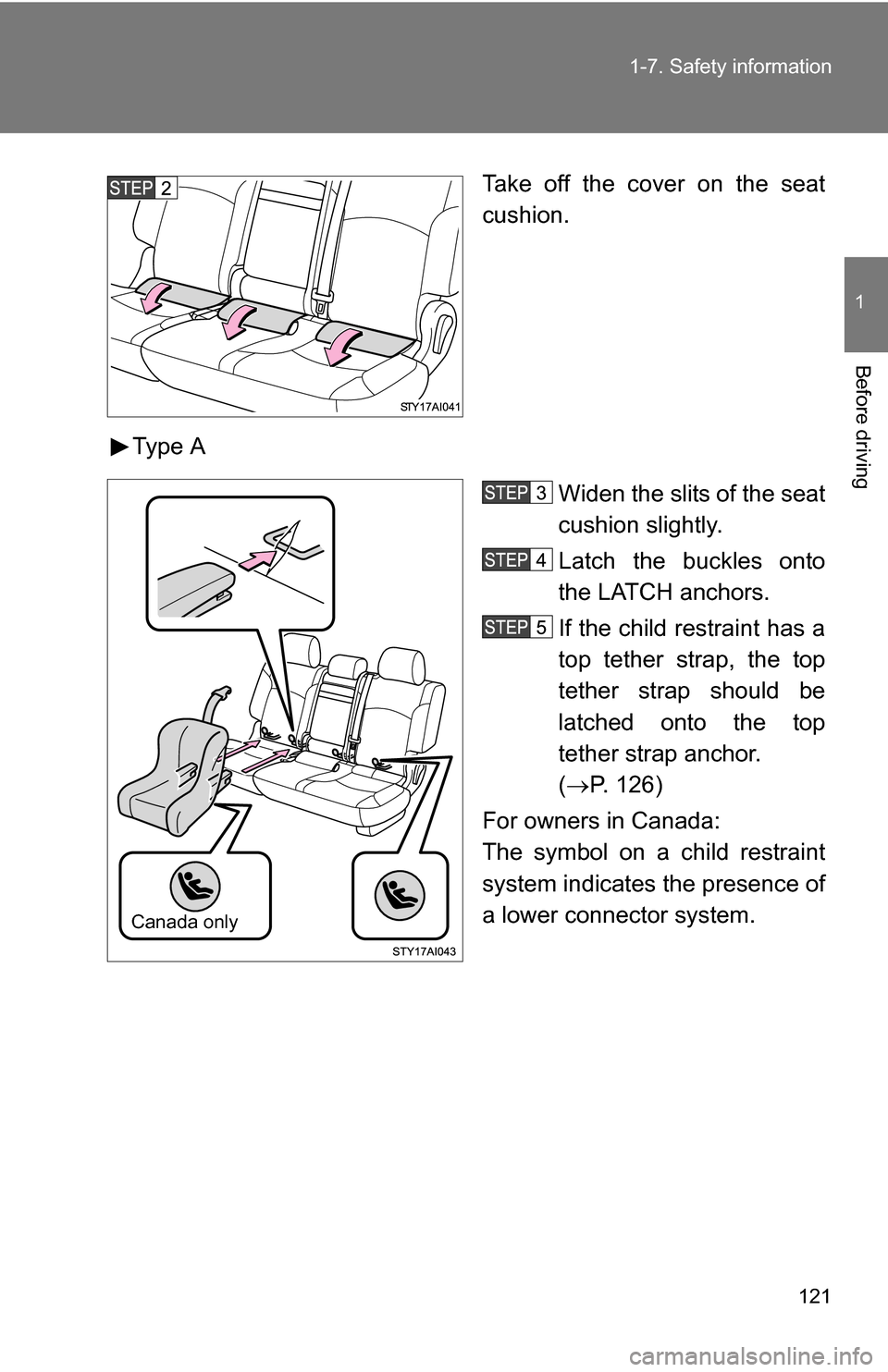

Take off the cover on the seat
cushion.
Type A Widen the slits of the seat
cushion slightly.
Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
( P. 126)
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

122 1-7. Safety information

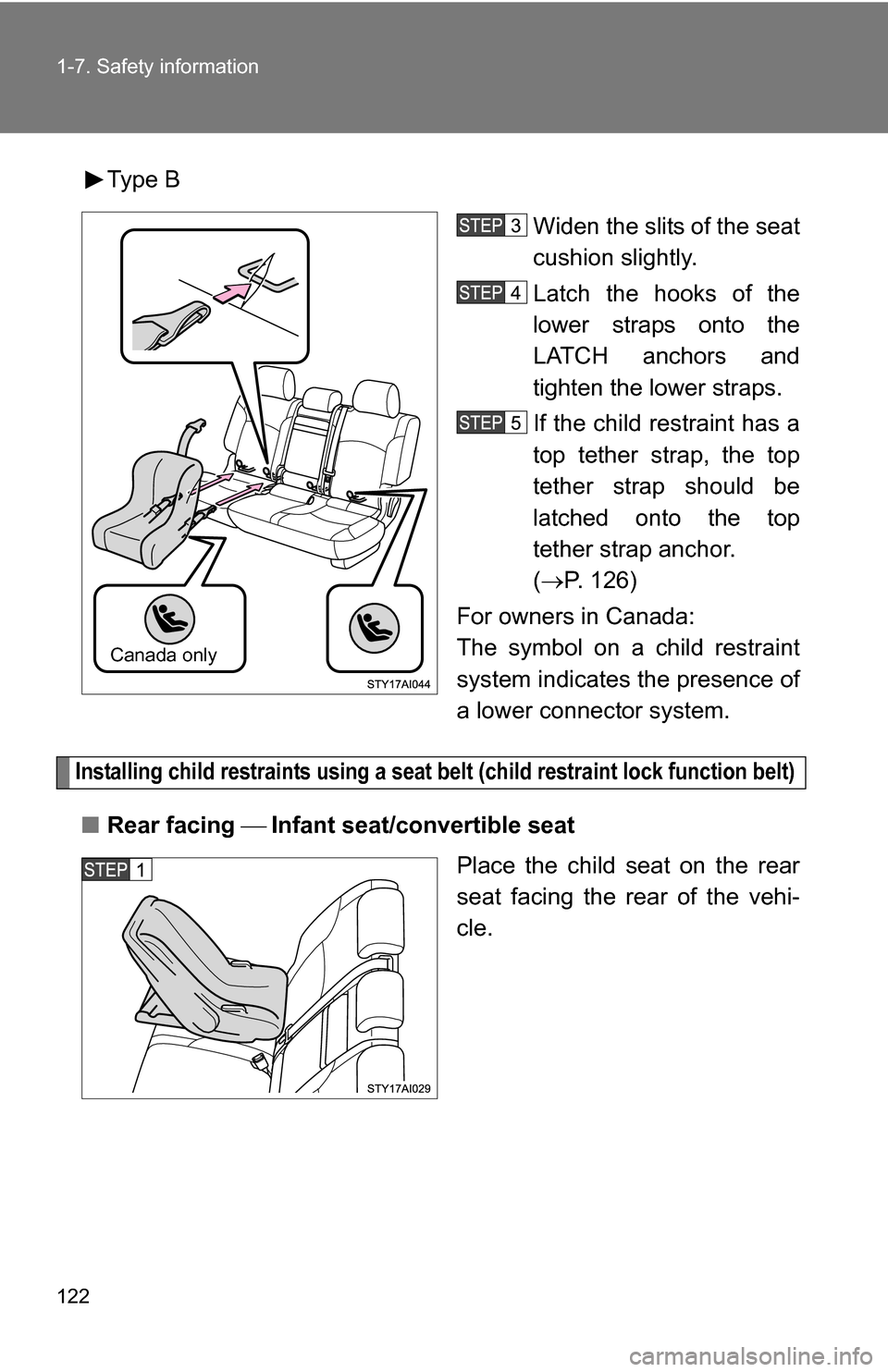

Type BWiden the slits of the seat
cushion slightly.
Latch the hooks of the
lower straps onto the
LATCH anchors and
tighten the lower straps.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
( P. 126)
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Installing child restraints using a seat belt (child restraint lock function belt)
■ Rear facing Infant seat/convertible seat
Place the child seat on the rear
seat facing the rear of the vehi-
cle.
Canada only

123
1-7. Safety information
1
Before driving

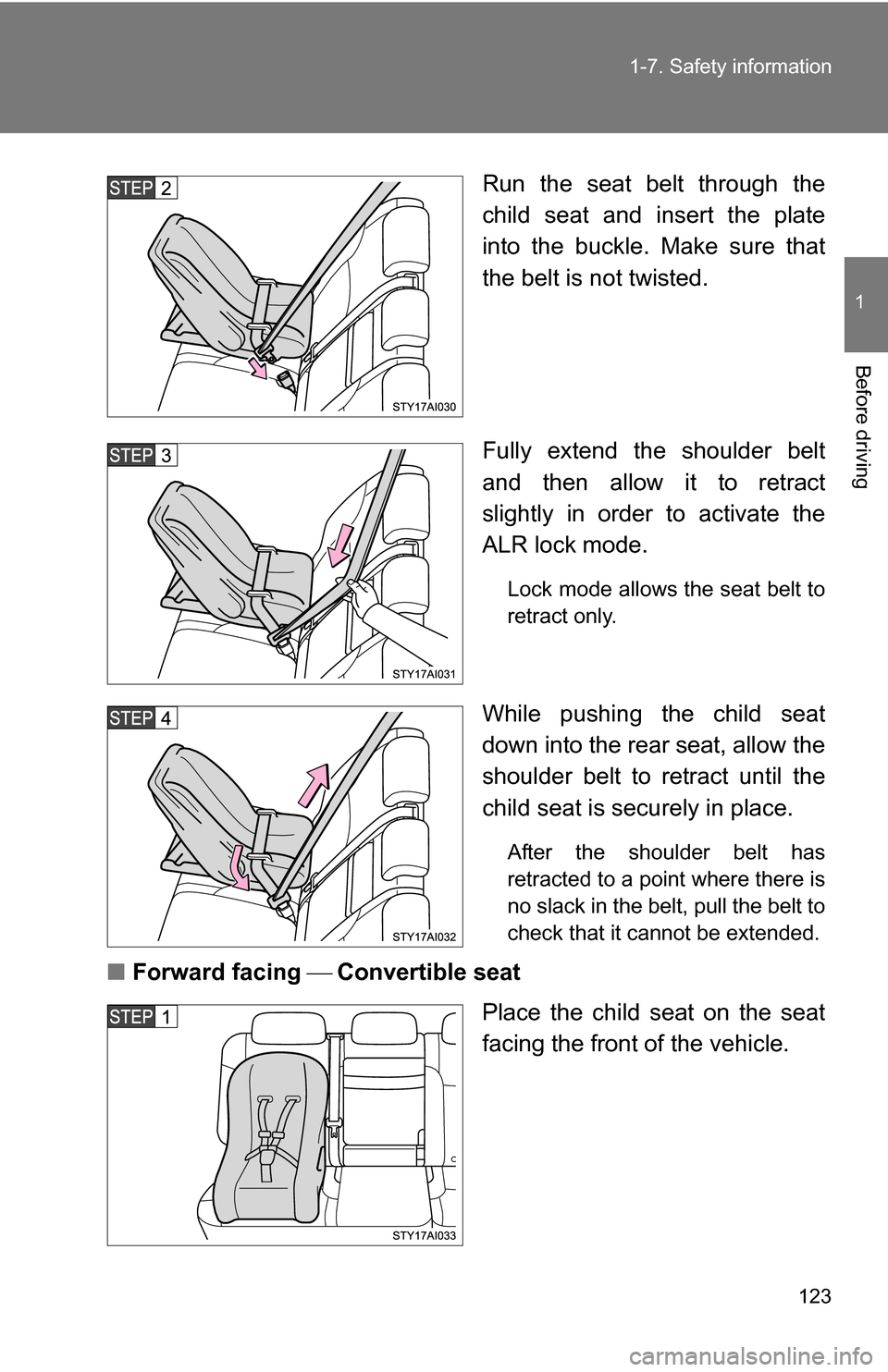

Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child seat
down into the rear seat, allow the
shoulder belt to retract until the
child seat is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■
Forward facing Convertible seat
Place the child seat on the seat
facing the front of the vehicle.

124 1-7. Safety information

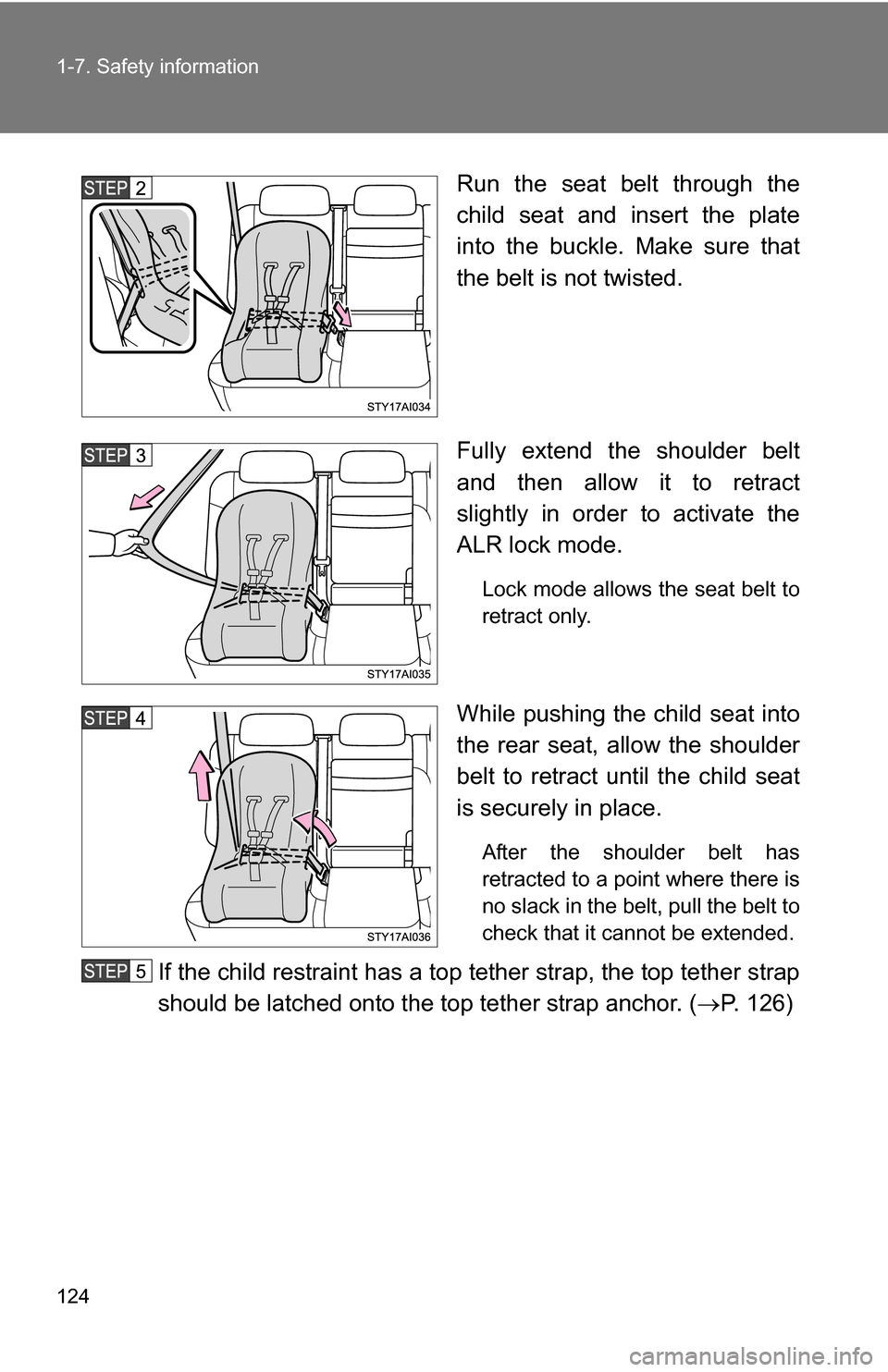

Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child seat into
the rear seat, allow the shoulder
belt to retract until the child seat
is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 126)

125
1-7. Safety information
1
Before driving
■
Booster seat

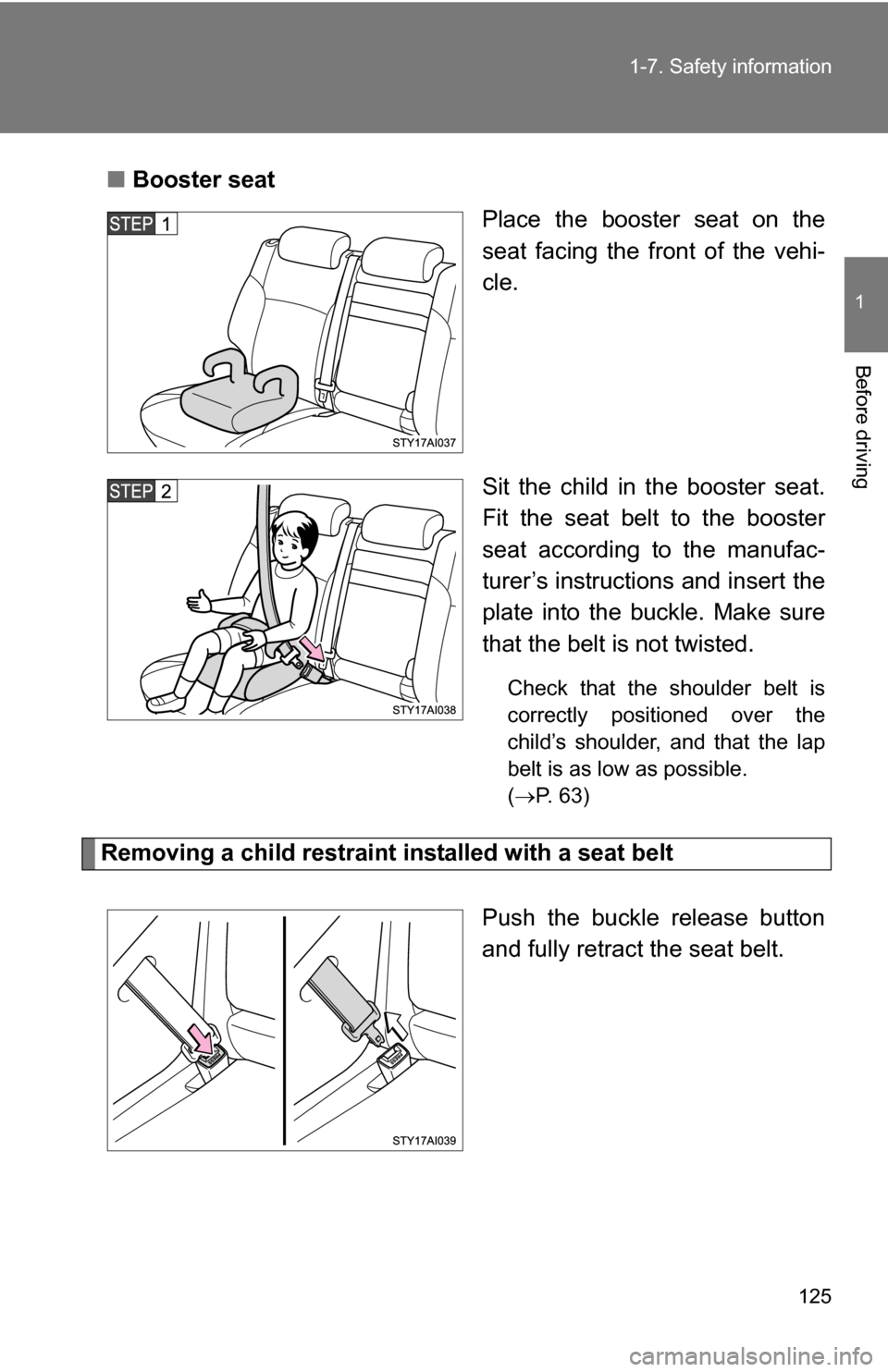

Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 63)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.

126 1-7. Safety information

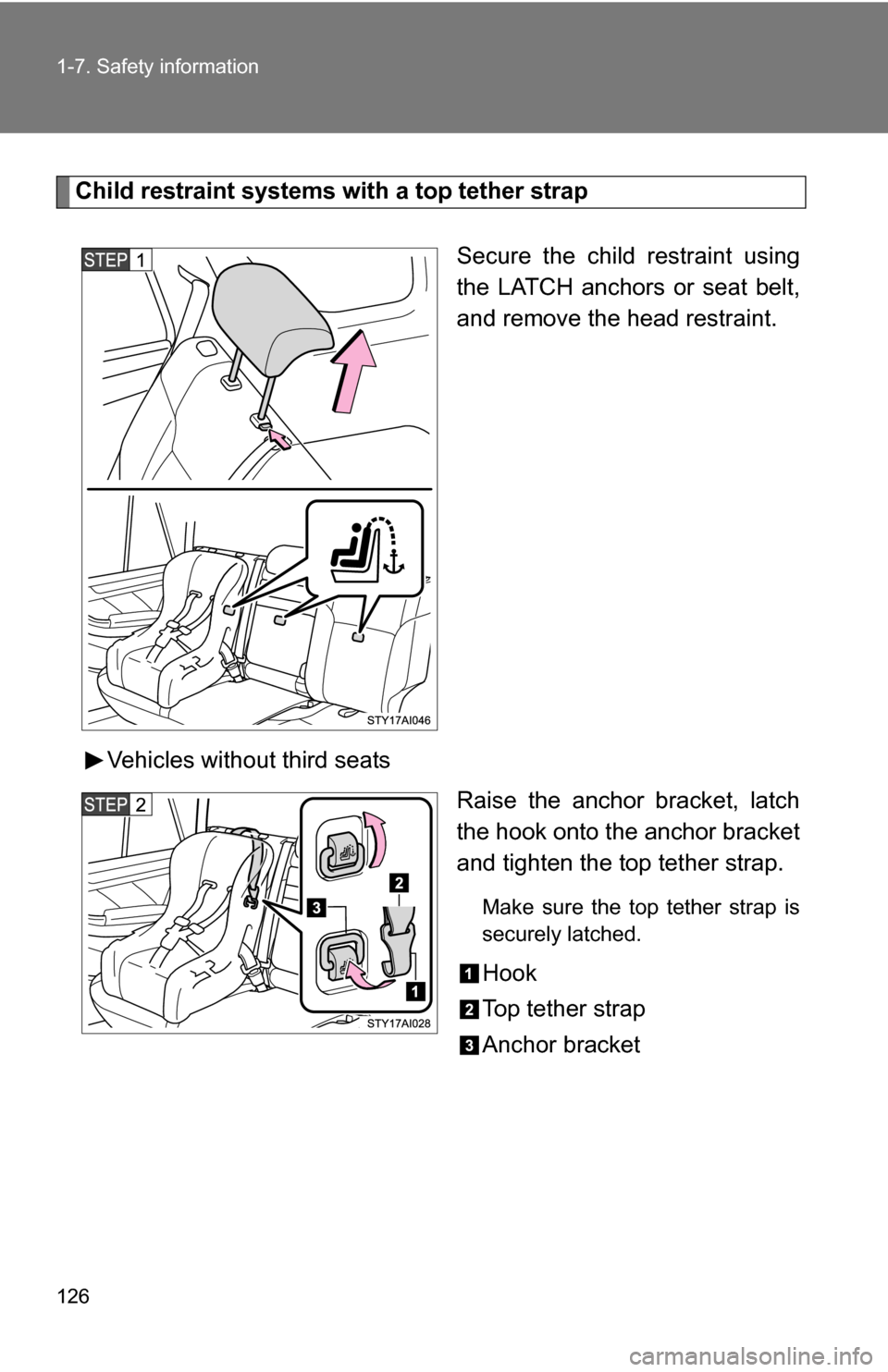

Child restraint systems with a top tether strapSecure the child restraint using
the LATCH anchors or seat belt,
and remove the head restraint.
Vehicles without third seats Raise the anchor bracket, latch
the hook onto the anchor bracket
and tighten the top tether strap.
Make sure the top tether strap is
securely latched.
Hook
Top tether strap
Anchor bracket

127
1-7. Safety information
1
Before driving

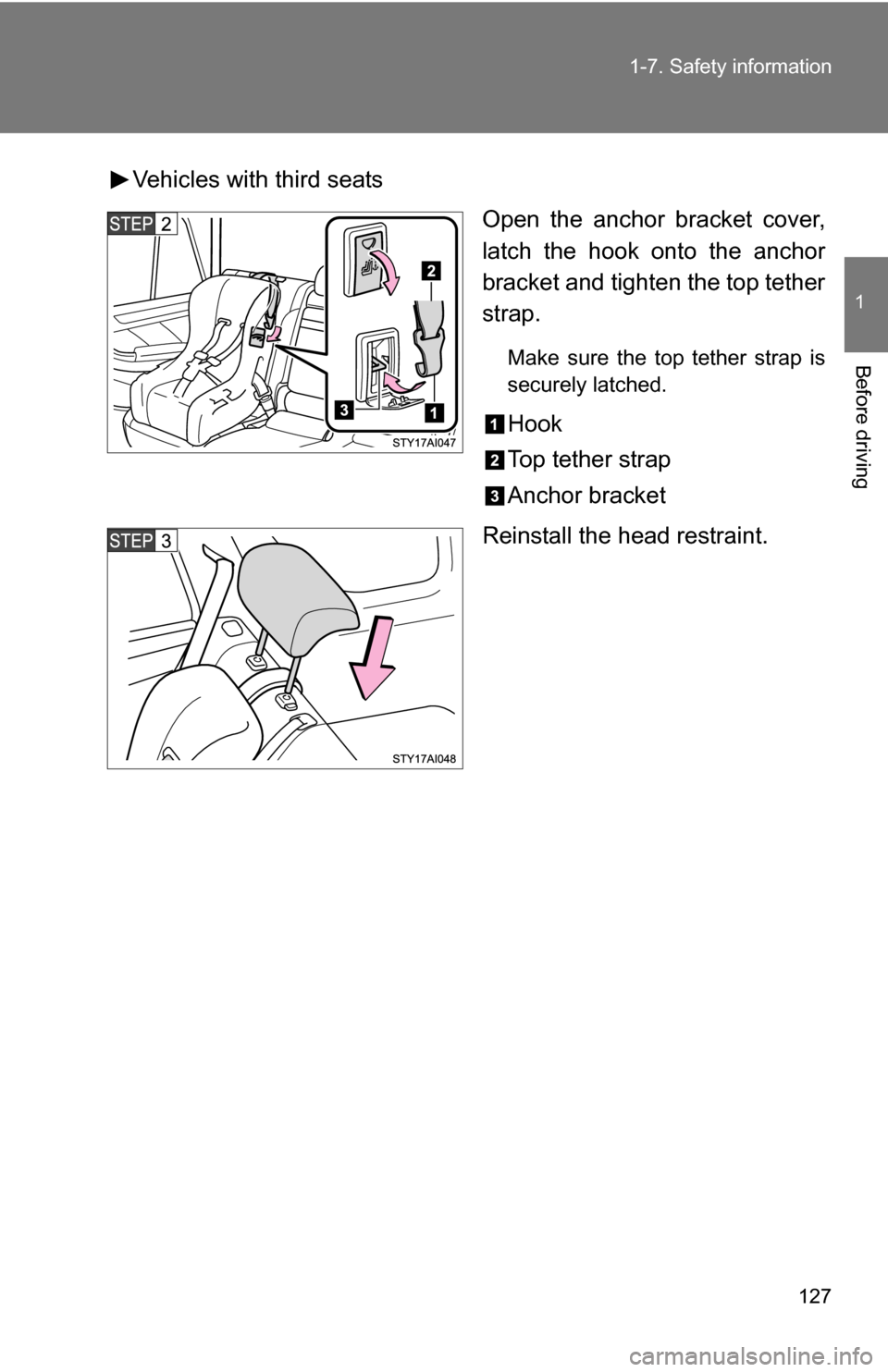

Vehicles with third seats
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Hook
Top tether strap
Anchor bracket
Reinstall the head restraint.

128 1-7. Safety information
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
■ When the anchor bracket is not in use (vehicles without third seats)
Lower the anchor bracket.

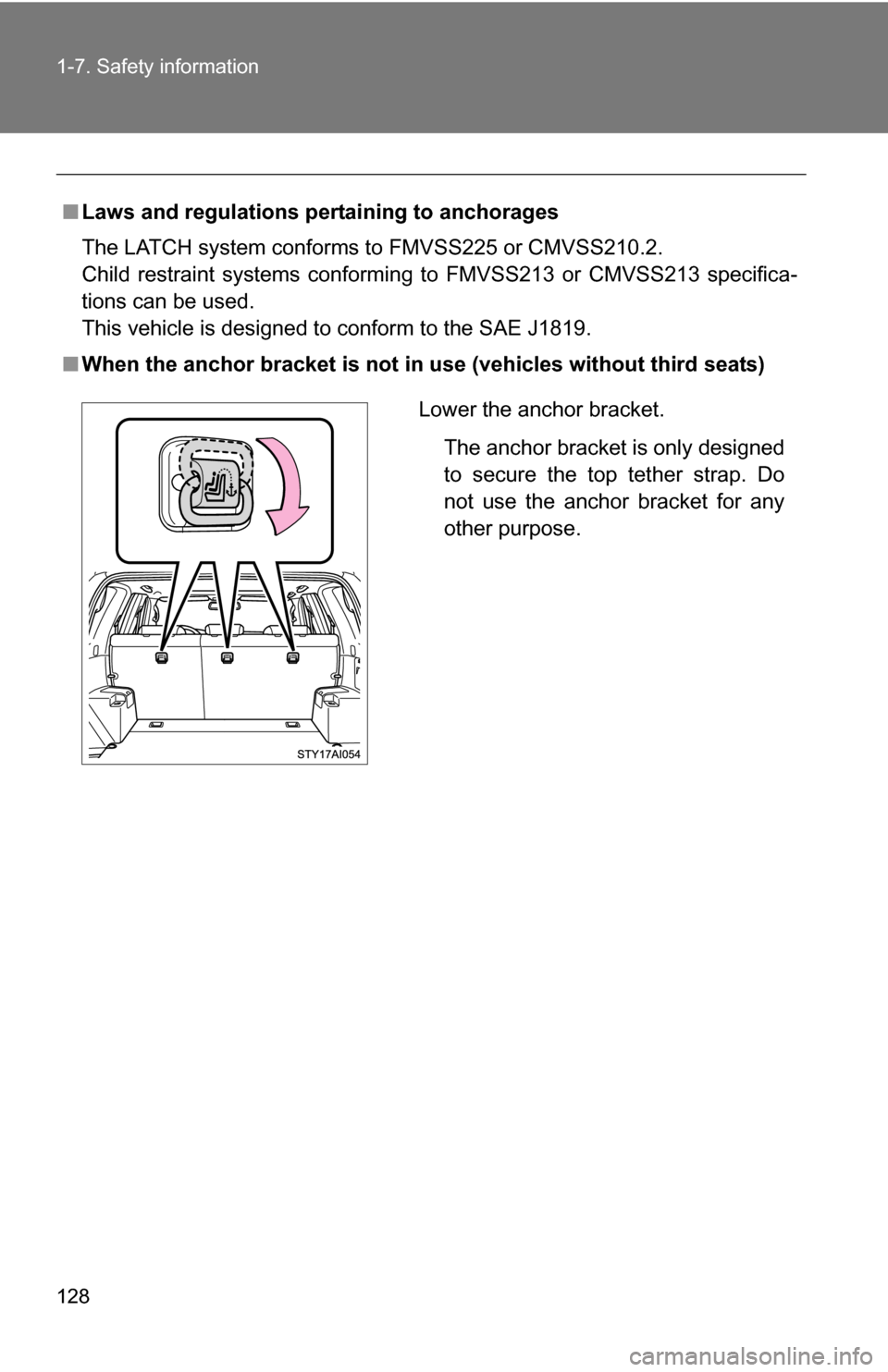

The anchor bracket is only designed
to secure the top tether strap. Do
not use the anchor bracket for any
other purpose.
