2009 TOYOTA 4RUNNER Owners Manual

305
3
Interior features

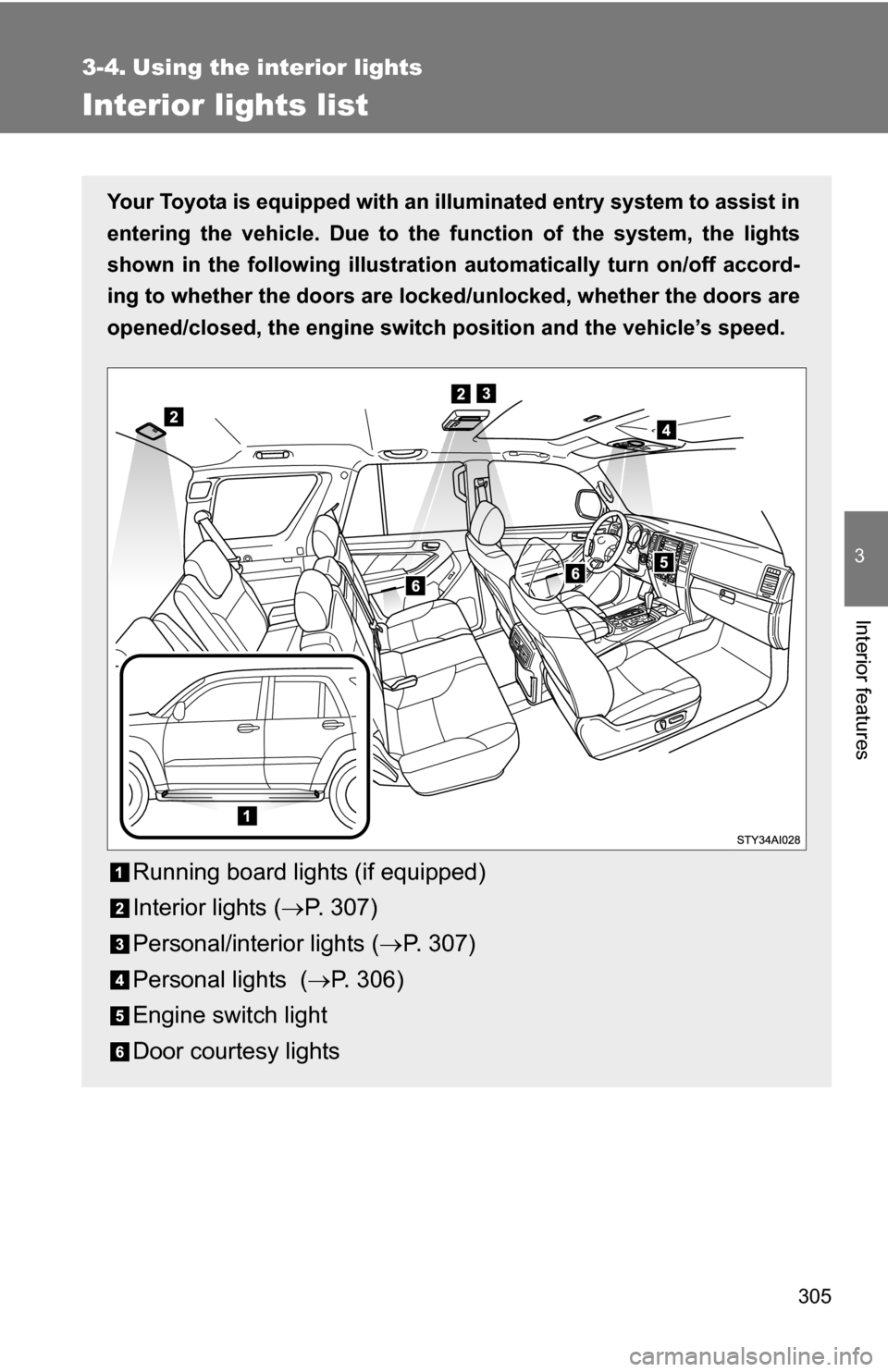

3-4. Using the interior lights
Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Due to the function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to whether the doo rs are locked/unlocked, whether the doors are
opened/closed, the engine switch position and the vehicle’s speed.
Running board lights (if equipped)
Interior lights ( P. 307)
Personal/interior lights ( P. 307)
Personal lights ( P. 306)
Engine switch light
Door courtesy lights

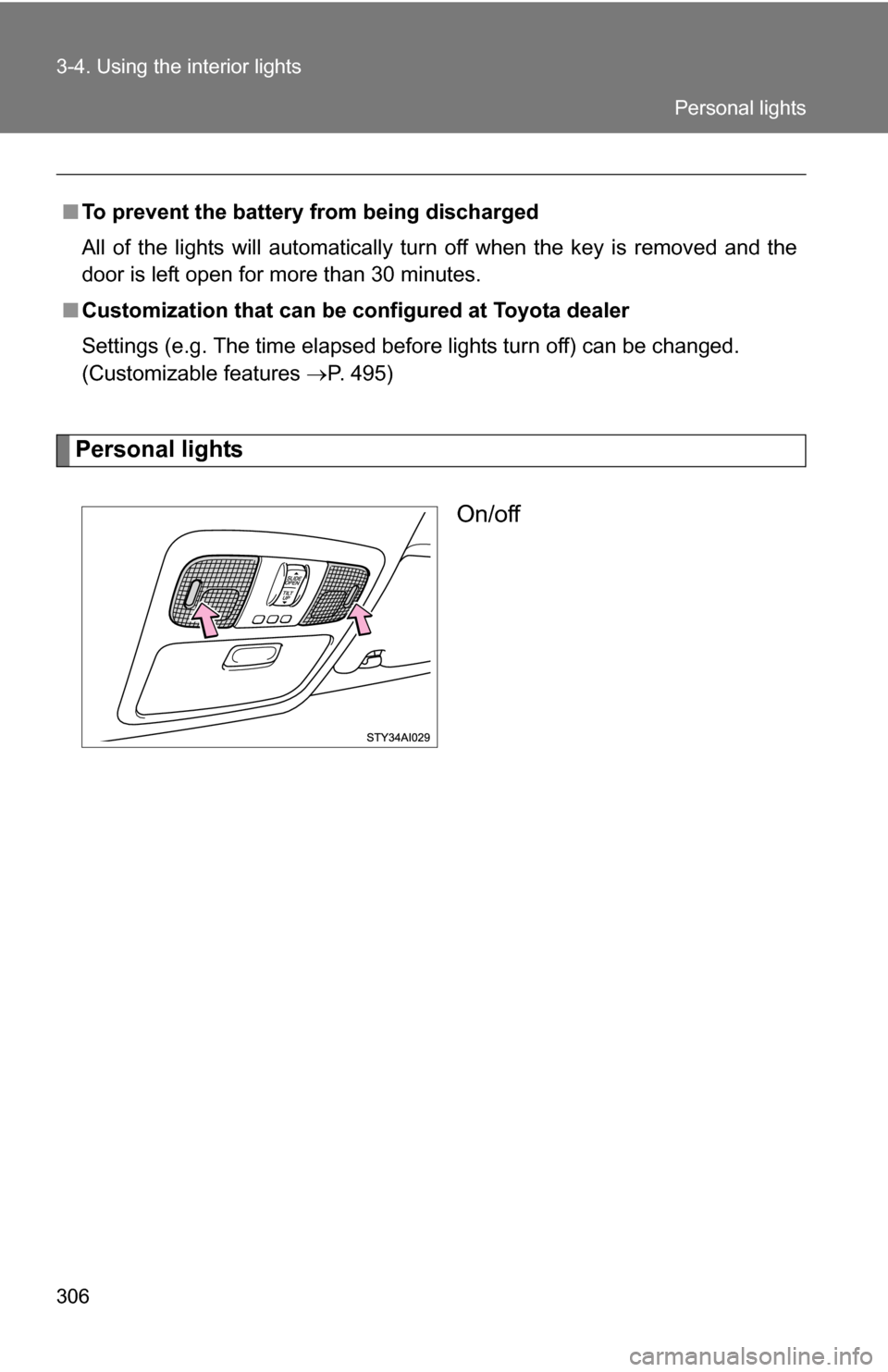

306 3-4. Using the interior lights
Personal lightsOn/off
■To prevent the battery from being discharged
All of the lights will automatically turn off when the key is removed and the
door is left open for more than 30 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 495)
Personal lights

307
3-4. Using the interior lights
3
Interior features

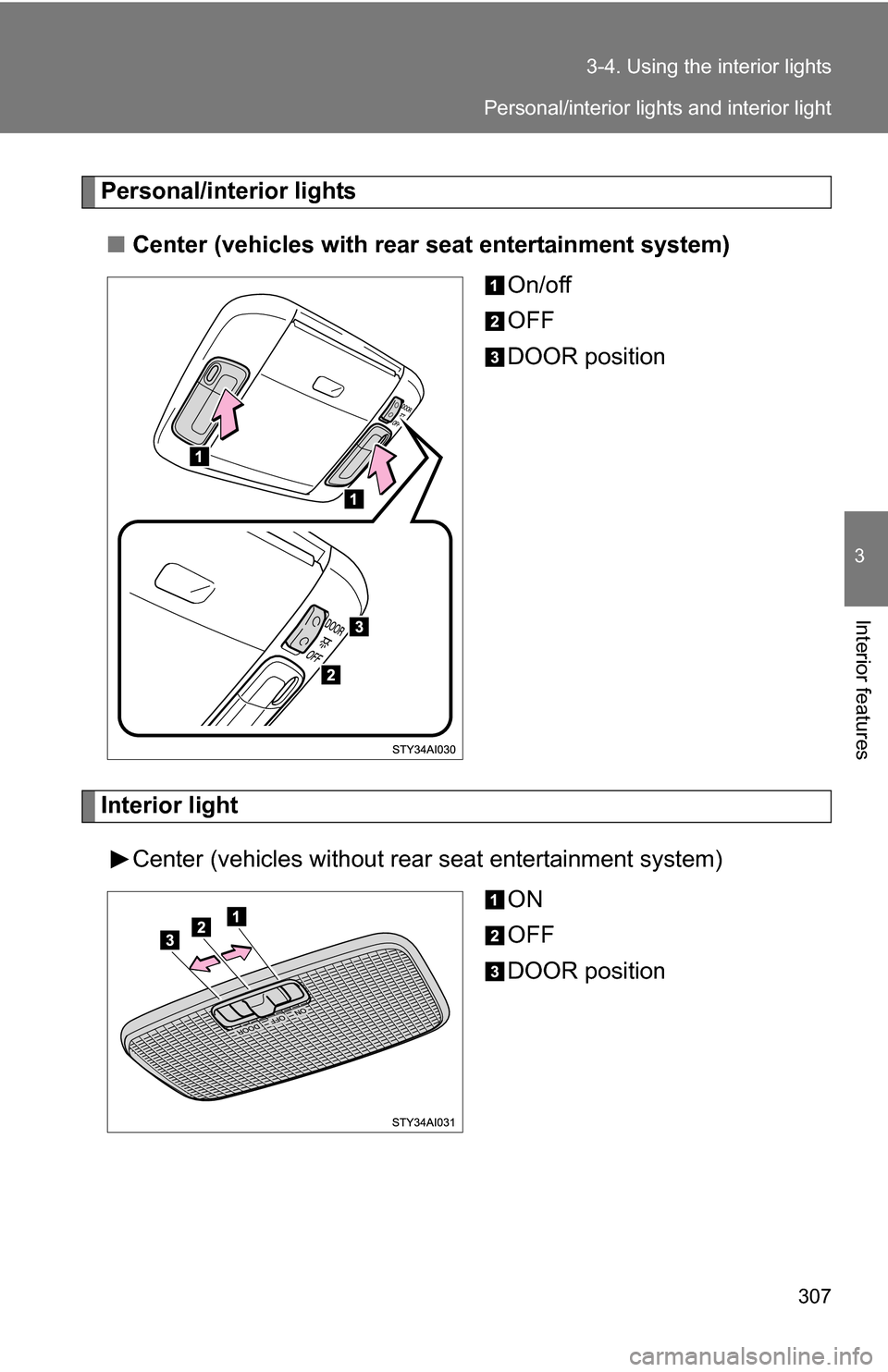

Personal/interior lights
■ Center (vehicles with rear seat entertainment system)
On/off
OFF
DOOR position
Interior light
Center (vehicles without rear seat entertainment system)
ON
OFF
DOOR position
Personal/interior lights and interior light

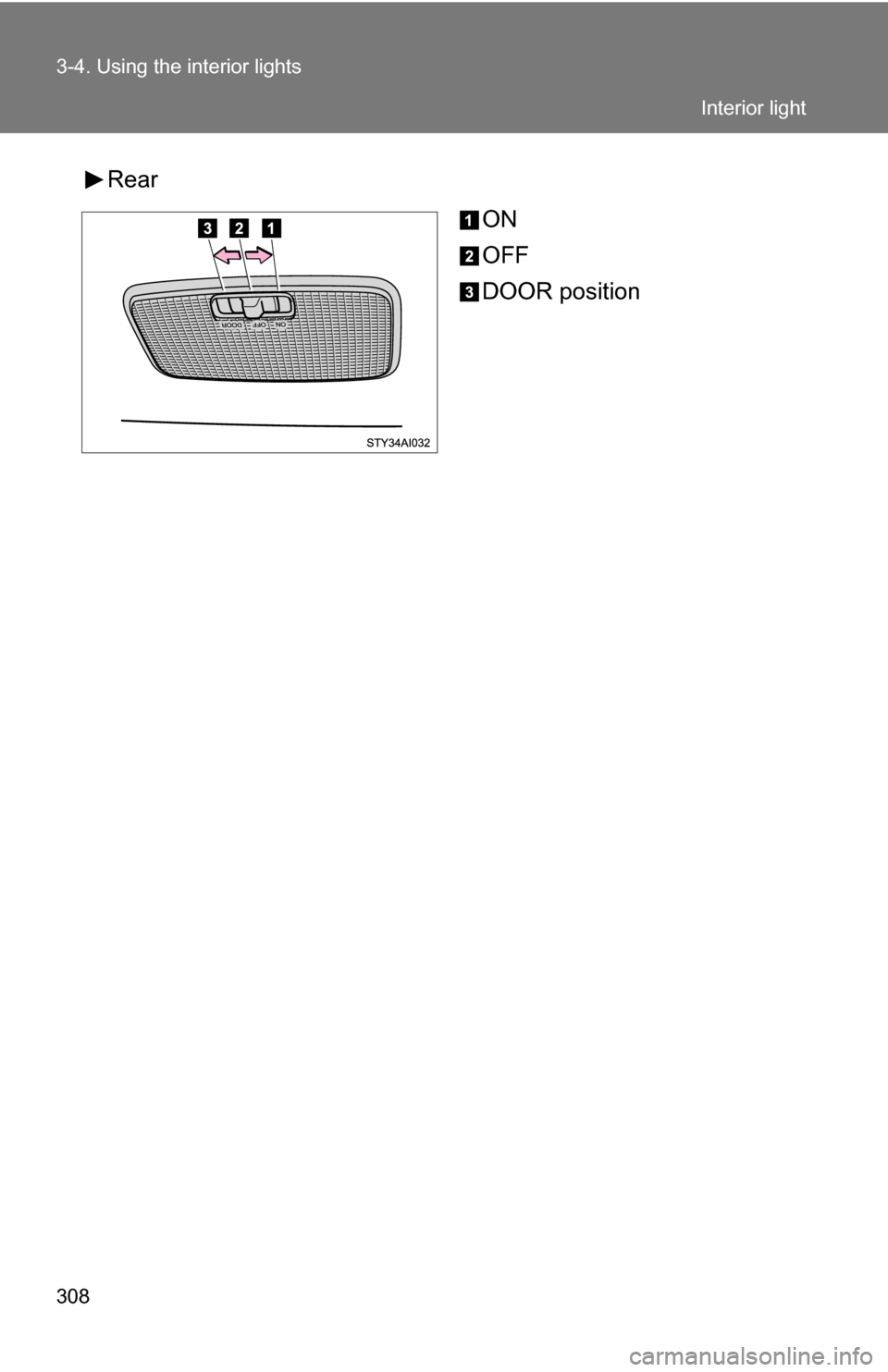

308 3-4. Using the interior lights
RearON
OFF
DOOR position
Interior light

309
3
Interior features
3-5. Using the storage features
List of storage features
Overhead console
Glove box
Bottle holders
Cup holders
Auxiliary boxes
Trash holder
Console box
Coin holder
Tissue pocket

310 3-5. Using the storage features
Glove boxUnlock with the master key
Lock with the master key
Pull the lever up.
■ Auxiliary box in the glove box (if equipped)
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Open the lid.
Glove box

311
3-5. Using the
storage features
3
Interior features

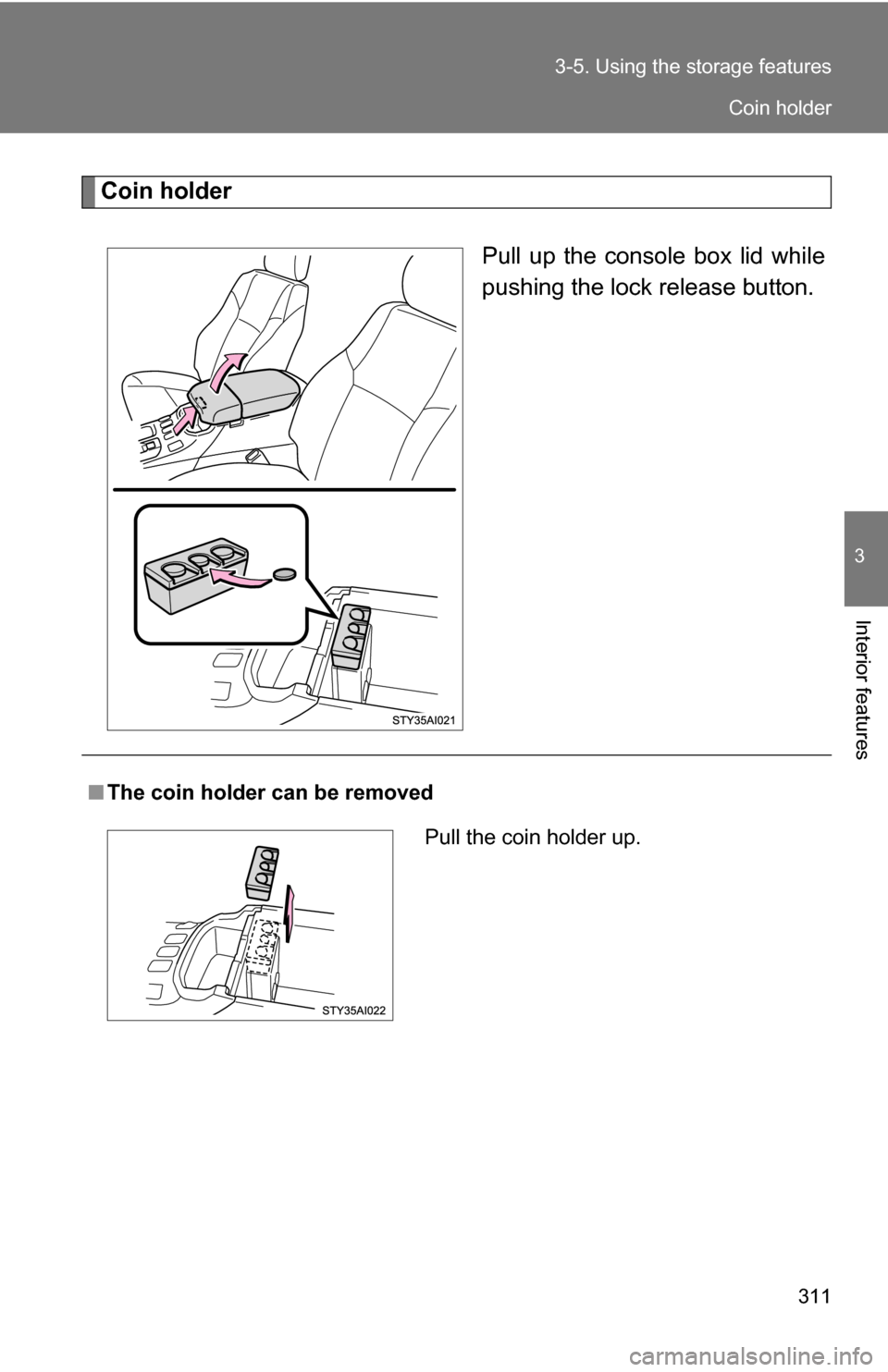

Coin holder
Pull up the console box lid while
pushing the lock release button.
■The coin holder can be removed
Pull the coin holder up.
Coin holder

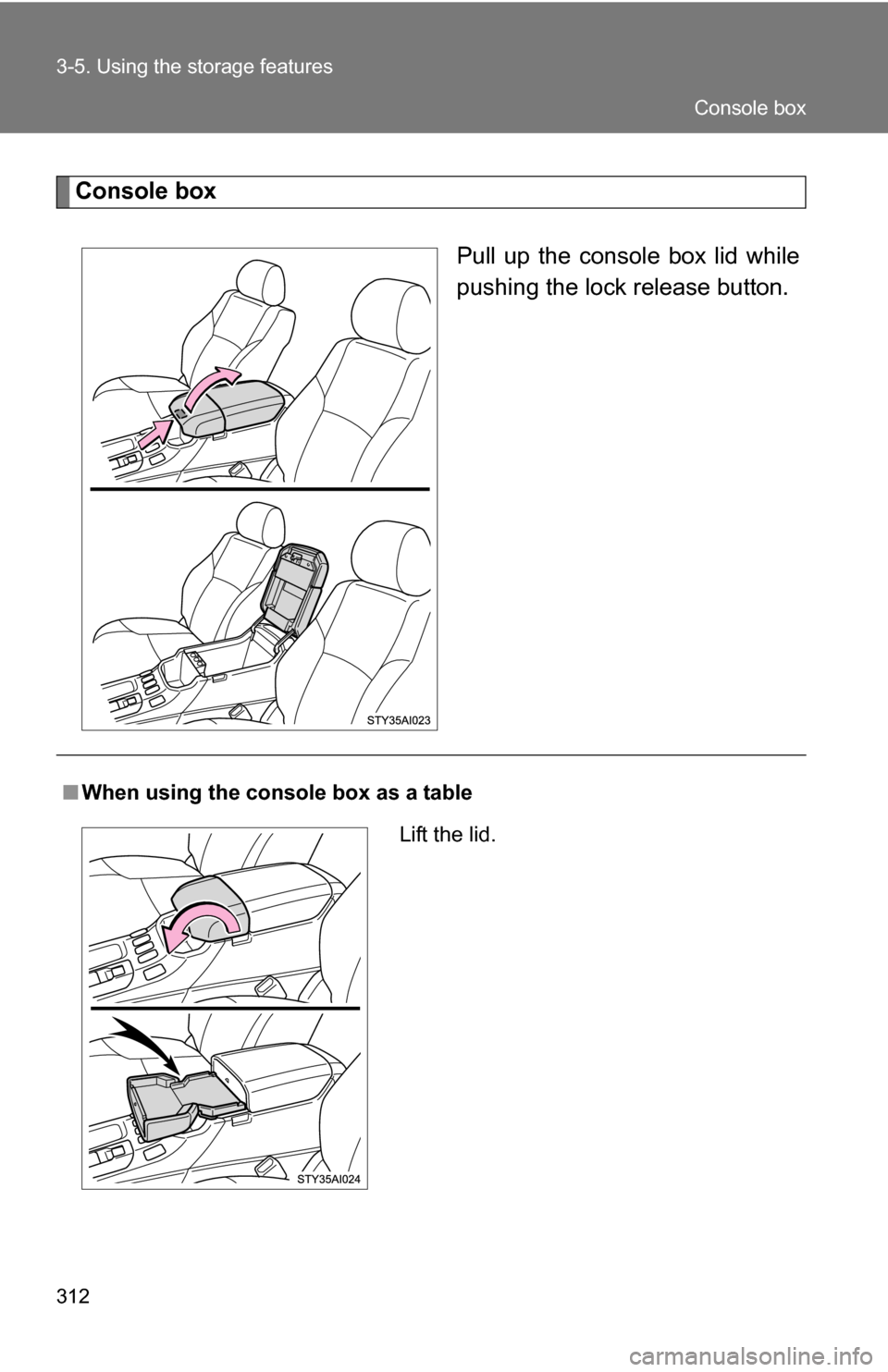

312 3-5. Using the storage features
Console boxPull up the console box lid while
pushing the lock release button.
■When using the console box as a table
Lift the lid.
Console box
