2009 TOYOTA 4RUNNER Owners Manual

289
3-3. Using the rear audio/video system
3
Interior features
■

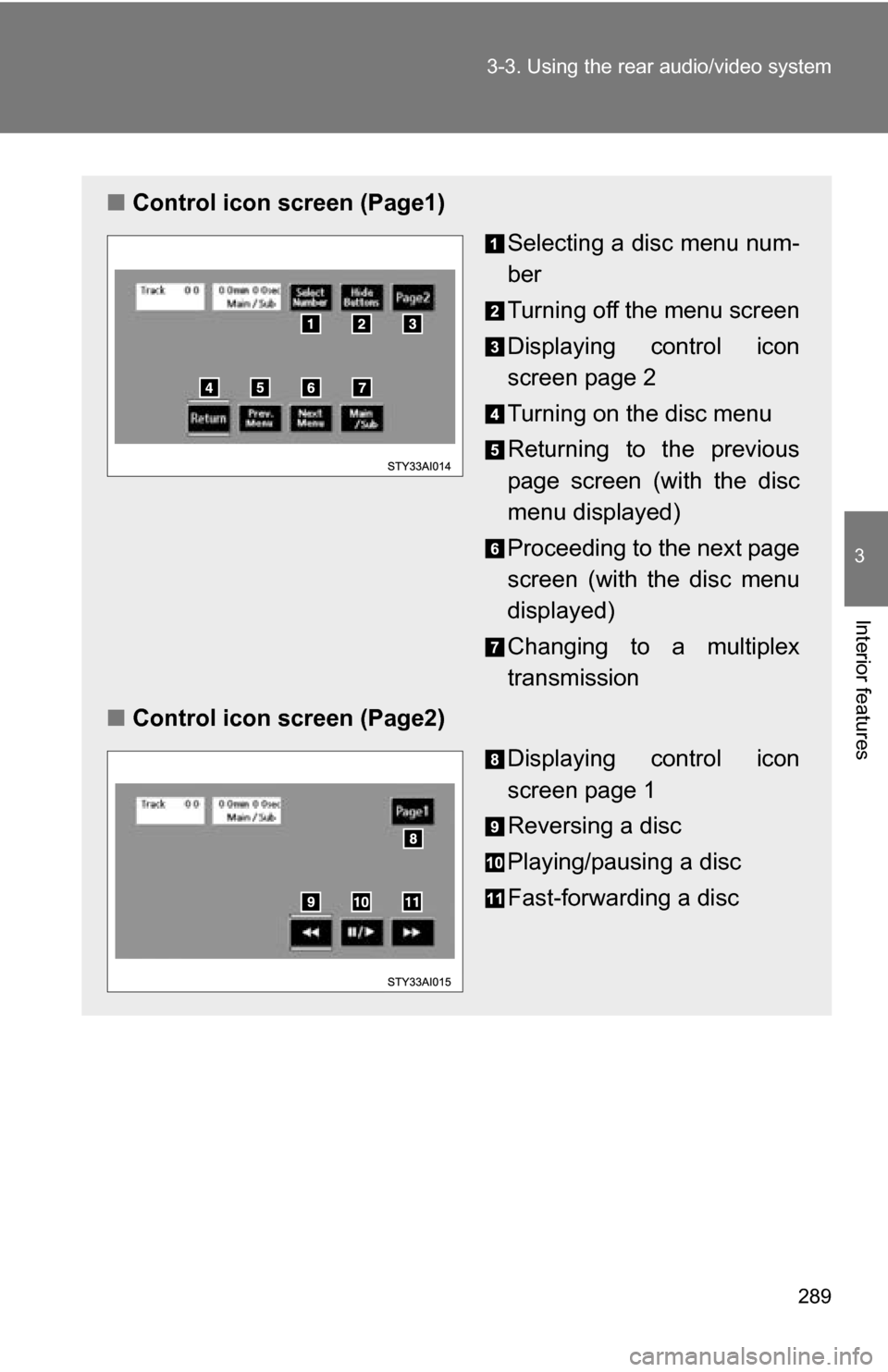

Control icon screen (Page1)
Selecting a disc menu num-
ber
Turning off the menu screen
Displaying control icon
screen page 2
Turning on the disc menu
Returning to the previous
page screen (with the disc
menu displayed)
Proceeding to the next page
screen (with the disc menu
displayed)
Changing to a multiplex
transmission
■ Control icon screen (Page2)
Displaying control icon
screen page 1
Reversing a disc
Playing/pausing a disc
Fast-forwarding a disc

290 3-3. Using the rear audio/video system

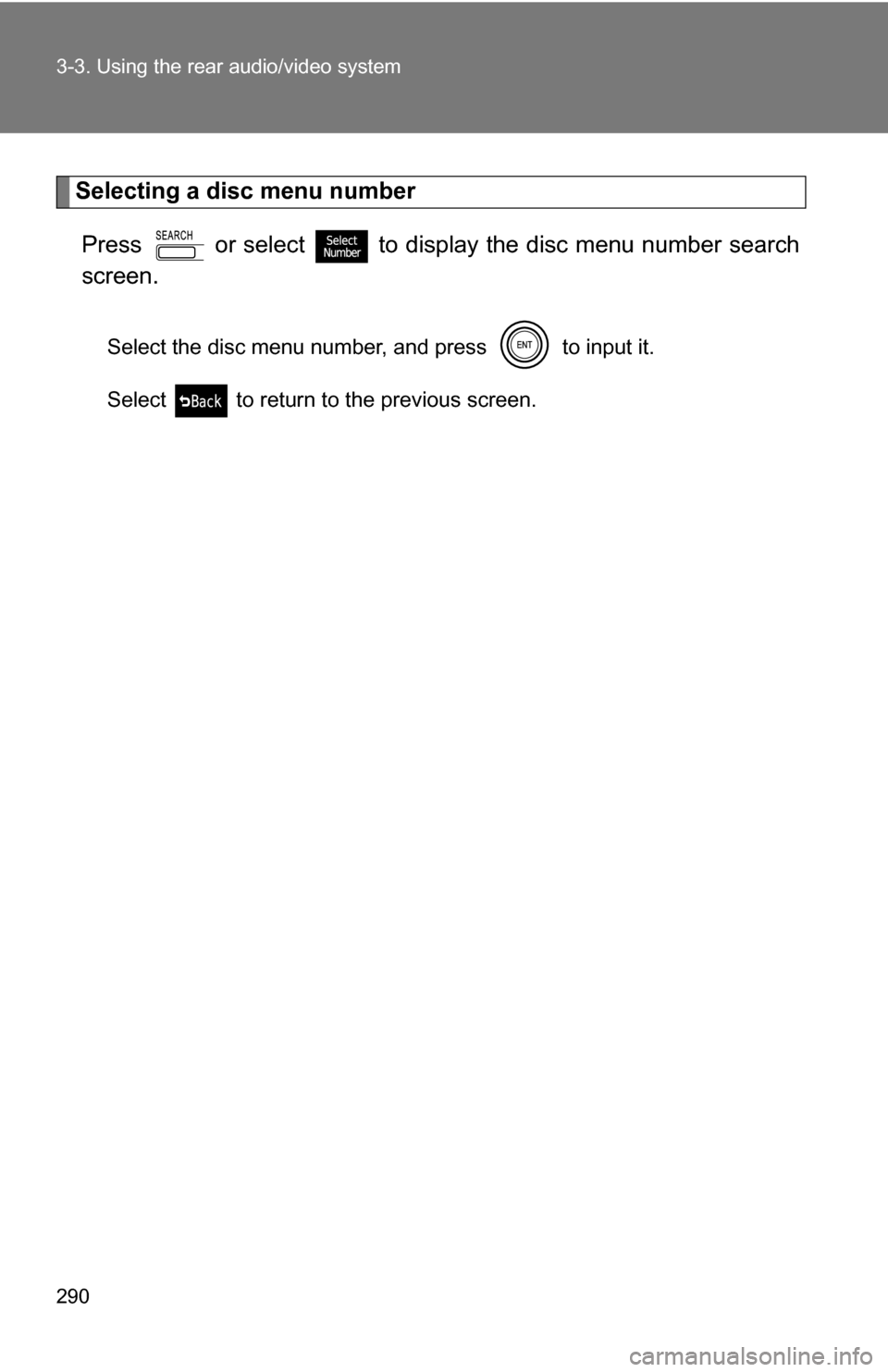

Selecting a disc menu numberPress or select
to display the disc menu number search
screen.
Select the disc menu number, and press to input it.
Select to return to the previous screen.

291
3-3. Using the rear audio/video system
3
Interior features
Using the DVD player (audio CD/CD text)
Repeat play■ Repeating a track
Select .
Random playback
■ Playing all of the tracks on a CD in random order
Select .
Search playback
■ Scanning tracks
Select .
The first 10 seconds of each track will be played.
Select again when the desired track is reached.
■Canceling repeat play and random playback
Select or once again.
■ Control screen
Press to display the
control screen.
Repeat play
Random playback
Search playback

292
3-3. Using the rear audio/video system

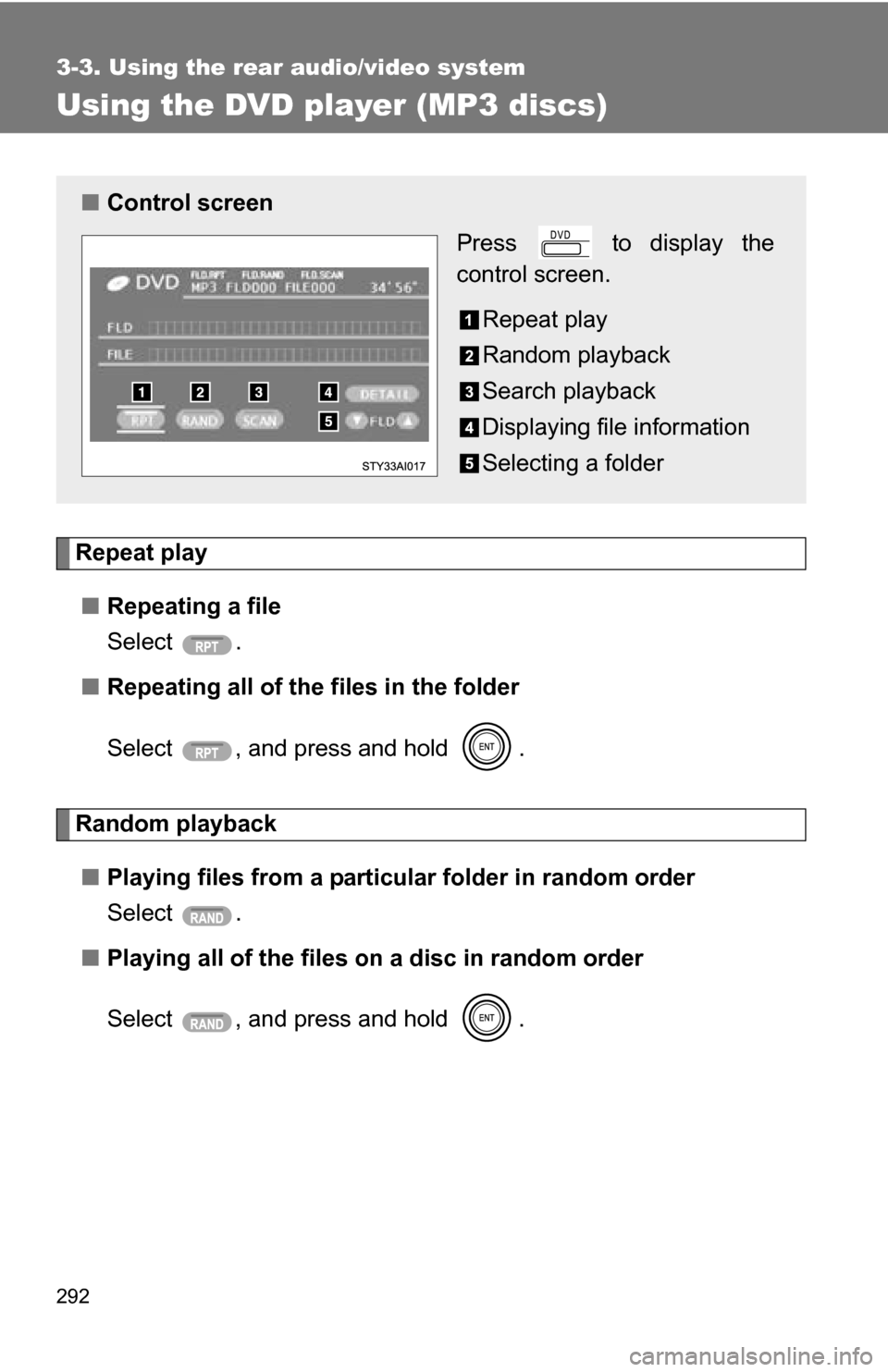

Using the DVD player (MP3 discs)
Repeat play■ Repeating a file
Select .
■ Repeating all of the files in the folder
Select , and press and hold .
Random playback
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold .
■Control screen
Press to display the
control screen.
Repeat play
Random playback
Search playback
Displaying file information
Selecting a folder

293
3-3. Using the rear audio/video system
3
Interior features

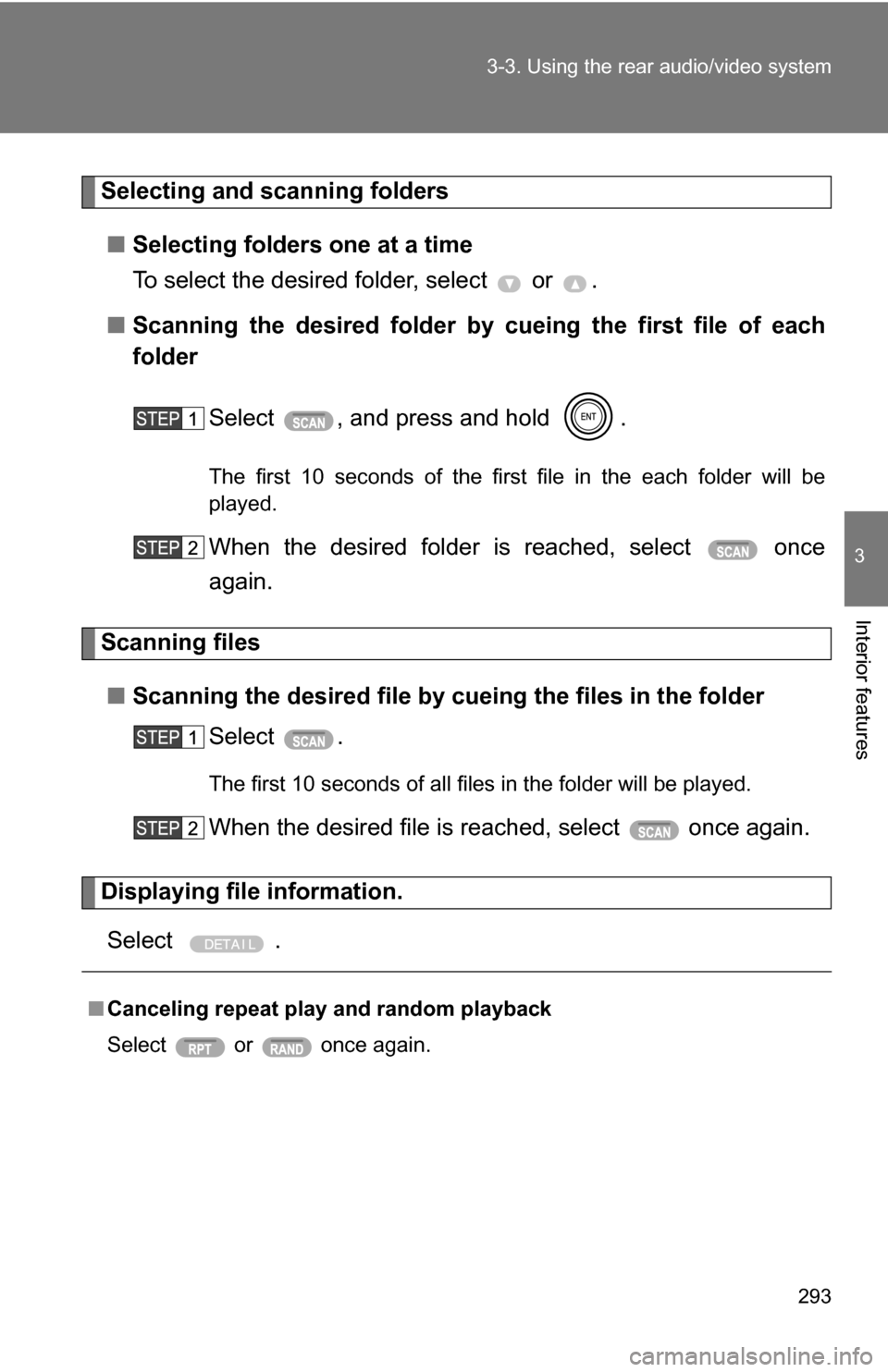

Selecting and scanning folders
■ Selecting folders one at a time
To select the desired folder, select or .
■ Scanning the desired folder by cueing the first file of each
folder
Select , and press and hold .
The first 10 seconds of the first file in the each folder will be
played.
When the desired folder is reached, select once
again.
Scanning files■ Scanning the desired file by cueing the files in the folder
Select .
The first 10 seconds of all files in the folder will be played.
When the desired file is reached, select once again.
Displaying file information.
Select .
■ Canceling repeat play and random playback
Select or once again.

294
3-3. Using the rear audio/video system

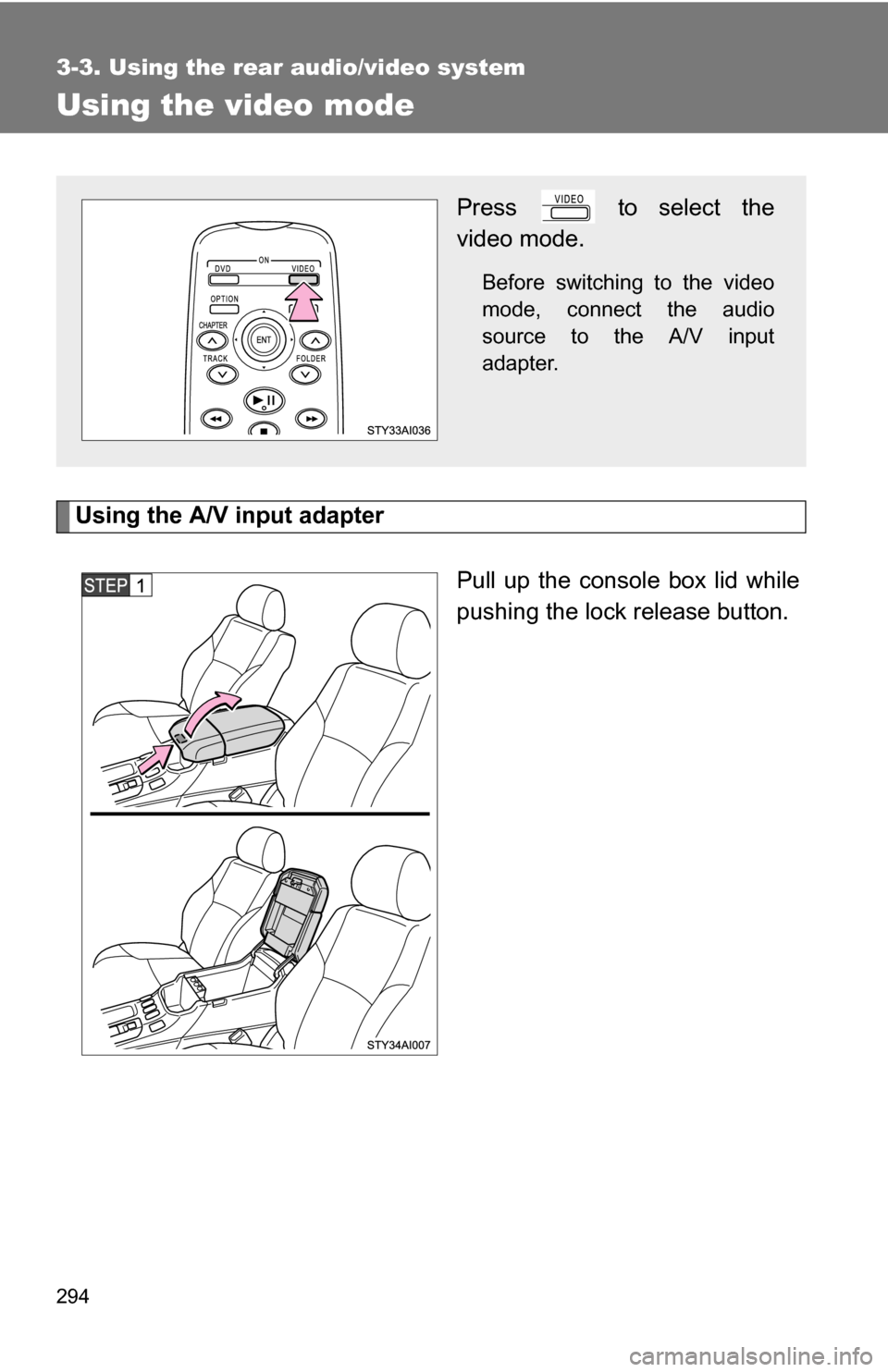

Using the video mode
Using the A/V input adapterPull up the console box lid while
pushing the lock release button.
Press to select the
video mode.
Before switching to the video
mode, connect the audio
source to the A/V input
adapter.

295
3-3. Using the rear audio/video system
3
Interior features

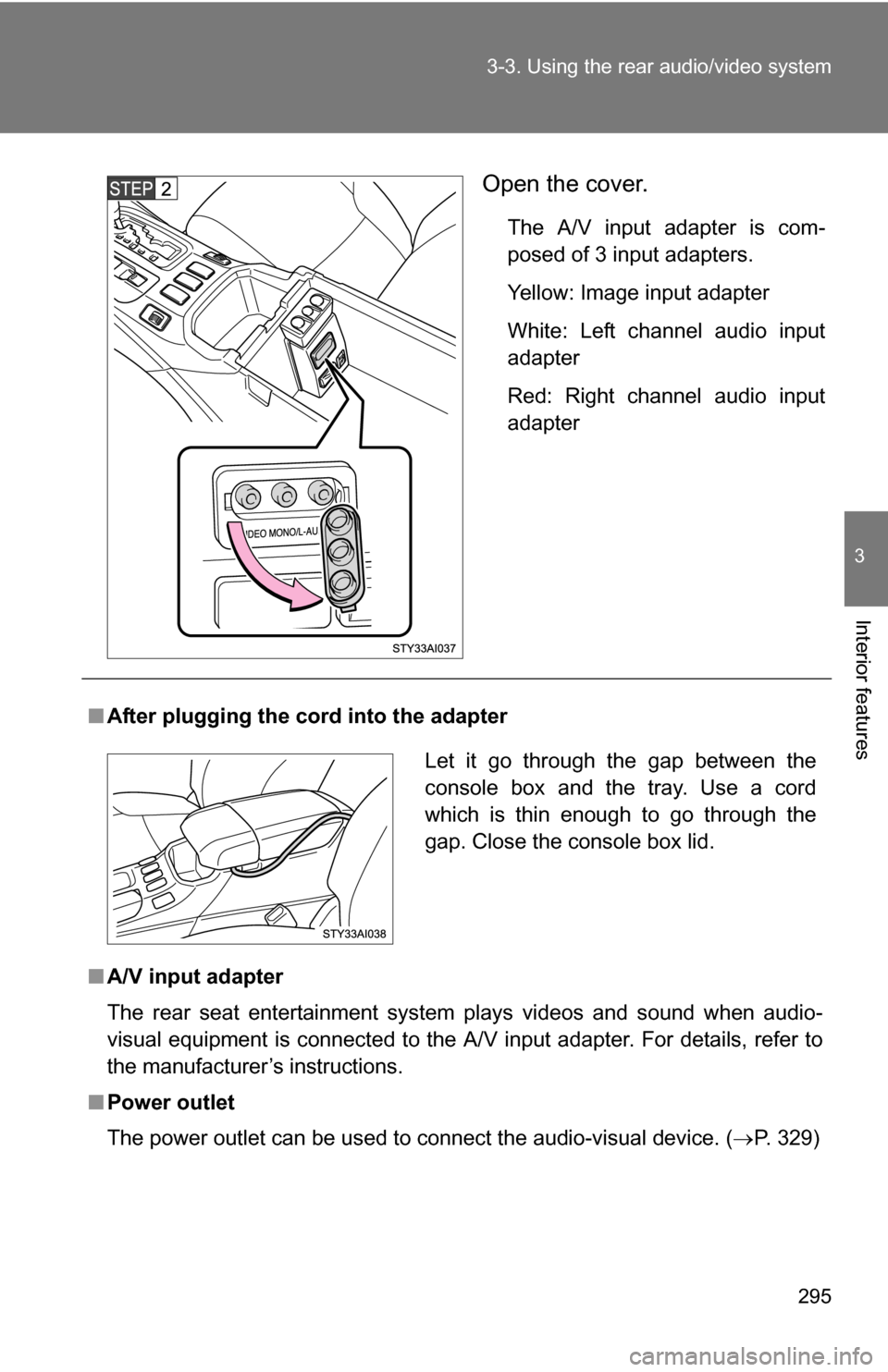

Open the cover.
The A/V input adapter is com-
posed of 3 input adapters.
Yellow: Image input adapter
White: Left channel audio input
adapter
Red: Right channel audio input
adapter
■
After plugging the co rd into the adapter
■ A/V input adapter
The rear seat entertainment system plays videos and sound when audio-
visual equipment is connected to the A/V input adapter. For details, refer to
the manufacturer’s instructions.
■ Power outlet
The power outlet can be used to connect the audio-visual device. ( P. 329)
Let it go through the gap between the
console box and the tray. Use a cord
which is thin enough to go through the
gap. Close the console box lid.

296 3-3. Using the rear audio/video system

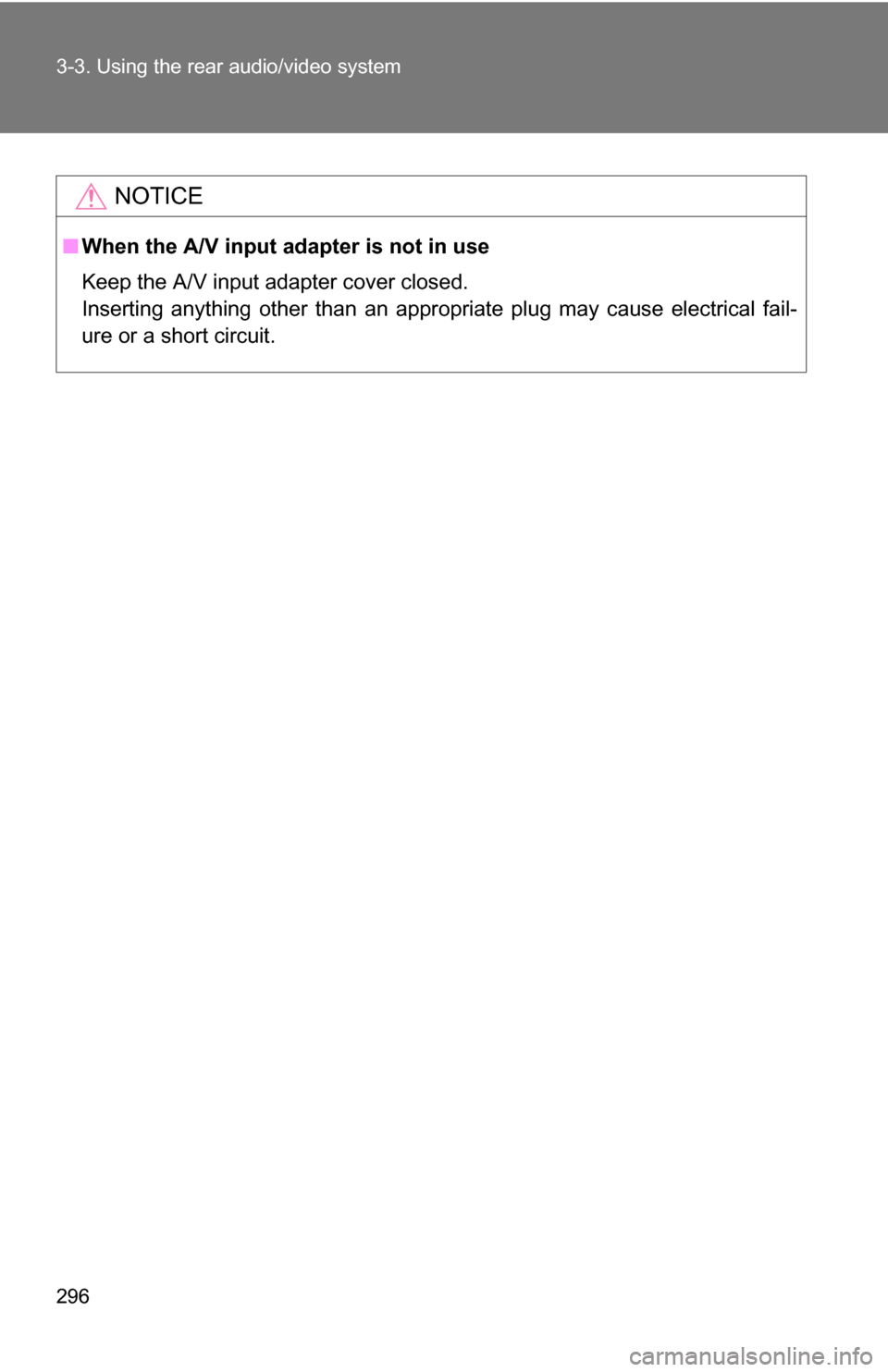

NOTICE
■When the A/V input adapter is not in use
Keep the A/V input adapter cover closed.
Inserting anything other than an appropriate plug may cause electrical fail-
ure or a short circuit.
