2009 TOYOTA 4RUNNER Owners Manual

249
3-2. Using the audio system
3
Interior features
Contact the XM® Listener Care Center at 1-800-967-2346 (U.S.A.) or
1-877-438-9677 (Canada).
■ Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
●Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consulting the dealer or an experienc ed radio/TV technician for help.
LOADINGThe unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any
programming. Select another channel.
-----There is no song/program title or artist name/fea-
ture associated with the channel at that time. No
action needed.
---The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.

250
3-2. Using the audio system
Using the CD player
Type A and B
Ty p e C
Vo lu m eCD selection (with external
CD changer only for Type A)
Track
selection CD insert (Type B)
Repeat playPower
Random playback Display text message
Search
playback Fast-forward
Reverse
CD eject
Playback
Vo l u m eCD selection
Track
selection CD insert
Repeat playPower
Random playback Display text message
Search
playback Fast-forward
Reverse
CD eject
Playback

251
3-2. Using the audio system
3
Interior features

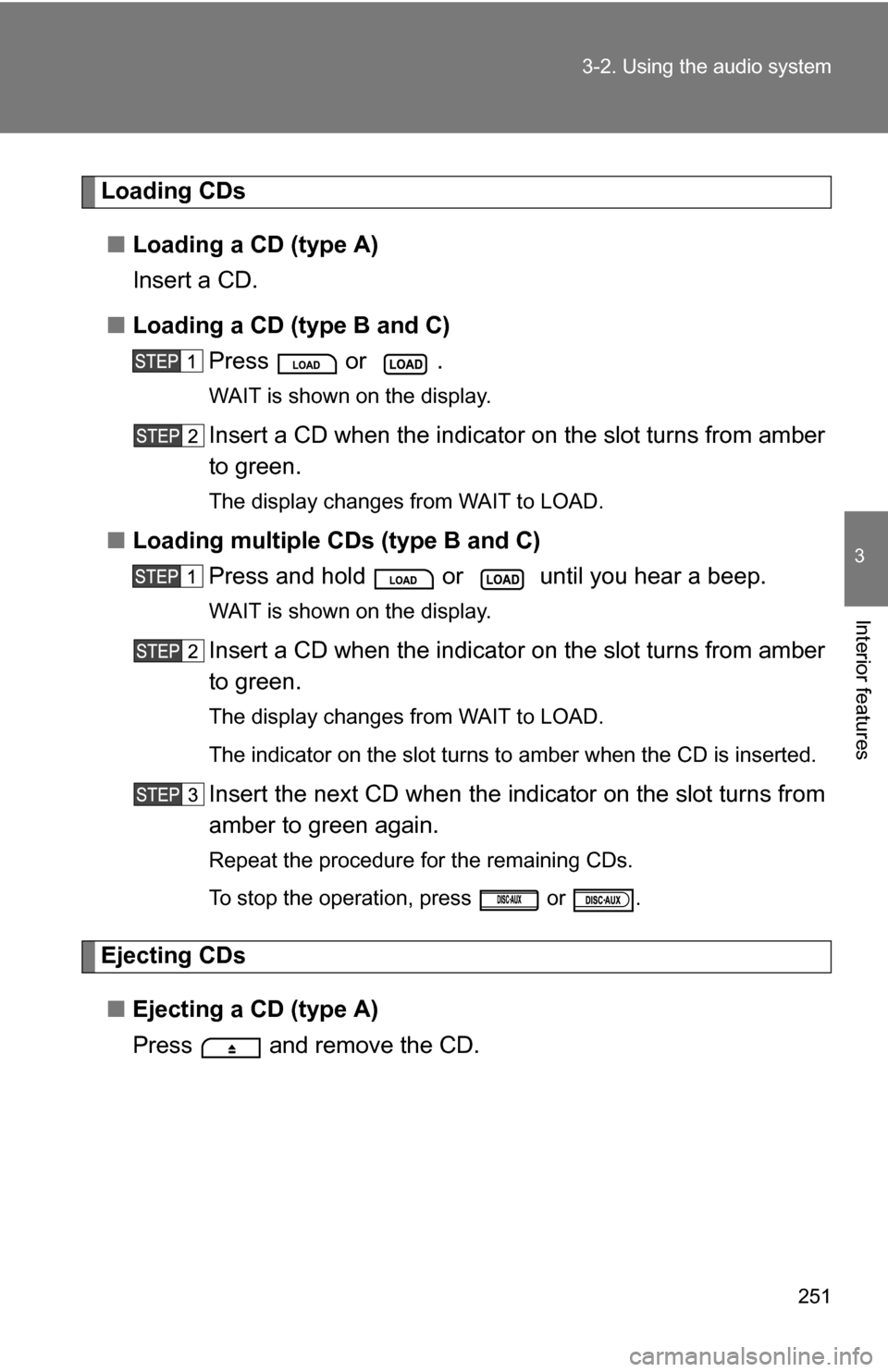

Loading CDs
■ Loading a CD (type A)
Insert a CD.
■ Loading a CD (type B and C)
Press or .
WAIT is shown on the display.
Insert a CD when the indicator on the slot turns from amber
to green.
The display changes from WAIT to LOAD.
■Loading multiple CDs (type B and C)
Press and hold or until you hear a beep.
WAIT is shown on the display.
Insert a CD when the indicator on the slot turns from amber
to green.
The display changes from WAIT to LOAD.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To stop the operation, press or .
Ejecting CDs
■ Ejecting a CD (type A)
Press and remove the CD.

252 3-2. Using the audio system

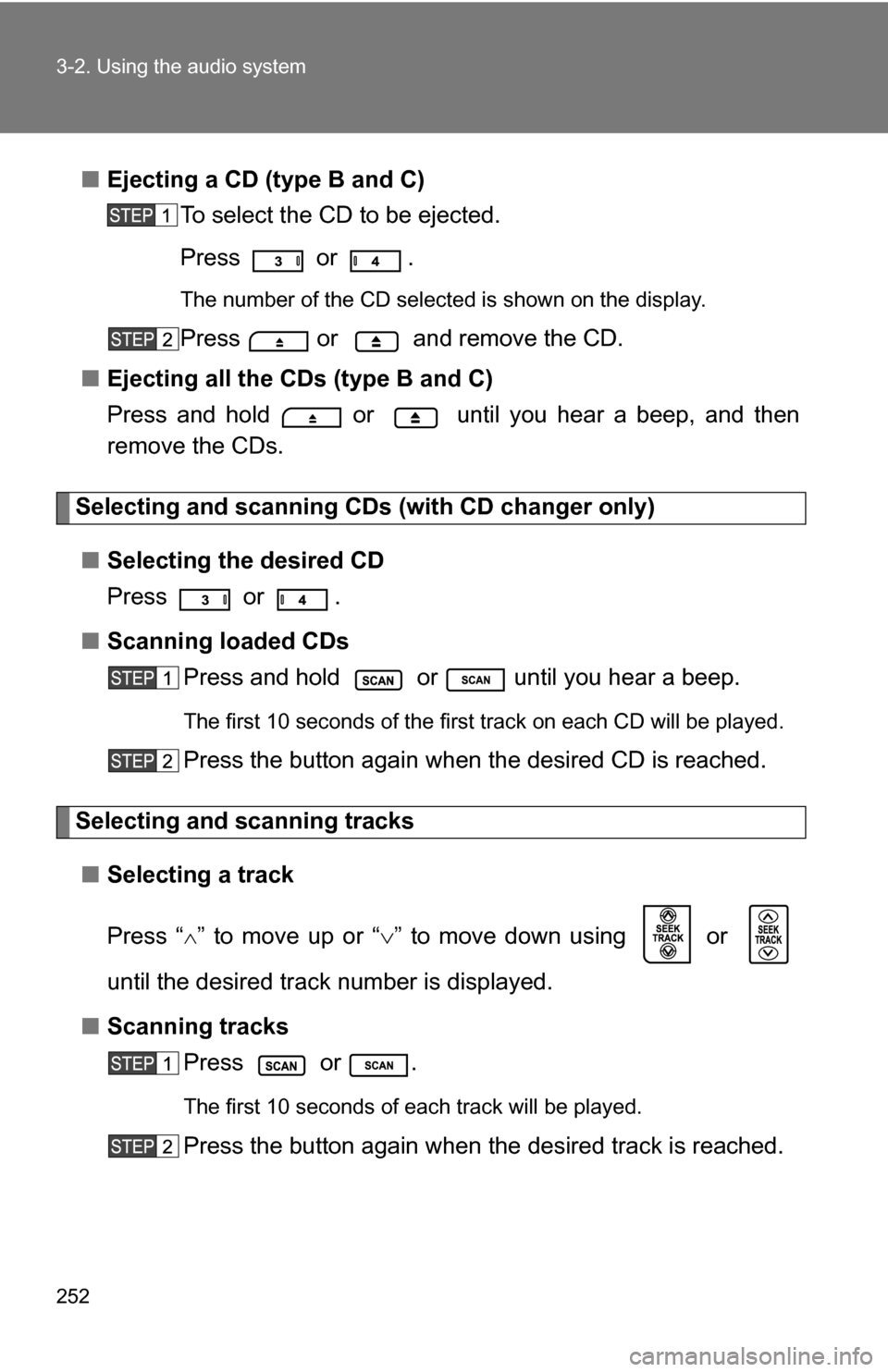

■Ejecting a CD (type B and C)
To select the CD to be ejected.
Press
or .
The number of the CD selected is shown on the display.
Press or and remove the CD.
■ Ejecting all the CDs (type B and C)
Press and hold or until you hear a beep, and then
remove the CDs.
Selecting and scanning CDs (with CD changer only)
■ Selecting the desired CD
Press
or .
■ Scanning loaded CDs
Press and hold or  until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
Press the button again when the desired CD is reached.
Selecting and scanning tracks
■ Selecting a track
Press “
” to move up or “ ” to move down using or
until the desired track number is displayed.
■ Scanning tracks
Press or .
The first 10 seconds of each track will be played.
Press the button again when the desired track is reached.

253
3-2. Using the audio system
3
Interior features

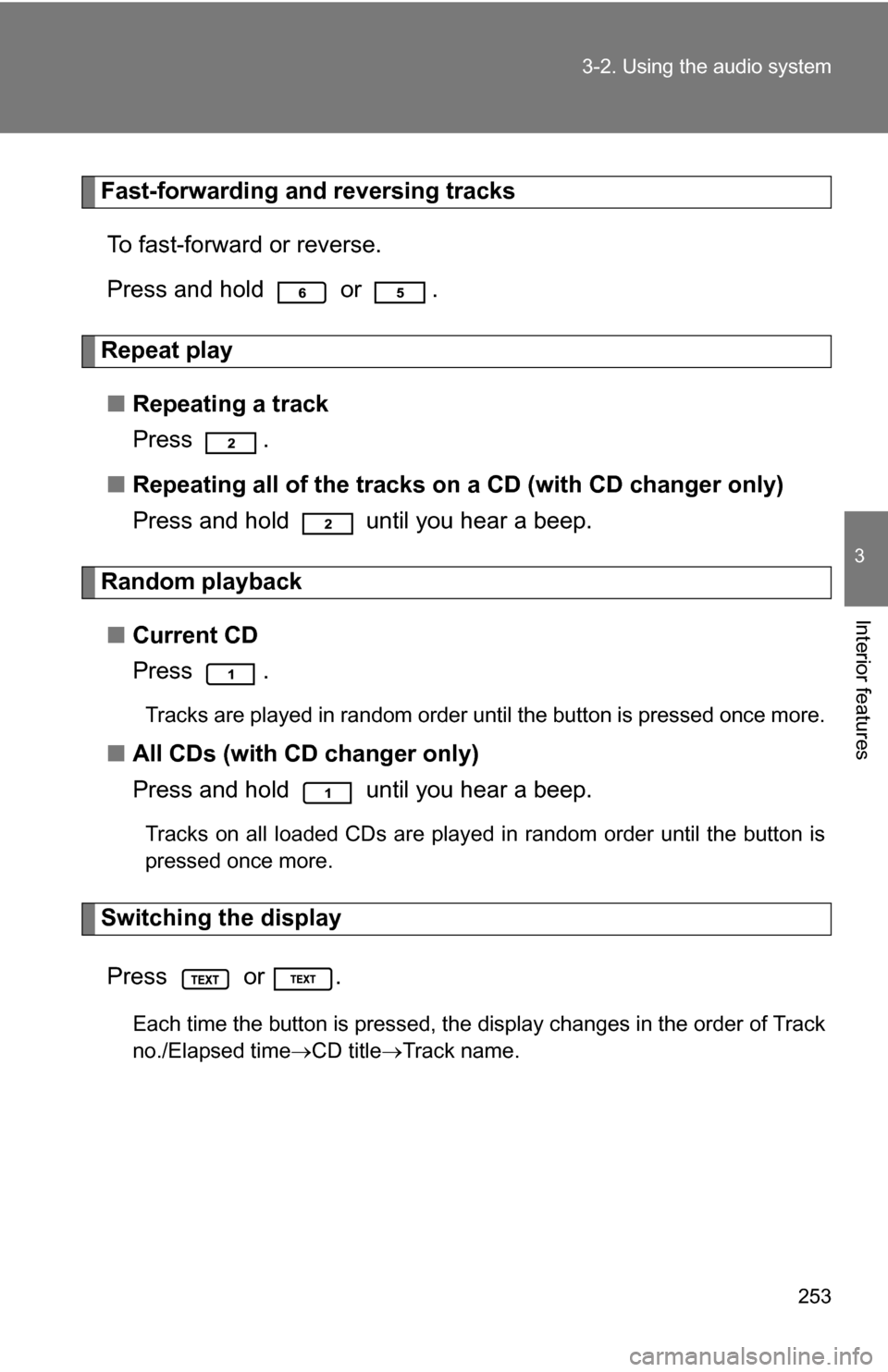

Fast-forwarding and reversing tracks
To fast-forward or reverse.
Press and hold or .
Repeat play
■ Repeating a track
Press .
■ Repeating all of the tracks on a CD (with CD changer only)
Press and hold until you hear a beep.
Random playback
■ Current CD
Press .
Tracks are played in random order until the button is pressed once more.
■All CDs (with CD changer only)
Press and hold until you hear a beep.
Tracks on all loaded CDs are played in random order until the button is
pressed once more.
Switching the display
Press or .
Each time the button is pressed, the display changes in the order of Track
no./Elapsed time CD titleTrack name.

254 3-2. Using the audio system
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
or
for 1 second or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If
or is pressed for 1 second or more again or has not been
pressed for 6 seconds or more, the display will return to the first 12 charac-
ters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Canceling random playback
Press again.
■ Canceling repeat play
Press again.
■ Error messages
ERROR: This indicates a problem either with the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
WAIT: Operation has stopped due to a high temperature inside the player. Wait for a while and then press
or . Contact
your Toyota dealer if the CD still cannot be played back.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not playback.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
■ If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.

255
3-2. Using the audio system
3
Interior features
■

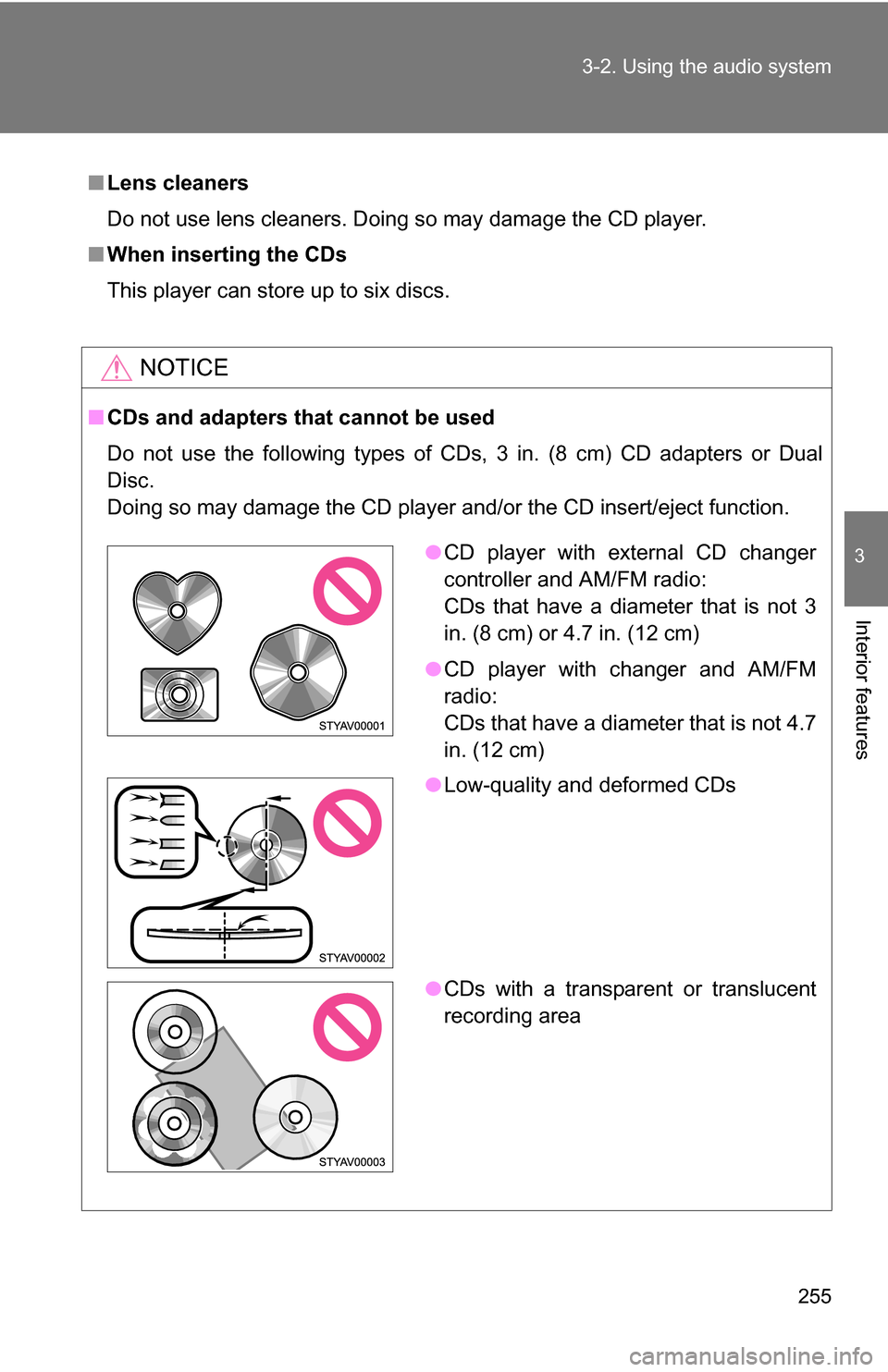

Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■ When inserting the CDs
This player can store up to six discs.
NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
●CD player with external CD changer
controller and AM/FM radio:
CDs that have a diameter that is not 3
in. (8 cm) or 4.7 in. (12 cm)
● CD player with changer and AM/FM
radio:
CDs that have a diameter that is not 4.7
in. (12 cm)
● Low-quality and deformed CDs
● CDs with a transparent or translucent
recording area

256 3-2. Using the audio system

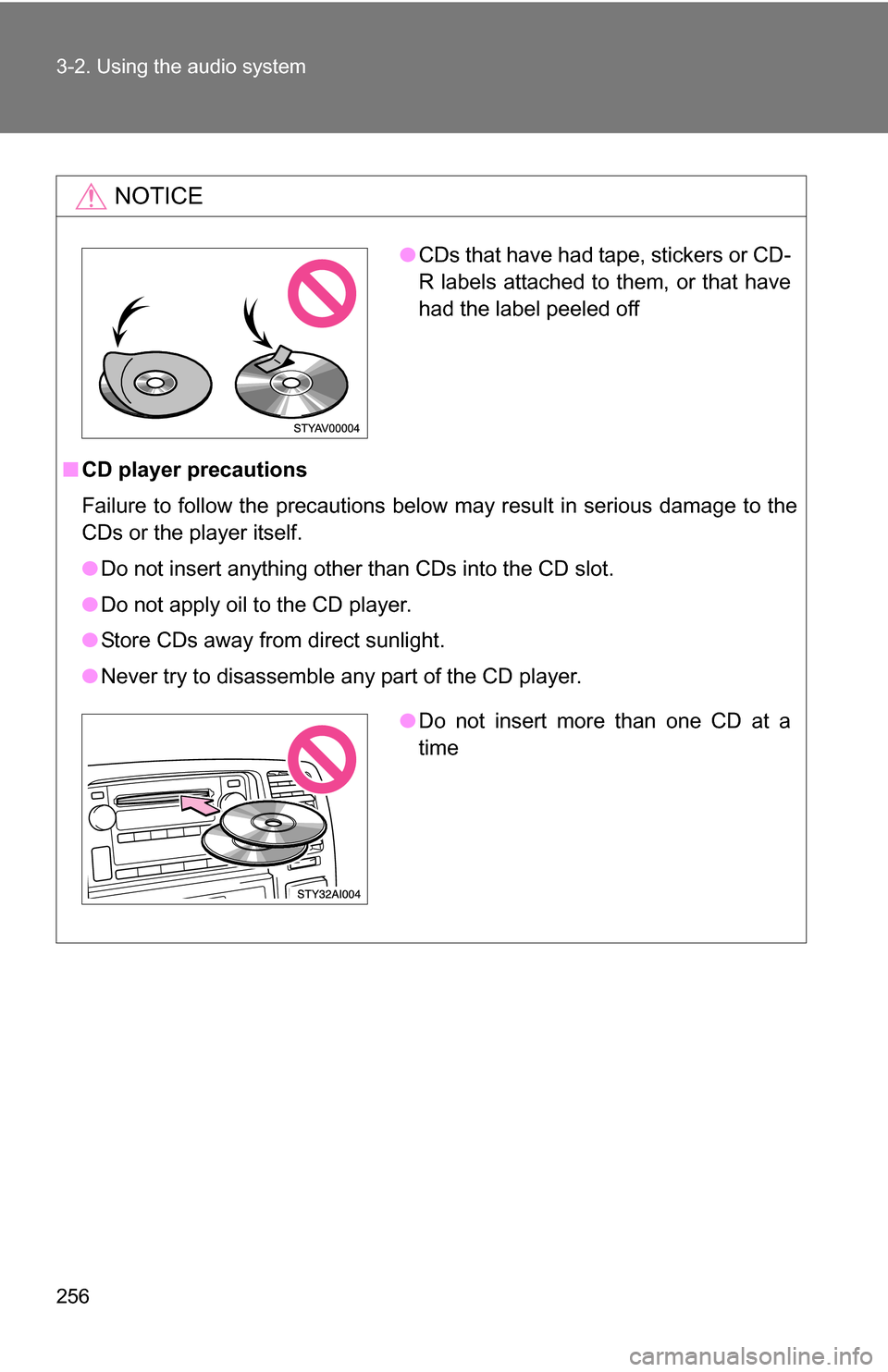

NOTICE
■CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
●Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the CD player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the CD player.
●CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off
●Do not insert more than one CD at a
time
