2009 TOYOTA 4RUNNER Owners Manual

73
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

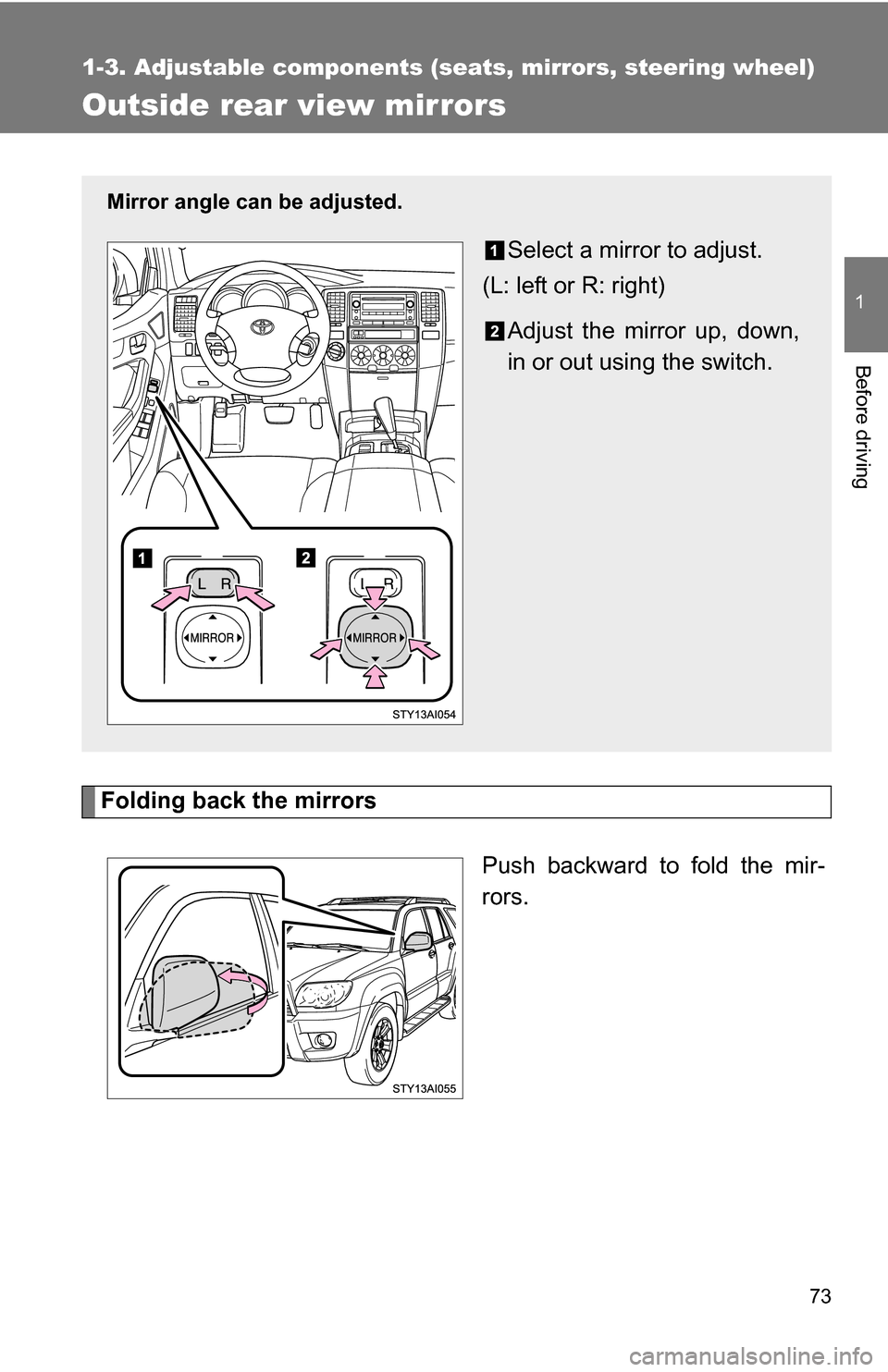

Outside rear view mirrors
Folding back the mirrorsPush backward to fold the mir-
rors.
Mirror angle can be adjusted.
Select a mirror to adjust.
(L: left or R: right)
Adjust the mirror up, down,
in or out using the switch.

74 1-3. Adjustable components (seats, mirrors, steering wheel)
■Mirror operating conditions
The engine switch is in the ACC or ON position.
■ When the mirrors are fogged up (veh icles with outside rear view mirror
defoggers)
Turn on the mirror defoggers to defog the mirrors. ( P. 240)
■ Rain clearing mirrors
The rain clearing mirrors have been coated to spread the raindrops evenly
into a thin film (hydrophilic effect) when they adhere to the mirror surface,
clearing the driver’s rear view.
■ In the following cases, the rain clear ing effect will be reduced tempo-
rarily, but will recover by exposing the mirrors to bright direct sunlight
for 1 or 2 days
● After wiping dirt off the mirrors
● When the mirrors fog up
● After waxing your vehicle in an automatic car wash
● After your vehicle has been parked for a long period in a place with no
direct sunlight, such as under ground parking lots
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded back.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.

75
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

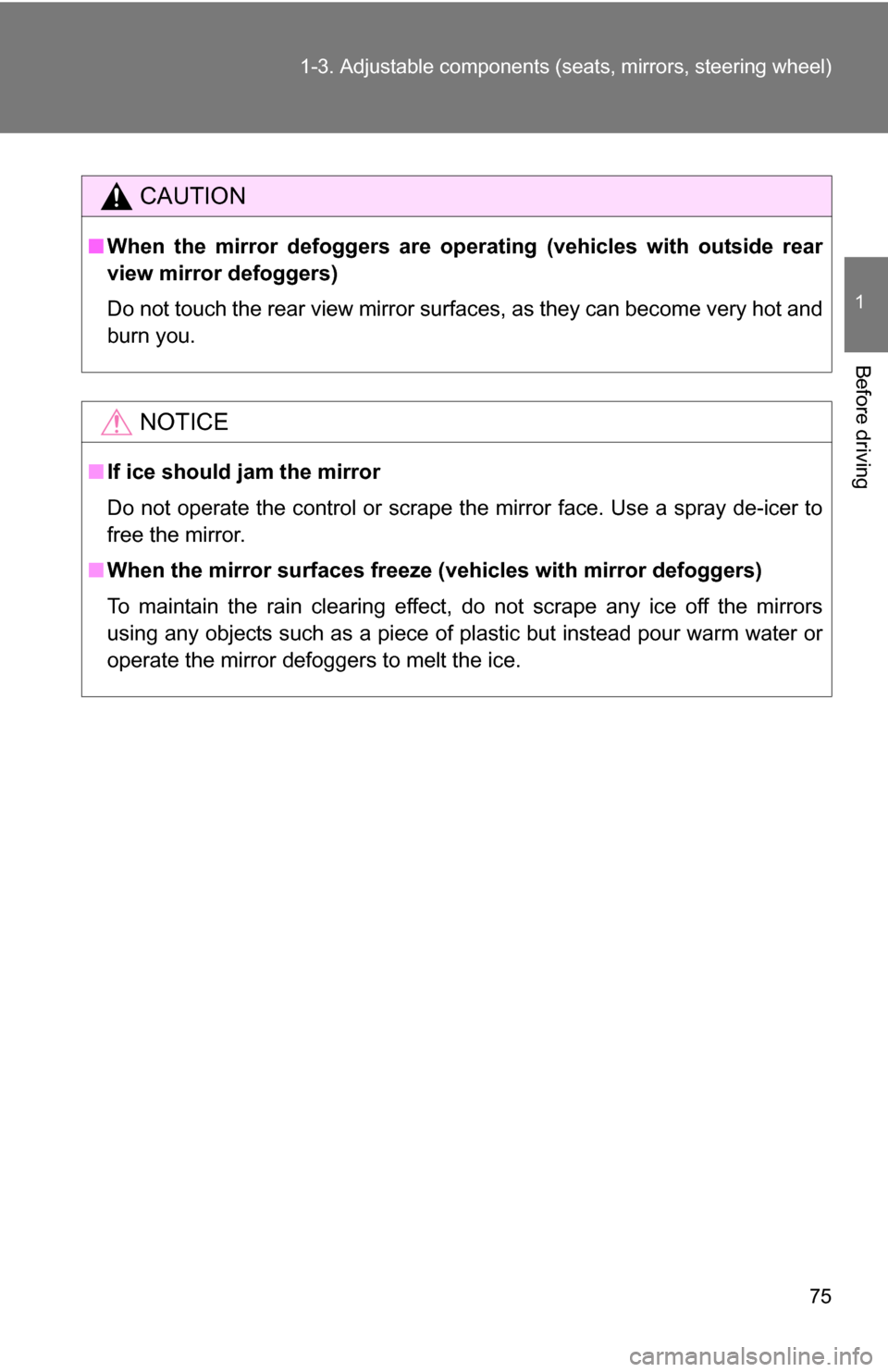

CAUTION
■When the mirror defoggers are oper ating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.
■ When the mirror surfaces freeze ( vehicles with mirror defoggers)
To maintain the rain clearing effect, do not scrape any ice off the mirrors
using any objects such as a piece of plastic but instead pour warm water or
operate the mirror defoggers to melt the ice.

76
1-4. Opening and closing the windows and moon roof

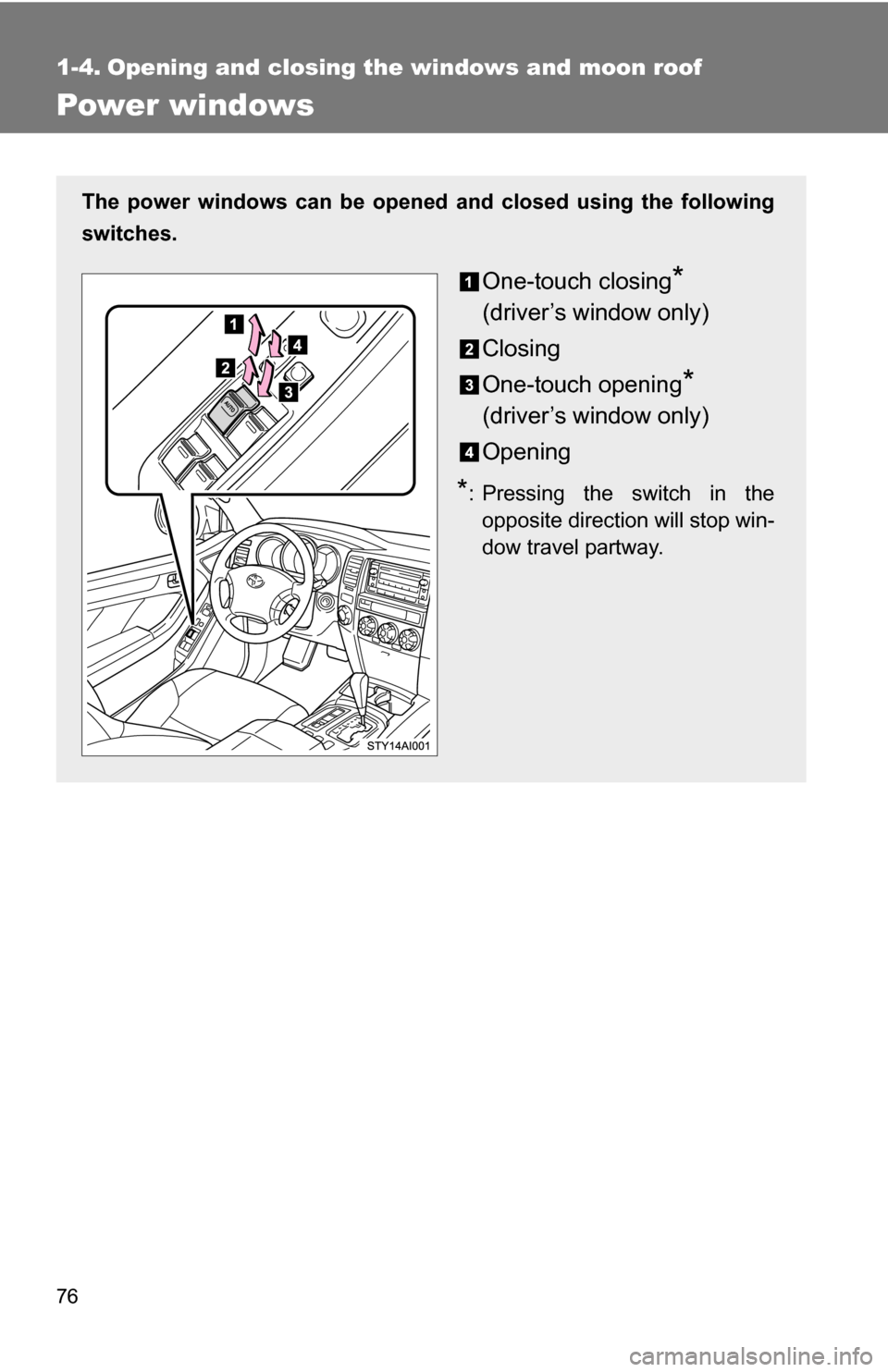

Power windows
The power windows can be opened and closed using the following
switches.
One-touch closing*
(driver’s window only)
Closing
One-touch opening
*
(driver’s window only)
Opening
*: Pressing the switch in the opposite direction will stop win-
dow travel partway.

77
1-4. Opening and closing the windows and moon roof
1
Before driving

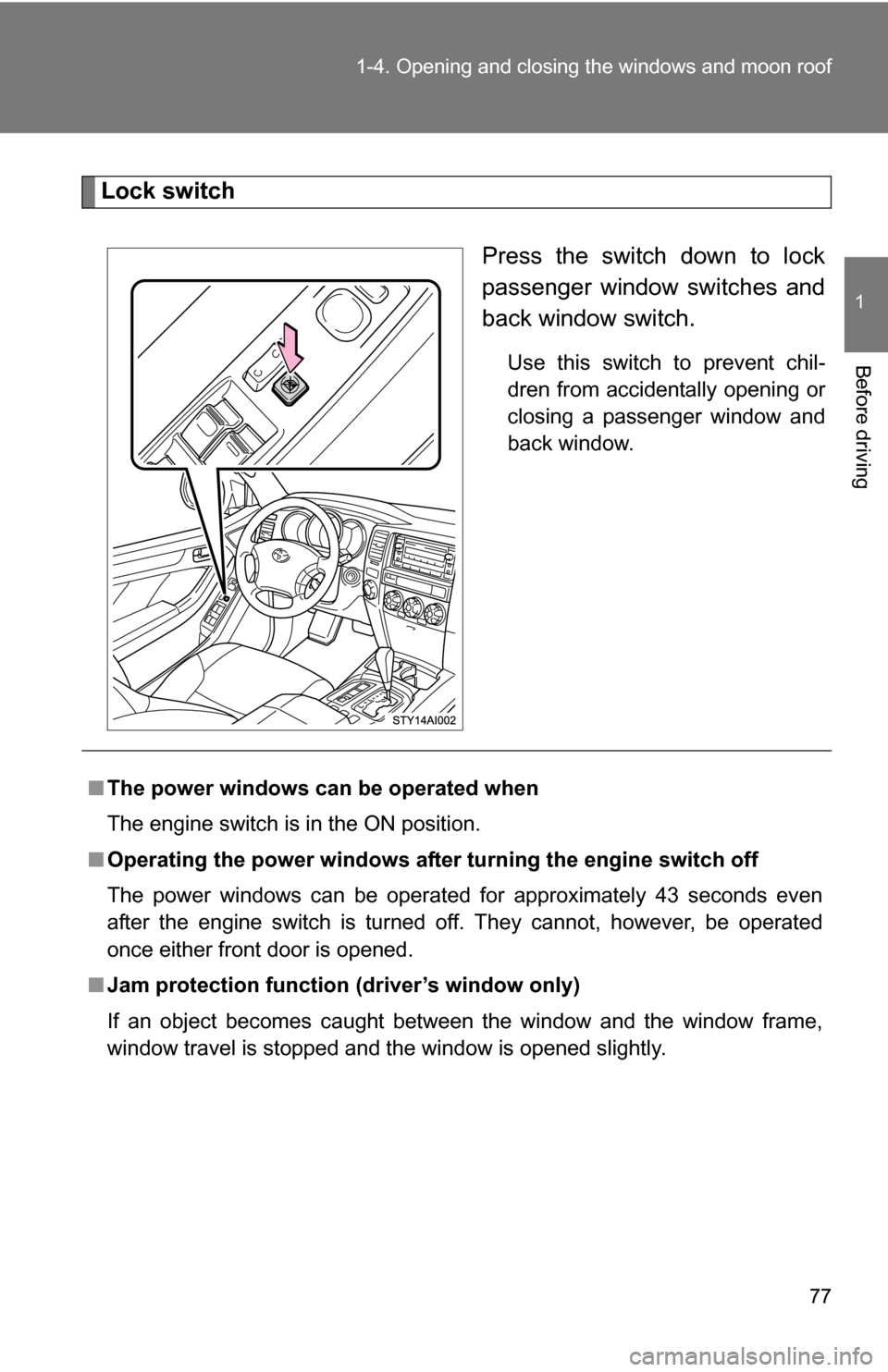

Lock switch
Press the switch down to lock
passenger window switches and
back window switch.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window and
back window.
■The power windows can be operated when
The engine switch is in the ON position.
■ Operating the power windows after turning the engine switch off
The power windows can be operated for approximately 43 seconds even
after the engine switch is turned off. They cannot, however, be operated
once either front door is opened.
■ Jam protection function (driver’s window only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

78 1-4. Opening and closing the windows and moon roof
■When the battery is disconnected
The power windows must be initializ ed in order to ensure proper operation.
(driver’s window only)
Open the window halfway.
Fully close the window by pulling the switch up and continue hold-
ing the switch for 1 second.
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

79
1
1-4. Opening and closing the windows and moon roof
Before driving
Power back window
The power back window can be opened and closed using the switch
and key.
From insideOne-touch closing
*
Closing
Opening
One-touch opening
*
*:Pressing the switch in the
opposite direction will stop win-
dow travel partway.
From outsideOpening
Closing
Turn the key fully and hold it.

80 1-4. Opening and closing the windows and moon roof
■The power back window can be operated when
●The engine switch is in the ON position.
● The power back window can be opened when the rear window wiper is
working. At that time, the wiper stops working until the window is closed
again.
If the rear window is not fully closed, the rear window wiper, washer, and
defogger will not work.
■ Operating the power back window after turning th e engine switch off
The power back window can be operated for approximately 43 seconds
even after the engine switch is turned off. It cannot, however, be operated
once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the battery is disconnected
The power windows must be initializ ed in order to ensure proper operation.
Open the window halfway.
Fully close the window by pulling the switch up and continue hold-
ing the switch for 1 second.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. wireless remote control linked operation) can be changed.
(Customizable features P. 495)
