2009 TOYOTA 4RUNNER Owners Manual

233
3-1. Using the air conditioning system
and defogger
3
Interior features

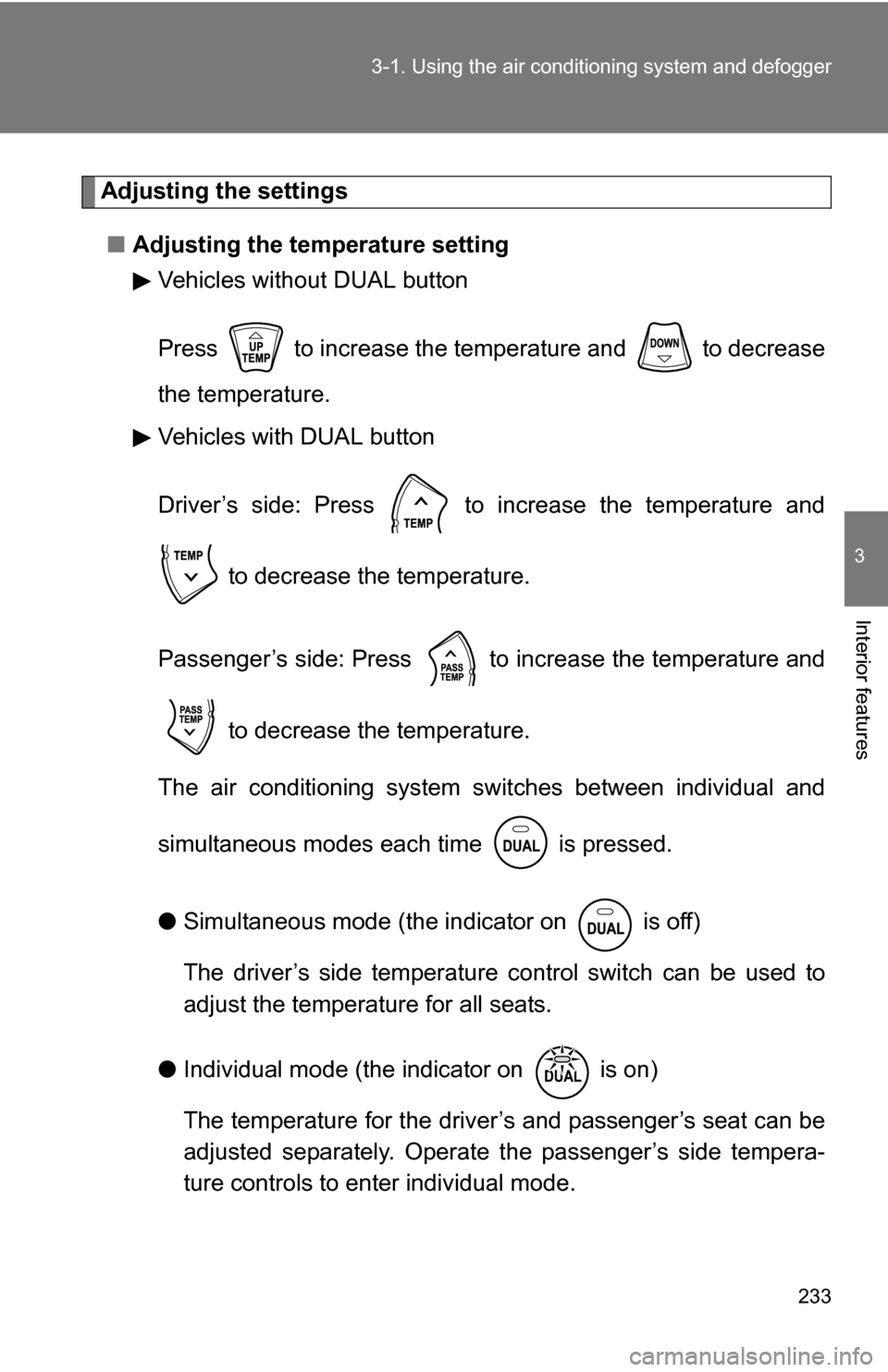

Adjusting the settings
■ Adjusting the temperature setting
Vehicles without DUAL button
Press to increase the temperature and to decrease
the temperature.
Vehicles with DUAL button
Driver’s side: Press to increase the temperature and
to decrease the temperature.
Passenger’s side: Press to increase the temperature and to decrease the temperature.
The air conditioning system sw itches between individual and
simultaneous modes each time is pressed.
● Simultaneous mode (the indicator on is off)
The driver’s side temperature control switch can be used to
adjust the temperature for all seats.
● Individual mode (the indicator on is on)
The temperature for the driver’s and passenger’s seat can be
adjusted separately. Operate the passenger’s side tempera-
ture controls to enter individual mode.

234 3-1. Using the air conditioning system and defogger

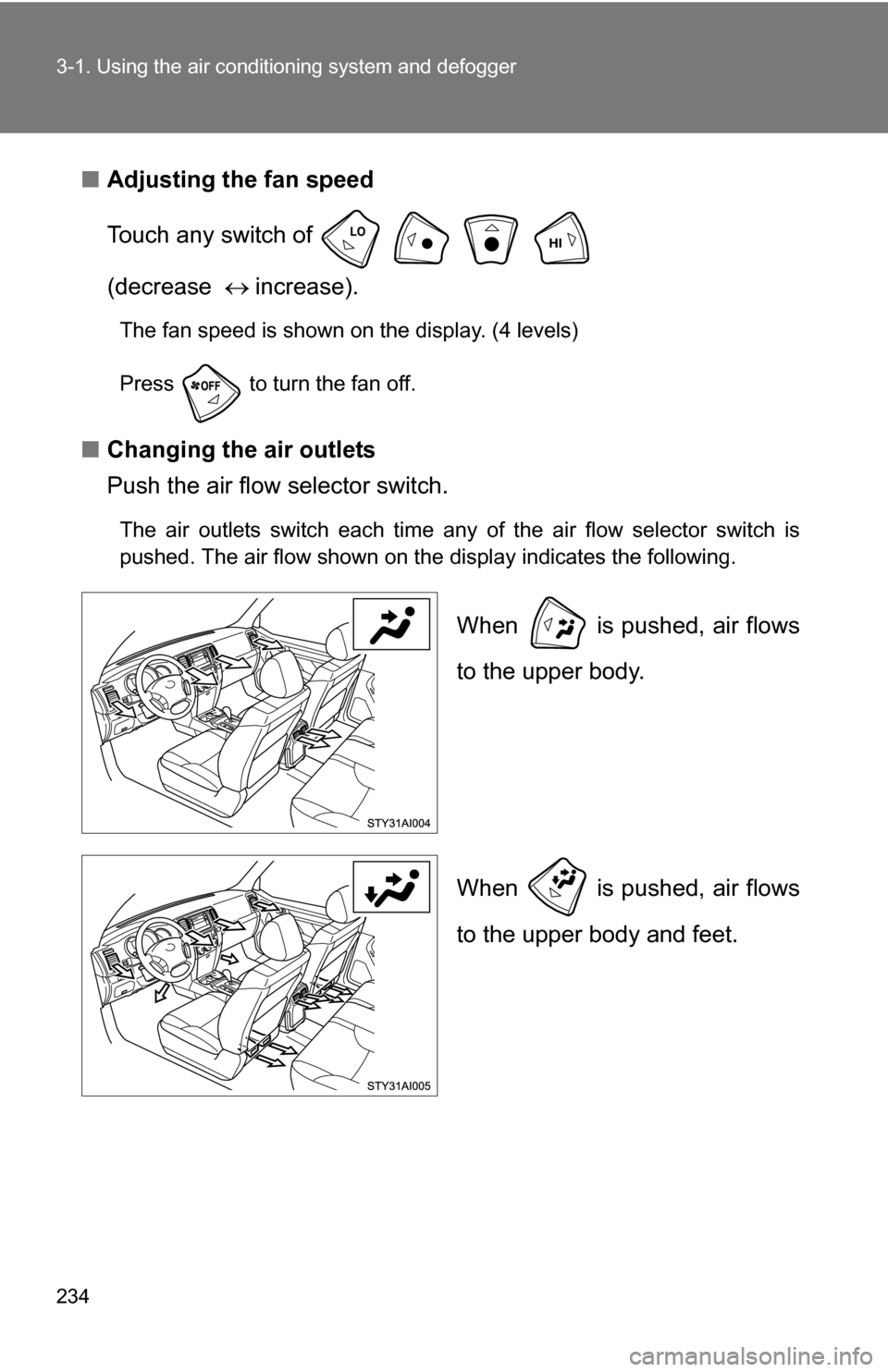

■Adjusting the fan speed
Touch any switch of
(decrease increase).
The fan speed is shown on the display. (4 levels)
Press to turn the fan off.
■Changing the air outlets
Push the air flow selector switch.
The air outlets switch each time any of the air flow selector switch is
pushed. The air flow shown on the display indicates the following.
When is pushed, air flows
to the upper body.
When is pushed, air flows
to the upper body and feet.

235
3-1. Using the air conditioning system
and defogger
3
Interior features

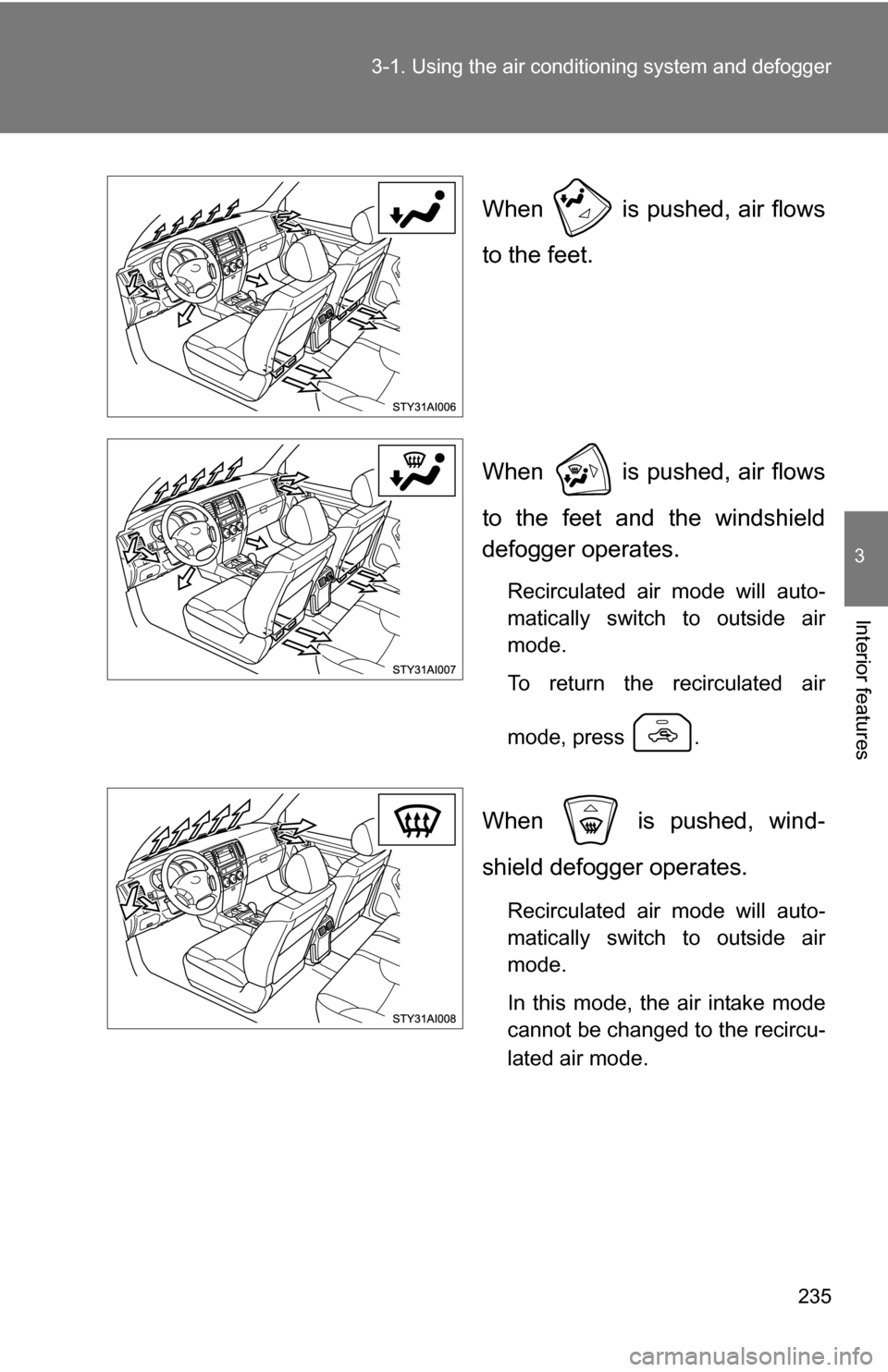

When is pushed, air flows
to the feet.
When is pushed, air flows
to the feet and the windshield
defogger operates.
Recirculated air mode will auto-
matically switch to outside air
mode.
To return the recirculated air
mode, press .
When is pushed, wind-
shield defogger operates.
Recirculated air mode will auto-
matically switch to outside air
mode.
In this mode, the air intake mode
cannot be changed to the recircu-
lated air mode.

236 3-1. Using the air conditioning system and defogger

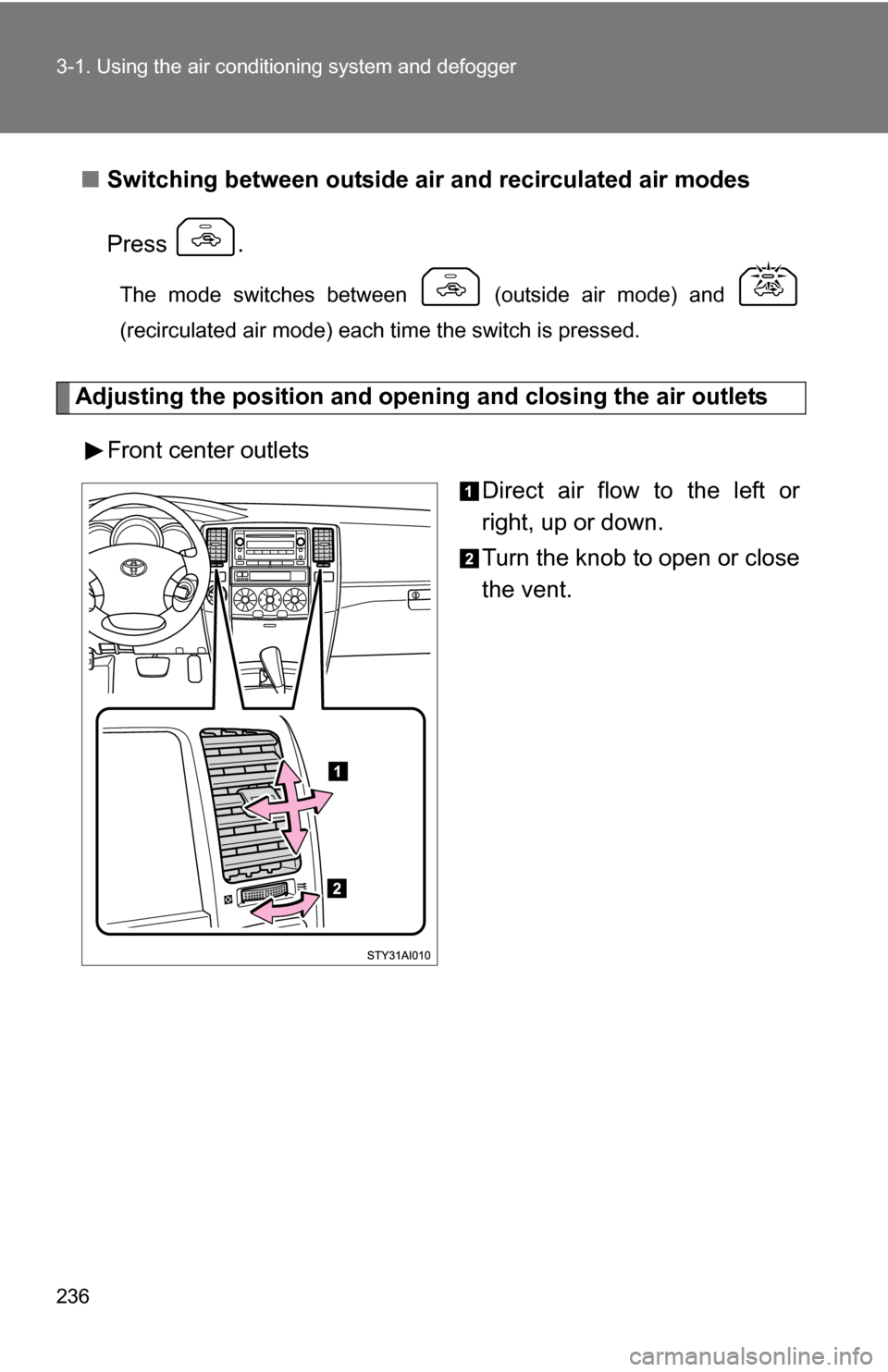

■Switching between outside air and recirculated air modes
Press .
The mode switches between (outside air mode) and
(recirculated air mode) each time the switch is pressed.
Adjusting the position and openi ng and closing the air outlets
Front center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

237
3-1. Using the air conditioning system
and defogger
3
Interior features

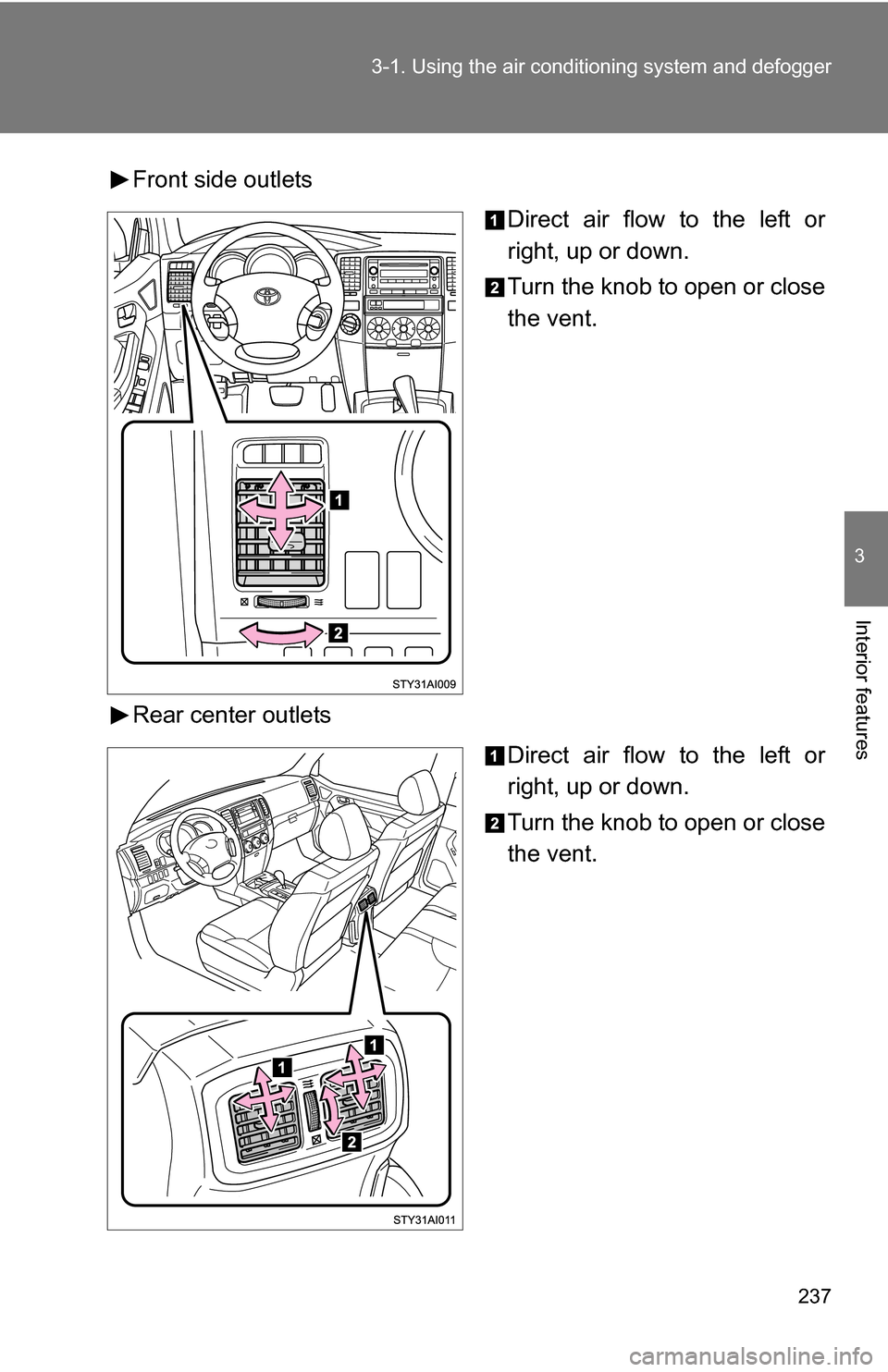

Front side outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Rear center outlets Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.

238 3-1. Using the air conditioning system and defogger

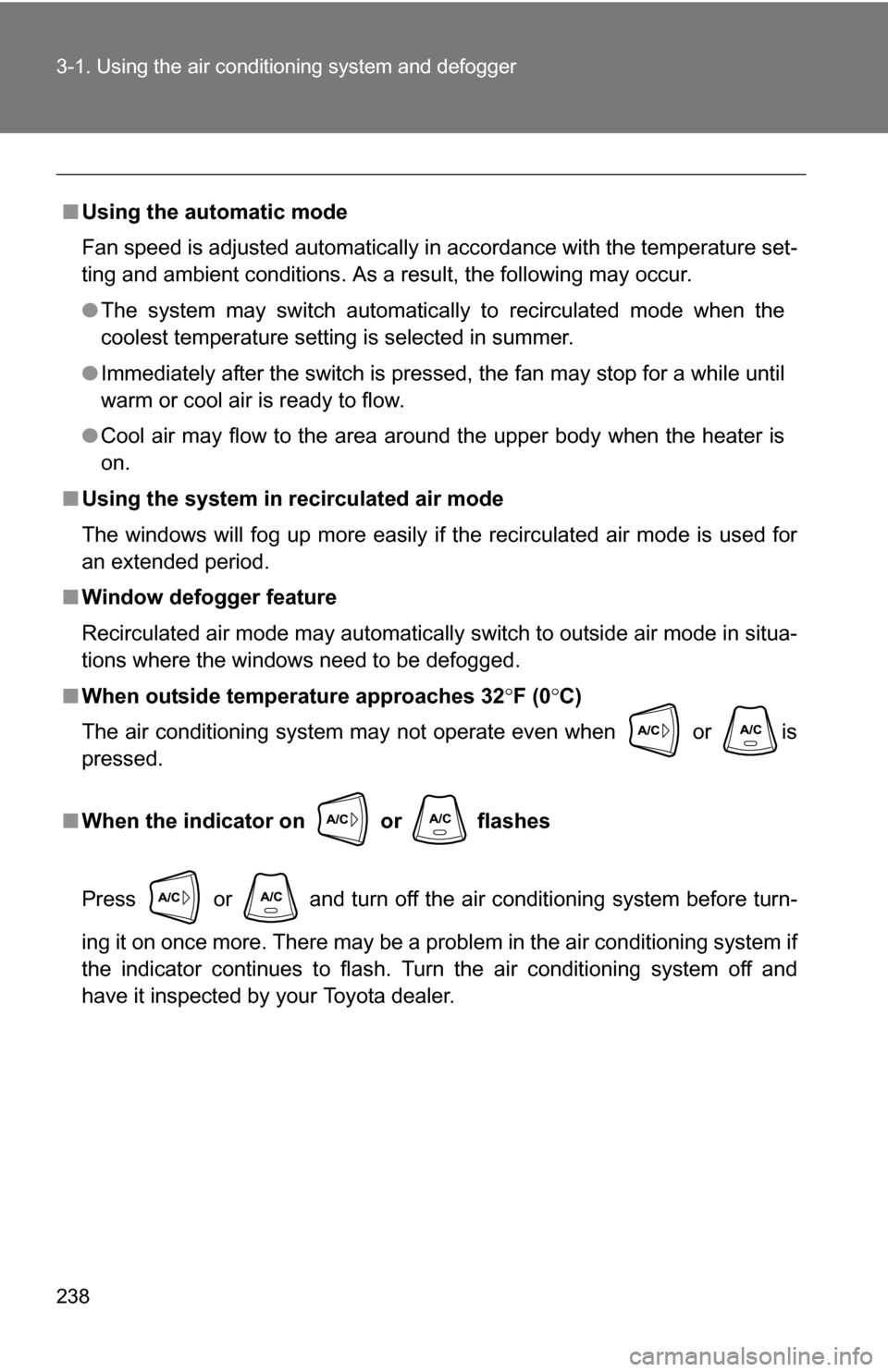

■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated mode when the
coolest temperature setting is selected in summer.
● Immediately after the switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside temper ature approaches 32F (0 C)
The air conditioning system may not operate even when or is
pressed.
■ When the indicator on or flashes
Press or and turn off the air conditioning system before turn-
ing it on once more. There may be a problem in the air conditioning syst\
em if
the indicator continues to flash. Turn the air conditioning system off and
have it inspected by your Toyota dealer.

239
3-1. Using the air conditioning system
and defogger
3
Interior features

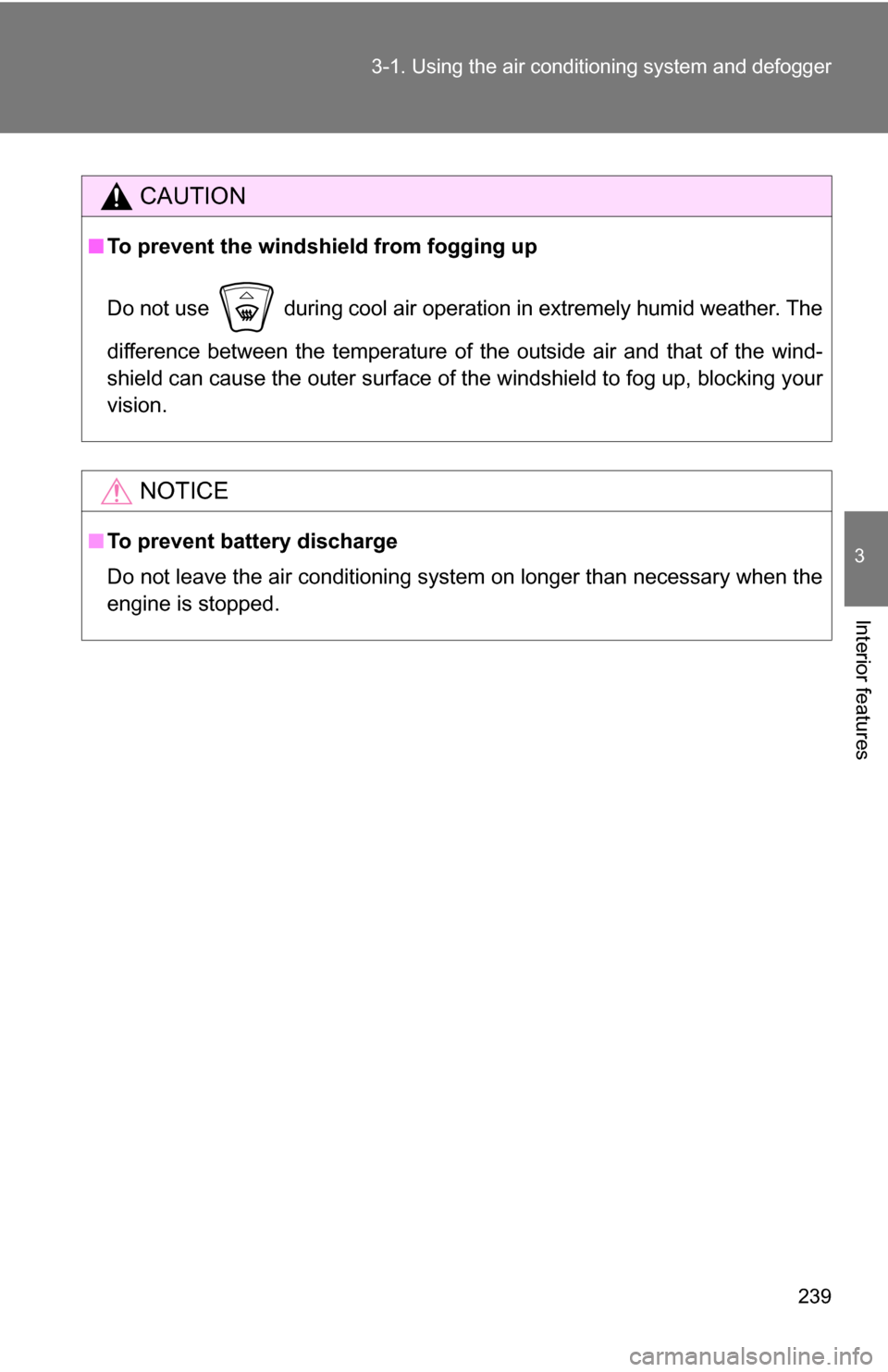

CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

240
3-1. Using the air conditioning system and defogger

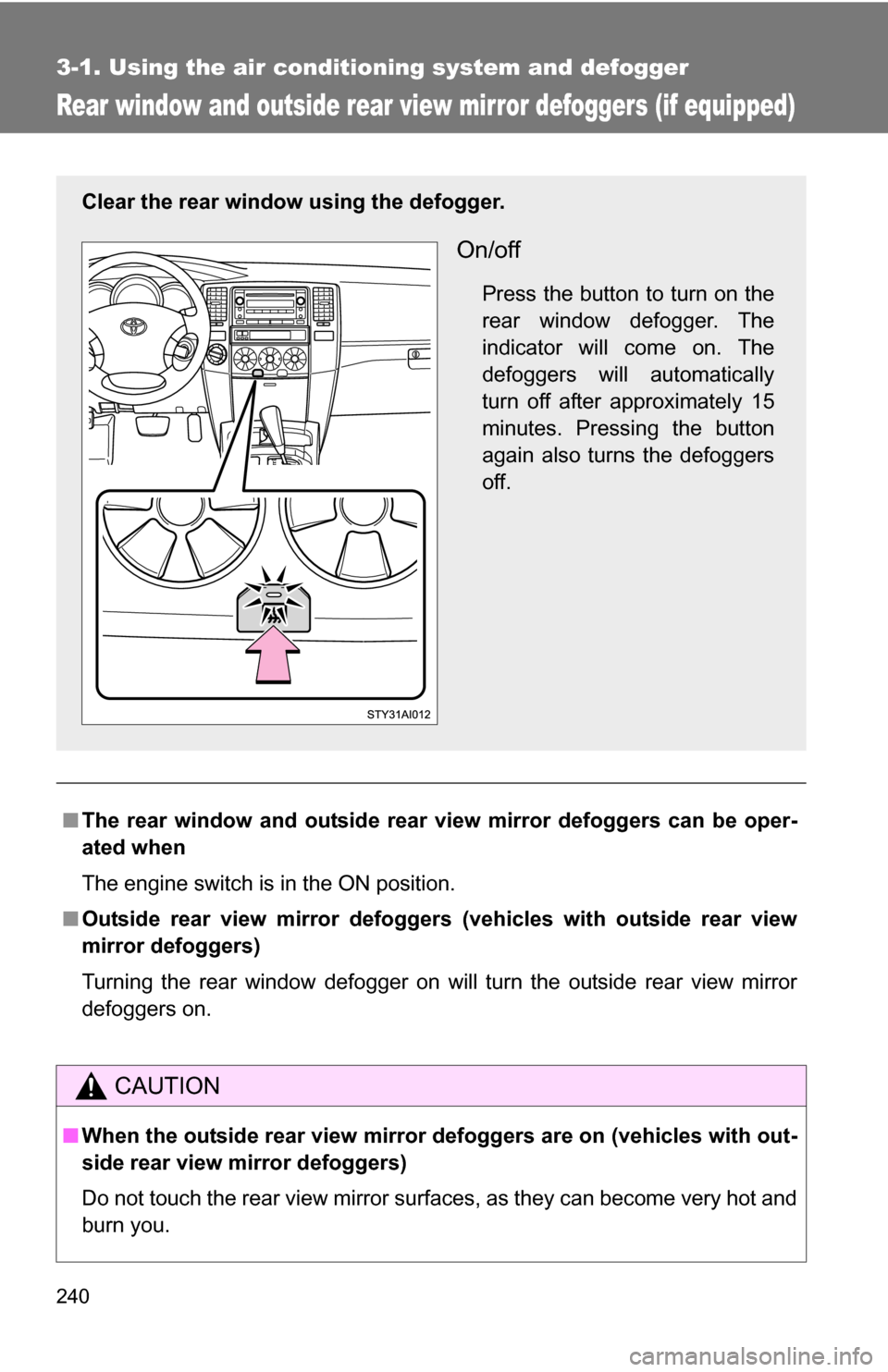

Rear window and outside rear view mirror defoggers (if equipped)
■The rear window and outside rear vi ew mirror defoggers can be oper-
ated when
The engine switch is in the ON position.
■ Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■ When the outside rear view mirror defoggers are on (vehicles with out-
side rear view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
Clear the rear window using the defogger.
On/off
Press the button to turn on the
rear window defogger. The
indicator will come on. The
defoggers will automatically
turn off after approximately 15
minutes. Pressing the button
again also turns the defoggers
off.
