2009 TOYOTA 4RUNNER emergency towing

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
23 TRN-HAZ

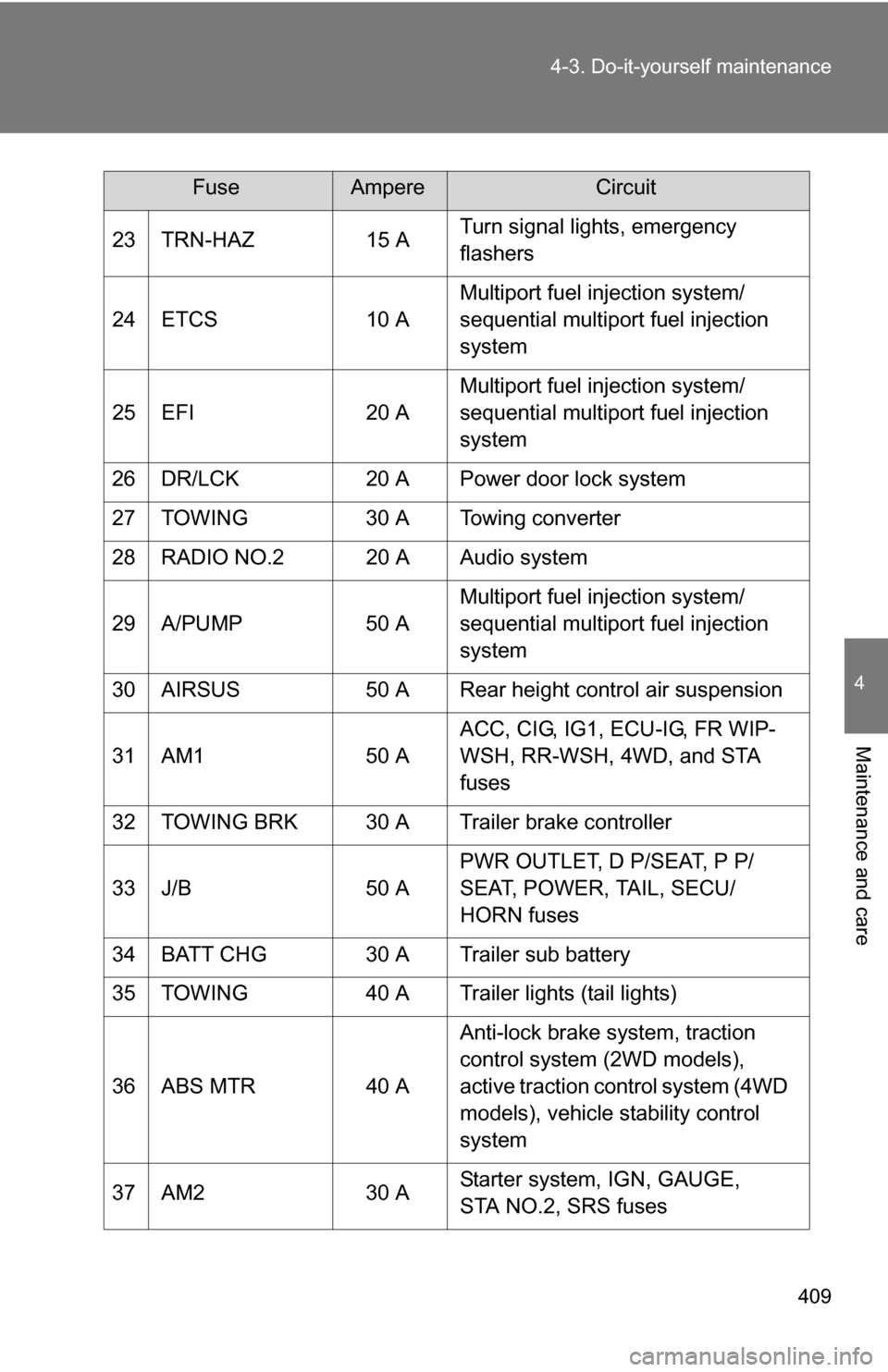

15 ATurn signal lights, emergency
flashers
24 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
25 EFI 20 AMultiport fuel injection system/
sequential multiport fuel injection
system
26 DR/LCK 20 A Power door lock system
27 TOWING 30 A Towing converter
28 RADIO NO.2 20 A Audio system
29 A/PUMP 50 AMultiport fuel injection system/
sequential multiport fuel injection
system
30 AIRSUS 50 A Rear height control air suspension
31 AM1 50 AACC, CIG, IG1, ECU-IG, FR WIP-
WSH, RR-WSH, 4WD, and STA
fuses
32 TOWING BRK 30 A Trailer brake controller
33 J/B 50 APWR OUTLET, D P/SEAT, P P/
SEAT, POWER, TAIL, SECU/
HORN fuses
34 BATT CHG 30 A Trailer sub battery
35 TOWING 40 A Trailer lights (tail lights)
36 ABS MTR 40 AAnti-lock brake system, traction
control system (2WD models),
active traction control system (4WD
models), vehicle stability control
system
37 AM2 30 AStarter system, IGN, GAUGE,
STA NO.2, SRS fuses
FuseAmpereCircuit

5
When trouble arises
427
5-1. Essential information

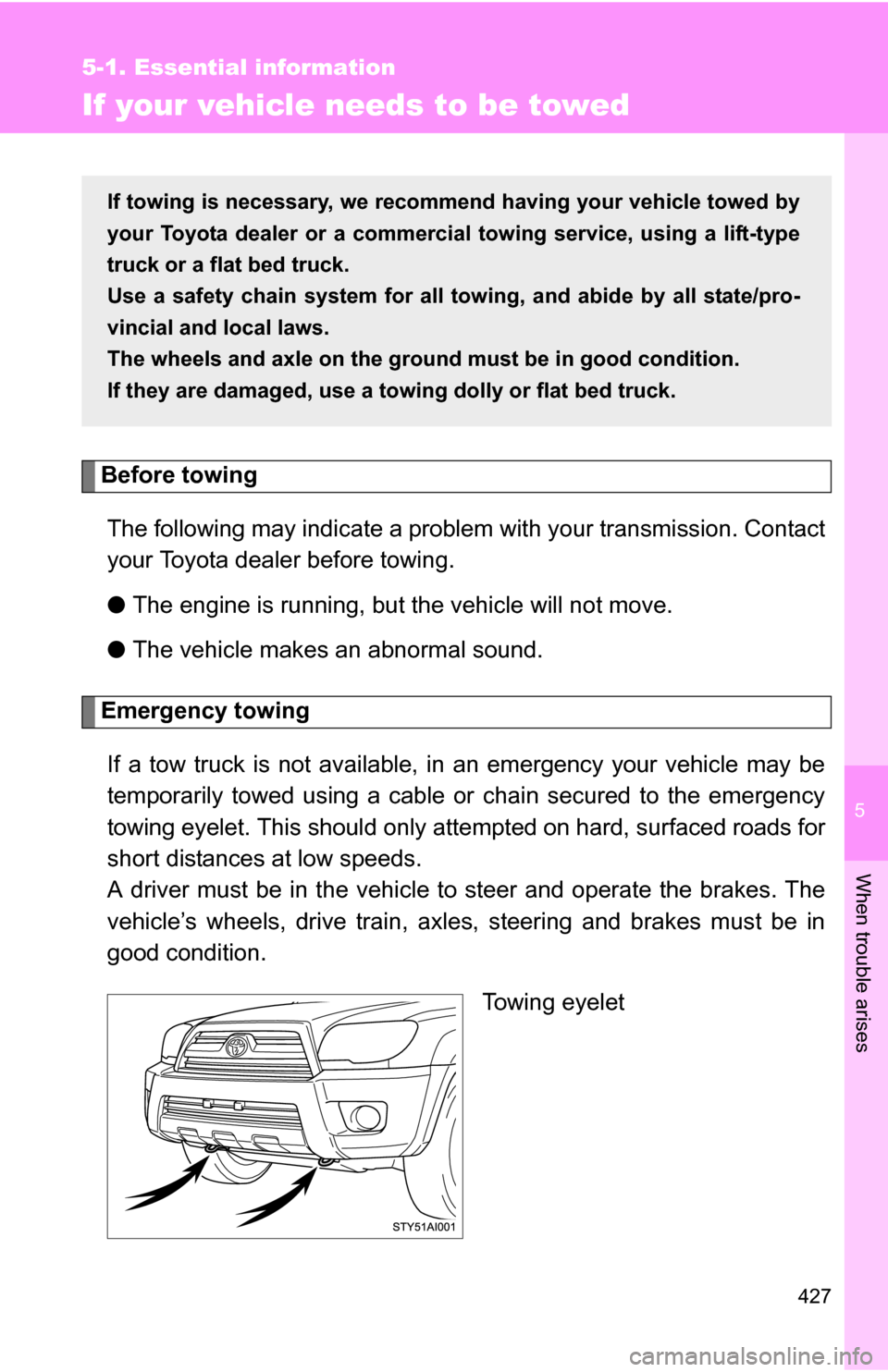

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only attempted on hard, surfaced roads for
short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
The wheels and axle on the groun d must be in good condition.
If they are damaged, use a towing dolly or flat bed truck.

428 5-1. Essential information

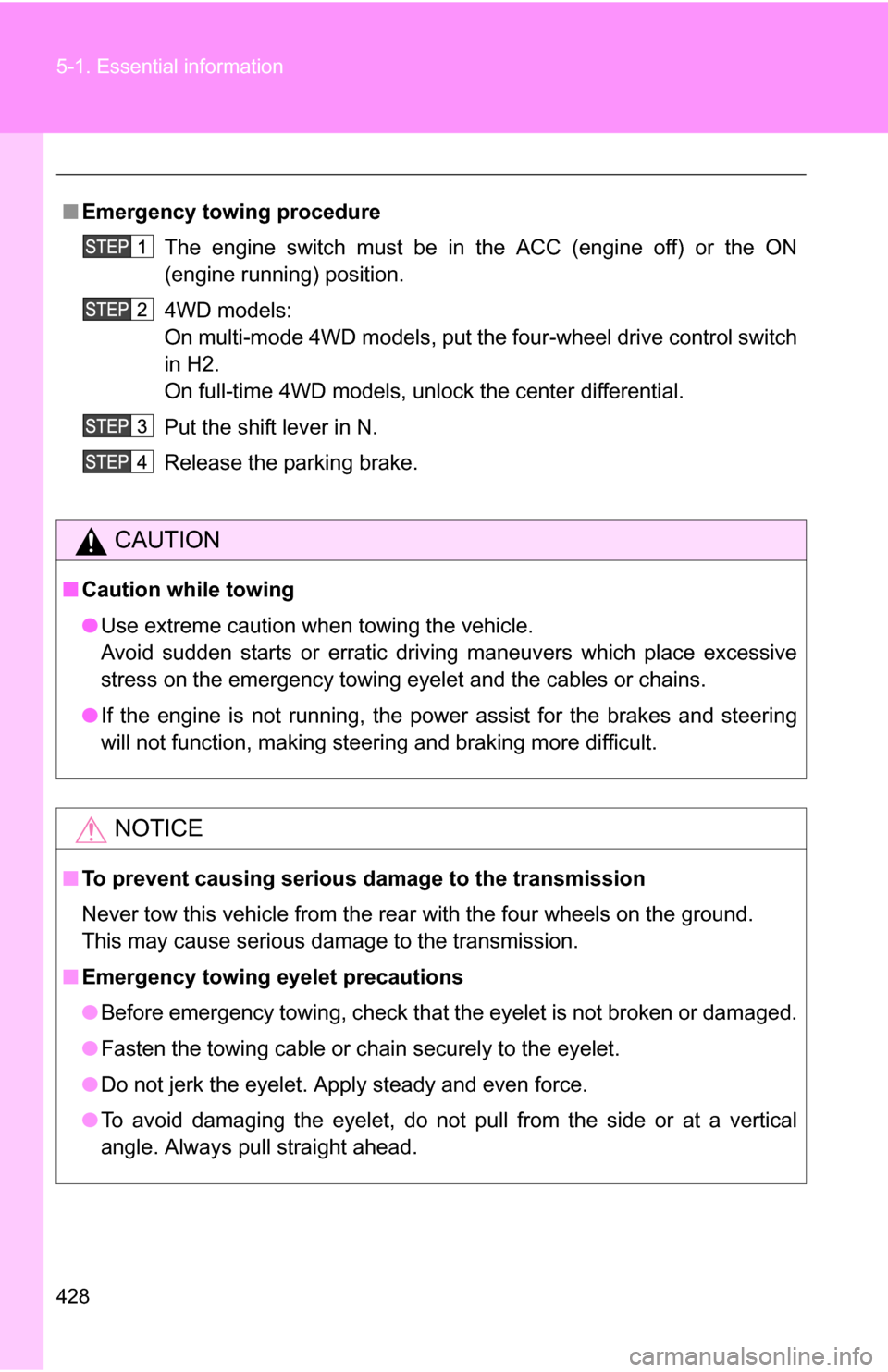

■Emergency towin g procedure
The engine switch must be in the ACC (engine off) or the ON
(engine running) position.
4WD models:
On multi-mode 4WD models, put the four-wheel drive control switch
in H2.
On full-time 4WD models, unlock the center differential.
Put the shift lever in N.
Release the parking brake.
CAUTION
■ Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cables or chains.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the rear with the four wheels on the ground.
This may cause serious damage to the transmission.
■ Emergency towing eyelet precautions
● Before emergency towing, check that the eyelet is not broken or damaged.
● Fasten the towing cable or chain securely to the eyelet.
● Do not jerk the eyelet. Apply steady and even force.
● To avoid damaging the eyelet, do not pull from the side or at a vertical
angle. Always pull straight ahead.

5
When trouble arises
453
5-2. Steps to take in an emergency

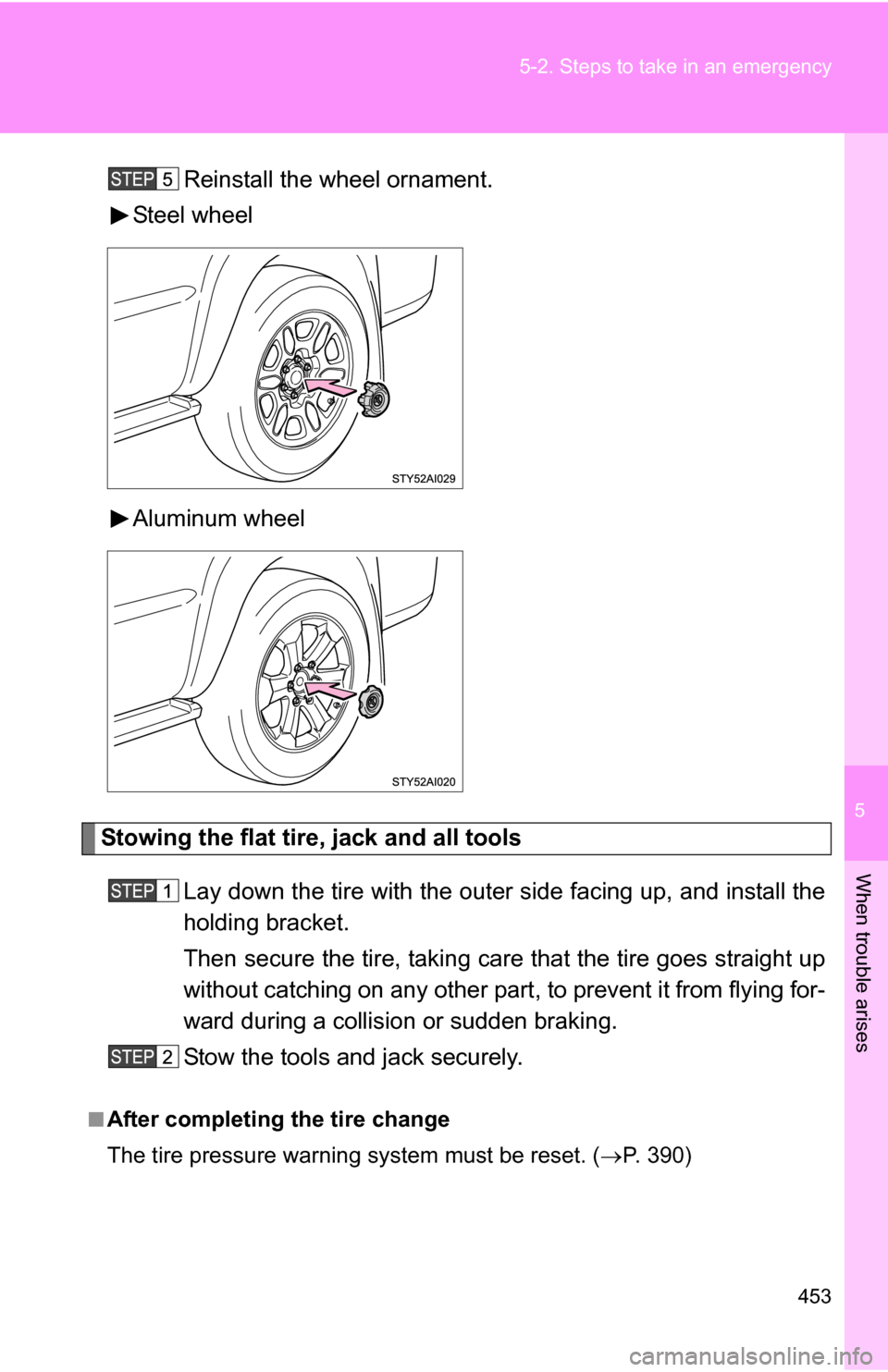

Reinstall the wheel ornament.
Steel wheel
Aluminum wheel
Stowing the flat tire, jack and all tools
Lay down the tire with the outer side facing up, and install the
holding bracket.
Then secure the tire, taking care that the tire goes straight up
without catching on any other part , to prevent it from flying for-
ward during a collisio n or sudden braking.
Stow the tools and jack securely.
■After completing the tire change
The tire pressure warning system must be reset. (P. 390)

5
When trouble arises
455
5-2. Steps to take in an emergency
CAUTION
■Replacing a flat tire
●Never use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a seri-
ous accident. Remove any oil or grease on the wheel bolts or wheel
nuts.
●Have the wheel nuts tightened with a torque wrench to 83 ft·lbf (110
N·m, 11.5 kgf·m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheels may fall off, which could lead to an accident causing death
or serious injury.
●Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the ve
hicle is moving.
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■When stowing the flat tire
Ensure that there is no object cau ght between the tire and the vehicle
underbody.
■When replacing the tires
●When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor-
rectly.
●Replace the grommets for the tire pressure warning valves and trans-
mitters as well.
■To avoid damaging the tire pressure warning valves and transmit-
ters
Do not use liquid sealants on flat tires.

5
When trouble arises
467
5-2. Steps to take in an emergency

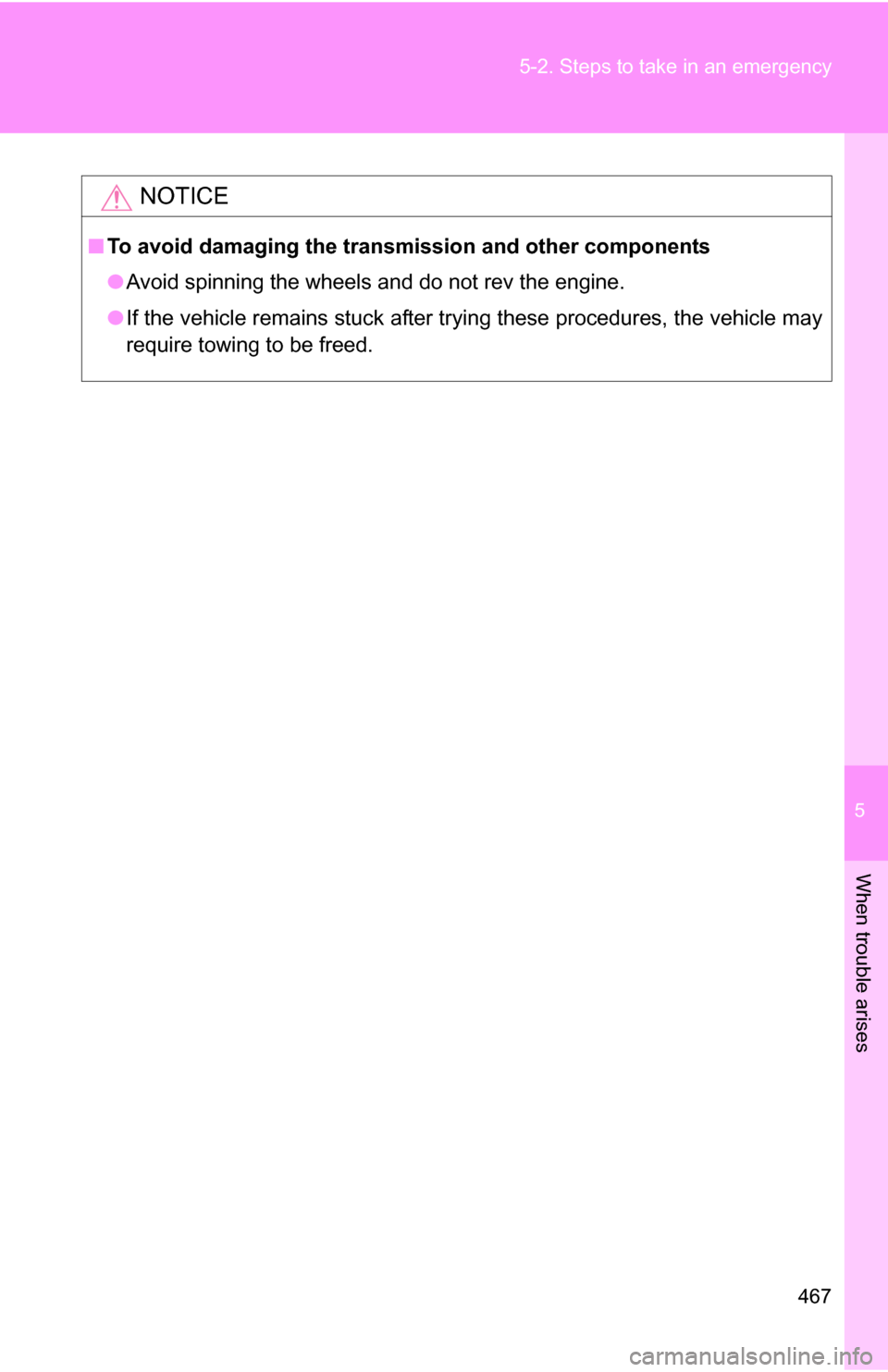

NOTICE
■
To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

513
Alphabetical index
If you have a flat tire ............. 445
Inflation pressure .................. 479
Information ........................... 484
Replacing ..................... 389, 445
Rotating tires ........................ 389
Size ...................................... 479
Spare tire .............................. 445
Tire pressure warning
system........................ 389, 441
Warning light ........................ 439
Tissue pocket .......................... 313
Tools......................................... 445
Total load capacity .................. 211
Towing
Dinghy towing ....................... 228
Emergency towing ................ 427
Trailer towing ........................ 216
Traction control system ......... 188
TRAC ........................................ 188
Trash holder ............................ 314
Trip meter................................. 148
Turn signal lights Replacing light bulbs .... 419, 420
Switch ................................... 145
Wattage ................................ 480
Valet key..................................... 28
Vanity lights Vanity lights .......................... 324
Wattage ................................ 480
Vanity mirrors .......................... 324
Vehicle identification
number................................... 471
Vehicle stability control .......... 188
VSC ........................................... 188 Warning buzzers
Brake system ........................436
Key reminder .........................441
Seat belt reminder .................439
Warning lights
ABS .......................................437
Airbag system .......................437
Anti-lock brake system ..........437
Automatic transmission fluidtemperature ........................437
Brake system ........................436
Charging system .... ...............437
Driver’s seat belt ...................439
Engine oil replacement..........439
Front passenger occupant classification system ........... 437
Front passenger’s seat belt ...439
Low engine oil pressure ........437
Low fuel level ........................439
Low washer fluid ...................439
Malfunction indicator lamp ....437
Open door .............................439
SRS .......................................437
Tire pressure .........................439
VSC OFF...............................437
Washer
Checking ...............................387
Preparing and checking before winter .......................213
Switch............................163, 165
Washing and waxing ...............356
Weight Cargo capacity ......................203
Load limits .............................211
Weight ...................................470
Wheels ......................................398
Window glasses ..................76, 79
Window lock switch ...................77
Windows Power back window ................79
Power windows .......................76
Rear window defogger ..........240
Washer ..........................163, 165
