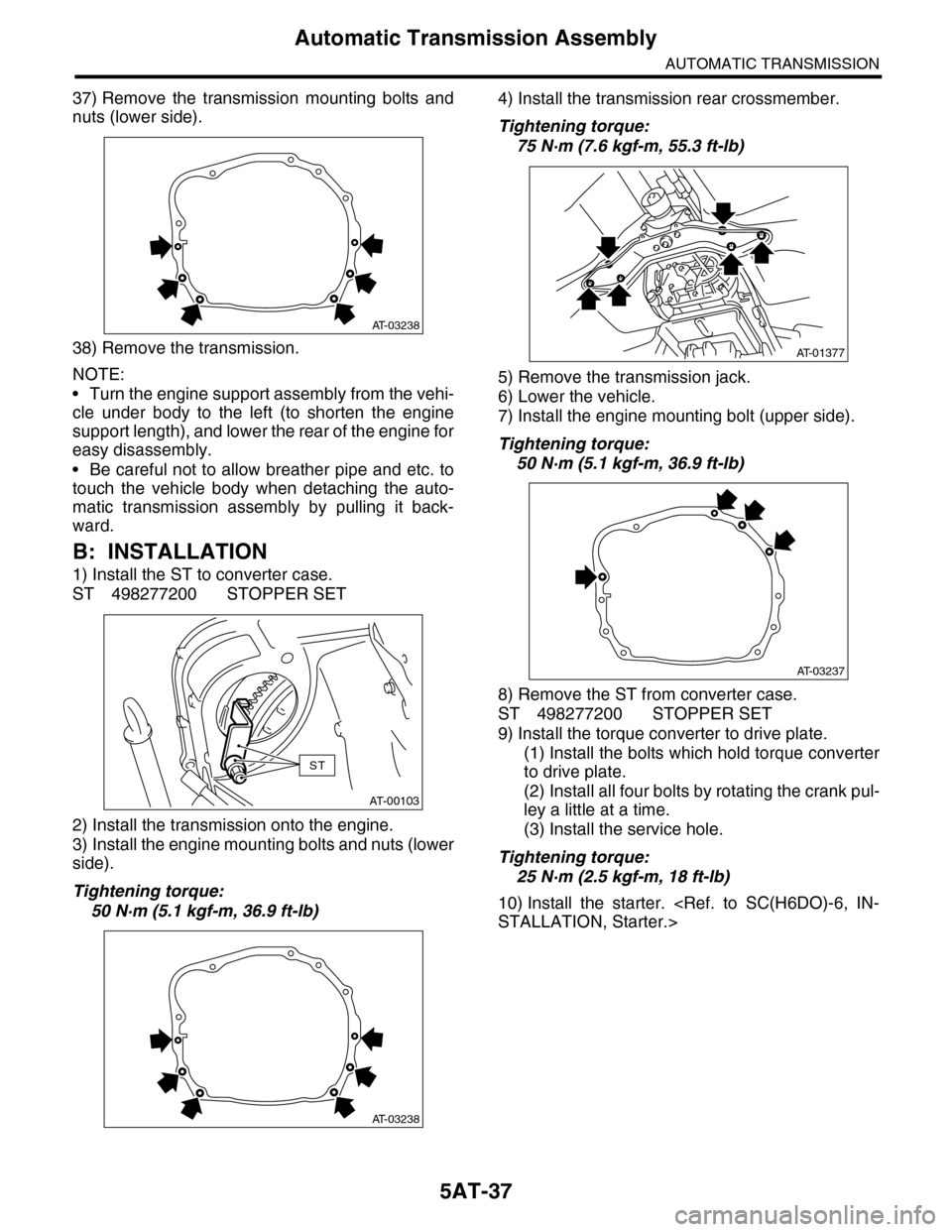

37) Remove the transmission mounting bolts and
nuts (lower side).
38) Remove the transmission.
NOTE:
•Turn the engine support assembly from the vehi-
cle under body to the left (to shorten the engine
support length), and lower the rear of the engine for
easy disassembly.
•Be careful not to allow breather pipe and etc. to
touch the vehicle body when detaching the auto-
matic transmission assembly by pulling it back-
ward.
B: INSTALLATION
1) Install the ST to converter case.
ST 498277200 STOPPER SET
2) Install the transmission onto the engine.
3) Install the engine mounting bolts and nuts (lower
side).
Tightening torque:
50 N·m (5.1 kgf-m, 36.9 ft-lb)
4) Install the transmission rear crossmember.
Tightening torque:
75 N·m (7.6 kgf-m, 55.3 ft-lb)
5) Remove the transmission jack.
6) Lower the vehicle.
7) Install the engine mounting bolt (upper side).
Tightening torque:
50 N·m (5.1 kgf-m, 36.9 ft-lb)
8) Remove the ST from converter case.
ST 498277200 STOPPER SET
9) Install the torque converter to drive plate.
(1) Install the bolts which hold torque converter
to drive plate.
(2) Install all four bolts by rotating the crank pul-
ley a little at a time.
(3) Install the service hole.
Tightening torque:
25 N·m (2.5 kgf-m, 18 ft-lb)
10) Install the starter. STALLATION, Starter.>
AT-03238
AT-00103
ST
AT-03238
AT-01377
AT-03237

CS-7
AT Shift Lock Control System
CONTROL SYSTEMS
B: ELECTRICAL SPECIFICATION
ItemTo c o n n e c t o r
No.Te r m i n a l N o .Input/Output signal
Measured value and measuring condition
Battery power supplyB2811
9 — 16 V2
B280 7
Ignition power supply i84 1 10 — 15 V when ignition switch is at ON or START.
ACC power supply i84 24 10 — 15 V when ignition switch is at ACC.
TCM (“P” range)B280 20Pulse signalB280 30
Stop light switch B281 239 — 16 V when stop light switch is ON.
0 V when stop light switch is OFF.
“P” range switch B281 130 V when select lever is in “P” range.
9 — 16 V when select lever is in other positions than “P” range.
Shift lock solenoid signal B280 68.5 — 16 V when shift lock is released.
0 V when shift lock is operating.
Key war ning switch signal B281 79 — 16 V when key is inserted.
0 V when key is removed.
Key lock solenoid signal B280 5
7.5 — 16 V when ignition switch is turned ON, with select lever
in “P” range and brake switch ON.
0 V at other conditions than above.
Ground
B280 22
—i84 21
B2818
9
CS-00273
71928
61827
51741626152514241312231122
3102921
1820
B281side
72030
619291828
51741627152614132512241123
3102922
1821
B280side
82335
722342162033
51932183117301615291428
41327
312261121025
1924
i84side

WI-32
Engine Electrical System
WIRING SYSTEM
5. Engine Electrical System
A: WIRING DIAGRAM
WI-08039
678
1
2
3
4
5
C20
C32
C31
B5B19
B33
A33
C10
ECMC1B25C8A27
C21C23A7
D29
B2
BATTERY
M/B FUSE NO. 11SBF-7
SBF
SBF-5
SBF-8
SBF-6
STARTERRELAY
IG 2RELAY
IGNITION SWITCHOFF+B
ACC
IG2
IG1
ACCONST
ST
STARTER MOTOR
MAINRELAY 1
ELECTRONICTHROTTLECONTROLRELAY
FUEL PUMP RELAY
FUEL PUMP
FUEL PUMPCONTROL UNIT
MAINRELAY 2RELAYHOLDER
A21
A11A22
B34
B35
B7B6
B11B10
B9B8
C2
B26AIR FLOW SENSOR
CAMSHAFT POSITION SENSOR LH
CPC SOLENOID
B1
C3C5B15
B4C4
POWER STEERING OIL PRESSURE SWITCH
C12
MAIN FUSE BOX (M/B)GENERATOR
B18
TCM
D8FUEL INJECTOR NO.1D9D10D11
PWM CONTROLLORAUTO A/C CONTROL MODULE
A/C RELAY
BODY INTEGRATED UNIT (CAN COMMUNICATION)
FUEL TEMPERATURE SENSOR
VACUUM PUMP RELAY
BODY INTEGRATED UNIT (IMMOBILIZER)
C18C29C24C33
C27
B24B12
B20B28
C26C34
C35B17
CRUISE CONTROL SWITCH
FUEL INJECTOR NO.2FUEL INJECTOR NO.3
C17DRAIN VALVE
FUEL INJECTOR NO.4D12D13FUEL INJECTOR NO.5FUEL INJECTOR NO.6
FRONT OXYGEN (A/F) SENSOR RH
REAR OXYGEN SENSOR RH
REAR OXYGEN SENSOR LH
FRONT OXYGEN (A/F) SENSOR LH
A/C PRESSURE SWITCH
M/V PRESSURE SENSOR
RADIATOR FAN RELAY 1
STOP LIGHT & BRAKE SWITCH(CRUISE CONTROL)
C9
FUEL TANK PRESSURE SENSORB32
M/B FUSE NO. 13F/B FUSE NO. 7F/B FUSE NO. 4F/B FUSE NO. 5F/B FUSE NO. 12F/B FUSE NO. 21
CAMSHAFT POSITION SENSOR RH
9

WI-154
Bulkhead Wiring Harness (In Compartment)
WIRING SYSTEM
57.Bulkhead Wiring Harness (In Compartment)
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
B31 12 Yellow C-1 AB1 Airbag wiring harness
B32 8 C-2Tu r n s i g n a l & h a z a r d
unit
B36 28 Blue B-2 i1Instrument panel wir-
ing harnessB38 20 B-5 i3
B41 2 C-2Powe r w in d ow ci r cu i t
breaker
B47 6 Brown B-5 Main relay
B52 24 B-2 Fuse & relay box (F/B)
B54 24 C-2TCMB55 24 Gray C-3
B65 4 Black B-3Stop light and brake
switch
B68 8 B-3 Roll connector
B69 4 B-3 Parking light switch
B70 18 B-3
Combination switch
(Wiper & washer
switch)
B71 17 B-3
Combination switch
(Front fog light switch)
(Lighting switch)
B72 6 B-3 Ignition switch
B77 7 Green B-4 Mode actuator
B86 5 B-4 Blower fan controller
B87 2 C-5 Blower fan motor
B88 2 B-4Evaporation thermo
switch
B90 12 B-4 R50 Roof cord
B91 7 Green B-4FRESH/RECIRC actu-
ator
B96 8 Black B-2Daytime running light
control module
B97 20 C-1 R1Rear wiring harnessB98 24 Black B-5 R2
B116 12 C-4 AT select lever
B122 8 D-5 Joint connector
B134 34 C-4
ECMB135 35 C-4
B136 35 C-4
B137 31 D-5
B152 10 Gray B-2
Fuse & relay box (F/B)B158 8 B-2
B159 9 Brown B-2
B177 2 B-4 Wiper deicer
B225 40 Black C-2
Seat heater relay
Starter relay
Pow er w i n dow r el ay
Fuse (Relay block)
Blower fan relay
Fr o nt fog li g ht r el ay
Mirror heater relay
Rear fog light relay
Wiper deicer relay
B228 15 B-2 OP connector
B231 4 B-3 Steering angle sensor
B235 7 Green B-4Passenger’s side air
mix actuator
B242 10 B-2Daytime running light
control module
B280 30 C-3Body integrated unitB281 28 C-3
B282 16 C-5Auto A/C control mod-
ule
B283 26 C-5
Auto A/C control mod-
ule (Rear defogger
switch)
B315 6 Black B-4Accelerator pedal
position sensor
B327 6 Brown B-5Rear oxygen sensor
relay
B350 4 B-3Key war ning switch &
key lock solenoid
B351 2 Black B-4 Antenna
B352 8 C-3CAN joint connectorB355 8 B-3
B356 4 Black C-3 Back-up light relay
B357 4 Black C-3 P-VIGN relay
B359 5 Black D-4 Yaw rate sensor
B362 8 Black B-5 Relay holder
B370 2 Black B-4 Diode
B373 2 B-1 Fuse box
B390 7 Green B-4Driver’s side air mix
actuator
B402 16 Black B-2 Data link connector
B403 25 B-2 i2Instrument panel wir-
ing harness
B404 1 Black B-2 Parking brake switch
B405 4 Brown B-2Diode (Daytime run-
ning light & parking)
B413 2 B-3In vehicle tempera-
ture sensor
B414 2 B-4 Key illumination
Connector Connecting to
No. Pole Color Area No. Description
