2009 SUBARU TRIBECA engine

SB-9
Seat Belt Warning System
SEAT BELT SYSTEM
9CHECK BODY INTEGRATED MODULE.
Measure the voltage between connector (i84)
and chassis ground.
Connector & terminal
(i84) No. 4 (+) — Chassis ground (–):
Is the voltage more than 10 V? Go to step 10.Check the body
integrated unit.
10 CHECK COMBINATION METER.
Measure the voltage between connector
(R167) and chassis ground.
Connector & terminal
(R167) No. 20 (+) — Chassis ground (–):
Is the voltage more than 10 V?
Also, does the seat belt warn-
ing light come on?
Go to step 11.Replace the body
integrated unit.
11 CHECK COMBINATION METER.
Measure the voltage between connector (i10)
and chassis ground.
Connector & terminal
(i10) No. 9 (+) — Chassis ground (–):
Is the voltage more than 10 V?
Also, does the seat belt warn-
ing light come on?
Go to step 12.Check the combi-
nation meter.
12 CHECK SEAT BELT WARNING SYSTEM.
1) Disconnect the driver’s seat belt.
2) Turn the ignition switch to ON.
Does the seat belt warning
buzzer beep and warning light
blink for 6 seconds after turn-
ing the ignition switch to ON?
Go to step 13.Replace the body
integrated unit.
13 CHECK SEAT BELT WARNING SYSTEM.
Wait for 6 seconds from the step 12 condition
(seat belt warning buzzer beeps and warning
light blinks).
Does the seat belt warning
light repeat illuminating/blink-
ing every 15-seconds, and the
warning buzzer beep?
Go to step 14.Replace the body
integrated unit.
14 CHECK SEAT BELT WARNING SYSTEM.
Connect the driver’s seat belt buckle in the
step 13 condition (seat belt warning light
repeat illuminating/blinking every 15-seconds,
and warning buzzer beeps).
Does the seat belt warning
light go off and the buzzer
stop?
Go to step 15.Replace the body
integrated unit.
15 CHECK SEAT BELT WARNING SYSTEM.
Disconnect the driver’s seat belt.
Does the seat belt warning
light repeat illuminating/ blink-
ing every 15-seconds?
Go to step 16.Replace the body
integrated unit.
16 CHECK SEAT BELT WARNING SYSTEM.
1) Lift-up the vehicle.
NOTE:
Raise all wheels off floor.
2) Start the engine, and set the vehicle speed
to more than 15 km/h (9 MPH).
NOTE:
When there is a speed difference between front
and rear wheels, the ABS or VDC warning may
light, but this does not indicate a malfunction.
When diagnosis is complete, perform clear
memory for VDC. ERATION, Subaru Select Monitor.>
Does the seat belt warning
light repeat illuminating/ blink-
ing every 15-seconds?
Go to step 17.Replace the body
integrated unit.
17 CHECK SEAT BELT WARNING SYSTEM.
Connect the driver’s seat belt in the step 16
condition.
Does the seat belt warning
light go off and the buzzer
stop?
Go to step 18.Replace the body
integrated unit.
18 Seat Belt Warning System
Disconnect the driver’s seat belt in the step 17
condition.
Does the seat belt warning
light repeat illuminating/ blink-
ing every 15-seconds?
Go to step 19.Replace the body
integrated unit.
19 CHECK SEAT BELT WARNING SYSTEM.
Connect the driver’s seat belt.
Does the seat belt warning
light go off and the buzzer
stop?
A temporary con-
tact failure.
Replace the body
integrated unit.
Step Check Yes No

SL-44
Front Hood Lock Assembly
SECURITY AND LOCKS
15.Front Hood Lock Assembly
A: REMOVAL
1) Open the front hood.
2) Remove the engine front cover.
3) Remove the bolts, and then detach the front
hood lock assembly.
4) Remove the cable from lock assembly.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
•Apply grease to the movable part.
•Make sure the cable works correctly after instal-
lation.
C: ADJUSTMENT
Loosen the bolt, and adjust the lock assembly while
moving it up and down.
D: INSPECTION
1) Check the striker for deformation or abnormal
wear.
2) Check the safety lever for improper movement.
3) Check other levers and springs for rust formation
or unsmooth movement.
SL-00450
SL-00451

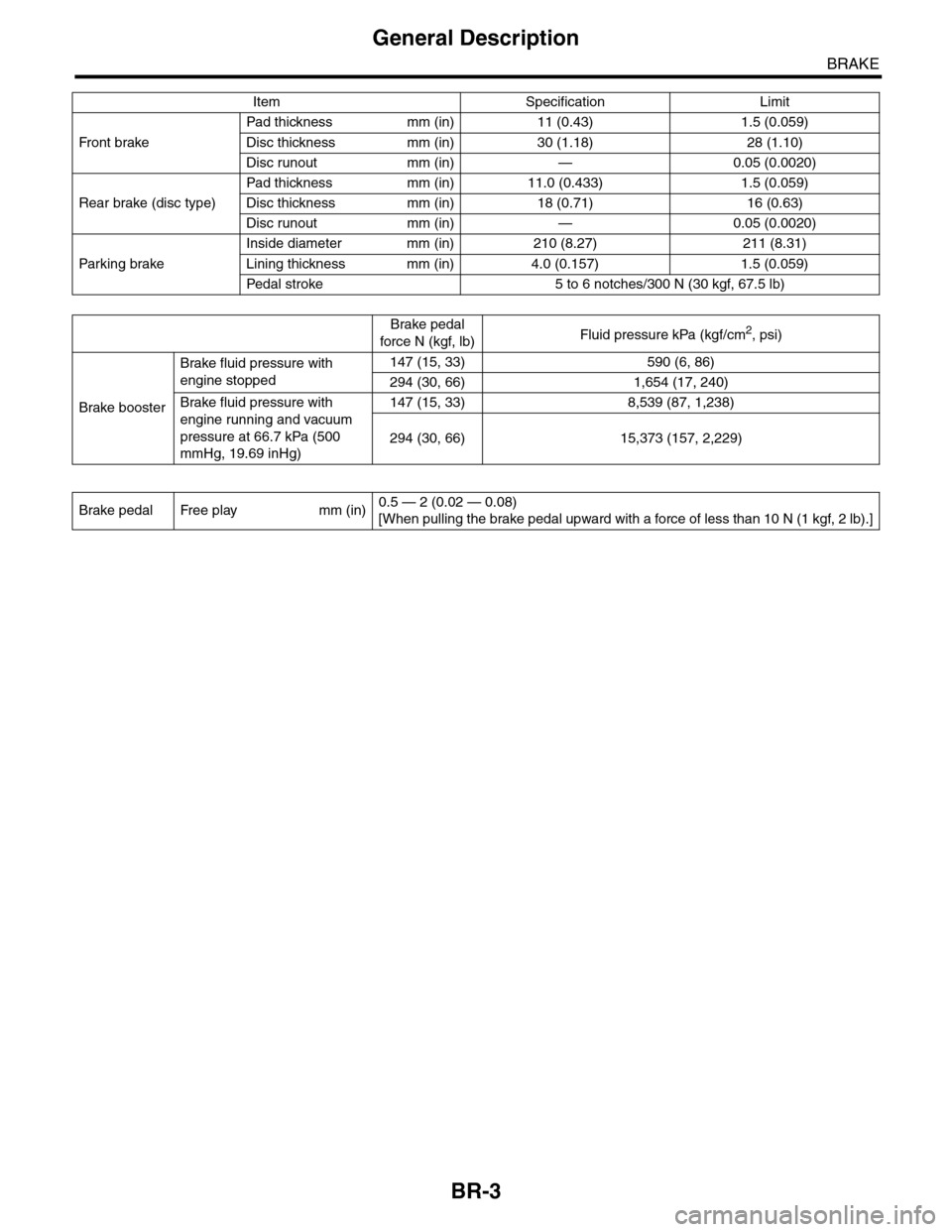

BR-3
General Description
BRAKE
Item Specification Limit
Fr o nt b rake
Pad thickness mm (in) 11 (0.43) 1.5 (0.059)
Disc thickness mm (in) 30 (1.18) 28 (1.10)
Disc runout mm (in) — 0.05 (0.0020)
Rear brake (disc type)
Pad thickness mm (in) 11.0 (0.433) 1.5 (0.059)
Disc thickness mm (in) 18 (0.71) 16 (0.63)
Disc runout mm (in) — 0.05 (0.0020)
Par king brake
Inside diameter mm (in) 210 (8.27) 211 (8.31)
Lining thickness mm (in) 4.0 (0.157) 1.5 (0.059)
Pedal stroke 5 to 6 notches/300 N (30 kgf, 67.5 lb)
Brake pedal
force N (kgf, lb)Fluid pressure kPa (kgf/cm2, psi)
Brake booster
Brake fluid pressure with
engine stopped
147 (15, 33) 590 (6, 86)
294 (30, 66) 1,654 (17, 240)
Brake fluid pressure with
engine running and vacuum
pressure at 66.7 kPa (500
mmHg, 19.69 inHg)
147 (15, 33) 8,539 (87, 1,238)
294 (30, 66) 15,373 (157, 2,229)
Brake pedal Free play mm (in)0.5 — 2 (0.02 — 0.08)
[When pulling the brake pedal upward with a force of less than 10 N (1 kgf, 2 lb).]

BR-10
General Description
BRAKE
8. BRAKE VACUUM PUMP
(1) Vacuum pump (6) Vacuum hose (Vacuum sensor)Tightening torque: N·m (kgf-m, ft-lb)
(2) Vacuum pump bracket (7) Vacuum sensorT1: 5 (0.5, 3.7)
(3) Vacuum hose (Vacuum pump) (8) Vacuum hose (Brake booster)T2: 7.5 (0.76, 5.5)
(4) Vacuum pipe (9) Hose clampT3: 25 (2.5, 18.4)
(5) Vacuum hose (Engine) (10) Clip
BR-00508
(4)
(9)(5)
(9)
(7)
(6)
(9)(8)
(9)
(9)
(9)
(3)
(1)
(10)
(2)
T2T2
T3
T3
T3
T1

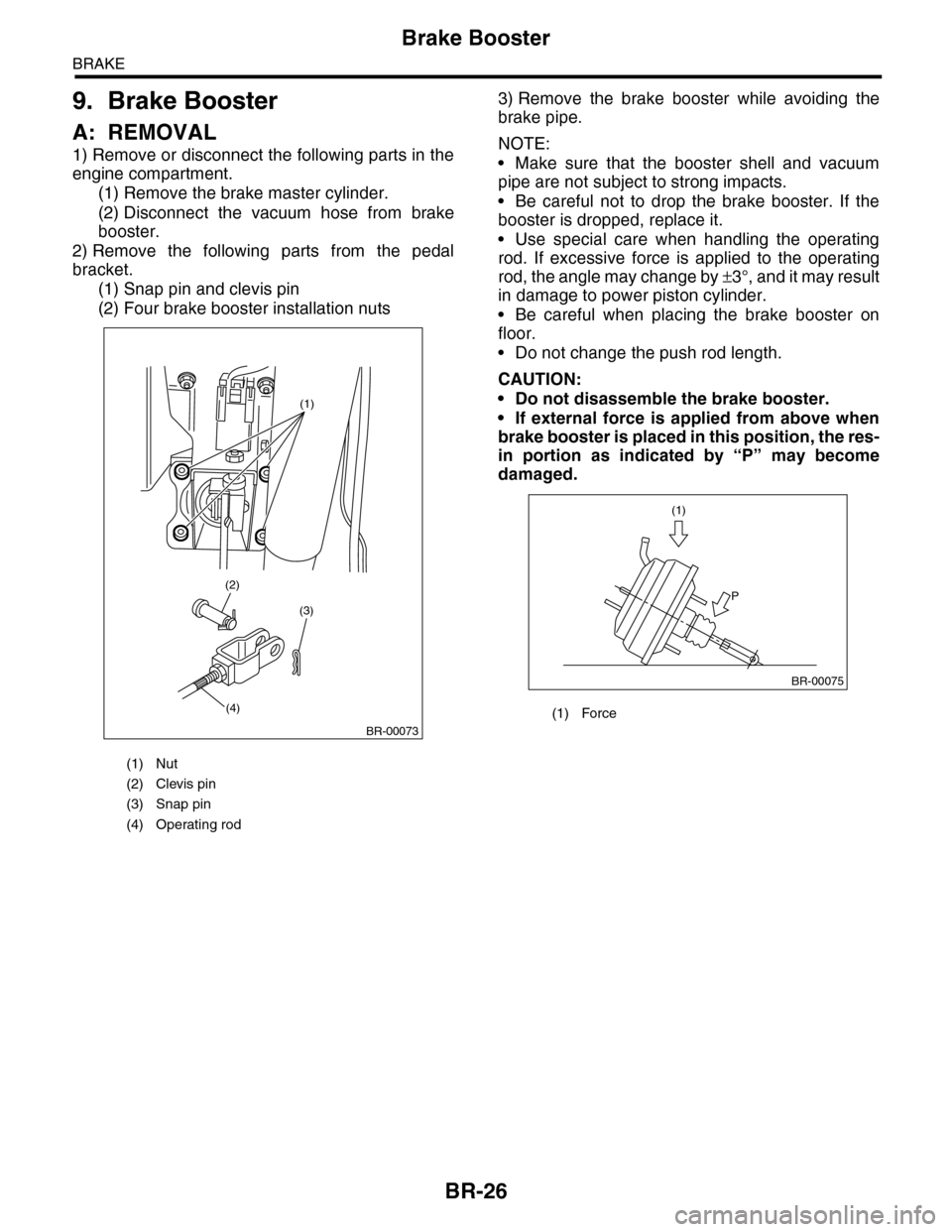

BR-26
Brake Booster
BRAKE
9. Brake Booster
A: REMOVAL
1) Remove or disconnect the following parts in the
engine compartment.
(1) Remove the brake master cylinder.
(2) Disconnect the vacuum hose from brake
booster.
2) Remove the following parts from the pedal
bracket.
(1) Snap pin and clevis pin
(2) Four brake booster installation nuts
3) Remove the brake booster while avoiding the
brake pipe.
NOTE:
•Make sure that the booster shell and vacuum
pipe are not subject to strong impacts.
•Be careful not to drop the brake booster. If the
booster is dropped, replace it.
•Use special care when handling the operating
rod. If excessive force is applied to the operating
rod, the angle may change by ±3°, and it may result
in damage to power piston cylinder.
•Be careful when placing the brake booster on
floor.
•Do not change the push rod length.
CAUTION:
•Do not disassemble the brake booster.
•If external force is applied from above when
brake booster is placed in this position, the res-
in portion as indicated by “P” may become
damaged.
(1) Nut
(2) Clevis pin
(3) Snap pin
(4) Operating rod
(1)
(3)
(4)
(2)
BR-00073
(1) Force
(1)
P
BR-00075

BR-28
Brake Booster
BRAKE
Air tightness check
Start the engine, and idle it for 1 to 2 minutes, then
turn it OFF. Depress the brake pedal several times
applying the normal pedal force. The pedal stroke
should be the longest at the 1st depression, and it
should become shorter at each successive depres-
sion. If no change occurs in the pedal height when
pressed, the brake booster is faulty.
NOTE:
•In case of defective operation, inspect the condi-
tion of the check valve and vacuum hose as well.
•Replace them if faulty, and perform the test
again.
•If the defective condition is not improved, check
accurately using a gauge.
Operation check
1) While the engine is OFF, depress the brake ped-
al several times applying the same pedal force, to
check for a change in pedal height.
2) With the brake pedal pressed, start the engine.
3) As the engine starts, the brake pedal should
move slowly toward the floor. If the pedal height
does not change, the brake booster is faulty.
NOTE:
If faulty, perform an accurate check with a gauge.
Loaded air tightness check
Depress the brake pedal while the engine is run-
ning, and turn the engine OFF while the pedal is de-
pressed. Keep the pedal depressed for 30
seconds. If the pedal height does not change, the
function of brake booster is normal. If the pedal
height increases, it is faulty.
NOTE:
If faulty, perform an accurate check with a gauge.
2. OPERATION CHECK (WITH GAUGE)
CAUTION:
When checking operation, be sure to apply the
parking brake securely.
Check with gauge
Connect the gauge as shown in the figure. After
bleeding air from the pressure gauge, perform the
checks.
(1) Normal
(2) Not OK
(3) 1st
(4) 2nd
(5) 3rd
(1) When engine is stopped
(2) When engine is started
(1)
(3)(4)
(5)
(2)
BR-00080
(1) (2)
BR-00081
(1) Pressure gauge
(2) Vacuum gauge
(3) Adapter hose
(4) Vacuum hose
(5) Pedal force gauge
(1) (2)
(3) (4) (5)
BR-00082

BR-29
Brake Booster
BRAKE
Air tightness check
1) Start the engine and keep it running until vacu-
um pressure indicates point A of the vacuum gage
= 66. 7 kPa (500 mmHg, 19. 69 inHg). Do not de-
press the brake pedal at this time.
2) Stop the engine and check the gauge. If the vac-
uum pressure drop within 15 seconds after stop-
ping the engine is less than 3. 3 kPa (25 mmHg, 0.
98 inHg), the function of brake booster is normal.
If faulty, the cause may be one of the following.
•Check valve malfunction
•Leak from vacuum hose
•Leak from shell joint section or stud bolt welded
section
•Damaged diaphragm
•Leak from valve body seal and bearing section
•Leak from plate and seal assembly section
•Leak from poppet valve assembly section
Loaded air tightness check
1) Start the engine and depress the brake pedal
with a pedal force of 196 N (20 kgf, 44 lb). Keep the
engine running and keep the pedal pressed until a
vacuum of point B = 66. 7 kPa (500 mmHg, 19. 69
inHg) is indicated on the vacuum gauge.
2) Stop the engine and check the vacuum gauge.
If the vacuum pressure drop within 15 seconds af-
ter stopping the engine is less than 3.3 kPa (25
mmHg, 0.98 inHg), the function of brake booster is
normal.
If defective, refer to “AIR TIGHTNESS CHECK”.

3) If the brake booster is faulty, replace the it with a
new part.
Lack of boost action check
Turn the engine OFF, and set the value of the vac-
uum gauge to “0”. Then, check the fluid pressure
when the brake pedal is depressed. The pressure
must be greater than the specification listed.
Boosting action check
Set the vacuum gauge reading to 66. 7 kPa (500
mmHg, 19. 69 inHg) with the engine running. Then,
check the fluid pressure when the brake pedal is
depressed. The pressure must be greater than the
specification listed.
(1) Pressure gauge
(2) Vacuum gauge
(1) Pressure gauge
(2) Vacuum gauge
(3) Pedal force gauge
(4) Depressed
(1) (2)A
BR-00083
B(1) (2)
(3)
(4)
BR-00084
Brake pedal operation force
N (kgf, lb)
147
(15, 33)
294
(30, 66)
Fluid pressure
kPa (kgf/cm2, psi)
590
(6, 86)
1,654
(17, 240)
Brake pedal operation force
N (kgf, lb)
147
(15, 33)
294
(30, 66)
Fluid pressure
kPa (kgf/cm2, psi)
38,539
(87, 1,238)
15,373
(157, 2,229)

BR-32
Air Bleeding
BRAKE
10) Check the pedal stroke.
Run the engine at idle after warming up the engine,
and depress the brake pedal with a force of 500 N
(51 kgf, 112 lb). Measure the distance between the
brake pedal and steering wheel. Release the pedal,
and measure the distance between pedal and
steering wheel again.
Specification of pedal stroke:
When depressing the pedal with a force of
500 N (51 kgf, 112 lb).
Less than 115 mm (4.53 in)
11) If the distance is more than specification, there
is a possibility of air being caught in the brake line.
Bleed the brake line of all air until the pedal stroke
meets the specification.
12) Operate the hydraulic control unit in the se-
quence control mode. quence Control.>
13) Check the pedal stroke again.
14) If the distance is more than specification, there
is a possibility of air being caught in the hydraulic
unit. Repeat above steps 2) to 9) until the pedal
stroke meets the specification.
15) Fill brake fluid up to the “MAX” level of the res-
ervoir tank.
16) Test run the vehicle and ensure that the brakes
operate normally.
(1) Steering wheel
(2) Toe board
(1)
(2)
BR-00094
1
2
21
