2009 RENAULT TWINGO Mechanism And Accessories Workshop Manual

57A-8
INTERIOR EQUIPMENT
Centre front panel: Removal - Refitting
57A
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the centre front panel,
-the bolts (3) ,
-the clips (4) ,
-the upper section of the centre front panel.
II - FINAL OPERATION.
aConnect the various connectors (1) .
aRefit:
-the dashboard lower trim,
-the centre console (see 57A, Interior equipment,
Centre console: Removal - Refitting, page 57A-
12) ,
-the radio (see Radio: Removal - Refitting) (MR
411, 86A, Radio).

57A-9
INTERIOR EQUIPMENT
Glovebox: Removal - Refitting
57A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(MR 413, 88C, Airbags and pretensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (MR 411, 80A, Battery).
aRemove the dashboard (see 57A, Interior equip-
ment, Dashboard: Removal - Refitting, page 57A-
1) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the pins (1) .
aRemove the glovebox.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the glovebox, Equipment required
Diagnostic tool
IMPORTANT
To avoid any risk of triggering when working on or
near a pyrotechnic component (airbags or preten-
sioners), lock the airbag computer using the dia-
gnostic tool.
When this function is activated, all the trigger lines
are inhibited and the airbag warning light on the ins-
trument panel lights up contin uously (ignition on).
IMPORTANT
Never handle the pyrotechnic systems (pretensio-
ners or airbags) near to a source of heat or naked
flame - they may be triggered.
121311
121310

57A-10
INTERIOR EQUIPMENT
Glovebox: Removal - Refitting
57A
-the pins (1) .
II - FINAL OPERATION.
aRefit the dashboard (see 57A, Interior equipment,
Dashboard: Removal - Refitting, page 57A-1) .
aConnect the battery (see Battery: Removal - Refit-
ting) (MR 411, 80A, Battery).
aUnlock the airbag computer using the Diagnostic
tool (see Fault finding - Replacement of compo-
nents) (MR 413, 88C, Airbags and pretensioners).

57A-11
INTERIOR EQUIPMENT
Dashboard storage compartment: Removal - Refitting57A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the storage compartment from the dash-
board.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aClip the storage compartment onto the dashboard.
119502

57A-12
INTERIOR EQUIPMENT

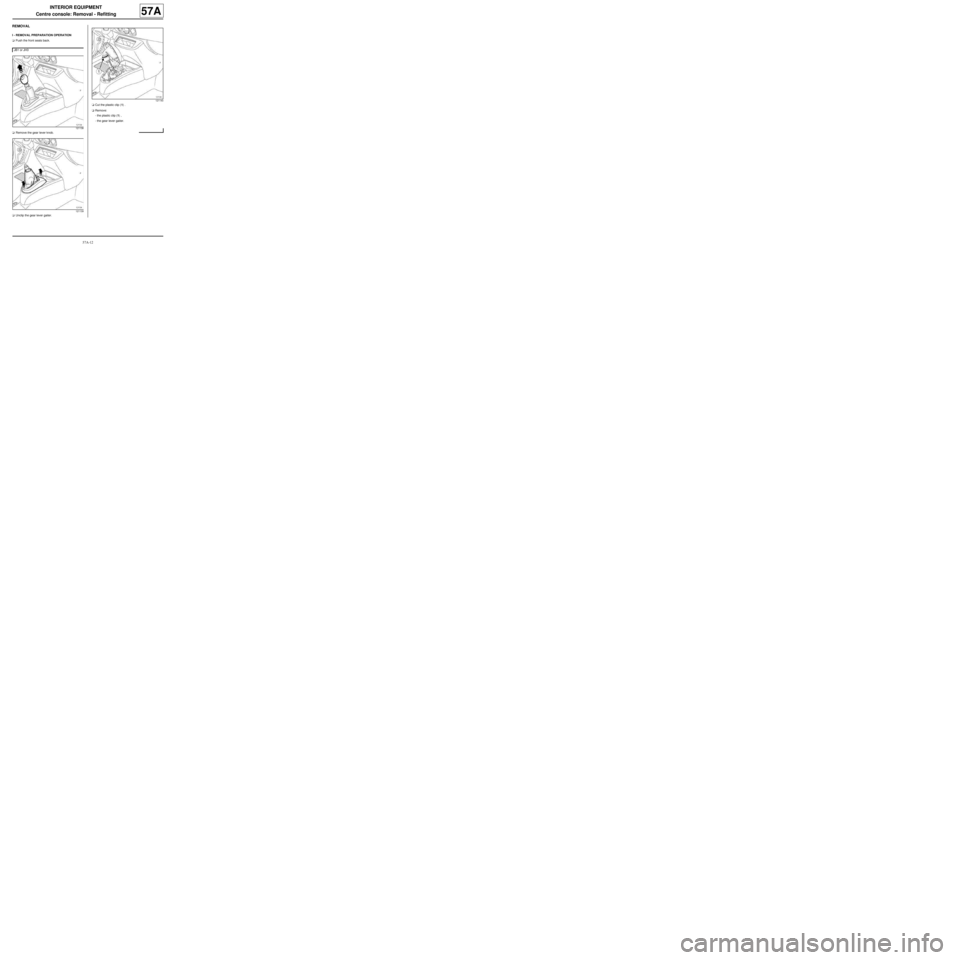

Centre console: Removal - Refitting
57A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPush the front seats back.
aRemove the gear lever knob.
aUnclip the gear lever gaiter.aCut the plastic clip (1) .
aRemove:
-the plastic clip (1) ,
-the gear lever gaiter. JB1 or JH3
121138
121139
121140

57A-13
INTERIOR EQUIPMENT
Centre console: Removal - Refitting
57A
aUnclip the gear lever trim piece (2) .
II - REMOVAL OPERATION FOR PART
CONCERNED
aRemove:
-the bolts (3) ,
-the centre console in the direction of the arrow (4) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the centre console,
-the bolts (3) .
II - FINAL OPERATION.
aPartially refit the gear lever gaiter.
aRefit a new plastic clip (1) .
aClip on:
-the gear lever gaiter,
-the gear lever knob.
aClip on the gear lever trim piece (2) .
aMove the seats back to their original position. JH1
122381
121160
JB1 or JH3
JH1

57A-14
INTERIOR EQUIPMENT
Interior rear-view mirror: Removal - Refitting
57A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
1 - 1st type
aRemove interior rear-view mirror (1) .
2 - 2nd type
aUnclip the upper cover (2) .aUnclip the lower casing (3) .
aDisconnect the connector (4) .
119299
120791
120792
120793

57A-15
INTERIOR EQUIPMENT
Interior rear-view mirror: Removal - Refitting
57A
aRemove interior rear-view mirror (5) .
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aRefit interior rear-view mirror.
2nd type
aConnect the connector (4) .
aClip on:
-the lower cover (3) ,
-the upper cover (2) .
120794
Note:
When removing the interior rear-view mirror, be
careful not to damage the rain sensor nearby.
