2009 MERCEDES-BENZ SLR Owner's Manual

57 Getting started
Parking and locking
Locking

Exit the vehicle and close all doors.
Opening a door causes the door win-
dows on that side of the vehicle to
open slightly. They will return to the up
position when the door is closed.

Press the lock button‹ on the
SmartKey (
page 38).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 98).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
Warning!
G
Only Mercedes-Benz SLR McLaren Roadster
722 S:
Because of the carbon fiber the footwell
could be slippery when wet. Be careful when
exiting the vehicle with wet shoe soles, you
could slip on it.!
The door windows will not open or close if
the battery is discharged or the door windows
are impeded by ice. In this case open or close
the door with increased caution. Do not attempt
to force the door opened or closed. Doing so
may damage the door seals or the side window.
i
If you hear a warning signal you have forgot-
ten to switch off the headlamps before opening
the driver’s door.
In addition the message$
Lights Are
Still On
appears in the multifunction display.
Switch off the headlamps.

Safety and SecurityOccupant safety
Panic alarm
Driving safety systems
Performance enhancement system
Anti-theft systems

60 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (
page 72)


Child restraints (
page 76)
Additional protection potential provided by


Supplemental R
estraint S
ystem (SRS)
with


Air bags (
page 62)


Air bag control unit
(with crash sensors)


Emergency T
ensioning D
evice
(ETD) for seat belts (
page 75)


Seat belt force limiter (
page 75)


Roll barsAir bag system components with


Passenger front air bag off indicator
lamp (
page 70)


Passenger seat with O
ccupant C
lassifi-
cation S
ystem (OCS) (
page 67)
Although independent systems, their
protective functions work in conjunction
with each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of malfunctions. The
1indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:


fails to go out after approximately
4 seconds after the engine was started


does not come on at all


comes on after the engine was started
or while driving
For more information, see the “Practical
hints” section (
page 314).
i
For information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 76).

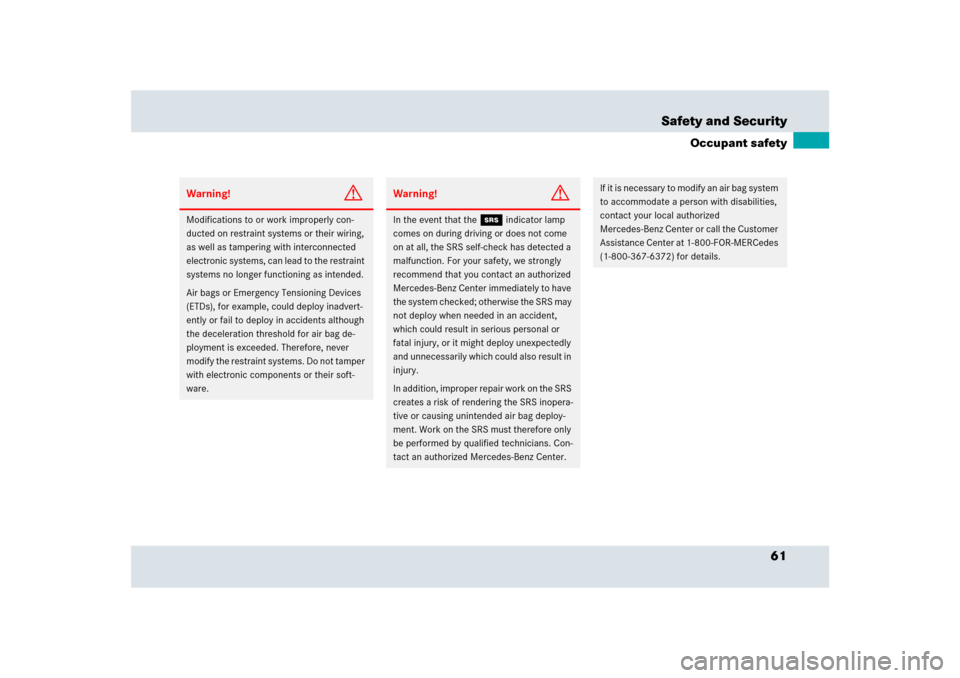

61 Safety and Security
Occupant safety
Warning!
G
Modifications to or work improperly con-
ducted on restraint systems or their wiring,
as well as tampering with interconnected
electronic systems, can lead to the restraint
systems no longer functioning as intended.
Air bags or Emergency Tensioning Devices
(ETDs), for example, could deploy inadvert-
ently or fail to deploy in accidents although
the deceleration threshold for air bag de-
ployment is exceeded. Therefore, never
modify the restraint systems. Do not tamper
with electronic components or their soft-
ware.
Warning!
G
In the event that the
1
indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious personal or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call the Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.

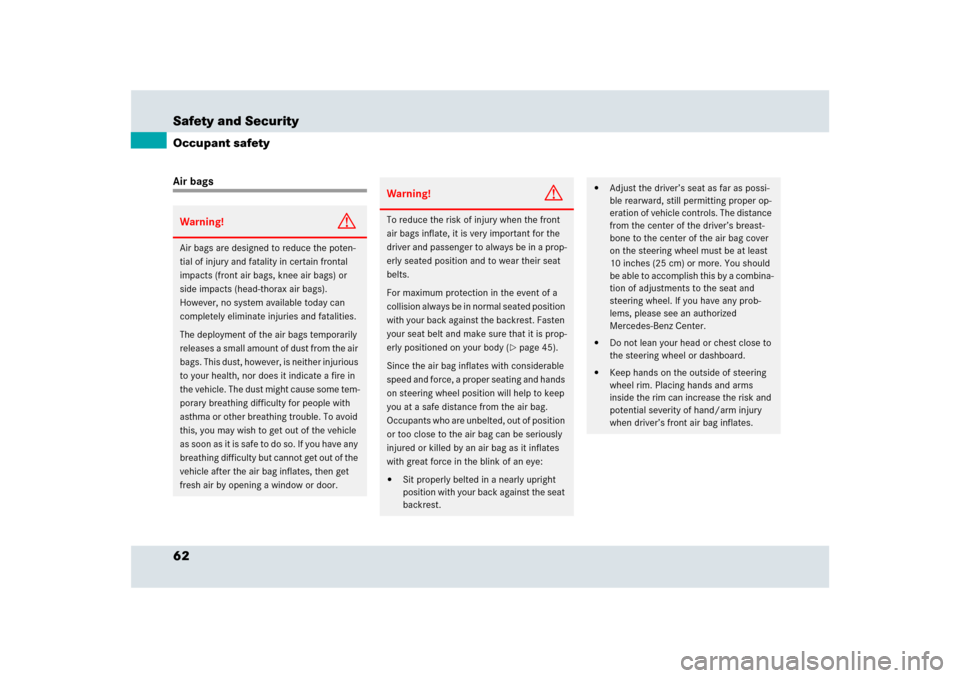

62 Safety and SecurityOccupant safetyAir bagsWarning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal
impacts (front air bags, knee air bags) or
side impacts (head-thorax air bags).
However, no system available today can
completely eliminate injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and passenger to always be in a prop-
erly seated position and to wear their seat
belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body (
page 45).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:


Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms
inside the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.

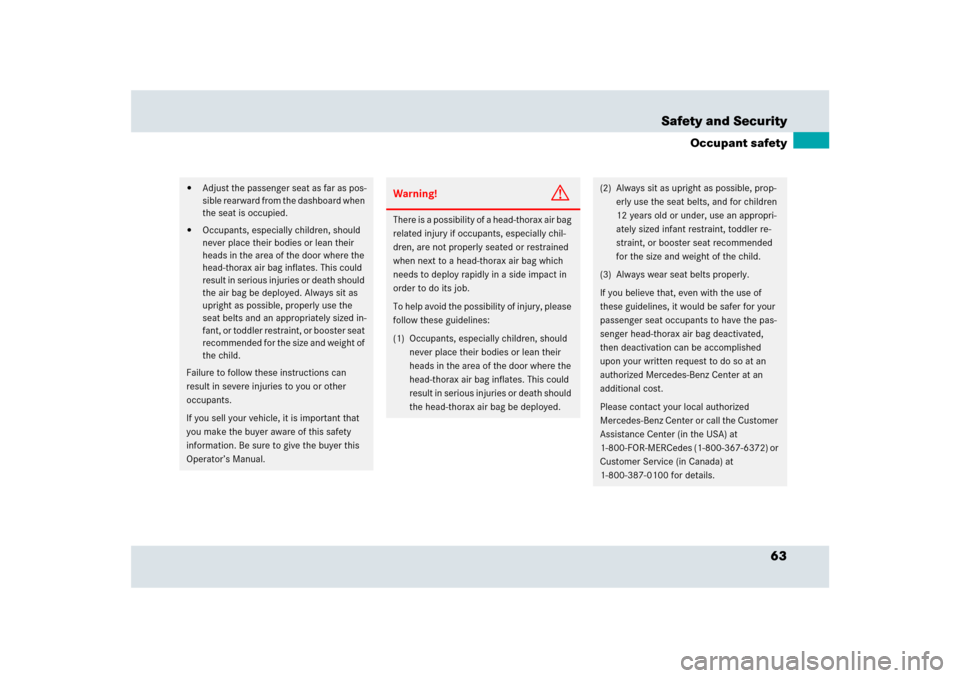

63 Safety and Security
Occupant safety


Adjust the passenger seat as far as pos-
sible rearward from the dashboard when
the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag inflates. This could
result in serious injuries or death should
the air bag be deployed. Always sit as
upright as possible, properly use the
seat belts and an appropriately sized in-
fant, or toddler restraint, or booster seat
recommended for the size and weight of
the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.
Warning!
G
There is a possibility of a head-thorax air bag
related injury if occupants, especially chil-
dren, are not properly seated or restrained
when next to a head-thorax air bag which
needs to deploy rapidly in a side impact in
order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag inflates. This could
result in serious injuries or death should
the head-thorax air bag be deployed.
(2) Always sit as upright as possible, prop-
erly use the seat belts, and for children
12 years old or under, use an appropri-
ately sized infant restraint, toddler re-
straint, or booster seat recommended
for the size and weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
passenger seat occupants to have the pas-
senger head-thorax air bag deactivated,
then deactivation can be accomplished
upon your written request to do so at an
authorized Mercedes-Benz Center at an
additional cost.
Please contact your local authorized
Mercedes-Benz Center or call the Customer
Assistance Center (in the USA) at
1-800-FOR-MERCedes (1-800-367-6372) or
Customer Service (in Canada) at
1-800-387-0100 for details.

64 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
Emergency Tensioning Device (ETD)
and air bag
i
Air bags are designed to activate only in cer-
tain frontal impacts (front air bags, knee air
bags) and side impacts (head-thorax air bags)
which exceed preset thresholds. Only during
these types of impacts will they provide their
supplemental protection.
The driver and passenger should always wear
their seat belts. Otherwise it is not possible for
the air bags to provide their supplemental
protection.
In cases of other types of impacts and impacts
below air bag deployment thresholds, air bags
will not deploy. The driver and passenger will
then be protected to the extent possible by a
properly fastened seat belt. A properly fastened
seat belt is also needed to provide the best pos-
sible protection in a rollover.
We caution you not to rely on the presence of the
air bags in order to avoid wearing your seat belt.
It is important to your safety and that of your pas-
senger that you replace deployed air bags and
repair any malfunctioning air bags to ensure that
the vehicle will continue to provide supplemental
crash protection for occupants.
Warning!
G


Damaged seat belts or seat belts that
were highly stressed in an accident
must be replaced and their anchoring
points must also be checked. Only use
seat belts installed or supplied by an
authorized Mercedes-Benz Center.


Air bags and ETDs are designed to func-
tion on a one-time-only basis. An air bag
or ETD that was activated must be
replaced.


Air bags and ETDs contain perchlorate
material, which may require special han-
dling and regard for the environment.
Check with your local government’s dis-
posal guidelines. California residents,
see www.dtsc.ca.gov/Hazardous-
Waste/Perchlorate/index.cfm.


Do not pass seat belts over sharp edges.
They could tear.


Do not make any modification that could
change the effectiveness of the seat
belts.


Do not bleach or dye seat belts as this
may severely weaken them. In a crash,
they may not be able to provide
adequate protection.


No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or
removing any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front air bag cov-
er, door frame trims, or door trim pan-
els, and installation of additional
electrical/electronic equipment on or
near SRS components and wiring. Keep
area between air bags and occupants
free from objects (e.g. packages,
purses, umbrellas, etc.).


Air bag system components will be hot
after an air bag has inflated. Do not
touch.
