2009 MERCEDES-BENZ SLR Owner's Manual

265 Operation
Tires and wheels
Step 2
Determine the combined weight of the
driver and passengers that will be
riding in your vehicle.
Step 3

Subtract the combined weight of the
driver and passengers from
XXX kilograms or XXX lbs.
Step 4

The resulting figure equals the avail-
able amount of cargo and luggage load
capacity. For example, if the “XXX”
amount equals 1400 lbs and there will
be five 150 lbs passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs
(1400 - 750 (5 x150) = 650 lbs).Step 5

Determine the combined weight of
luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in step 4.
Step 6 (if applicable)

If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this reduces
the available cargo and luggage load
capacity of your vehicle (
page 267).The following table shows examples on
how to calculate total and cargo load
capacities with varying seating configura-
tions and number and size of occupants.
The following examples use a load limit
of 1500 lbs. This is for illustration
purposes only. Make sure you are using
the actual load limit for your vehicle stated
on the vehicle’s Tire and Loading Informa-
tion placard (
page 264).

266 OperationTires and wheelsThe higher the weight of all occupants, the
less cargo and luggage load capacity is
available.
For more information, see “Trailer tongue
load” (
page 267).

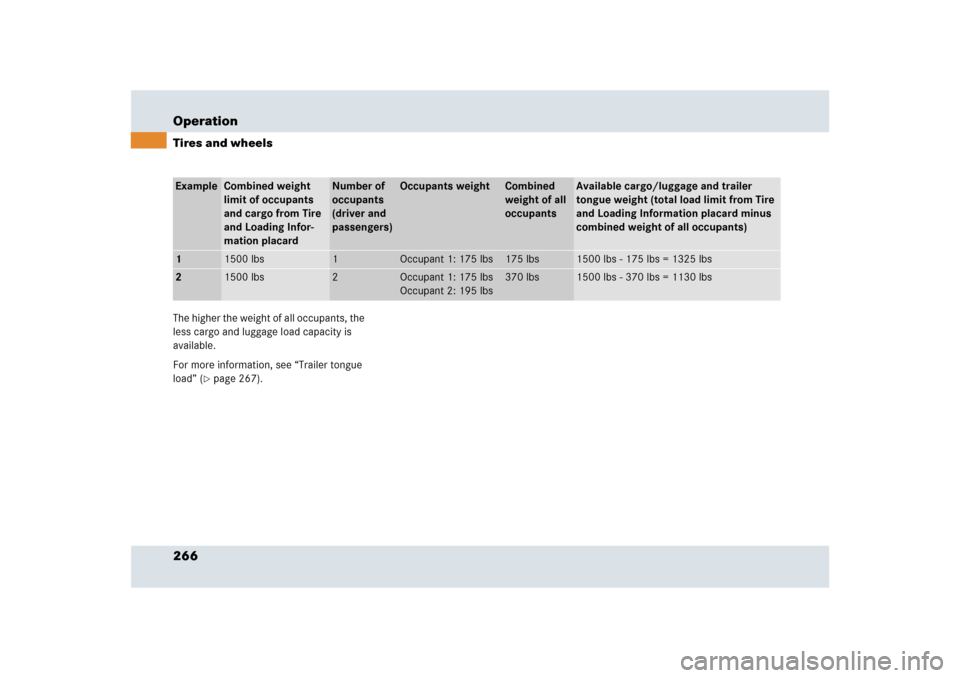

Example
Combined weight
limit of occupants
and cargo from Tire
and Loading Infor-
mation placard
Number of
occupants
(driver and
passengers)
Occupants weight
Combined
weight of all
occupants
Available cargo/luggage and trailer
tongue weight (total load limit from Tire
and Loading Information placard minus
combined weight of all occupants)
1
1500 lbs
1
Occupant 1: 175 lbs
175 lbs
1500 lbs - 175 lbs = 1325 lbs
2
1500 lbs
2
Occupant 1: 175 lbs
Occupant 2: 195 lbs
370 lbs
1500 lbs - 370 lbs = 1130 lbs

267 Operation
Tires and wheels
Certification label
Even after careful determination of the
combined weight of all occupants, cargo
and the trailer tongue load (if applicable)
(page 267) as to not exceed the permis-
sible load limit, you must make sure that
your vehicle never exceeds the Gross Vehi-
cle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for either the
front or rear axle. You can obtain the
GVWR and GAWR from the certification la-
bel. The certification label can be found on
the driver’s door A-pillar, see “Technical
data” (
page 382).Gross Vehicle Weight Rating (GVWR): The
total weight of the vehicle, all occupants,
all cargo, and the trailer tongue load
(
page 267) must never exceed the
GVWR.
Gross Axle Weight Rating (GAWR): The to-
tal allowable weight that can be carried by
a single axle (front or rear).
To assure that your vehicle does not ex-
ceed the maximum permissible weight
limits (GVWR and GAWR for front and rear
axle), have the loaded vehicle (including
driver, passengers and all cargo and, if ap-
plicable, trailer fully loaded) weighed on a
suitable commercial scale.Trailer tongue load
The tongue load of any trailer is an impor-
tant weight to measure because it affects
the load you can carry in your vehicle. If a
trailer is towed, the tongue load must be
added to the weight of all occupants riding
and any cargo you are carrying in the
vehicle. The tongue load typically is ten
percent of the trailer weight and
everything loaded in it.
Your Mercedes-Benz has been designed
primarily to carry passengers and their
cargo. Mercedes-Benz does not recom-
mend trailer towing with your vehicle.

268 OperationTires and wheelsRecommended tire inflation pressure
Your vehicle is equipped with the Tire and
Loading Information placard located on
the driver’s door B-pillar (
page 263).
The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least three hours or driven less than
one mile (1.6 km).
Follow recommended cold tire inflation
pressures listed on the Tire and Loading
Information placard on the driver’s door
B-pillar.
Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort.In addition to the Tire and Loading Informa-
tion placard on the driver’s door B-pillar,
also consult the tire inflation pressure la-
bel (if available) on the fuel filler flap for
any additional information pertaining to
special driving situations. For more infor-
mation, see “Important notes on tire infla-
tion pressure” (
page 269).

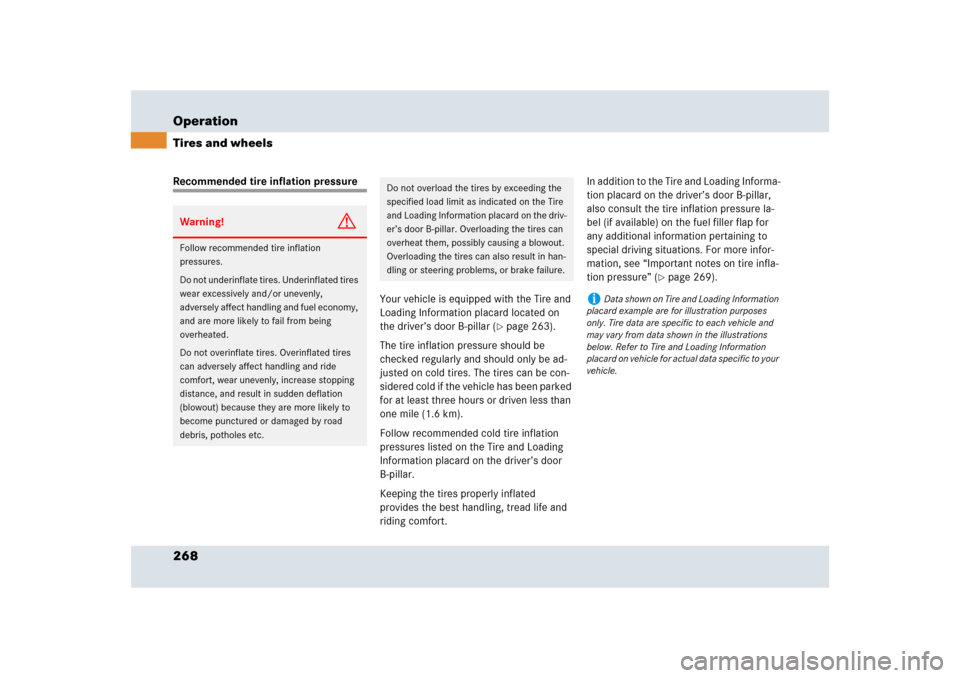

Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the Tire
and Loading Information placard on the driv-
er’s door B-pillar. Overloading the tires can
overheat them, possibly causing a blowout.
Overloading the tires can also result in han-
dling or steering problems, or brake failure.
i
Data shown on Tire and Loading Information
placard example are for illustration purposes
only. Tire data are specific to each vehicle and
may vary from data shown in the illustrations
below. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.

269 Operation
Tires and wheels
1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.Important notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 155 mph (250 km/h) or higher,
where it is legal and conditions allow,
consult the tire inflation pressure label on
the inside of the fuel filler flap (if available)
on how to adjust the cold tire inflation
pressure. If you do not adjust the tire infla-
tion pressure, excessive heat can build up
and result in sudden tire failure.If your vehicle is not equipped with the tire
inflation pressure label on the inside of the
fuel filler flap, contact your PLM or any au-
thorized Mercedes-Benz Center for proper
tire inflation pressure.
Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
inflation pressure information for vehicle
loads less than the maximum loaded vehi-
cle condition. If such information is provid-
ed, it can be found on the tire inflation
pressure label located on the inside of the
fuel filler flap.
Warning!
G
If the tire inflation pressure drops
repeatedly:

Check the tires for punctures from
foreign objects.


Check to see whether air is leaking from
the valves or from around the rim.
i
Driving comfort may be reduced when the
tire inflation pressure is adjusted to the value for
speeds above 155 mph (250 km/h) as specified
on the tire inflation pressure label located on the
inside of the fuel filler flap.

270 OperationTires and wheelsTire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise the tire will be
underinflated.

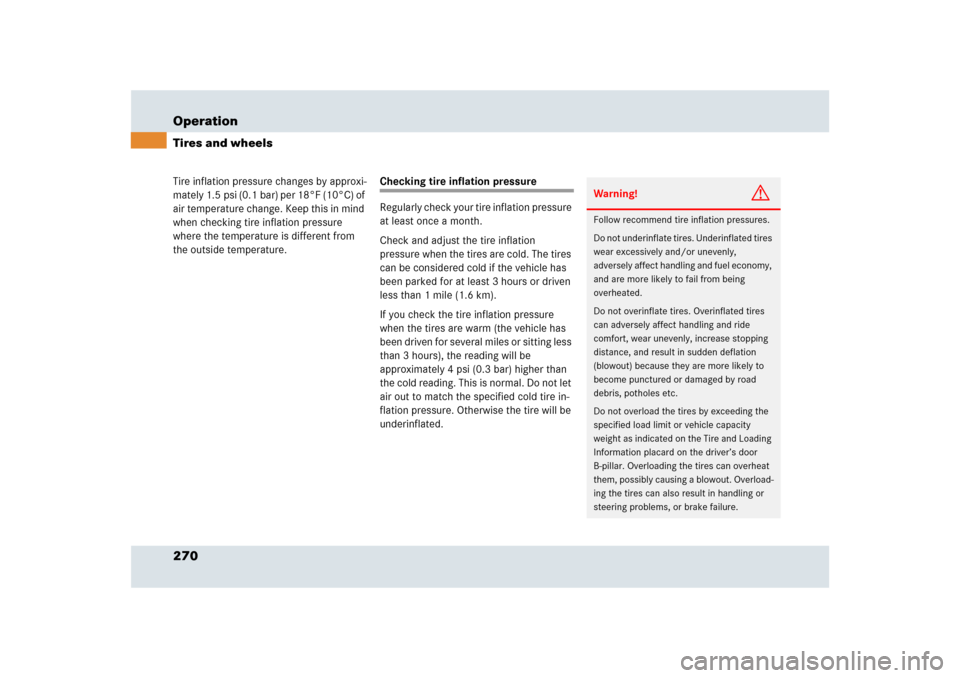

Warning!
G
Follow recommend tire inflation pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit or vehicle capacity
weight as indicated on the Tire and Loading
Information placard on the driver’s door
B-pillar. Overloading the tires can overheat
them, possibly causing a blowout. Overload-
ing the tires can also result in handling or
steering problems, or brake failure.

271 Operation
Tires and wheels
Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.

Firmly press a tire gauge onto the
valve.

Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
Tire and Loading Information placard
on the driver’s door B-pillar
(page 269). If necessary, add air to
achieve the recommended tire inflation
pressure.

Install the valve cap.

Repeat this procedure for each tire.Checking tire inflation pressure
electronically with the Advanced Tire
Pressure Monitoring System
(Advanced TPMS)
i
If you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.
i
USA only:
The Tire P
ressure M
onitoring S
ystem (TPMS) is
equipped with a combination low tire pres-
sure/TPMS malfunction telltale in the instru-
ment cluster (
page 29). Depending on how the
telltale illuminates, it indicates a low tire pres-
sure condition or a malfunction in the TPMS sys-
tem itself:


If the telltale illuminates continuously,
one or more of your tires is significantly
under-inflated. There is no malfunction in
the TPMS.


If the telltale flashes for 60 seconds and
then stays illuminated, the TPMS system
itself is not operating properly.
i
USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.

272 OperationTires and wheelsThe TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation pres-
sure, as selected by the driver, in all four
tires. A warning is issued to alert you to a
decrease in pressure in one or more of the
tires.
Tire pressure inquiries are made using the
multifunction display. The present inflation
pressures are displayed only after a few
minutes’ travel time.
Switch on the ignition (
page 40).

Press buttonj or k on the mul-
tifunction steering wheel until the cur-
rent inflation pressures for each tire
appear in the multifunction display.
i
Possible differences between the readings
of a tire pressure gauge of an air hose, e.g. gas
station equipment, and the vehicle’s control
system can occur. Usually the readings issued by
the control system are more precise.
i
When the vehicle has been parked for longer
than 20 minutes, the message
Tire pressure
displayed after driving for a few
minutes.
appears in the multifunction display.
Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might lose control over the vehicle.i
With a spare wheel mounted, the system
may still indicate the tire inflation pressure of the
removed road wheel for some minutes. If this
happens, keep in mind that the indicated value
where the spare wheel is mounted does not re-
flect the actual spare tire inflation pressure.
Warning!
G
The TPMS does not indicate a warning for
wrongly selected inflation pressures. Always
adjust tire inflation pressure according to
the Tire and Loading Information placard on
the driver’s door B-pillar or, if available, the
supplemental tire inflation pressure infor-
mation on the inside of the fuel filler flap.
The TPMS is not able to issue a warning due
to a sudden dramatic loss of pressure (e.g.
tire blowout caused by a foreign object). In
this case bring the vehicle to a halt by care-
fully applying the brakes and avoiding
abrupt steering maneuvers.
