2009 MERCEDES-BENZ SLR Owner's Manual

137 Controls in detail
Control system
You can temporarily deactivate the
headlamps delayed switch-off feature:
Before leaving the vehicle turn the
SmartKey in the starter switch to
position0.

Then turn it to position2 and back
to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.Setting interior lighting delayed
switch-off
Use this function to set whether you would
like the interior lighting to remain on for
10 seconds during darkness after you have
removed the SmartKey from the starter
switch.

Move the selection marker with button
æ or ç to the
Lighting

submenu.

Press button j or k repeatedly
until you see this message in the left
multifunction display:
Interior Light-
ing Delayed Switch-off
.
The selection marker is on the current
setting.

Press button æ or ç to switch
the interior lighting delayed feature
On
or
Off
.

138 Controls in detailControl systemVehicle submenu
Access the
Vehicle
submenu via the
Settings
menu. Use the
Vehicle
submenu
to make general vehicle settings.
The following functions are available:Setting radio station selection mode
Use the
Press button in audio mode.

function to select the manual or memory
station selection mode for the radio
(
page 127).

Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see this message in the left
multifunction display:
Press button in
audio mode.
The selection marker is on the current
setting.

Press button æ or ç to select
the desired station selection mode.
You can select:

Station Search
, selects next
receivable station


Memory
, selects next stored station
Function
Page
Setting station selection mode
(radio)
138
Setting automatic locking
139

139 Controls in detail
Control system
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the
automatic central locking system
activated, the vehicle is centrally locked at
vehicle speeds of approximately
9mph(15km/h).
Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see the following message in
the left multifunction display: Automatic Door Lock
.
The selection marker is on the current
setting.

Press button æ or ç to switch Automatic Door Lock
On or
Off
.
Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available:Fuel consumption statistics since start

Press button ÿ or è repeatedly
until you see the first function of the
trip computer menu.

Press button j or k repeatedly
until you see the following message in
the left multifunction display:
From
Start
.
1Distance driven since start
2Average speed since start
3Time elapsed since start
4Average fuel consumption since start
Function
Page
Fuel consumption statistics since
start
139
Fuel consumption statistics since
last reset
140
Resetting fuel consumption
statistics
140
Distance to empty
140
i
The last function called up will reappear the
next time you enter the trip computer menu.
i
All statistics stored since the last engine
start will be reset approximately 4 hours after
the SmartKey in the starter switch is turned to
position0 or removed from the starter switch.
Resetting will not occur if you turn the SmartKey
back to position1 or2 within this time period.

140 Controls in detailControl systemFuel consumption since last reset
Press button ÿ or è repeatedly
until you see the first function of the
trip computer menu.

Press button j or k repeatedly
until you see the following message in
the left multifunction display: From Reset
.
1Distance driven since last reset
2Average speed since last reset
3Time elapsed since last reset
4Average fuel consumption since last
resetResetting fuel consumption statistics

Press button ÿ or è repeatedly
until you see the first function of the
trip computer menu.

Press button j or k repeatedly
until you see the reading that you want
to reset in the left multifunction
display.

Press and hold the reset button in the
instrument cluster (
page 114) until
the value is reset to 0.Distance to empty

Press button ÿ or è repeatedly
until you see the first function of the
trip computer menu.

Press button j or k repeatedly
until you see this message in the left
multifunction display:
Range:
.
The calculated remaining driving range
based on the current fuel tank level ap-
pears in the right multifunction display.
Your driving style will affect the
accuracy of the calculated range.
i
The fuel consumption statistics reset auto-
matically to
0 when either of the following values
is exceeded:


distance covered: 99 999 miles


time elapsed: 9 999 hours
i
If only very little fuel is left in the tank, a
vehicle at the fuel pump is shown instead of the
range.

141 Controls in detail
Control system

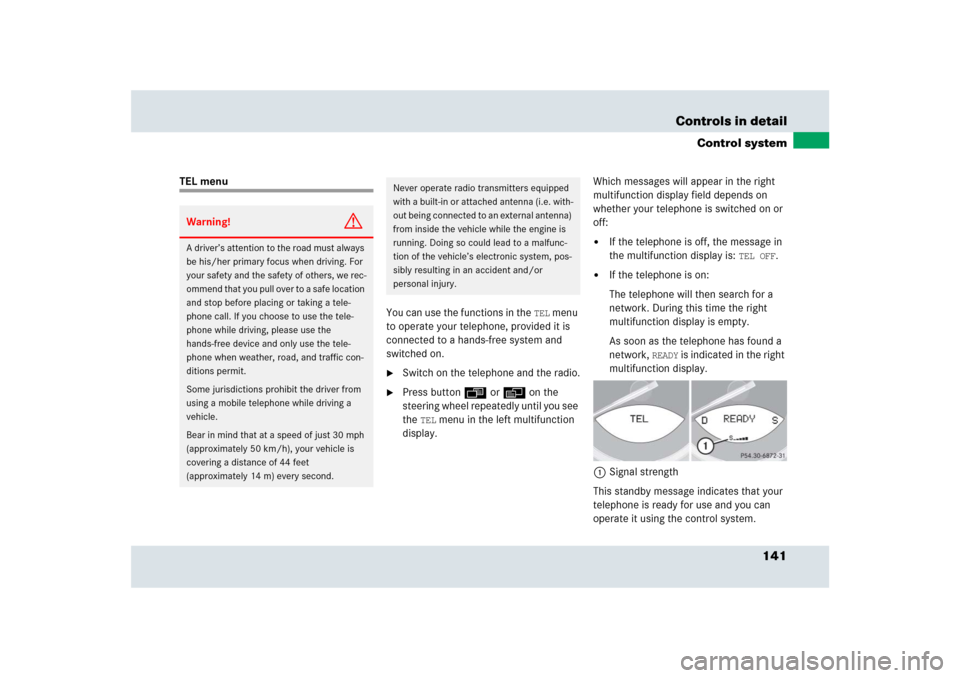

TEL menu
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and the radio.

Press button ÿ or è on the
steering wheel repeatedly until you see
the
TEL
menu in the left multifunction
display.Which messages will appear in the right
multifunction display field depends on
whether your telephone is switched on or
off:


If the telephone is off, the message in
the multifunction display is:
TEL OFF
.


If the telephone is on:
The telephone will then search for a
network. During this time the right
multifunction display is empty.
As soon as the telephone has found a
network,
READY
is indicated in the right
multifunction display.
1Signal strength
This standby message indicates that your
telephone is ready for use and you can
operate it using the control system.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road, and traffic con-
ditions permit.
Some jurisdictions prohibit the driver from
using a mobile telephone while driving a
vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.

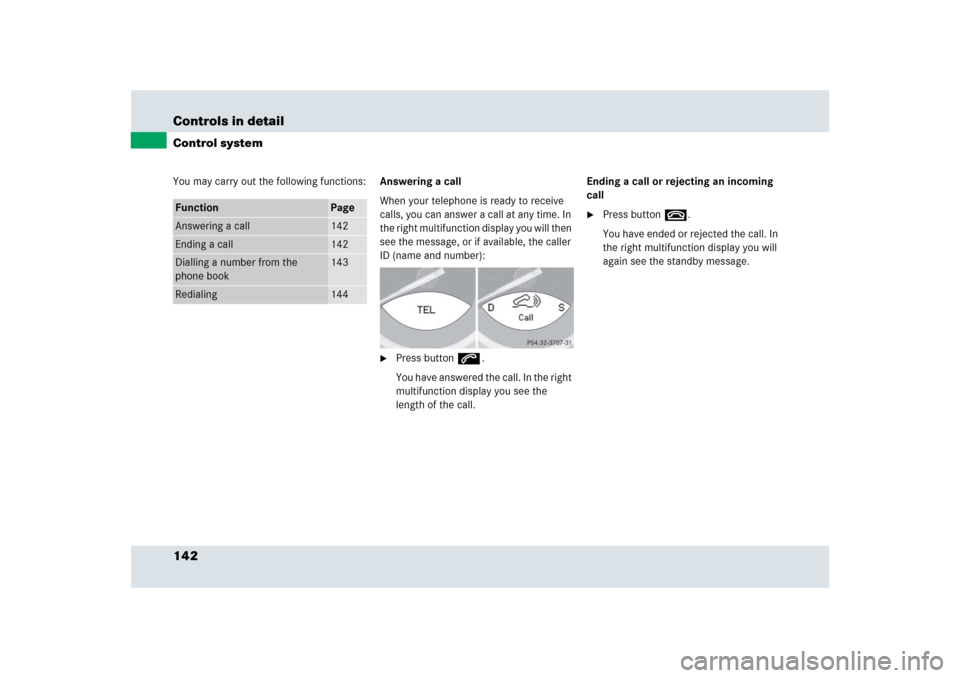

142 Controls in detailControl systemYou may carry out the following functions:Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the right multifunction display you will then
see the message, or if available, the caller
ID (name and number):

Press button s.
You have answered the call. In the right
multifunction display you see the
length of the call.Ending a call or rejecting an incoming
call

Press button t.
You have ended or rejected the call. In
the right multifunction display you will
again see the standby message.
Function
Page
Answering a call
142
Ending a call
142
Dialling a number from the
phone book
143
Redialing
144

143 Controls in detail
Control system
Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press button ÿ or è repeatedly
until you see the
TEL
menu in the left
multifunction display.
In the right multifunction display you
will see the standby message.

Press button j or k.
The control system reads the phone
book which is stored in the telephone.
This may take several minutes. In the
right multifunction display you will see
this message
Please Wait
.
When the message
Please Wait
disap-
pears, the phone book has been
loaded.

Press button j or k repeatedly
until you see the desired name in the
right multifunction display.
The stored names are displayed in
ascending or descending alphabetical
order.

Press button s.
The system dials the selected phone
number.


If the connection is successful and this
feature is supported by your network
provider, the name of the party (if
stored in your phone book) you are
calling and the duration of the call will
appear in the multifunction display.


The control system stores the dialed
number in the redial memory.
i
If you press and hold j or k for long-
er than 1 second, the system scrolls rapidly
through the list of names until you release the
button again.
Cancel the quick search mode by pressing t.

144 Controls in detailControl systemRedialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press button ÿ or è repeatedly
until you see the
TEL
menu in the left
multifunction display.
In the right multifunction display you
will see the standby message.

Press button s.
In the right multifunction display you
see the first number in the redial
memory.

Press button j or k repeatedly
until you see the desired name in the
right multifunction display.

Press button s.
The control system dials the selected
phone number.
