2009 MERCEDES-BENZ SLR Owner's Manual

65 Safety and Security
Occupant safety
When you sell your vehicle, we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.Front air bags
1Driver air bag
2Passenger air bag
Driver and passenger air bags are
deployed:


in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the head-thorax air
bags


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized
Mercedes-Benz Center.


For your protection and the protection
of others, when scrapping the air bag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from any authorized Mercedes-Benz
Center.


Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.

66 Safety and SecurityOccupant safetyThe air bags will not deploy in impacts
which do not exceed the system’s
deployment thresholds. You will then be
protected by the fastened seat belts.The passenger air bag will only be de-
ployed if:


the system, based on the OCS weight
sensor readings, senses that the pas-
senger seat is occupied


the PASSENGER AIR BAG OFF indicator
lamp in the lower part of the center
console is not lit (
page 70)


the impact exceeds a preset
deployment thresholdKnee air bags
1Knee air bag, driver’s side
2Knee air bag, passenger side
The knee air bags are located on the lower
instrument panel. They are designed to op-
erate together with the front air bags in
certain frontal impacts exceeding a preset
threshold. The knee air bags operate best
in conjunction with a properly positioned
and fastened seat belts and when the foot-
well is kept clear of objects.
i
The front air bags in this vehicle have been
designed to inflate in two stages. This allows
the air bag to have different rates of inflation that
are based on the rate of relevant vehicle deceler-
ation as assessed by the air bag control unit.
On the passenger side, the front air bag
deployment is additionally influenced by the
passenger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 67).
The lighter the passenger side occupant, the
higher the vehicle deceleration rate required for
the second stage inflation of the air bag.

67 Safety and Security
Occupant safety
Head-thorax air bags
1Head-thorax air bag
The head-thorax air bags are deployed:

in side impacts exceeding a preset de-
ployment threshold


on the impacted side of the vehicle


independently of the front air bags
The head-thorax air bags are not deployed
in side impacts which do not exceed the
system’s deployment threshold.
Occupant Classification System
The O
ccupant C
lassification S
ystem (OCS)
automatically turns the passenger front air
bag and passenger-side knee air bag on or
off based on the classified occupant
weight category determined by weight
sensor readings from the passenger seat.
Occupants must sit properly belted in a
position that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant’s weight is transferred to
another object in the vehicle (e.g. by
leaning on armrests), the OCS may not be
able to properly approximate the
occupant’s weight category. Both driver and the passenger should
always use the PASSENGER AIR BAG OFF
indicator lamp (
page 70) as an indica-
tion of whether or not the passenger is
properly positioned.
i
The system does not deactivate the
head-thorax air bag and the emergency tension-
ing device.
i
If the seat needs to be serviced in any way,
take the vehicle to an authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used.

68 Safety and SecurityOccupant safetyWarning!
G
If the PASSENGER AIR BAG OFF indicator
lamp illuminates when an adult or someone
larger than a small individual is in the pas-
senger seat, have the passenger re-position
himself or herself in the seat until the
PASSENGER AIR BAG OFF indicator lamp
goes out.
For information on air bag display
messages, see (
page 324).
In the event of a collision, the air bag control
unit will not allow passenger front air bag or
passenger knee air bag deployment when
the OCS classified the passenger seat occu-
pant as being up to or less than the weight
of a typical 12-month-old child in a standard
child restraint or if the passenger seat is
sensed as being empty.
When the OCS senses that the passenger
seat occupant is classified as being up to or
less than the weight of a typical
12-month-old child in a standard child
restraint, the PASSENGER AIR BAG OFF indi-
cator lamp will illuminate when the engine is
started and remain illuminated, indicating
that the passenger front air bag and passen-
ger knee air bag are deactivated.
When the OCS senses that the passenger
seat is classified as being empty, the
PASSENGER AIR BAG OFF indicator lamp
will illuminate when the engine is started
and remain illuminated, indicating that the
passenger front air bag and the passenger
knee air bag are deactivated.
When the OCS senses that the passenger
seat occupant is classified as being heavier
than the weight of a typical 12-month-old
child seated in a standard child restraint or
as being a small individual (such as a young
teenager or a small adult), the PASSENGER
AIR BAG OFF indicator lamp will illuminate
for approximately 6 seconds when the
engine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
PASSENGER AIR BAG OFF indicator lamp
illuminated, the passenger front air bag and
the passenger knee air bag are deactivated.
With the PASSENGER AIR BAG OFF indicator
lamp out, the passenger front air bag and
the passenger knee air bag are activated.
When the OCS senses that the passenger
seat occupant is classified as an adult or
someone larger than a small individual, the
PASSENGER AIR BAG OFF indicator lamp
will illuminate for approximately 6 seconds
when the engine is started and then go out,
indicating that the passenger front air bag

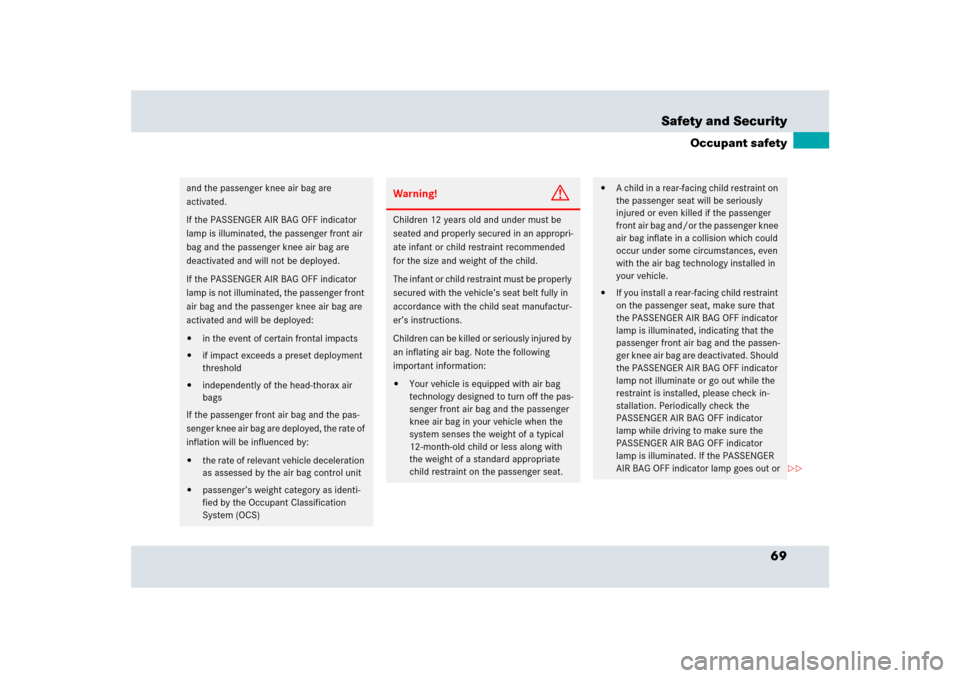

69 Safety and Security
Occupant safety
and the passenger knee air bag are
activated.
If the PASSENGER AIR BAG OFF indicator
lamp is illuminated, the passenger front air
bag and the passenger knee air bag are
deactivated and will not be deployed.
If the PASSENGER AIR BAG OFF indicator
lamp is not illuminated, the passenger front
air bag and the passenger knee air bag are
activated and will be deployed:

in the event of certain frontal impacts


if impact exceeds a preset deployment
threshold


independently of the head-thorax air
bags
If the passenger front air bag and the pas-
senger knee air bag are deployed, the rate of
inflation will be influenced by:


the rate of relevant vehicle deceleration
as assessed by the air bag control unit


passenger’s weight category as identi-
fied by the Occupant Classification
System (OCS)
Warning!
G
Children 12 years old and under must be
seated and properly secured in an appropri-
ate infant or child restraint recommended
for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt fully in
accordance with the child seat manufactur-
er’s instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information:

Your vehicle is equipped with air bag
technology designed to turn off the pas-
senger front air bag and the passenger
knee air bag in your vehicle when the
system senses the weight of a typical
12-month-old child or less along with
the weight of a standard appropriate
child restraint on the passenger seat.


A child in a rear-facing child restraint on
the passenger seat will be seriously
injured or even killed if the passenger
front air bag and/or the passenger knee
air bag inflate in a collision which could
occur under some circumstances, even
with the air bag technology installed in
your vehicle.


If you install a rear-facing child restraint
on the passenger seat, make sure that
the PASSENGER AIR BAG OFF indicator
lamp is illuminated, indicating that the
passenger front air bag and the passen-
ger knee air bag are deactivated. Should
the PASSENGER AIR BAG OFF indicator
lamp not illuminate or go out while the
restraint is installed, please check in-
stallation. Periodically check the
PASSENGER AIR BAG OFF indicator
lamp while driving to make sure the
PASSENGER AIR BAG OFF indicator
lamp is illuminated. If the PASSENGER
AIR BAG OFF indicator lamp goes out or


70 Safety and SecurityOccupant safety
The PASSENGER AIR BAG OFF indicator
lamp is located in lower part of the center
console.
1Passenger front air bag off indicator
lamp
The PASSENGER AIR BAG OFF indicator
lamp1 will be illuminated, except with
the SmartKey removed or in starter switch
position0.
remains out, do not transport a child on
the passenger seat until the system has
been repaired. A child in a rear-facing
child restraint on the passenger seat will
be seriously injured or even killed if the
passenger front air bag and/or the
passenger knee air bag inflate.


If you place a child in a forward-facing
child restraint on the passenger seat,
move the seat as far back as possible,
use the proper child restraint recom-
mended for the age, size and weight of
the child, and secure child restraint with
the vehicle’s seat belt according to the
child seat manufacturer’s instructions.
For children larger than the typical
12-month-old child, the passenger front
air bag and the passenger knee air bag
may or may not be activated
(page 68).
i
Deployment of the driver front air bag does
not mean that the passenger front air bag also
should have deployed.
The Occupant Classification System (
page 67)
may have determined:


that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the
passenger front air bag even though the
impact met the criteria and was of sufficient
severity to deploy the driver front air bag


that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
passenger front air bag even though the
impact met the criteria and was of sufficient
severity to deploy the driver front air bag

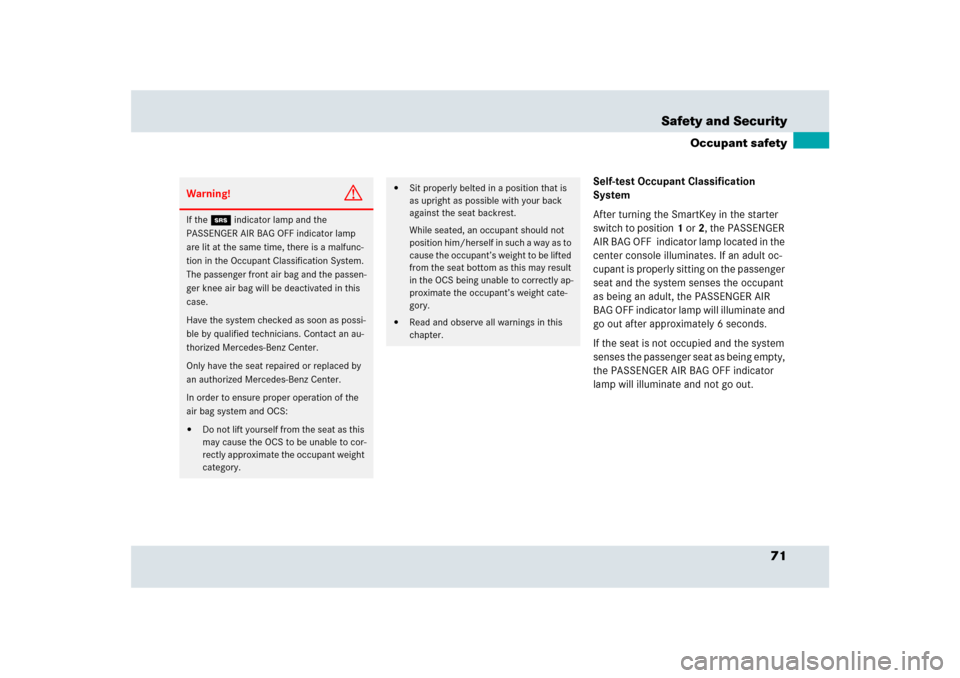

71 Safety and Security
Occupant safety
Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2, the PASSENGER
AIR BAG OFF indicator lamp located in the
center console illuminates. If an adult oc-
cupant is properly sitting on the passenger
seat and the system senses the occupant
as being an adult, the PASSENGER AIR
BAG OFF indicator lamp will illuminate and
go out after approximately 6 seconds.
If the seat is not occupied and the system
senses the passenger seat as being empty,
the PASSENGER AIR BAG OFF indicator
lamp will illuminate and not go out.
Warning!
G
If the 1indicator lamp and the
PASSENGER AIR BAG OFF indicator lamp
are lit at the same time, there is a malfunc-
tion in the Occupant Classification System.
The passenger front air bag and the passen-
ger knee air bag will be deactivated in this
case.
Have the system checked as soon as possi-
ble by qualified technicians. Contact an au-
thorized Mercedes-Benz Center.
Only have the seat repaired or replaced by
an authorized Mercedes-Benz Center.
In order to ensure proper operation of the
air bag system and OCS:

Do not lift yourself from the seat as this
may cause the OCS to be unable to cor-
rectly approximate the occupant weight
category.


Sit properly belted in a position that is
as upright as possible with your back
against the seat backrest.
While seated, an occupant should not
position him/herself in such a way as to
cause the occupant’s weight to be lifted
from the seat bottom as this may result
in the OCS being unable to correctly ap-
proximate the occupant’s weight cate-
gory.


Read and observe all warnings in this
chapter.

72 Safety and SecurityOccupant safetyFor more information, see the “Practical
hints” section (
page 317).
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened when ever the vehicle is in motion.
For information on fastening seat belts,
see “Fastening the seat belts” (
page 45).
Warning!
G
If the PASSENGER AIR BAG OFF indicator
lamp should not illuminate, the system is
not functioning. You must contact an autho-
rized Mercedes-Benz Center before seating
any child on the passenger seat.Warning!
G
Never place anything between seat
cushion and child seat (e.g. pillow), since it
reduces the effectiveness of the Occupant
Classification System. The bottom of the
child seat must make full contact with the
passenger seat cushion. An incorrectly
mounted child seat could cause injuries to
the child in case of an accident, instead of
increasing protection for the child.
Follow the manufacturer’s instructions for
installation of child seats.
i
For information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 76).
Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passenger is
properly restrained.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passenger should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. Air bags can only protect as they
are designed if the occupants are properly
wearing their seat belts.
