26 At a glanceCockpit

27 At a glance

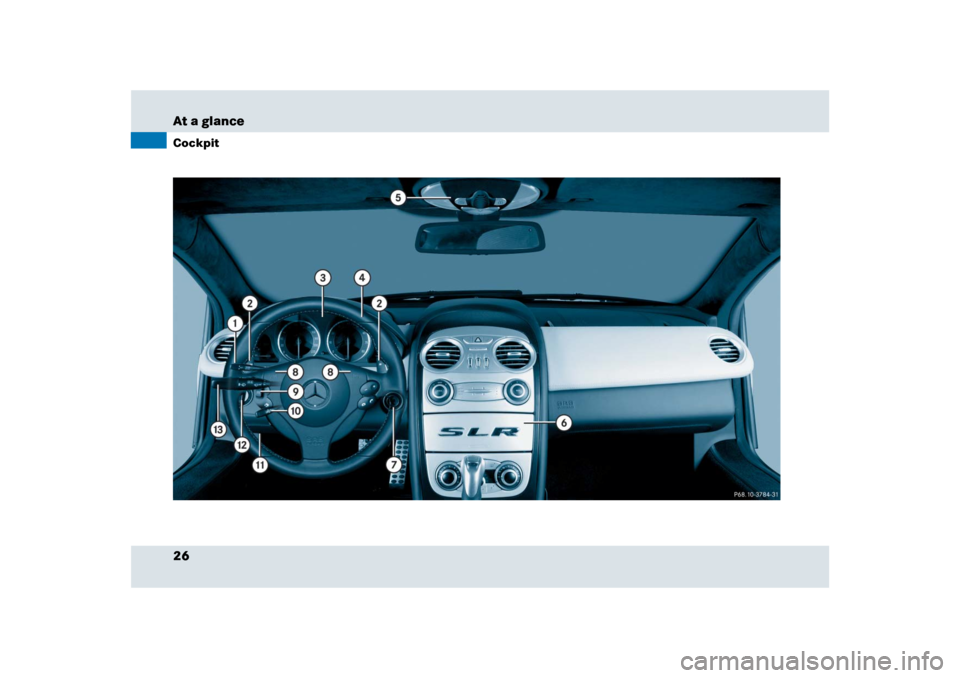

Cockpit
Item
Page
1
Cruise control lever
205
2
Steering wheel gearshift
paddle
177
3
Instrument cluster
28,
114
4
Multifunction steering wheel
30,
118
5
Overhead control panel
33
6
Center console
31, 32
7
Starter switch
40
8
Horn
Item
Page
9
Headlamp washer button
181
a
Steering wheel adjustment
stalk
42
b
Hood lock release
250
c
Exterior lamp switch
51,
106
d
Combination switch

Turn signals


Windshield wipers


High beam
51
52
110

28 At a glanceInstrument cluster

29 At a glance

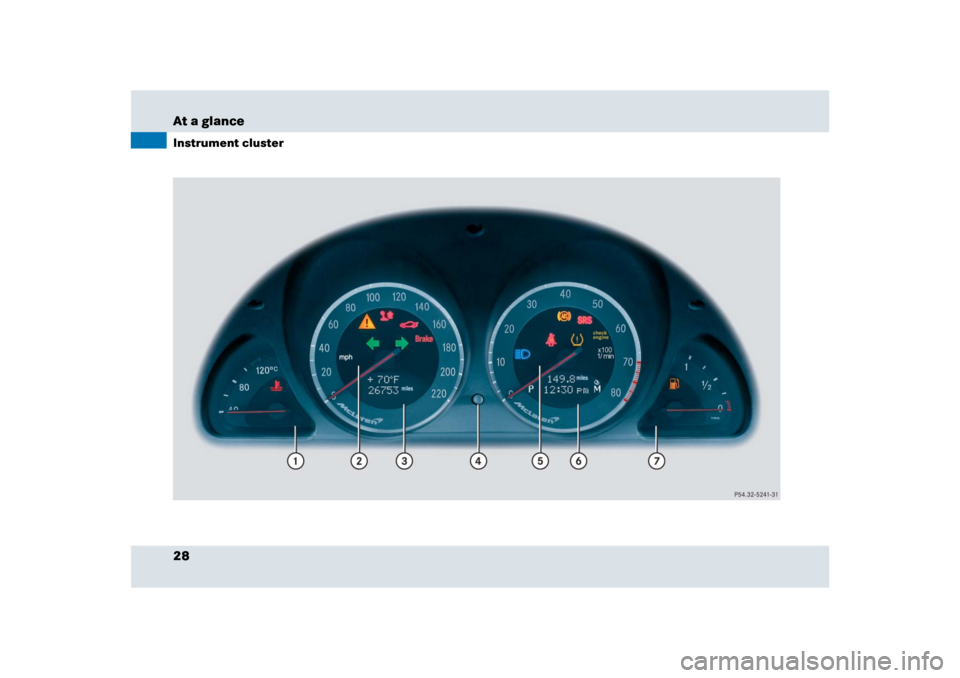

Instrument cluster
Item
Page
1
Coolant temperature gauge
with
115
DCoolant temperature
warning lamp
310
2
Speedometer with;Brake warning lamp,
USA only
307
3Brake warning lamp,
Canada only
307
vABS/ESP
® warning
lamp
304
>Gearshift indicator
lamp
311
311
LLeft turn signal
indicator lampKRight turn signal
indicator lamp
Item
Page
3
Left multifunction display
with

Outside temperature
116


Main odometer
117
4
Reset button
114
5
Tachometer with
116
AHigh-beam headlamp
indicator
110
?Engine malfunction in-
dicator lamp, USA only
308
±Engine malfunction in-
dicator lamp, Canada
only
308
-Antilock Brake System
(ABS) indicator lamp
306
XCombination low tire
pressure/TPMS mal-
function telltale,
USA only
Low tire pressure tell-
tale, Canada only
315
Item
Page
1Supplemental
Restraint System (SRS)
indicator lamp
314
312
6
Right multifunction display
with

Current gear selector lever
position/gear range
117,
171,
174


Trip odometer
117


Automatic transmission
shift program mode
117,
175


Clock
133
=Engine oil temperature
indicator
311
7
Fuel gauge withAFuel reserve warning
lamp
311

30 At a glanceMultifunction steering wheel
Item
Page
1
Left multifunction display in
the speedometer
117
2
Right multifunction display in
the tachometer
117
Operating control system
3
Selecting the submenu or set-
ting the volume:
Press button
æup/to increase
çdown/to decrease
118
4
Telephone:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an incoming
call
118
Item
Page
5
Menu systems:
Press button
èfor next menu
ÿfor previous menu
118
6
Moving within a menu:
Press button
jfor next display
kfor previous display
118

31 At a glance

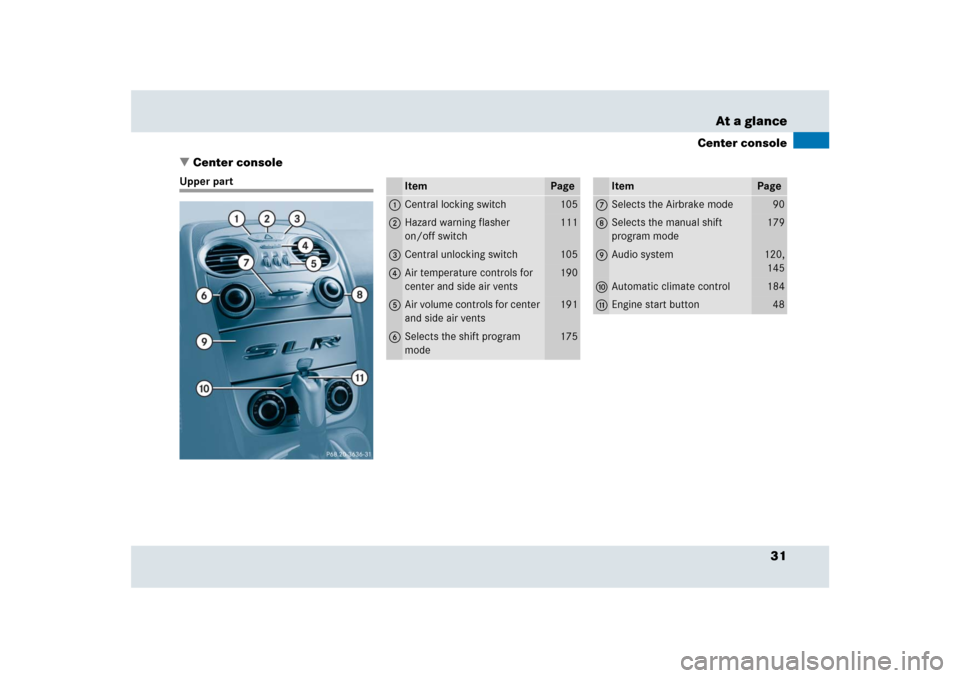

Center console
Center console
Upper part
Item
Page
1
Central locking switch
105
2
Hazard warning flasher
on/off switch
111
3
Central unlocking switch
105
4
Air temperature controls for
center and side air vents
190
5
Air volume controls for center
and side air vents
191
6
Selects the shift program
mode
175
Item
Page
7
Selects the Airbrake mode
90
8
Selects the manual shift
program mode
179
9
Audio system
120,
145
a
Automatic climate control
184
b
Engine start button
48

32 At a glanceCenter consoleLower part
Item
Page
1
Exterior rear view mirror
adjustment
44
2
Remote trunk opening switch
102
3
Tow-away alarm off button
95
4
Release button for storage
compartment under armrest
209
5
Soft top switch
200
6
ESP
® switch
86
7
Passenger front air bag off
indicator lamp
70
8
Gear selector lever for
automatic transmission
171
9
Parking brake
49,
55
