2009 MERCEDES-BENZ SLR display

ContentsAnti-theft systems................................ 93
Immobilizer..................................... 93
Anti-theft alarm system .................. 93
Tow-away alarm ............................. 95Controls in detail............................... 96
Locking and unlocking ......................... 98
SmartKey ....................................... 98
Opening the doors........................ 101
Opening the trunk ........................ 102
Closing the trunk lid ..................... 103
Trunk emergency release ............. 104
Automatic locking ........................ 104
Locking and unlocking from the inside
105
Lighting .............................................. 106
Exterior lamp switch ..................... 106
Combination switch...................... 110
Hazard warning flasher................. 111
Interior lighting ............................. 112
Courtesy lighting .......................... 113
Trunk lamp ................................... 113
Instrument cluster ............................. 114
Adjusting instrument cluster
illumination................................... 114Coolant temperature gauge ......... 115
Resetting trip odometer ............... 115
Tachometer .................................. 116
Outside temperature indicator ..... 116
Control system .................................. 117
Multifunction display .................... 117
Multifunction steering wheel ........ 118
Menus .......................................... 120
Standard display menu ................ 122
722 S menu ................................. 123
AUDIO menu ................................ 127
Vehicle status message memory menu
128
Settings menu .............................. 129
Trip computer menu ..................... 139
TEL menu ..................................... 141
Audio system ..................................... 145
Audio and telephone, operation ... 145
Operating safety........................... 145
Location of the audio system ....... 145
Operating and display elements ... 146
Button and soft key operation ...... 148
Operation ..................................... 148
Radio operation ............................ 151
Cassette operation....................... 154
CD changer operation .................. 158Telephone operation .................... 162
Automatic transmission ..................... 169
Gear selector lever....................... 169
Shifting procedure ....................... 170
Gear selector lever positions ....... 171
Driving tips................................... 173
Gear ranges ................................. 174
Shift program mode selector switch ....
175
Gear selector lever one-touch
gearshifting .................................. 175
Steering wheel gearshift control
one-touch gearshifting ................. 177
Manual shift program ................... 178
Emergency operation
(Limp-Home Mode) ...................... 180
Good visibility .................................... 181
Headlamp cleaning system .......... 181
Rear view mirrors ......................... 181
Sun visors .................................... 182
Rear window defroster ................. 183
Automatic climate control ................. 184
Deactivating the automatic climate
control system ............................. 188
Operating the automatic climate
control system in automatic mode 188

Contents
Tire labeling .................................. 276
Load identification........................ 280
DOT, Tire Identification Number (TIN) .
281
Maximum tire load ....................... 282
Maximum tire inflation pressure... 283
Uniform Tire Quality Grading Standards
(U.S. vehicles) .............................. 284
Tire ply material............................ 286
Tire and loading terminology ........ 286
Rotating tires................................ 289
Anti-theft wheel nuts .................... 290
Winter driving..................................... 292
Winter tires*................................. 292
Snow chains ................................. 293
Maintenance ...................................... 294
Clearing the maintenance service
indicator message ........................ 294
Maintenance service term exceeded ...
295
Calling up the maintenance service due
date .............................................. 295
Resetting the maintenance service
indicator ....................................... 296
Vehicle care ....................................... 297
Cleaning and care of the vehicle .. 297Vehicle washing ........................... 298
Soft top care ................................ 300
Practical hints.................................. 302
What to do if ... .................................. 304
Lamps in instrument cluster ........ 304
Lamp in center console ................ 317
Vehicle status messages in the
multifunction display .................... 319
Symbol messages ........................ 332
Where will I find ...? ........................... 356
First aid kit ................................... 356
TIREFIT kit, electric air pump, towing
eye bolt and vehicle literature portfolio
356
Unlocking in an emergency ............... 357
Unlocking the vehicle ................... 357
Replacing SmartKey batteries............ 359
Replacing bulbs ................................. 361
Front lamps .................................. 362
Rear lamps ................................... 362
Replacing wiper blades ...................... 363
Removing wiper blades ................ 363
Installing wiper blades ................. 364
Flat tire .............................................. 365Preparing the vehicle ................... 365
Sealing tires with TIREFIT ............. 365
Batteries ............................................ 370
Charging the batteries ................. 371
Towing the vehicle ............................. 373
Installing/reinstalling towing eye bolt..
375
Points to bear in mind .................. 375
Transporting the vehicle .............. 375
Fuses ................................................. 376
Technical data................................. 378
Parts service ...................................... 380
Warranty coverage ............................ 381
Loss of Service and Warranty
Information Booklet ..................... 381
Identification labels ........................... 382
Engine number ............................. 382
Layout of poly-V-belt drive ................. 383
Engine ............................................... 384
Rims and tires ................................... 385
Mixed size tires ............................ 386
Winter tires* ................................ 388
Electrical system ............................... 390
Main dimensions ............................... 391

19 Introduction
Symbols
Symbols
Trademarks:

Bluetooth
® is a registered trademark of
Bluetooth SIG Inc.


ESP
® is a registered trademark of
Daimler.


HomeLink
® is a registered trademark
of Prince, a Johnson Controls
Company.The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk.

This symbol points to instructions for
you to follow.

A number of these symbols appearing
in succession indicates a multiple-step
procedure. page This symbol tells you where to
look for further information on a
topic.
This continuation symbol marks
a warning which is continued on
the next page.
This continuation symbol marks
a procedure which is continued
on the next page.
-> This symbol is used to indicate
cross-references to term
definitions.
Display
Words appearing in the multi-
function display and audio dis-
play are printed in the type
shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!
Highlights hazards that may result in dam-
age to your vehicle.
i
Helpful hints or further information you may
find useful.

29 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
with
115
DCoolant temperature
warning lamp
310
2
Speedometer with;Brake warning lamp,
USA only
307
3Brake warning lamp,
Canada only
307
vABS/ESP
® warning
lamp
304
>Gearshift indicator
lamp
311
311
LLeft turn signal
indicator lampKRight turn signal
indicator lamp
Item
Page
3
Left multifunction display
with

Outside temperature
116


Main odometer
117
4
Reset button
114
5
Tachometer with
116
AHigh-beam headlamp
indicator
110
?Engine malfunction in-
dicator lamp, USA only
308
±Engine malfunction in-
dicator lamp, Canada
only
308
-Antilock Brake System
(ABS) indicator lamp
306
XCombination low tire
pressure/TPMS mal-
function telltale,
USA only
Low tire pressure tell-
tale, Canada only
315
Item
Page
1Supplemental
Restraint System (SRS)
indicator lamp
314
312
6
Right multifunction display
with

Current gear selector lever
position/gear range
117,
171,
174


Trip odometer
117


Automatic transmission
shift program mode
117,
175


Clock
133
=Engine oil temperature
indicator
311
7
Fuel gauge withAFuel reserve warning
lamp
311

30 At a glanceMultifunction steering wheel
Item
Page
1
Left multifunction display in
the speedometer
117
2
Right multifunction display in
the tachometer
117
Operating control system
3
Selecting the submenu or set-
ting the volume:
Press button
æup/to increase
çdown/to decrease
118
4
Telephone:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an incoming
call
118
Item
Page
5
Menu systems:
Press button
èfor next menu
ÿfor previous menu
118
6
Moving within a menu:
Press button
jfor next display
kfor previous display
118

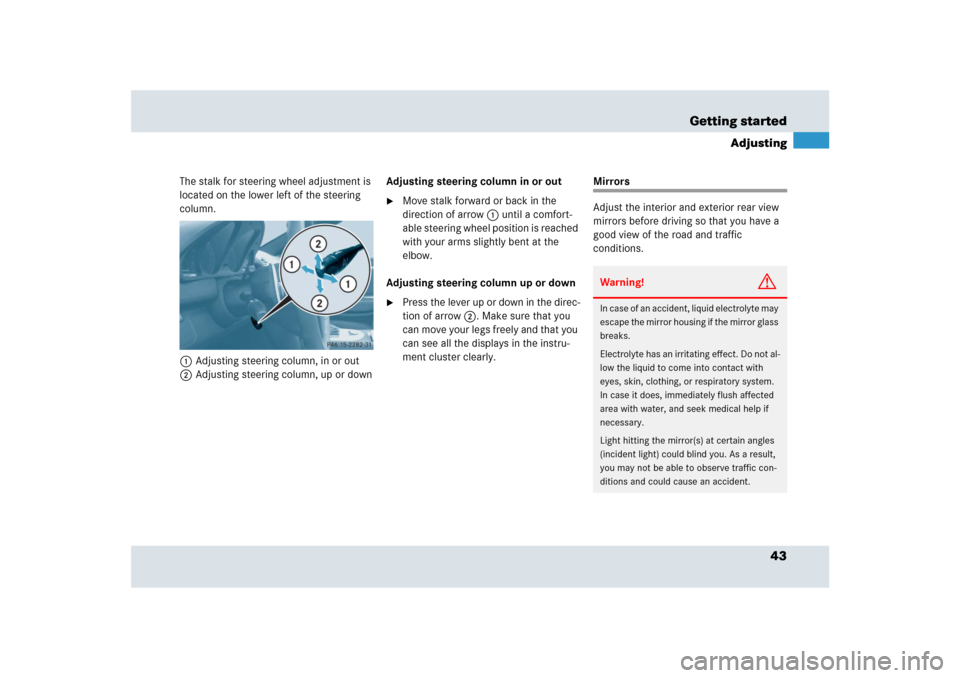

43 Getting started
Adjusting
The stalk for steering wheel adjustment is
located on the lower left of the steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or downAdjusting steering column in or out

Move stalk forward or back in the
direction of arrow1 until a comfort-
able steering wheel position is reached
with your arms slightly bent at the
elbow.
Adjusting steering column up or down

Press the lever up or down in the direc-
tion of arrow 2. Make sure that you
can move your legs freely and that you
can see all the displays in the instru-
ment cluster clearly.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic
conditions.Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
Light hitting the mirror(s) at certain angles
(incident light) could blind you. As a result,
you may not be able to observe traffic con-
ditions and could cause an accident.

50 Getting startedDrivingDriving off
Depress the brake pedal.
The gear selector lever lock is released.

Place the gear selector lever in drive
positionD or reverse gearR.

Release the brake pedal.

Carefully depress the accelerator
pedal.After a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.
Warning!
G
It is dangerous to shift the gear selector le-
ver out of park positionP or neutral
positionN if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or in reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!
In order to avoid damage to the
transmission:


Wait for the gear selection process to com-
plete before setting the vehicle in motion.


Place the gear selector lever in reverse
gearR or park positionP only when the vehi-
cle is stopped.
!
If you hear a warning signal and the mes-
sage Release Parking Brake
appears in the multifunction display when driving
off, you have forgotten to release the parking
brake.
Release the parking brake (
page 49).
!
Do not run cold engine at high engine speed.
Running a cold engine at high engine speed may
shorten the service life of the engine.
!
Simultaneously depressing the accelerator
pedal and applying the brakes reduces engine
performance and causes premature brake and
drivetrain wear.
i
Once the vehicle is in motion, the automatic
central locking system engages.
You can deactivate the automatic locking using
the control system (
page 139).
You can open a locked door from the inside.
Open door only when conditions are safe to do
so.

57 Getting started
Parking and locking
Locking

Exit the vehicle and close all doors.
Opening a door causes the door win-
dows on that side of the vehicle to
open slightly. They will return to the up
position when the door is closed.

Press the lock button‹ on the
SmartKey (
page 38).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 98).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
Warning!
G
Only Mercedes-Benz SLR McLaren Roadster
722 S:
Because of the carbon fiber the footwell
could be slippery when wet. Be careful when
exiting the vehicle with wet shoe soles, you
could slip on it.!
The door windows will not open or close if
the battery is discharged or the door windows
are impeded by ice. In this case open or close
the door with increased caution. Do not attempt
to force the door opened or closed. Doing so
may damage the door seals or the side window.
i
If you hear a warning signal you have forgot-
ten to switch off the headlamps before opening
the driver’s door.
In addition the message$
Lights Are
Still On
appears in the multifunction display.
Switch off the headlamps.
