2009 KIA AMANTI Owners Manual

337
Knowing your vehicle

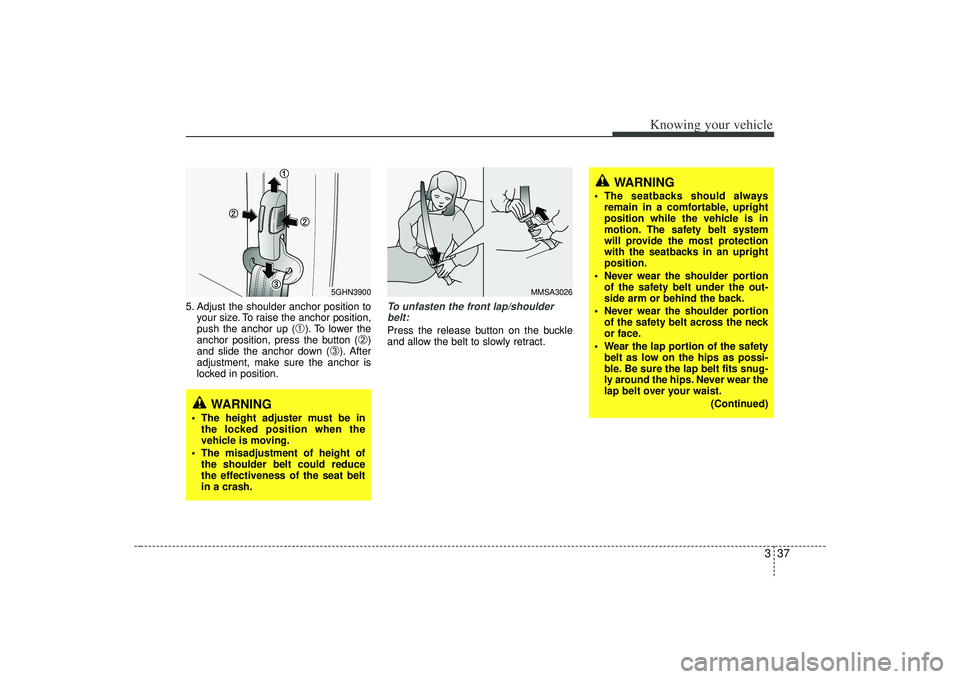

5. Adjust the shoulder anchor position toyour size. To raise the anchor position,
push the anchor up (
➀). To lower the
anchor position, press the button (
➁)
and slide the anchor down (
➂). After
adjustment, make sure the anchor is
locked in position.
To unfasten the front lap/shoulder belt:Press the release button on the buckle
and allow the belt to slowly retract.
MMSA3026
5GHN3900
WARNING
The height adjuster must be in the locked position when the
vehicle is moving.
The misadjustment of height of the shoulder belt could reduce
the effectiveness of the seat belt
in a crash.
WARNING
The seatbacks should alwaysremain in a comfortable, upright
position while the vehicle is in
motion. The safety belt system
will provide the most protection
with the seatbacks in an upright
position.
Never wear the shoulder portion of the safety belt under the out-
side arm or behind the back.
Never wear the shoulder portion of the safety belt across the neck
or face.
Wear the lap portion of the safety belt as low on the hips as possi-
ble. Be sure the lap belt fits snug-
ly around the hips. Never wear the
lap belt over your waist.
(Continued)

Knowing your vehicle38
3

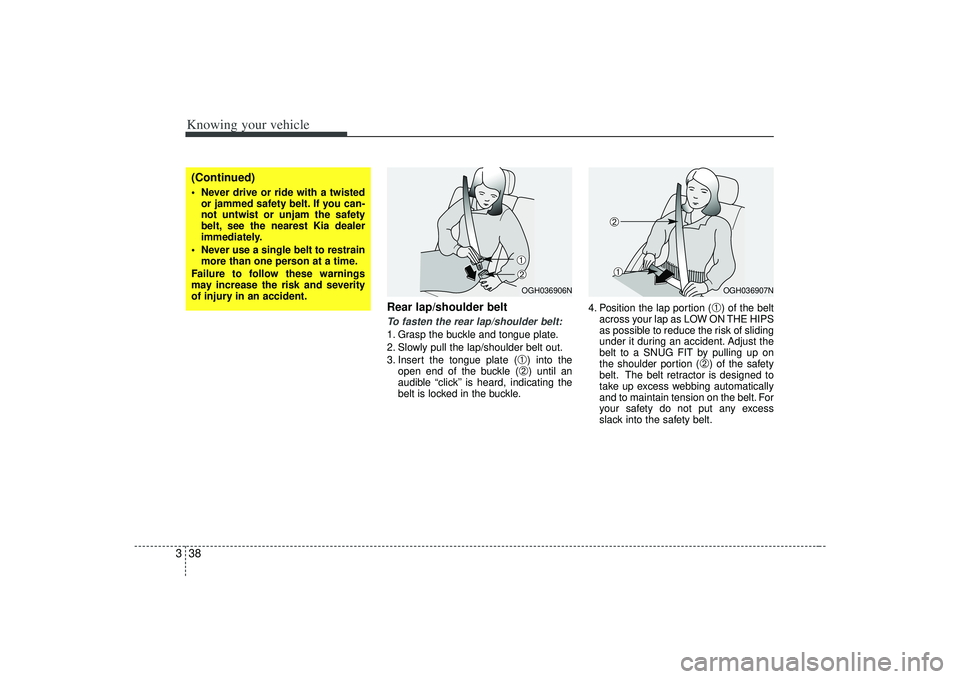

Rear lap/shoulder belt To fasten the rear lap/shoulder belt:1. Grasp the buckle and tongue plate.
2. Slowly pull the lap/shoulder belt out.
3. Insert the tongue plate (
➀) into the
open end of the buckle (➁) until an
audible “click’’ is heard, indicating the
belt is locked in the buckle. 4. Position the lap portion (
➀) of the belt
across your lap as LOW ON THE HIPS
as possible to reduce the risk of sliding
under it during an accident. Adjust the
belt to a SNUG FIT by pulling up on
the shoulder portion (
➁) of the safety
belt. The belt retractor is designed to
take up excess webbing automatically
and to maintain tension on the belt. For
your safety do not put any excess
slack into the safety belt.
(Continued) Never drive or ride with a twisted or jammed safety belt. If you can-
not untwist or unjam the safety
belt, see the nearest Kia dealer
immediately.
Never use a single belt to restrain more than one person at a time.
Failure to follow these warnings
may increase the risk and severity
of injury in an accident.
OGH036906N
OGH036907N
➀➁
➀➁

339
Knowing your vehicle

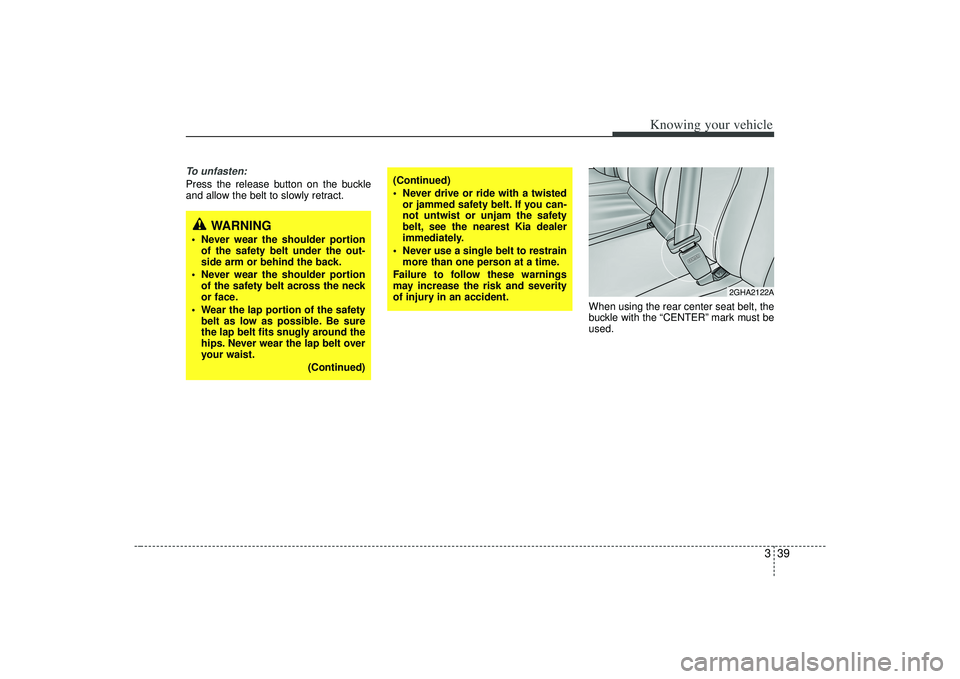

To unfasten:Press the release button on the buckle
and allow the belt to slowly retract.When using the rear center seat belt, the
buckle with the “CENTER” mark must be
used.
WARNING
Never wear the shoulder portionof the safety belt under the out-
side arm or behind the back.
Never wear the shoulder portion of the safety belt across the neck
or face.
Wear the lap portion of the safety belt as low as possible. Be sure
the lap belt fits snugly around the
hips. Never wear the lap belt over
your waist.
(Continued)
(Continued)
Never drive or ride with a twistedor jammed safety belt. If you can-
not untwist or unjam the safety
belt, see the nearest Kia dealer
immediately.
Never use a single belt to restrain more than one person at a time.
Failure to follow these warnings
may increase the risk and severity
of injury in an accident.
2GHA2122A

Knowing your vehicle40

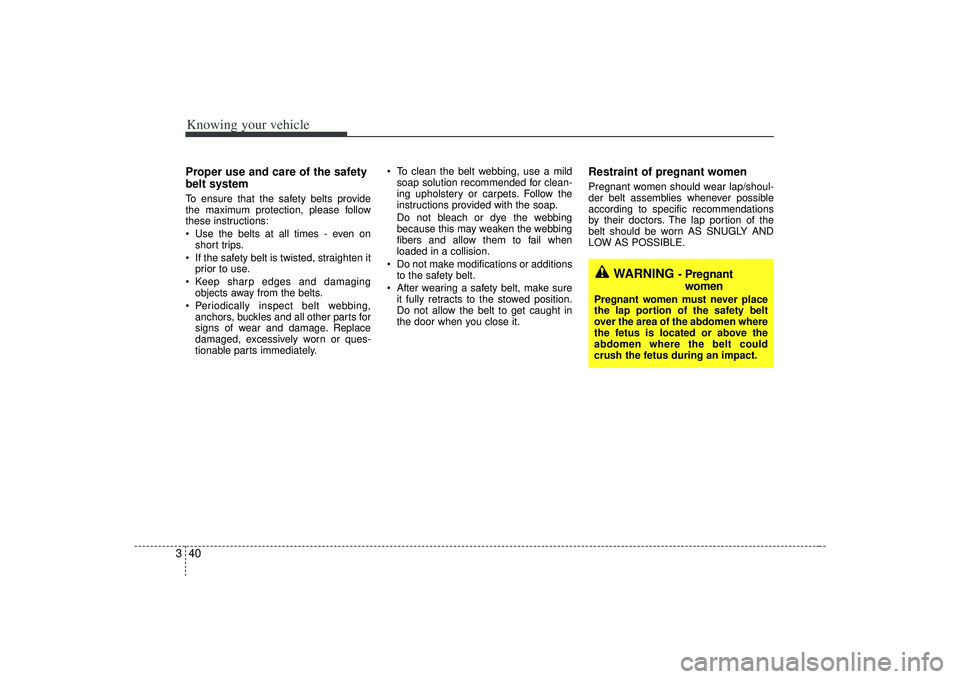

3Proper use and care of the safety
belt system To ensure that the safety belts provide
the maximum protection, please follow
these instructions:
Use the belts at all times - even on
short trips.
If the safety belt is twisted, straighten it prior to use.
Keep sharp edges and damaging objects away from the belts.
Periodically inspect belt webbing, anchors, buckles and all other parts for
signs of wear and damage. Replace
damaged, excessively worn or ques-
tionable parts immediately. To clean the belt webbing, use a mild
soap solution recommended for clean-
ing upholstery or carpets. Follow the
instructions provided with the soap.
Do not bleach or dye the webbing
because this may weaken the webbing
fibers and allow them to fail when
loaded in a collision.
Do not make modifications or additions to the safety belt.
After wearing a safety belt, make sure it fully retracts to the stowed position.
Do not allow the belt to get caught in
the door when you close it.
Restraint of pregnant women Pregnant women should wear lap/shoul-
der belt assemblies whenever possible
according to specific recommendations
by their doctors. The lap portion of the
belt should be worn AS SNUGLY AND
LOW AS POSSIBLE.
WARNING
- Pregnantwomen
Pregnant women must never place
the lap portion of the safety belt
over the area of the abdomen where
the fetus is located or above the
abdomen where the belt could
crush the fetus during an impact.

341
Knowing your vehicle

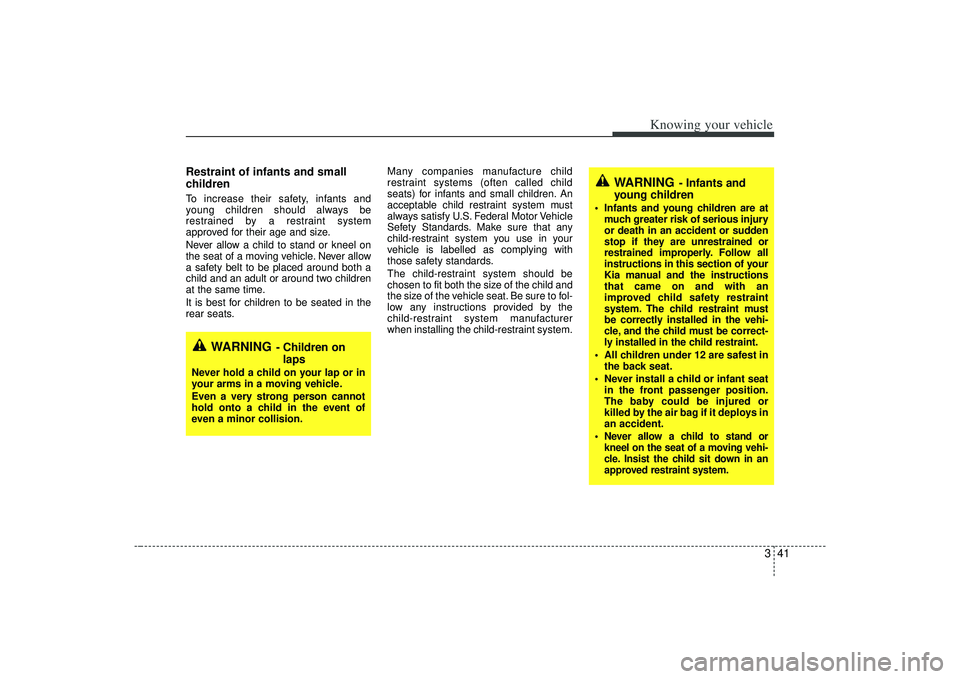

Restraint of infants and small
children To increase their safety, infants and
young children should always be
restrained by a restraint system
approved for their age and size.
Never allow a child to stand or kneel on
the seat of a moving vehicle. Never allow
a safety belt to be placed around both a
child and an adult or around two children
at the same time.
It is best for children to be seated in the
rear seats.Many companies manufacture child
restraint systems (often called child
seats) for infants and small children. An
acceptable child restraint system must
always satisfy U.S. Federal Motor Vehicle
Sefety Standards. Make sure that any
child-restraint system you use in your
vehicle is labelled as complying with
those safety standards.
The child-restraint system should be
chosen to fit both the size of the child and
the size of the vehicle seat. Be sure to fol-
low any instructions provided by the
child-restraint system manufacturer
when installing the child-restraint system.
WARNING
- Children on
laps
Never hold a child on your lap or in
your arms in a moving vehicle.
Even a very strong person cannot
hold onto a child in the event of
even a minor collision.
WARNING
- Infants and
young children
Infants and young children are at
much greater risk of serious injury
or death in an accident or sudden
stop if they are unrestrained or
restrained improperly. Follow all
instructions in this section of your
Kia manual and the instructions
that came on and with an
improved child safety restraint
system. The child restraint must
be correctly installed in the vehi-
cle, and the child must be correct-
ly installed in the child restraint.
All children under 12 are safest in the back seat.
Never install a child or infant seat in the front passenger position.
The baby could be injured or
killed by the air bag if it deploys in
an accident.
Never allow a child to stand or
kneel on the seat of a moving vehi-
cle. Insist the child sit down in an
approved restraint system.

Knowing your vehicle42
3

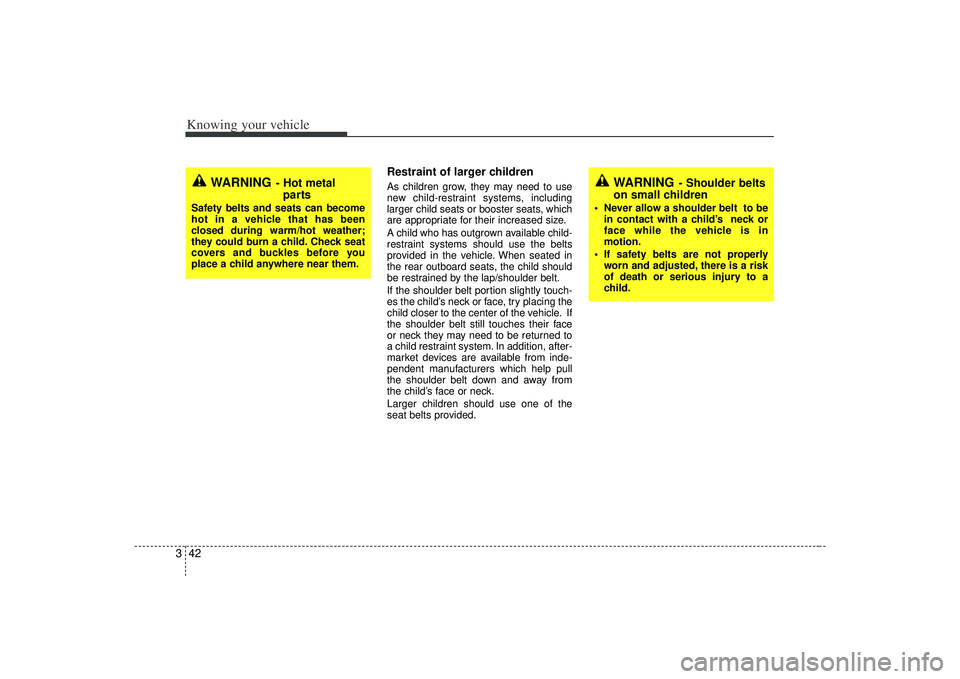

Restraint of larger children As children grow, they may need to use
new child-restraint systems, including
larger child seats or booster seats, which
are appropriate for their increased size.
A child who has outgrown available child-
restraint systems should use the belts
provided in the vehicle. When seated in
the rear outboard seats, the child should
be restrained by the lap/shoulder belt.
If the shoulder belt portion slightly touch-
es the child’s neck or face, try placing the
child closer to the center of the vehicle. If
the shoulder belt still touches their face
or neck they may need to be returned to
a child restraint system. In addition, after-
market devices are available from inde-
pendent manufacturers which help pull
the shoulder belt down and away from
the child’s face or neck.
Larger children should use one of the
seat belts provided.
WARNING
- Shoulder belts
on small children
Never allow a shoulder belt to be
in contact with a child’s neck or
face while the vehicle is in
motion.
If safety belts are not properly worn and adjusted, there is a risk
of death or serious injury to a
child.
WARNING
- Hot metalparts
Safety belts and seats can become
hot in a vehicle that has been
closed during warm/hot weather;
they could burn a child. Check seat
covers and buckles before you
place a child anywhere near them.

343
Knowing your vehicle

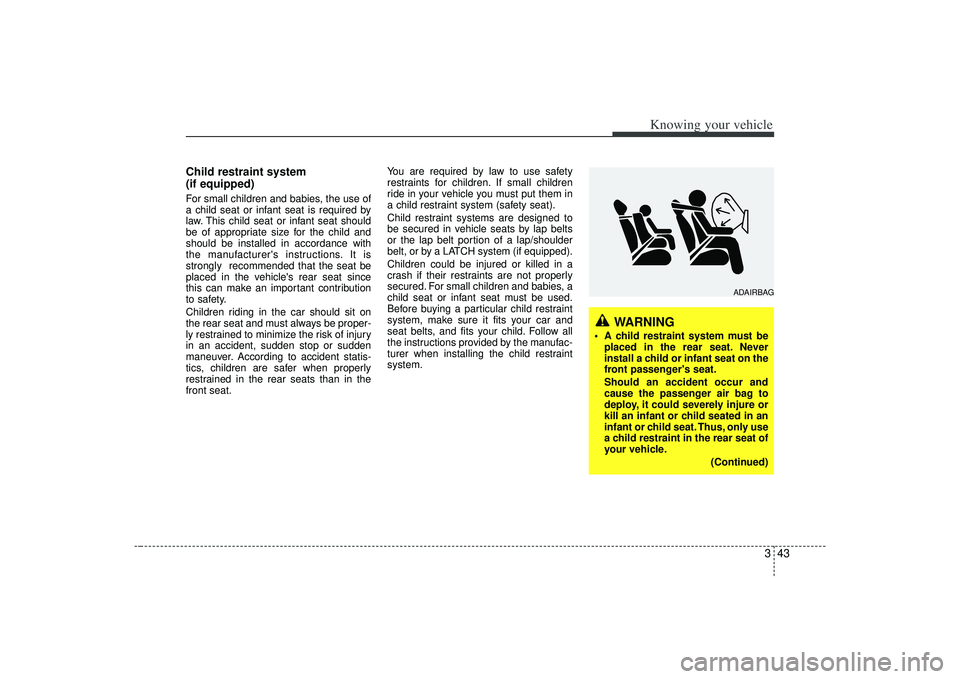

Child restraint system
(if equipped)For small children and babies, the use of
a child seat or infant seat is required by
law. This child seat or infant seat should
be of appropriate size for the child and
should be installed in accordance with
the manufacturer's instructions. It is
strongly recommended that the seat be
placed in the vehicle's rear seat since
this can make an important contribution
to safety.
Children riding in the car should sit on
the rear seat and must always be proper-
ly restrained to minimize the risk of injury
in an accident, sudden stop or sudden
maneuver. According to accident statis-
tics, children are safer when properly
restrained in the rear seats than in the
front seat.You are required by law to use safety
restraints for children. If small children
ride in your vehicle you must put them in
a child restraint system (safety seat).
Child restraint systems are designed to
be secured in vehicle seats by lap belts
or the lap belt portion of a lap/shoulder
belt, or by a LATCH system (if equipped).
Children could be injured or killed in a
crash if their restraints are not properly
secured. For small children and babies, a
child seat or infant seat must be used.
Before buying a particular child restraint
system, make sure it fits your car and
seat belts, and fits your child. Follow all
the instructions provided by the manufac-
turer when installing the child restraint
system.
ADAIRBAG
WARNING
A child restraint system must be
placed in the rear seat. Never
install a child or infant seat on the
front passenger's seat.
Should an accident occur and
cause the passenger air bag to
deploy, it could severely injure or
kill an infant or child seated in an
infant or child seat. Thus, only use
a child restraint in the rear seat of
your vehicle.
(Continued)

Knowing your vehicle44

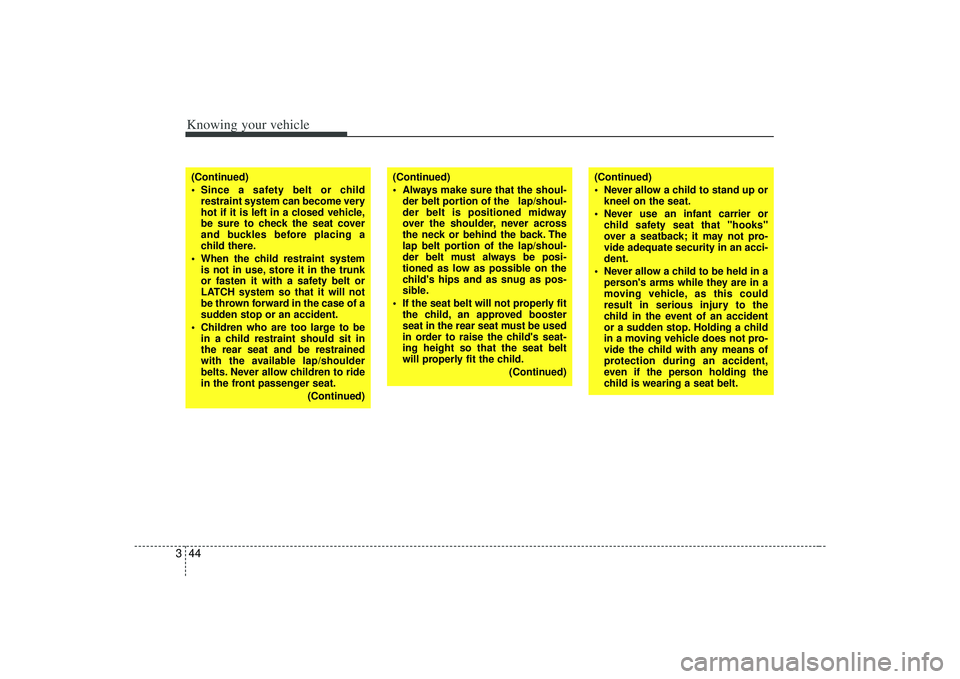

3(Continued)
Since a safety belt or child
restraint system can become very
hot if it is left in a closed vehicle,
be sure to check the seat cover
and buckles before placing a
child there.
When the child restraint system is not in use, store it in the trunk
or fasten it with a safety belt or
LATCH system so that it will not
be thrown forward in the case of a
sudden stop or an accident.
Children who are too large to be in a child restraint should sit in
the rear seat and be restrained
with the available lap/shoulder
belts. Never allow children to ride
in the front passenger seat.
(Continued)
(Continued)
Always make sure that the shoul-der belt portion of the lap/shoul-
der belt is positioned midway
over the shoulder, never across
the neck or behind the back. The
lap belt portion of the lap/shoul-
der belt must always be posi-
tioned as low as possible on the
child's hips and as snug as pos-
sible.
If the seat belt will not properly fit the child, an approved booster
seat in the rear seat must be used
in order to raise the child's seat-
ing height so that the seat belt
will properly fit the child.
(Continued)
(Continued)
Never allow a child to stand up orkneel on the seat.
Never use an infant carrier or child safety seat that "hooks"
over a seatback; it may not pro-
vide adequate security in an acci-
dent.
Never allow a child to be held in a person's arms while they are in a
moving vehicle, as this could
result in serious injury to the
child in the event of an accident
or a sudden stop. Holding a child
in a moving vehicle does not pro-
vide the child with any means of
protection during an accident,
even if the person holding the
child is wearing a seat belt.
