2009 KIA AMANTI Owners Manual

35
Knowing your vehicle
✽
✽NOTICEThe transmitter will not work if any of
the following occur:
- The ignition key is in the ignition
switch.
- You exceed the operating distance limit (393.7 inches [10 m]).
- The battery in the transmitter is weak.
- Other vehicles or objects may be blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an author-
ized Kia Dealer.
✽ ✽ NOTICEKeep the transmitter away from water
or any liquid. If the keyless entry system
is inoperative due to exposure to water
or liquids, it will not be covered by your
manufacturer vehicle warranty. Operational distance may vary depend-
ing upon the area the transmitter is used
in. For example, if the vehicle is parked
near police stations, government and
public offices, broadcasting stations, mil-
itary installations, airports, or transmit-
ting towers, etc., operational distance
may be lessened. This device complies with Part 15 of
the FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer- ence received, including interference
that may cause undesired operation.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.

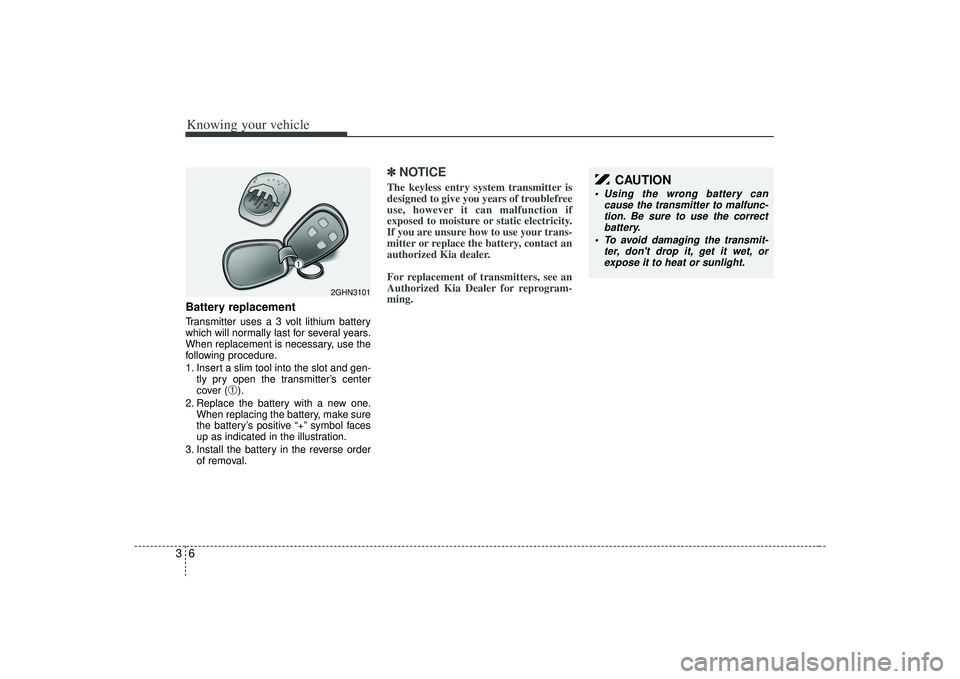

Knowing your vehicle63Battery replacementTransmitter uses a 3 volt lithium battery
which will normally last for several years.
When replacement is necessary, use the
following procedure.
1. Insert a slim tool into the slot and gen-tly pry open the transmitter’s center
cover (
➀).
2. Replace the battery with a new one. When replacing the battery, make sure
the battery’s positive “+” symbol faces
up as indicated in the illustration.
3. Install the battery in the reverse order of removal.
✽ ✽NOTICEThe keyless entry system transmitter is
designed to give you years of troublefree
use, however it can malfunction if
exposed to moisture or static electricity.
If you are unsure how to use your trans-
mitter or replace the battery, contact an
authorized Kia dealer.
For replacement of transmitters, see an
Authorized Kia Dealer for reprogram-
ming.
2GHN3101
CAUTION
• Using the wrong battery can
cause the transmitter to malfunc-tion. Be sure to use the correctbattery.
To avoid damaging the transmit- ter, don't drop it, get it wet, orexpose it to heat or sunlight.
➀

37
Knowing your vehicle

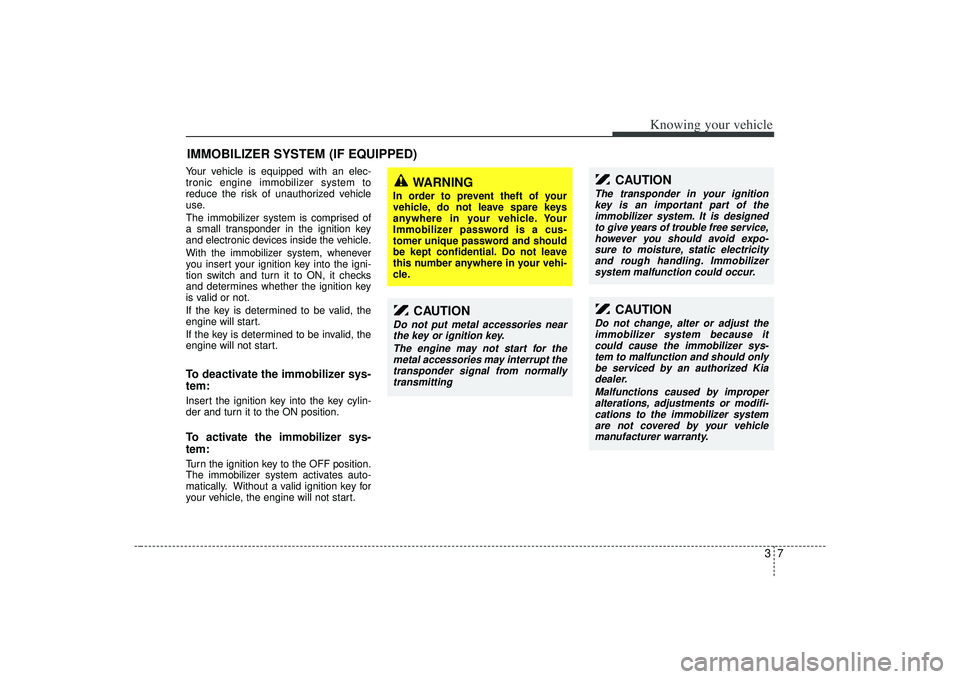

Your vehicle is equipped with an elec-
tronic engine immobilizer system to
reduce the risk of unauthorized vehicle
use.
The immobilizer system is comprised of
a small transponder in the ignition key
and electronic devices inside the vehicle.
With the immobilizer system, whenever
you insert your ignition key into the igni-
tion switch and turn it to ON, it checks
and determines whether the ignition key
is valid or not.
If the key is determined to be valid, the
engine will start.
If the key is determined to be invalid, the
engine will not start.To deactivate the immobilizer sys-
tem:Insert the ignition key into the key cylin-
der and turn it to the ON position.To activate the immobilizer sys-
tem:Turn the ignition key to the OFF position.
The immobilizer system activates auto-
matically. Without a valid ignition key for
your vehicle, the engine will not start.IMMOBILIZER SYSTEM (IF EQUIPPED)
CAUTION
The transponder in your ignitionkey is an important part of theimmobilizer system. It is designed to give years of trouble free service,however you should avoid expo- sure to moisture, static electricityand rough handling. Immobilizersystem malfunction could occur.
CAUTION
Do not change, alter or adjust the immobilizer system because itcould cause the immobilizer sys-tem to malfunction and should only be serviced by an authorized Kiadealer.
Malfunctions caused by improperalterations, adjustments or modifi-cations to the immobilizer system are not covered by your vehiclemanufacturer warranty.
CAUTION
Do not put metal accessories nearthe key or ignition key.
The engine may not start for themetal accessories may interrupt thetransponder signal from normally transmitting
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
Immobilizer password is a cus-
tomer unique password and should
be kept confidential. Do not leave
this number anywhere in your vehi-
cle.

Knowing your vehicle83✽

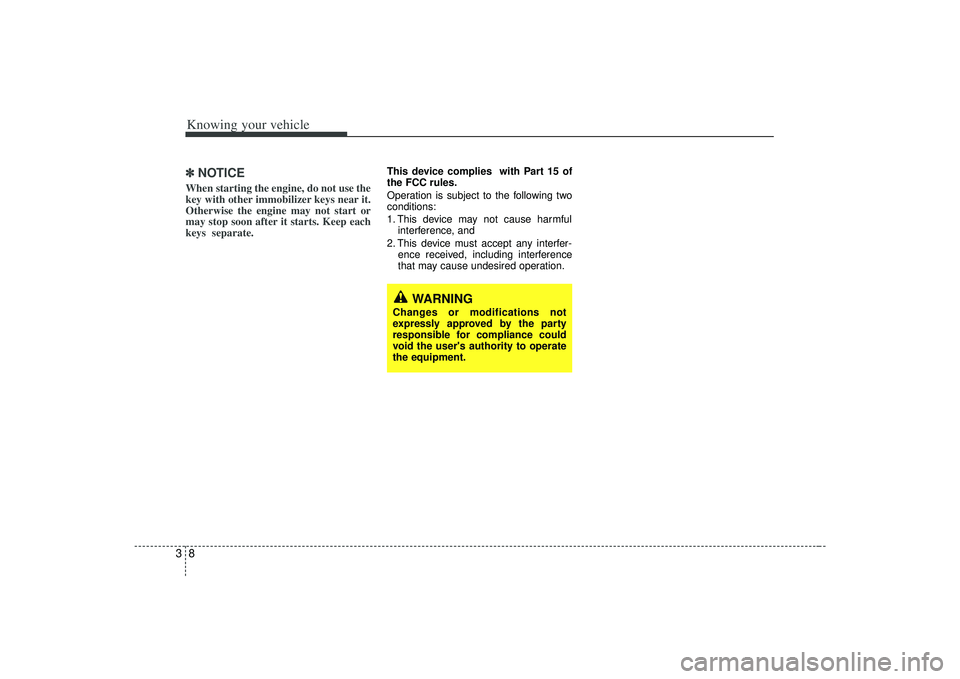

✽NOTICEWhen starting the engine, do not use the
key with other immobilizer keys near it.
Otherwise the engine may not start or
may stop soon after it starts. Keep each
keys separate.
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer- ence received, including interference
that may cause undesired operation.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.

39
Knowing your vehicle

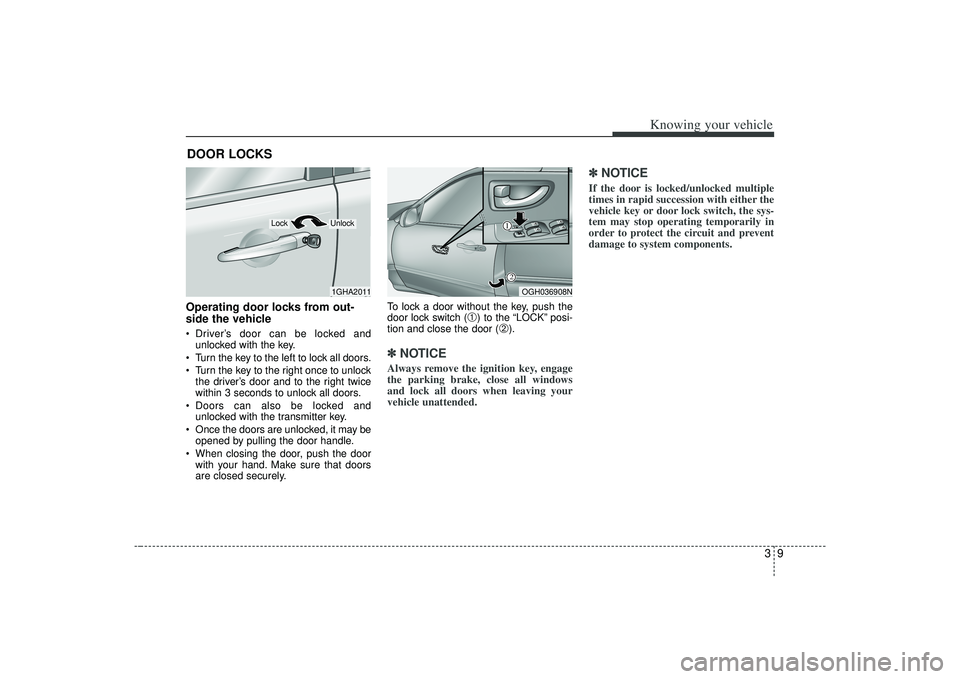

Operating door locks from out-
side the vehicle Driver’s door can be locked andunlocked with the key.
Turn the key to the left to lock all doors.
Turn the key to the right once to unlock the driver’s door and to the right twice
within 3 seconds to unlock all doors.
Doors can also be locked and unlocked with the transmitter key.
Once the doors are unlocked, it may be opened by pulling the door handle.
When closing the door, push the door with your hand. Make sure that doors
are closed securely. To lock a door without the key, push the
door lock switch (
➀) to the “LOCK” posi-
tion and close the door (
➁).
✽ ✽ NOTICEAlways remove the ignition key, engage
the parking brake, close all windows
and lock all doors when leaving your
vehicle unattended.
✽ ✽NOTICEIf the door is locked/unlocked multiple
times in rapid succession with either the
vehicle key or door lock switch, the sys-
tem may stop operating temporarily in
order to protect the circuit and prevent
damage to system components.
DOOR LOCKS
1GHA2011
Lock
Unlock
12
OGH036908N

Knowing your vehicle10

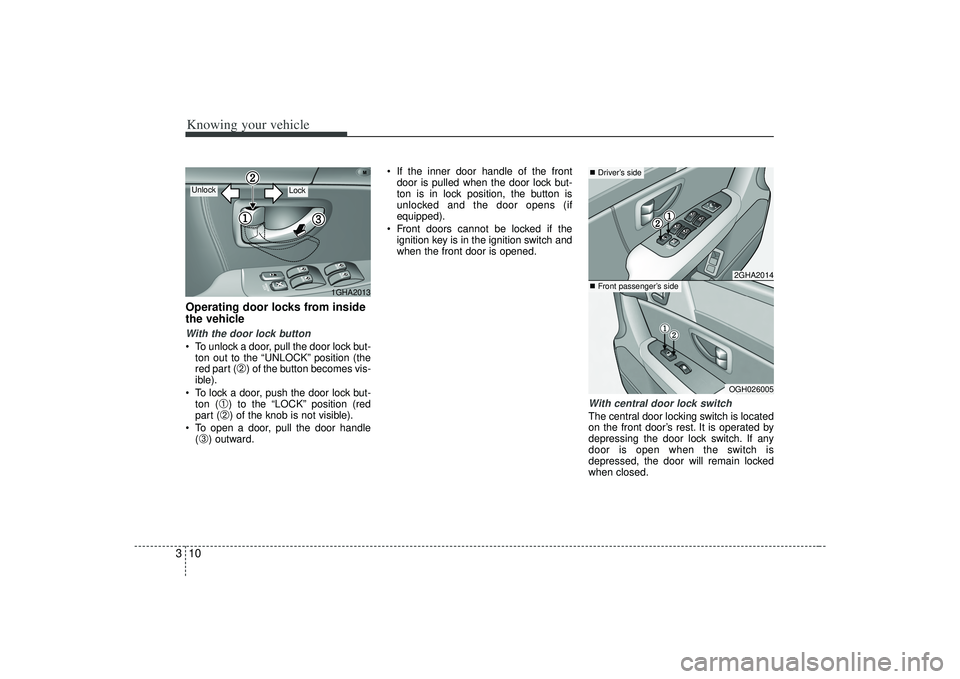

3Operating door locks from inside
the vehicleWith the door lock button To unlock a door, pull the door lock but-
ton out to the “UNLOCK” position (the
red part (
➁) of the button becomes vis-
ible).
To lock a door, push the door lock but- ton (
➀) to the “LOCK” position (red
part (➁) of the knob is not visible).
To open a door, pull the door handle (
➂) outward. If the inner door handle of the front
door is pulled when the door lock but-
ton is in lock position, the button is
unlocked and the door opens (if
equipped).
Front doors cannot be locked if the ignition key is in the ignition switch and
when the front door is opened.
With central door lock switchThe central door locking switch is located
on the front door’s rest. It is operated by
depressing the door lock switch. If any
door is open when the switch is
depressed, the door will remain locked
when closed.
1GHA2013
Lock
Unlock
2GHA2014OGH026005
„ Driver’s side„Front passenger’s side

311
Knowing your vehicle

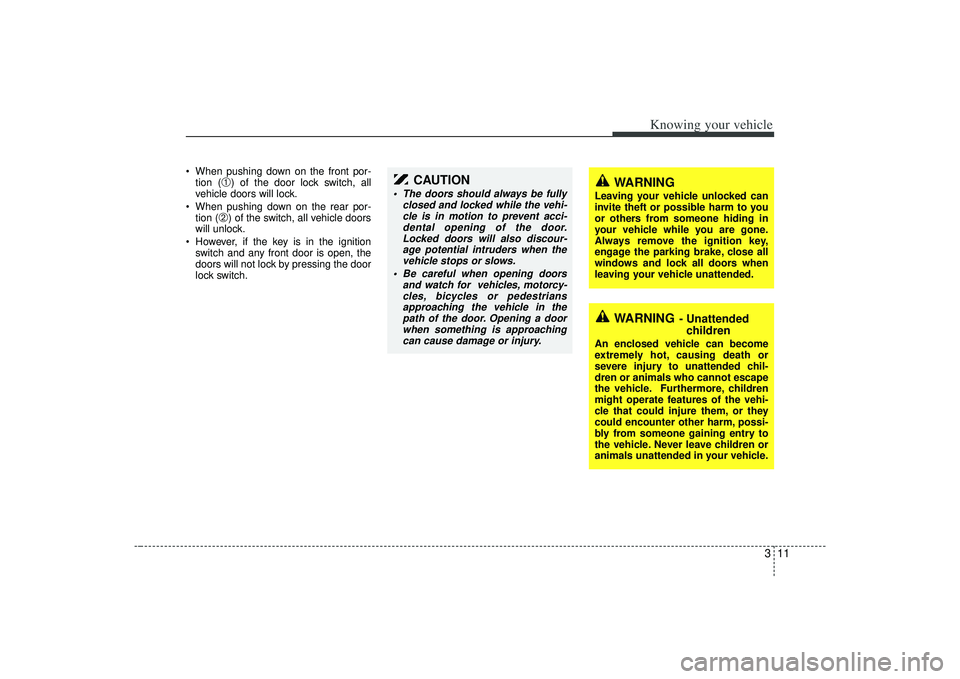

When pushing down on the front por-tion (
➀) of the door lock switch, all
vehicle doors will lock.
When pushing down on the rear por- tion (
➁) of the switch, all vehicle doors
will unlock.
However, if the key is in the ignition switch and any front door is open, the
doors will not lock by pressing the door
lock switch.
CAUTION
The doors should always be fully closed and locked while the vehi-cle is in motion to prevent acci-dental opening of the door. Locked doors will also discour-age potential intruders when thevehicle stops or slows.
Be careful when opening doors and watch for vehicles, motorcy-cles, bicycles or pedestrians approaching the vehicle in thepath of the door. Opening a doorwhen something is approaching can cause damage or injury.
WARNING
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING
- Unattended children
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.

Knowing your vehicle12

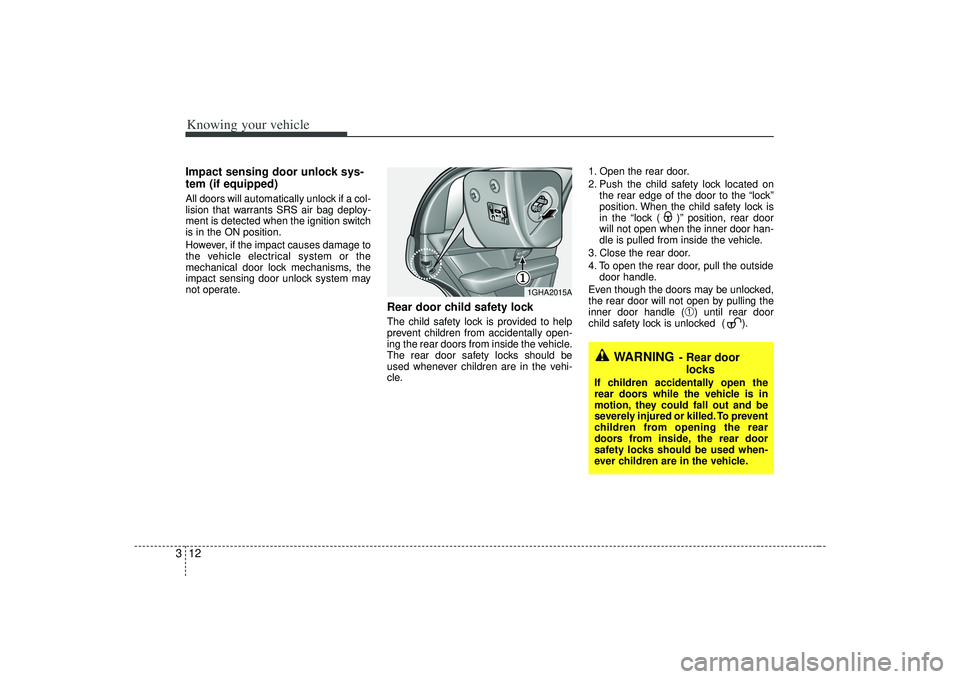

3Impact sensing door unlock sys-
tem (if equipped)All doors will automatically unlock if a col-
lision that warrants SRS air bag deploy-
ment is detected when the ignition switch
is in the ON position.
However, if the impact causes damage to
the vehicle electrical system or the
mechanical door lock mechanisms, the
impact sensing door unlock system may
not operate.
Rear door child safety lockThe child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle. 1. Open the rear door.
2. Push the child safety lock located on
the rear edge of the door to the “lock”
position. When the child safety lock is
in the “lock ( )” position, rear door
will not open when the inner door han-
dle is pulled from inside the vehicle.
3. Close the rear door.
4. To open the rear door, pull the outside door handle.
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle (
➀) until rear door
child safety lock is unlocked ( ).
1GHA2015A
WARNING
- Rear door locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To prevent
children from opening the rear
doors from inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
