2009 KIA AMANTI Owners Manual

313
Knowing your vehicle

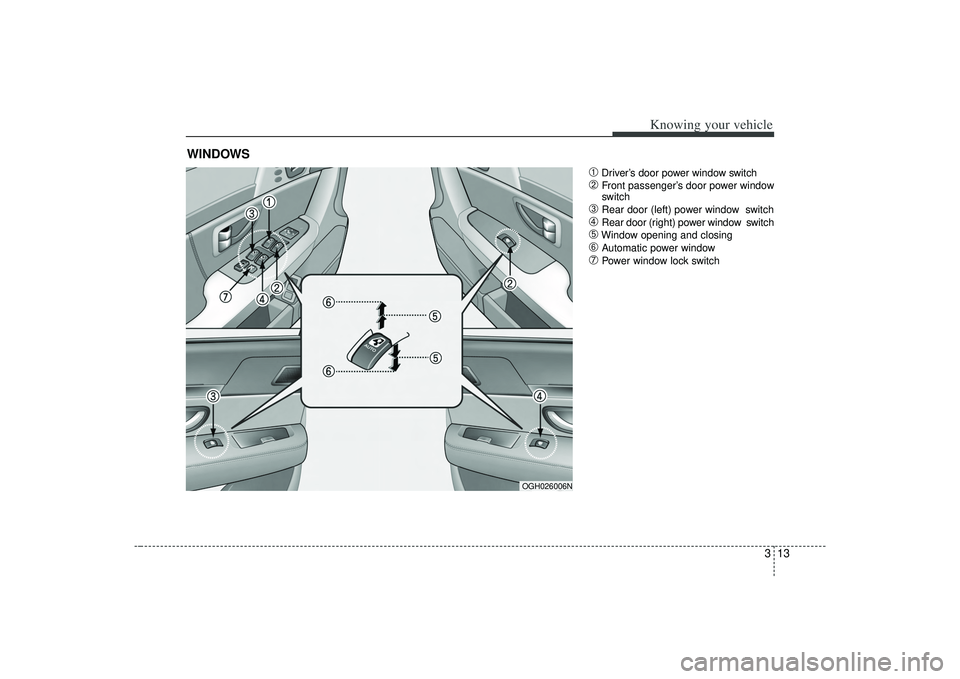

➀
Driver’s door power window switch
➁
Front passenger’s door power window
switch
➂
Rear door (left) power window switch
➃
Rear door (right) power window switch
➄
Window opening and closing
\b
Automatic power window
➆
Power window lock switch
WINDOWS
OGH026006N

Knowing your vehicle14

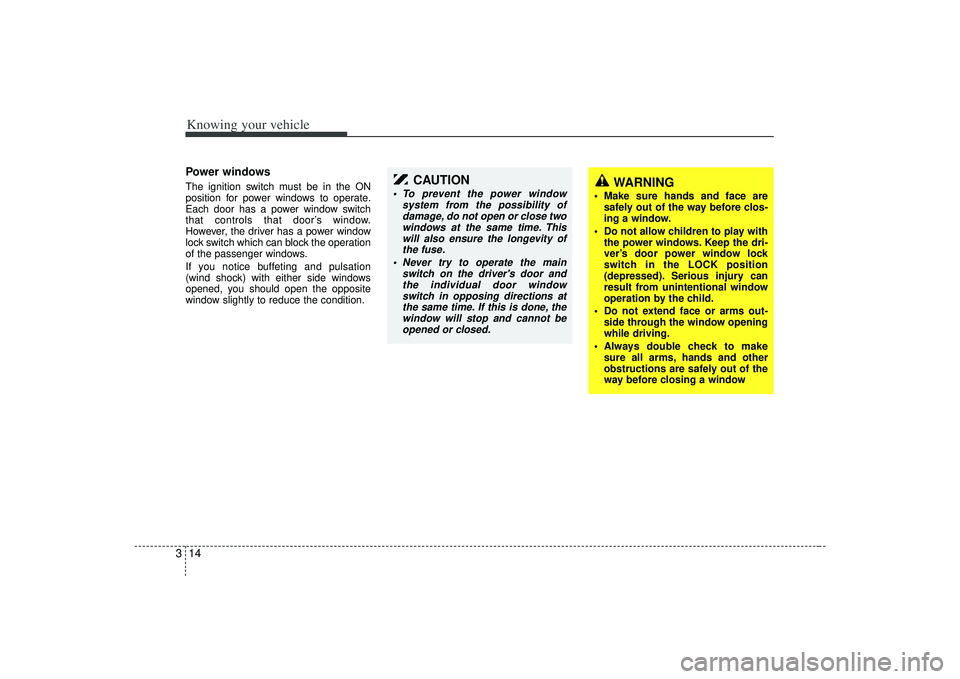

3Power windows The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls that door’s window.
However, the driver has a power window
lock switch which can block the operation
of the passenger windows.
If you notice buffeting and pulsation
(wind shock) with either side windows
opened, you should open the opposite
window slightly to reduce the condition.
CAUTION
To prevent the power window
system from the possibility ofdamage, do not open or close twowindows at the same time. This will also ensure the longevity ofthe fuse.
Never try to operate the main switch on the driver's door andthe individual door windowswitch in opposing directions atthe same time. If this is done, thewindow will stop and cannot be opened or closed.
WARNING
Make sure hands and face are safely out of the way before clos-
ing a window.
Do not allow children to play with the power windows. Keep the dri-
ver’s door power window lock
switch in the LOCK position
(depressed). Serious injury can
result from unintentional window
operation by the child.
Do not extend face or arms out- side through the window opening
while driving.
Always double check to make sure all arms, hands and other
obstructions are safely out of the
way before closing a window

315
Knowing your vehicle

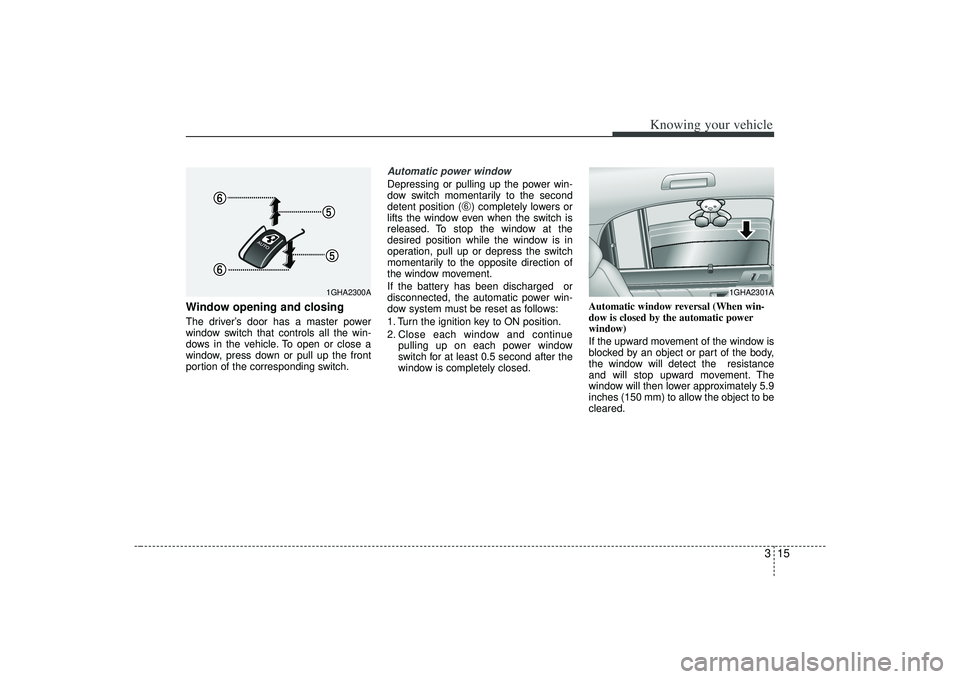

Window opening and closingThe driver’s door has a master power
window switch that controls all the win-
dows in the vehicle. To open or close a
window, press down or pull up the front
portion of the corresponding switch.
Automatic power windowDepressing or pulling up the power win-
dow switch momentarily to the second
detent position (
\b) completely lowers or
lifts the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or depress the switch
momentarily to the opposite direction of
the window movement.
If the battery has been discharged or
disconnected, the automatic power win-
dow system must be reset as follows:
1. Turn the ignition key to ON position.
2. Close each window and continue pulling up on each power window
switch for at least 0.5 second after the
window is completely closed. Automatic window reversal (When win-
dow is closed by the automatic power
window)
If the upward movement of the window is
blocked by an object or part of the body,
the window will detect the resistance
and will stop upward movement. The
window will then lower approximately 5.9
inches (150 mm) to allow the object to be
cleared.
1GHA2301A
1GHA2300A

Knowing your vehicle16
3

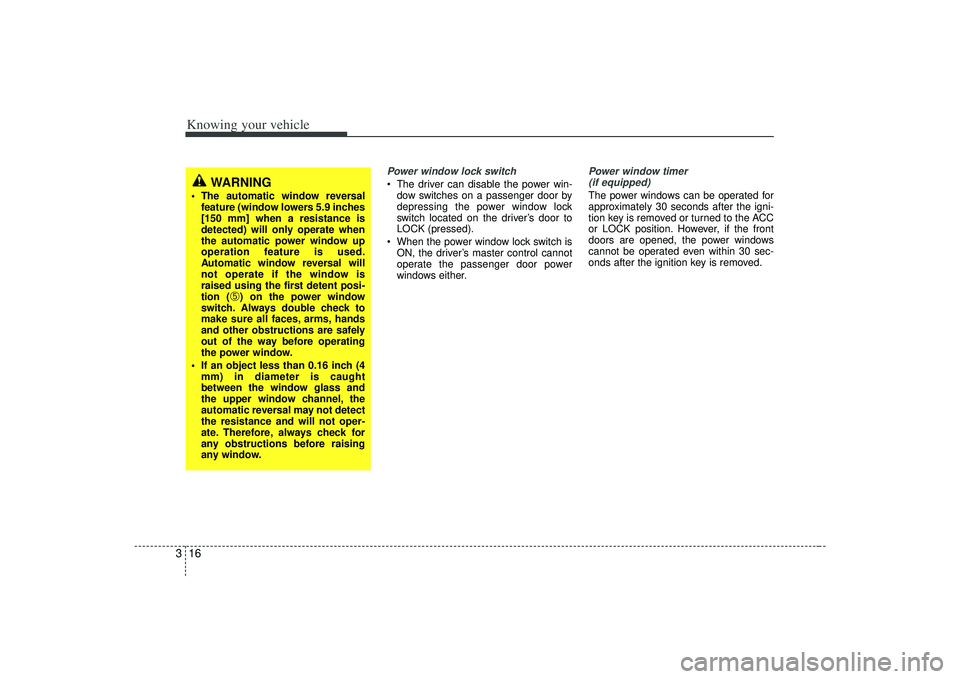

Power window lock switch The driver can disable the power win-
dow switches on a passenger door by
depressing the power window lock
switch located on the driver’s door to
LOCK (pressed).
When the power window lock switch is ON, the driver’s master control cannot
operate the passenger door power
windows either.
Power window timer (if equipped)The power windows can be operated for
approximately 30 seconds after the igni-
tion key is removed or turned to the ACC
or LOCK position. However, if the front
doors are opened, the power windows
cannot be operated even within 30 sec-
onds after the ignition key is removed.
WARNING
The automatic window reversal feature (window lowers 5.9 inches
[150 mm] when a resistance is
detected) will only operate when
the automatic power window up
operation feature is used.
Automatic window reversal will
not operate if the window is
raised using the first detent posi-
tion (
➄) on the power window
switch. Always double check to
make sure all faces, arms, hands
and other obstructions are safely
out of the way before operating
the power window.
If an object less than 0.16 inch (4 mm) in diameter is caught
between the window glass and
the upper window channel, the
automatic reversal may not detect
the resistance and will not oper-
ate. Therefore, always check for
any obstructions before raising
any window.

317
Knowing your vehicle

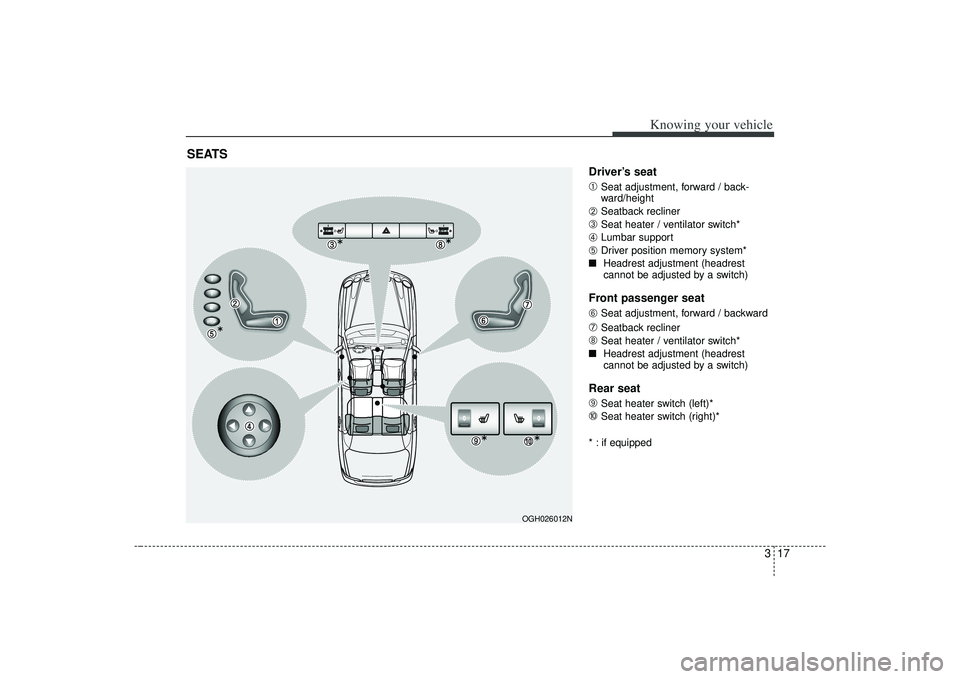

Driver’s seat
➀
Seat adjustment, forward / back-
ward/height
➁
Seatback recliner
➂
Seat heater / ventilator switch*
➃
Lumbar support
➄
Driver position memory system*
■ Headrest adjustment (headrest
cannot be adjusted by a switch)
Front passenger seat
\b
Seat adjustment, forward / backward
➆
Seatback recliner
➇
Seat heater / ventilator switch*
■ Headrest adjustment (headrest
cannot be adjusted by a switch)
Rear seat
\f
Seat heater switch (left)*
➉
Seat heater switch (right)*
* : if equipped
SEATS
STOPSTOP
OGH026012N

Knowing your vehicle18

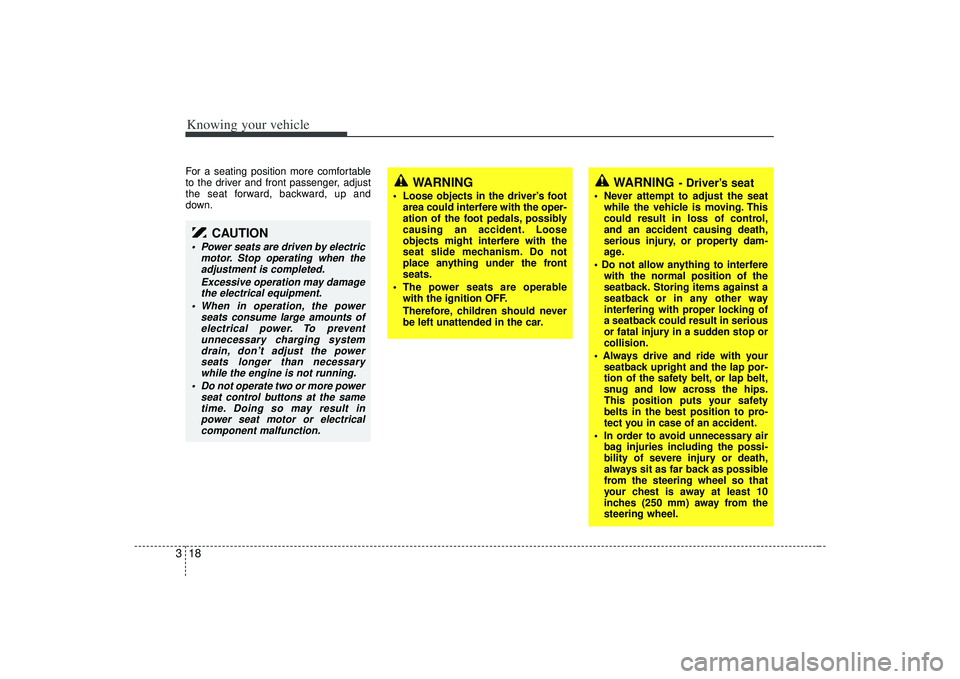

3For a seating position more comfortable
to the driver and front passenger, adjust
the seat forward, backward, up and
down.
WARNING
Loose objects in the driver’s foot
area could interfere with the oper-
ation of the foot pedals, possibly
causing an accident. Loose
objects might interfere with the
seat slide mechanism. Do not
place anything under the front
seats.
The power seats are operable with the ignition OFF.
Therefore, children should never
be left unattended in the car.
WARNING
- Driver’s seat
Never attempt to adjust the seatwhile the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
seatback upright and the lap por-
tion of the safety belt, or lap belt,
snug and low across the hips.
This position puts your safety
belts in the best position to pro-
tect you in case of an accident.
In order to avoid unnecessary air bag injuries including the possi-
bility of severe injury or death,
always sit as far back as possible
from the steering wheel so that
your chest is away at least 10
inches (250 mm) away from the
steering wheel.
CAUTION
Power seats are driven by electric motor. Stop operating when theadjustment is completed.
Excessive operation may damagethe electrical equipment.
When in operation, the power seats consume large amounts ofelectrical power. To preventunnecessary charging system drain, don’t adjust the powerseats longer than necessarywhile the engine is not running.
Do not operate two or more power seat control buttons at the sametime. Doing so may result inpower seat motor or electricalcomponent malfunction.

319
Knowing your vehicle

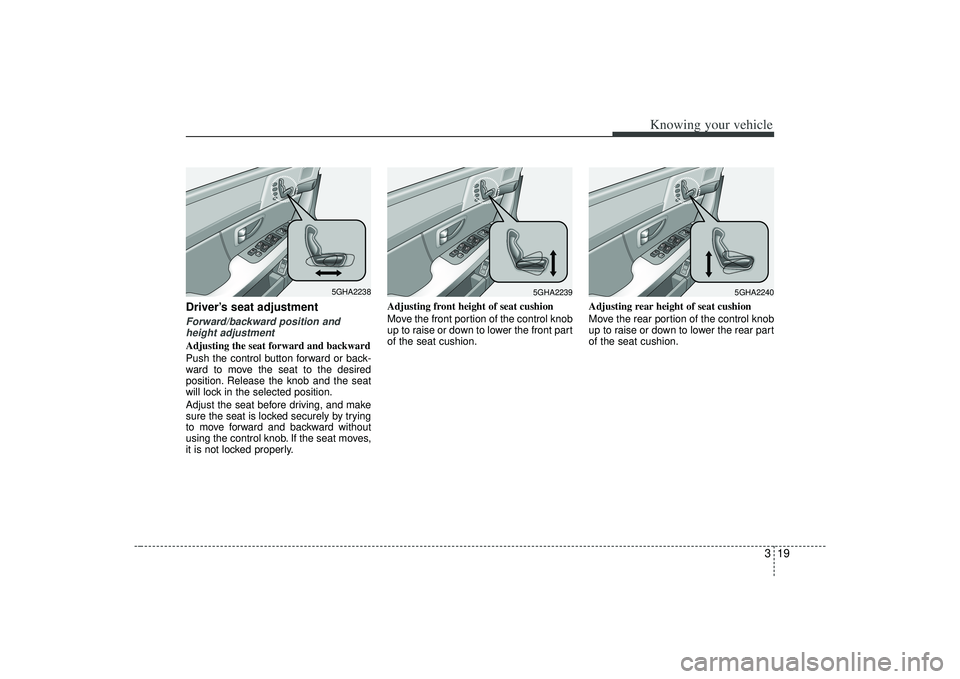

Driver’s seat adjustmentForward/backward position andheight adjustmentAdjusting the seat forward and backward
Push the control button forward or back-
ward to move the seat to the desired
position. Release the knob and the seat
will lock in the selected position.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the control knob. If the seat moves,
it is not locked properly. Adjusting front height of seat cushion
Move the front portion of the control knob
up to raise or down to lower the front part
of the seat cushion.
Adjusting rear height of seat cushion
Move the rear portion of the control knob
up to raise or down to lower the rear part
of the seat cushion.
5GHA2238
5GHA2239
5GHA2240

Knowing your vehicle20
3
WARNING
Driving or riding in a vehicle with a
front seatback reclined could lead
to serious or fatal injury in an acci-
dent. If a front seat is reclined dur-
ing an accident, the occupant’s hips
may slide under the lap portion of
the safety belt applying great force
to the unprotected abdomen or
neck or a passenger may be ejected
in a rollover. Serious or fatal inter-
nal injuries could result. Keep the
seatbacks in a comfortably upright
position whenever the vehicle is in
motion.

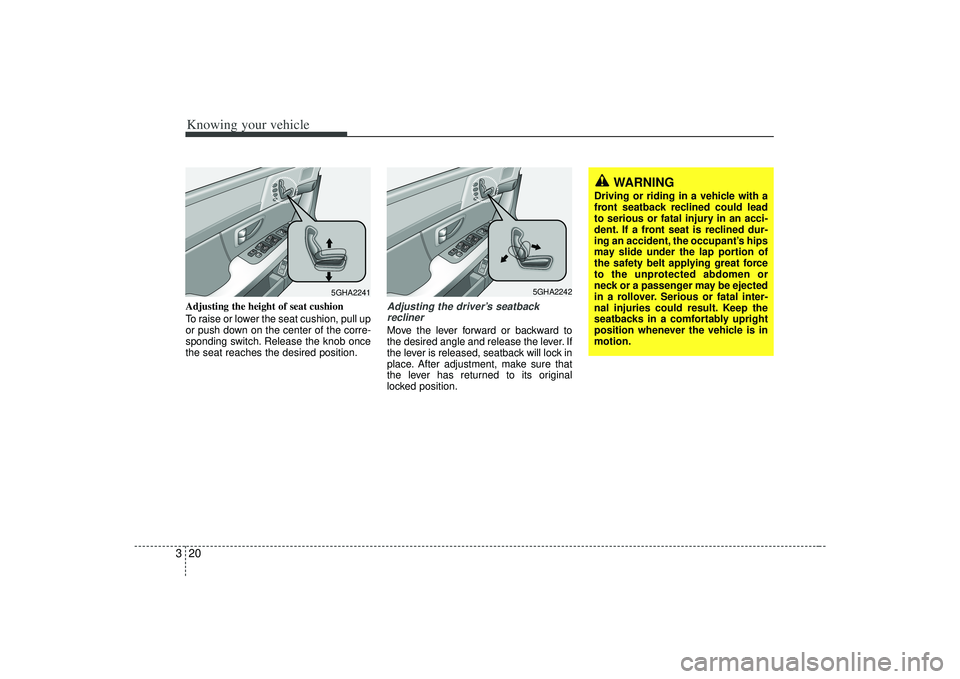

Adjusting the height of seat cushion
To raise or lower the seat cushion, pull up
or push down on the center of the corre-
sponding switch. Release the knob once
the seat reaches the desired position.
Adjusting the driver’s seatback
reclinerMove the lever forward or backward to
the desired angle and release the lever. If
the lever is released, seatback will lock in
place. After adjustment, make sure that
the lever has returned to its original
locked position.
5GHA2241
5GHA2242
