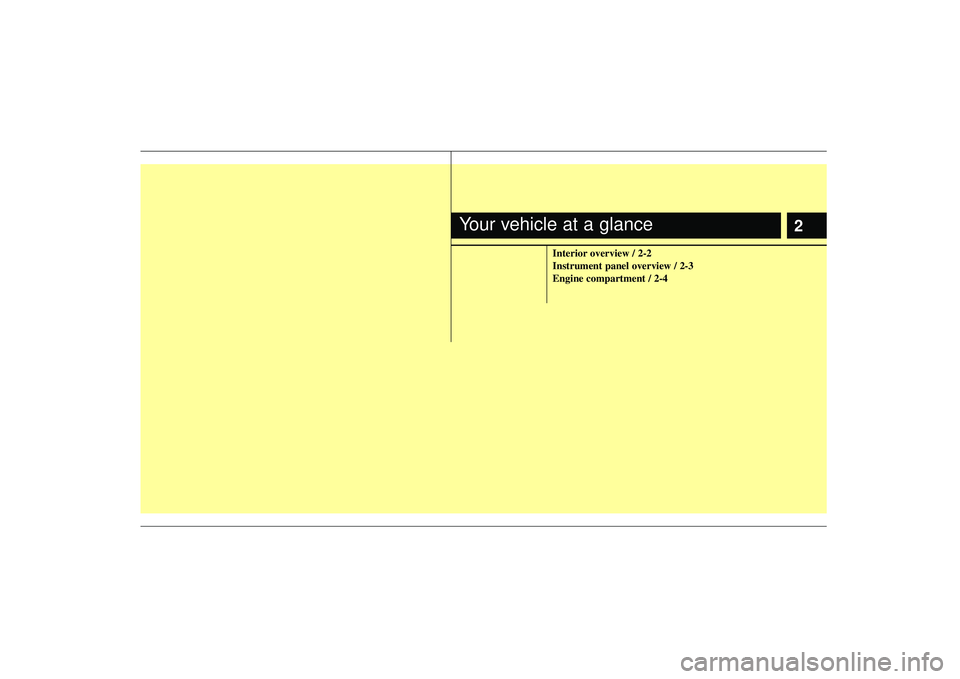

2009 KIA AMANTI Owners Manual

2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance

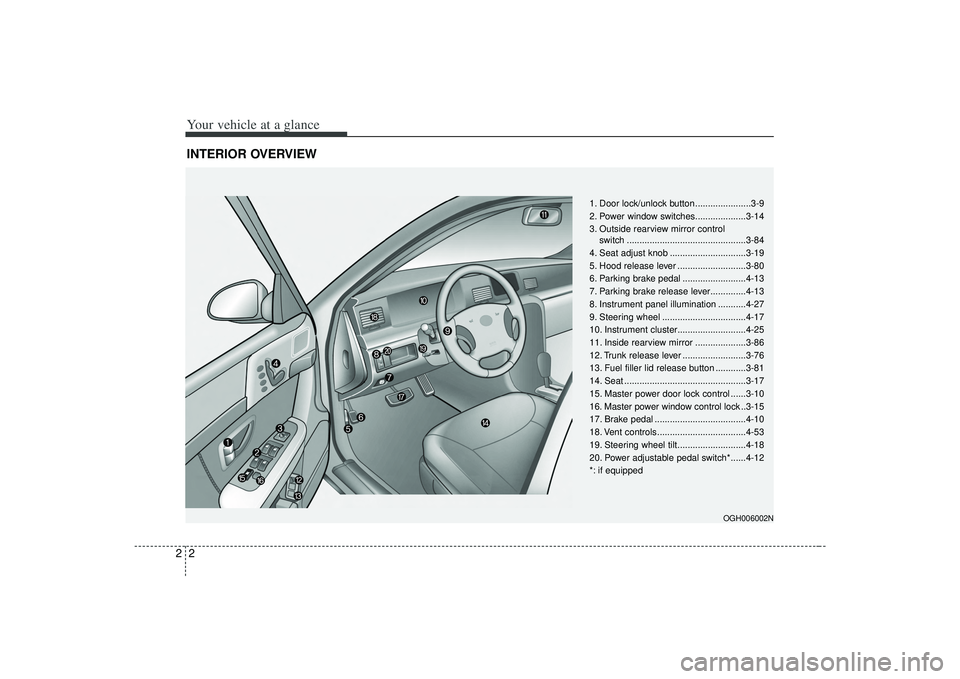

Your vehicle at a glance22INTERIOR OVERVIEW
OGH006002N
1. Door lock/unlock button ......................3-9
2. Power window switches....................3-14
3. Outside rearview mirror control switch ...............................................3-84
4. Seat adjust knob ..............................3-19
5. Hood release lever ...........................3-80
6. Parking brake pedal .........................4-13
7. Parking brake release lever..............4-13
8. Instrument panel illumination ...........4-27
9. Steering wheel .................................4-17
10. Instrument cluster...........................4-25
11. Inside rearview mirror ....................3-86
12. Trunk release lever .........................3-76
13. Fuel filler lid release button ............3-81
14. Seat ................................................3-17
15. Master power door lock control ......3-10
16. Master power window control lock ..3-15
17. Brake pedal ....................................4-10
18. Vent controls...................................4-53
19. Steering wheel tilt...........................4-18
20. Power adjustable pedal switch*......4-12
*: if equipped

23
Your vehicle at a glance

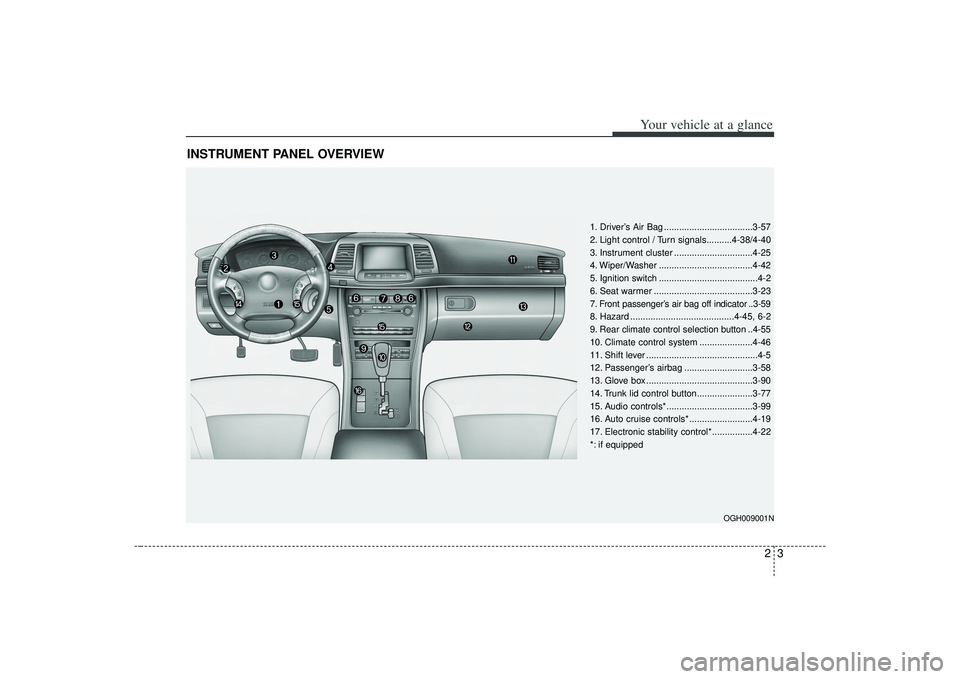

INSTRUMENT PANEL OVERVIEW
1. Driver’s Air Bag ...................................3-57
2. Light control / Turn signals..........4-38/4-40
3. Instrument cluster ...............................4-25
4. Wiper/Washer .....................................4-42
5. Ignition switch .......................................4-2
6. Seat warmer .......................................3-23
7. Front passenger’s air bag off indicator ..3-59
8. Hazard .........................................4-45, 6-2
9. Rear climate control selection button ..4-55
10. Climate control system .....................4-46
11. Shift lever ............................................4-5
12. Passenger’s airbag ...........................3-58
13. Glove box ..........................................3-90
14. Trunk lid control button......................3-77
15. Audio controls*..................................3-99
16. Auto cruise controls* .........................4-19
17. Electronic stability control*................4-22
*: if equipped
OGH009001N

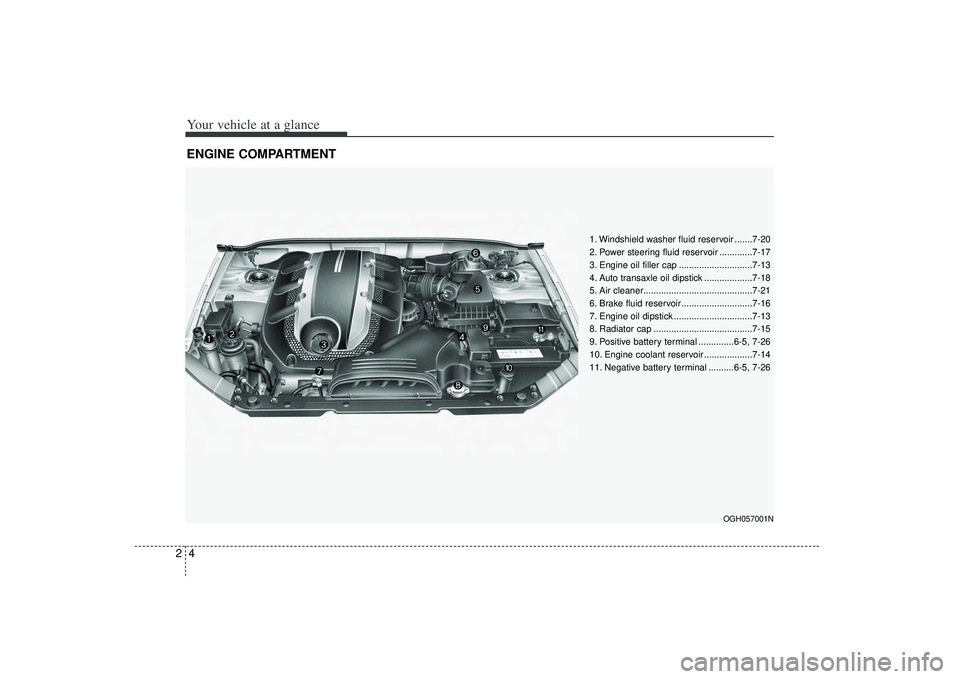

Your vehicle at a glance42ENGINE COMPARTMENT
OGH057001N
1. Windshield washer fluid reservoir .......7-20
2. Power steering fluid reservoir .............7-17
3. Engine oil filler cap .............................7-13
4. Auto transaxle oil dipstick ...................7-18
5. Air cleaner...........................................7-21
6. Brake fluid reservoir ............................7-16
7. Engine oil dipstick ...............................7-13
8. Radiator cap .......................................7-15
9. Positive battery terminal ..............6-5, 7-26
10. Engine coolant reservoir ...................7-14
11. Negative battery terminal ..........6-5, 7-26

3

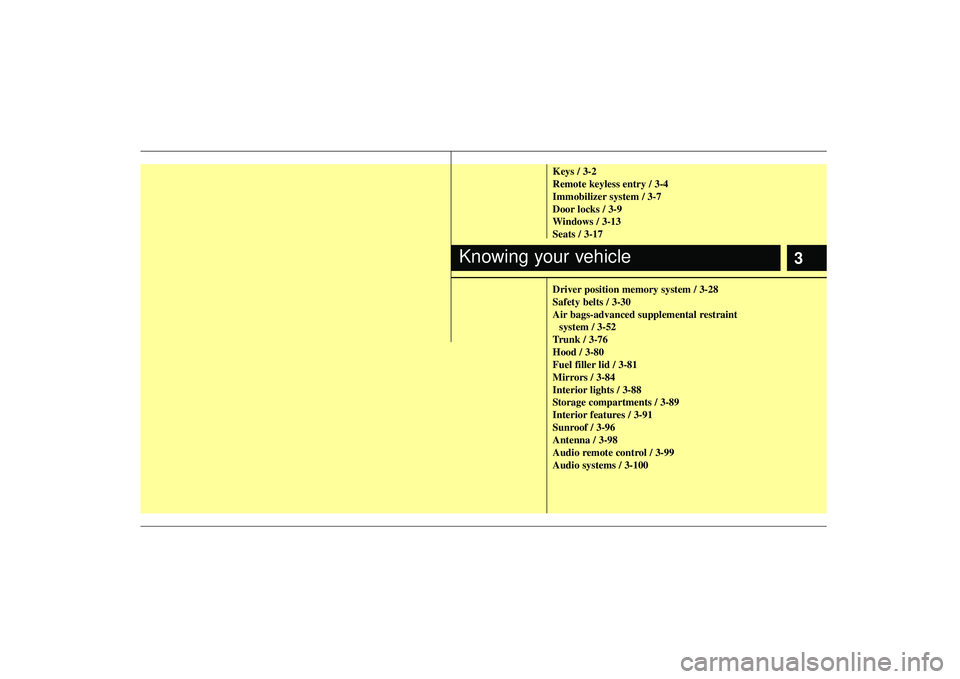

Keys / 3-2
Remote keyless entry / 3-4
Immobilizer system / 3-7
Door locks / 3-9
Windows / 3-13
Seats / 3-17
Driver position memory system / 3-28
Safety belts / 3-30
Air bags-advanced supplemental restraint system / 3-52
Trunk / 3-76
Hood / 3-80
Fuel filler lid / 3-81
Mirrors / 3-84
Interior lights / 3-88
Storage compartments / 3-89
Interior features / 3-91
Sunroof / 3-96
Antenna / 3-98
Audio remote control / 3-99
Audio systems / 3-100
Knowing your vehicle

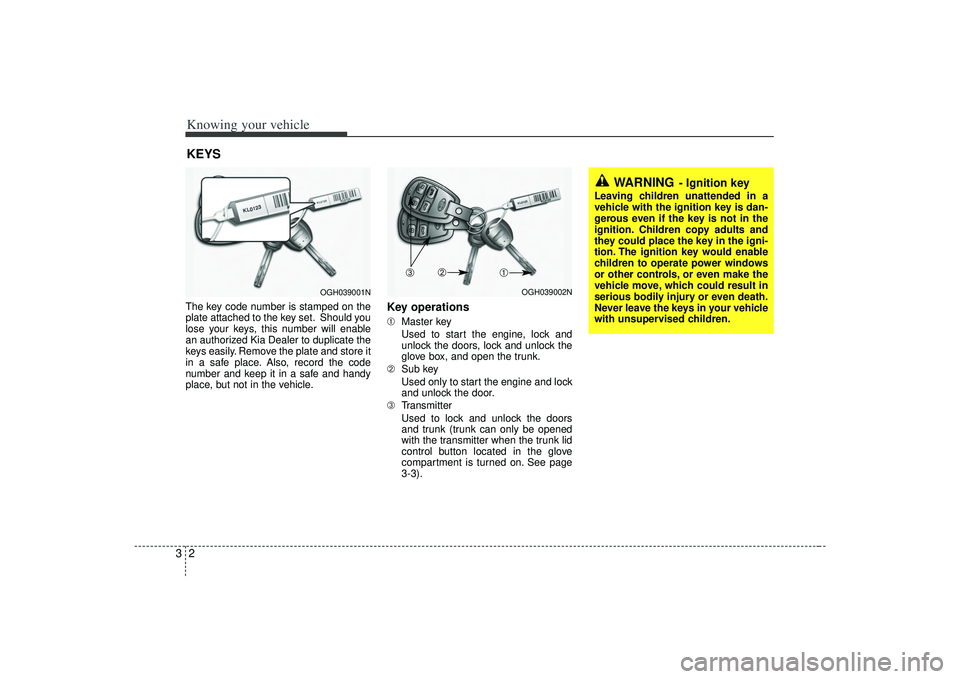

Knowing your vehicle23The key code number is stamped on the
plate attached to the key set. Should you
lose your keys, this number will enable
an authorized Kia Dealer to duplicate the
keys easily. Remove the plate and store it
in a safe place. Also, record the code
number and keep it in a safe and handy
place, but not in the vehicle.
Key operations➀Master key
Used to start the engine, lock and unlock the doors, lock and unlock the
glove box, and open the trunk.
➁ Sub key
Used only to start the engine and lock
and unlock the door.
➂ Transmitter
Used to lock and unlock the doors
and trunk (trunk can only be opened
with the transmitter when the trunk lid
control button located in the glove
compartment is turned on. See page
3-3).
KEYS
WARNING
- Ignition key
Leaving children unattended in a
vehicle with the ignition key is dan-
gerous even if the key is not in the
ignition. Children copy adults and
they could place the key in the igni-
tion. The ignition key would enable
children to operate power windows
or other controls, or even make the
vehicle move, which could result in
serious bodily injury or even death.
Never leave the keys in your vehicle
with unsupervised children.
OGH039001N
➀
➁
➂
OGH039002N

33
Knowing your vehicle

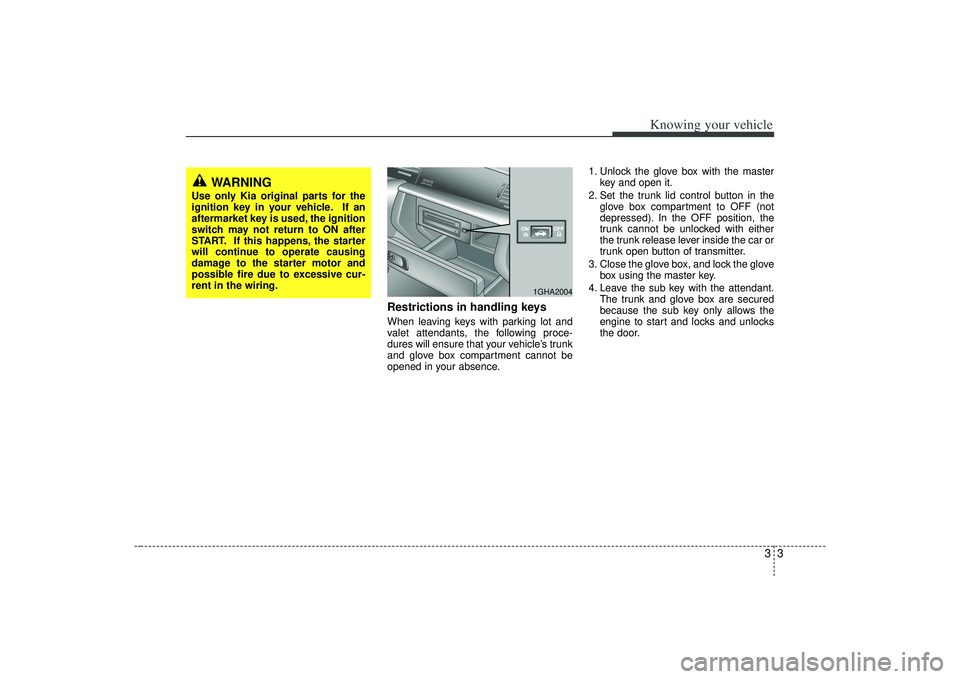

Restrictions in handling keysWhen leaving keys with parking lot and
valet attendants, the following proce-
dures will ensure that your vehicle’s trunk
and glove box compartment cannot be
opened in your absence.1. Unlock the glove box with the master
key and open it.
2. Set the trunk lid control button in the glove box compartment to OFF (not
depressed). In the OFF position, the
trunk cannot be unlocked with either
the trunk release lever inside the car or
trunk open button of transmitter.
3. Close the glove box, and lock the glove box using the master key.
4. Leave the sub key with the attendant. The trunk and glove box are secured
because the sub key only allows the
engine to start and locks and unlocks
the door.
1GHA2004
WARNING
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive cur-
rent in the wiring.

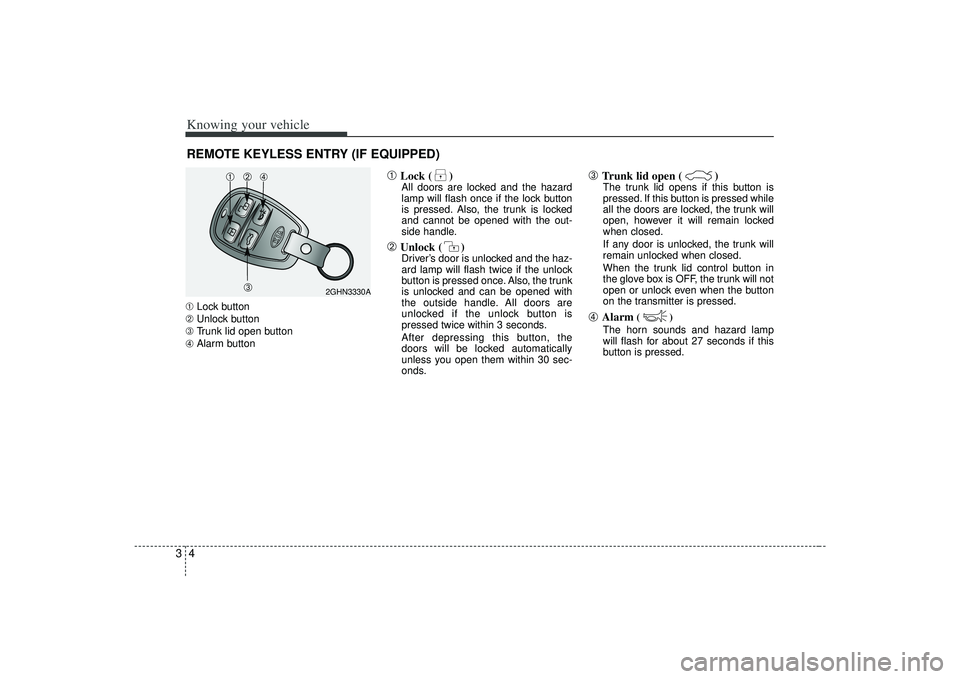

Knowing your vehicle43➀Lock button
➁ Unlock button
➂ Trunk lid open button
➃ Alarm button
➀
Lock ( )All doors are locked and the hazard
lamp will flash once if the lock button
is pressed. Also, the trunk is locked
and cannot be opened with the out-
side handle.
➁
Unlock ( )Driver’s door is unlocked and the haz-
ard lamp will flash twice if the unlock
button is pressed once. Also, the trunk
is unlocked and can be opened with
the outside handle. All doors are
unlocked if the unlock button is
pressed twice within 3 seconds.
After depressing this button, the
doors will be locked automatically
unless you open them within 30 sec-
onds.
➂
Trunk lid open ( )The trunk lid opens if this button is
pressed. If this button is pressed while
all the doors are locked, the trunk will
open, however it will remain locked
when closed.
If any door is unlocked, the trunk will
remain unlocked when closed.
When the trunk lid control button in
the glove box is OFF, the trunk will not
open or unlock even when the button
on the transmitter is pressed.
➃
Alarm
()
The horn sounds and hazard lamp
will flash for about 27 seconds if this
button is pressed.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
2GHN3330A
➀
➂
➁
➃
