B2604 PNP SWITCH
SEC-65
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
4. Check continuity between TCM harness connector and ground.
Is the inspection result normal?
YES >> Replace TCM. Refer to TM-153, "Exploded View".
NO >> Repair or replace harness.
VQ25DE MODELS
VQ25DE MODELS : Diagnosis ProcedureINFOID:0000000003867330
1.CHECK DTC WITH IPDM E/R
Check “Self diagnostic result” with CONSULT-III for IPDM E/R.
Is DTC B210F detected?
YES >> Refer to SEC-107, "DTC Logic".
NO >> GO TO 2.
2.CHECK PNP SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect park/neutral position switch connector.
3. Turn ignition switch ON.
4. Check voltage between park/neutral position switch harness connector and ground.
Is the inspection normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK PNP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between park/neutral position switch harness connector and IPDM E/R harness connec-
tor.
4. Check continuity between park/neutral position switch harness connector and ground.
Is the inspection result normal?
YES >> Check the following.
 10 A fuse (No. 42, located in the IPDM E/R)
TCM IPDM E/R
Continuity
Connector Terminal Connector Terminal
F2320F1272Existed
TCM
GroundContinuity
Connector Terminal
F23 20 Not existed
(+)
(–)Voltage (V)
(Approx.) Park/neutral position switch
Connector Terminal
F57 1 Ground Battery voltage
Park/neutral position switch IPDM E/R
Continuity
Connector Terminal Connector Terminal
F571F1274Existed
Park/neutral position switch
GroundContinuity
Connector Terminal
F57 1 Not existed

B2109 STEERING LOCK RELAY
SEC-97
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
B2109 STEERING LOCK RELAY
DescriptionINFOID:0000000003815041
The steering lock relay ON signal is transmitted to IPDM E/R by BCM via CAN communication.
IPDM E/R turns the steering lock relay ON and transmits the release of the steering to BCM.
DTC LogicINFOID:0000000003815042
DTC DETECTION LOGIC
NOTE:
 If DTC B2109 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
SEC-28, "
IPDM E/R : DTC Logic".
 When IPDM E/R power supply voltage is low (Approx. 7 - 8 V for about 1 second), the DTC B2109 may be
detected.
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Press the push-button ignition switch under the following conditions and wait for at least 1 second.
- Selector lever is in the P or N position.
- Do not depress brake pedal.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Go to SEC-97, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000003815043
1.CHECK POWER SUPPLY CIRCUIT
Check IPDM E/R power supply circuit. Refer to PCS-19, "
Diagnosis Procedure".
Is the circuit normal?
YES >> GO TO 2.
NO >> Repair or replace the malfunctioning part.
2.CHECK FUSE
1. Turn ignition switch OFF.
2. Check 10A fuse (No. 48, located in IPDM E/R).
Is the inspection normal?
YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and Installation".
NO >> Check the following.
 Harness for open or short between IPDM E/R and battery
Fuse
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
B2109STRG LCK RELAY
OFFIPDM E/R detects that the relay is stuck in the OFF
position for about 1 second even if the IPDM E/R
receives steering lock relay ON/OFF signal from
BCM. Harness or connector (Power sup-
ply circuit)
IPDM E/R
 Battery

POWER SUPPLY AND GROUND CIRCUIT
SEC-111
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
POWER SUPPLY AND GROUND CIRCUIT
BCM
BCM : Diagnosis ProcedureINFOID:0000000003910623
1.CHECK FUSE AND FUSIBLE LINK
Check that the following fuse and fusible link are not blown.
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is
blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> INSPECTION END
NO >> Repair harness or connector.
IPDM E/R
IPDM E/R : Diagnosis ProcedureINFOID:0000000003910624
1.CHECK FUSES AND FUSIBLE LINK
Check that the following IPDM E/R fuses or fusible links are not blown.
Signal name Fuse and fusible link No.
Battery power supplyI
10
Te r m i n a l s
Vo l ta g e
(Approx.) (+) (−)
BCM
Ground Connector Terminal
M118 1
Battery voltage
M119 11
BCM
GroundContinuity
Connector Terminal
M119 13 Existed
Signal name Fuses and fusible link No.
Battery power supplyE
50
51

SEC-112
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
POWER SUPPLY AND GROUND CIRCUIT
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is
blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check voltage between IPDM E/R harness connector and ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between IPDM E/R harness connectors and ground.
Does continuity exist?
YES >> INSPECTION END
NO >> Repair harness or connector.
Te r m i n a l s
Vo l ta g e
(Approx.) (+)
(−)
IPDM E/R
Connector Terminal
Ground
E9 1 Battery voltage
IPDM E/R
GroundContinuity
Connector Terminal
E10 12
Existed
E11 41

SECURITY INDICATOR LAMP
SEC-115
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
SECURITY INDICATOR LAMP
DescriptionINFOID:0000000003815070
 Security indicator lamp is located on combination meter.
 NVIS (Nissan Vehicle Immobilizer System-NATS) and vehicle security system conditions are indicated by
blink or illumination of security indicator lamp.
Component Function CheckINFOID:0000000003815071
1.CHECK FUNCTION
1. Perform “THEFT IND” in the “ACTIVE TEST” mode with CONSULT-III.
2. Check security indicator lamp operation.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to SEC-115, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003815072
1.CHECK SECURITY INDICATOR LAMP POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check voltage between combination meter harness connector and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Check the following.
 10A fuse [No. 11, located in the fuse block (J/B)]
 Harness for open or short between combination meter and fuse.
2.CHECK COMBINATION METER CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between combination meter harness connector and BCM harness connector.
3. Check continuity between combination meter harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness.
Te s t i t e m D e s c r i p t i o n
THEFT INDON
Vehicle security indicatorIlluminates
OFF Does not illuminate
(+)
(–)Voltage (V)
(Approx.) Combination meter
Connector Terminal
M34 1 Ground Battery voltage
Combination meter BCM
Continuity
Connector Terminal Connector Terminal
M34 28 M123 141 Existed
Combination meter
GroundContinuity
Connector Terminal
M34 28 Not existed

SEC-156
< ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
79
(G)GroundRoom antenna 1 (+)
(instrument panel)OutputIgnition switch
OFFWhen Intelligent Key is in
the passenger compart-
ment
When Intelligent Key is
not in the passenger
compartment
80
(G/O)GroundNATS antenna amp
(built in key slot)Input/
OutputDuring waitingIgnition switch is pressed
while inserting the key
into the key slot.Just after pressing ignition
switch. Pointer of tester should
move.
81
(O)GroundNATS antenna amp
(built in key slot)Input/
OutputDuring waitingIgnition switch is pressed
while inserting the key
into the key slot.Just after pressing ignition
switch. Pointer of tester should
move.
82
(R/B)GroundIgnition relay [fuse
block (J/B)] controlOutput Ignition switchOFF or ACC 0 V
ON Battery voltage
83
(L/O)GroundRemote keyless en-
try receiver commu-
nicationInput/
OutputDuring waiting
When operating either button on the key Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +–
JMKIA0062GB
JMKIA0063GB
JMKIA0064GB
JMKIA0065GB

BCM (BODY CONTROL MODULE)
SEC-163
< ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
111
(L/Y)GroundSteering lock unit
communicationInput/
OutputSteering lockLOCK status Battery voltage
LOCK or UNLOCK
For 15 seconds after UN-
LOCKBattery voltage
15 seconds or later after
UNLOCK0 V
11 3
(P/B)Ground Optical sensor InputIgnition switch
ONWhen bright outside of
the vehicleClose to 5 V
When dark outside of the
vehicleClose to 0 V
11 5
(L)Ground Shock sensor Input Ignition switchOFF 0 V
ACC 5.0 V
ON
2.5 V
11 6
(R/W)GroundFuse check (Stop
lamp switch)Input — Battery voltage
11 8
(O/L)Ground Stop lamp switch Input Stop lamp switchOFF (Brake pedal is not
depressed)0 V
ON (Brake pedal is de-
pressed)Battery voltage
11 9
(G/W)GroundFront door lock as-
sembly driver side
(unlock sensor)Input Driver doorLOCK status (unlock sen-
sor switch OFF)
1.1 V
UNLOCK status (unlock
sensor switch ON)0 V
121
(Y)Ground Key slot switch InputWhen the key is inserted into key slot Battery voltage
When the key is not inserted into key slot 0 V
122
(V/R)Ground ACC feedback Input Ignition switchOFF 0 V
ACC or ON Battery voltage
123
(G/W)Ground IGN feedback Input Ignition switchOFF or ACC 0 V
ON Battery voltage Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +–
JMKIA0066GB
JPMIA1034GB
JPMIA0012GB

DIAGNOSIS AND REPAIR WORK FLOW
SRC-5
< BASIC INSPECTION >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000003813929

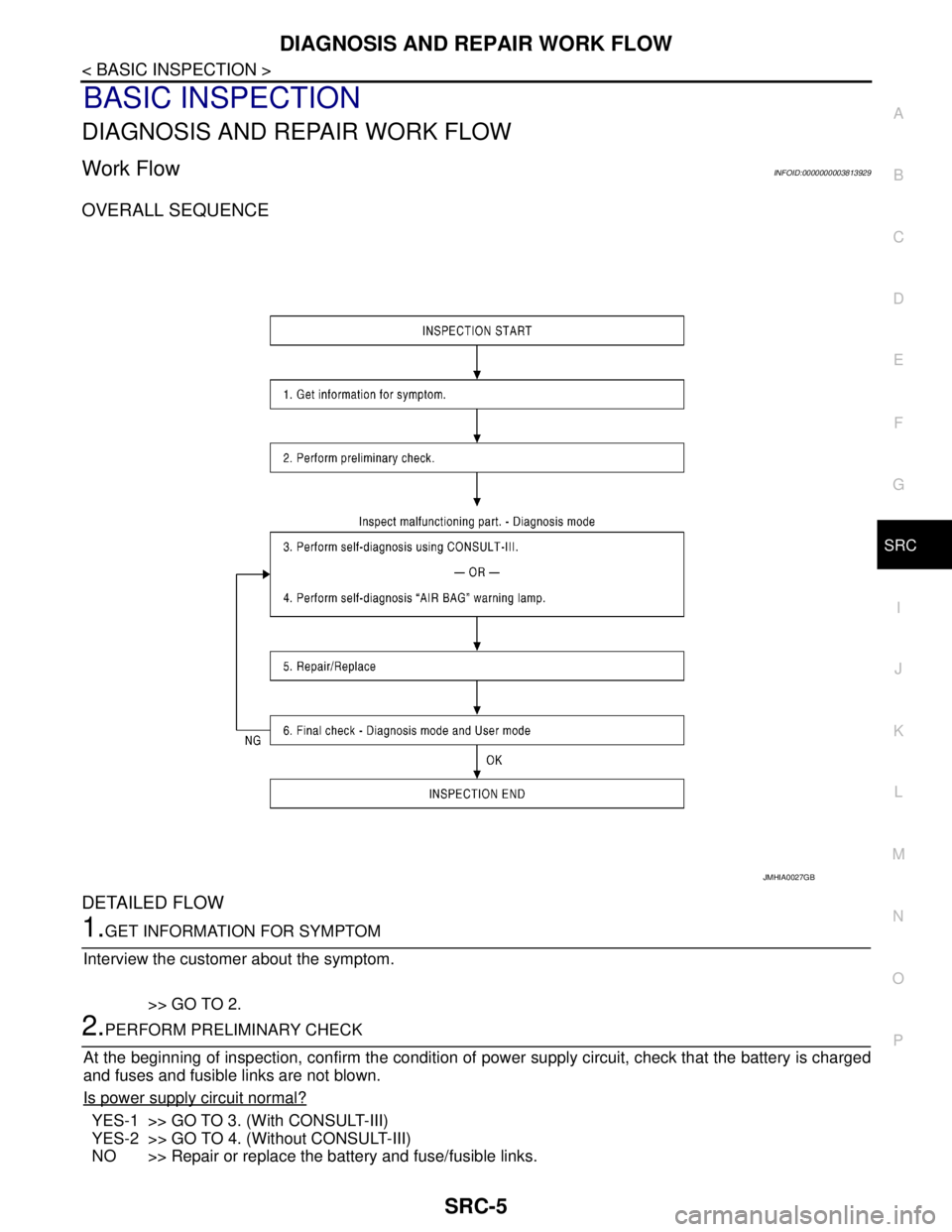

OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Interview the customer about the symptom.
>> GO TO 2.
2.PERFORM PRELIMINARY CHECK
At the beginning of inspection, confirm the condition of power supply circuit, check that the battery is charged
and fuses and fusible links are not blown.
Is power supply circuit normal?
YES-1 >> GO TO 3. (With CONSULT-III)
YES-2 >> GO TO 4. (Without CONSULT-III)
NO >> Repair or replace the battery and fuse/fusible links.
JMHIA0027GB
