464 Controls in detailDriving systems

you set the automatic transmission to
park positionP, reverse gearR, or neu-
tral positionN while driving


the radar sensors are switched off
(page 307)


the vehicle rolls backward
The segments in the multifunction display
go out, an acoustic signal sounds, and the
message “DISTRONIC PLUS Off” appears in
the multifunction display for approximately
5 seconds.
If the vehicle has been stopped by
DISTRONIC Plus and a malfunction occurs
in the system, the message “Brake Immedi-
ately” will appear on the multifunction dis-
play. Step on the brake immediately to
prevent the vehicle from rolling.
DISTRONIC Plus is then switched off and
the message disappears.Setting the following distance in
DISTRONIC Plus
You can set the specified following dis-
tance for DISTRONIC Plus by varying the
time setting between 1.0 and 2.0 seconds.
Using this time setting and the current set
speed of your vehicle, DISTRONIC Plus cal-
culates and sets the required following dis-
tance to the vehicle ahead. The set
distance will be shown in the multifunction
display.
Warning!
G
DISTRONIC Plus switches off and releases
the brakes when the vehicle decelerates be-
low the minimum speed of 20 mph
(30 km/h) by operation of the system un-
less DISTRONIC Plus detects a vehicle di-
rectly ahead of you. At that time the driver
must apply the brakes in order to reduce ve-
hicle speed further or bring it to a stop.!
Setting the automatic transmission toN
while driving cancels the DISTRONIC Plus. How-
ever, the automatic transmission should not be
set toN while driving except to coast when the
vehicle is in danger of skidding (e.g. on icy
roads).
i
Depressing the accelerator pedal does not
deactivate DISTRONIC Plus. After brief accelera-
tion (e.g. for passing), DISTRONIC Plus will re-
sume the last speed set.
Warning!
G
It is up to the driver to exercise discretion to
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.

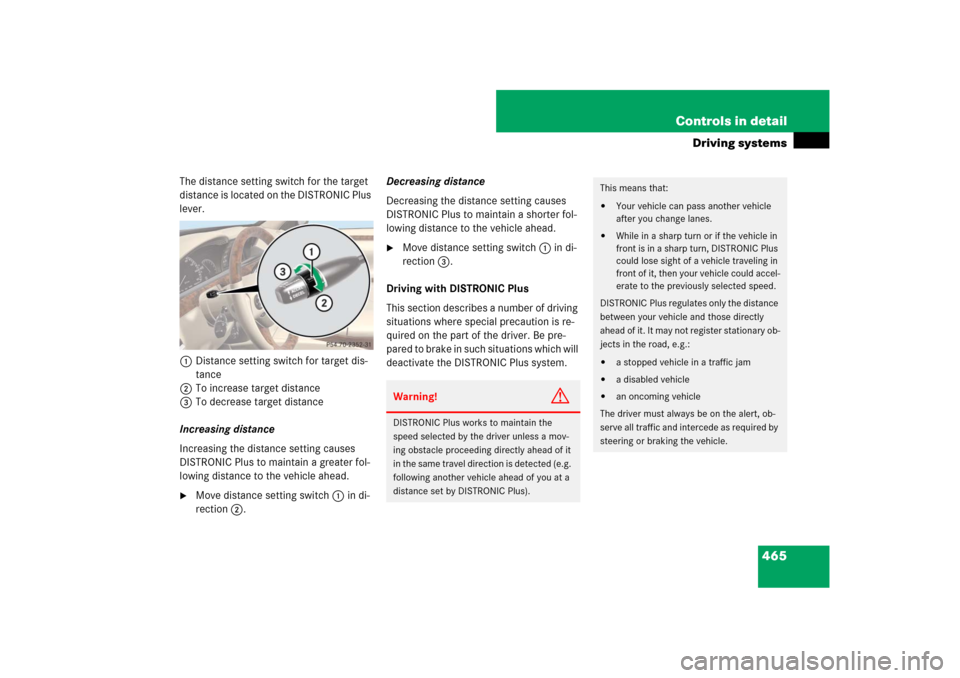

465 Controls in detail
Driving systems
The distance setting switch for the target
distance is located on the DISTRONIC Plus
lever.
1Distance setting switch for target dis-
tance
2To increase target distance
3To decrease target distance
Increasing distance
Increasing the distance setting causes
DISTRONIC Plus to maintain a greater fol-
lowing distance to the vehicle ahead.
Move distance setting switch 1 in di-
rection 2.Decreasing distance
Decreasing the distance setting causes
DISTRONIC Plus to maintain a shorter fol-
lowing distance to the vehicle ahead.

Move distance setting switch 1 in di-
rection 3.
Driving with DISTRONIC Plus
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations which will
deactivate the DISTRONIC Plus system.Warning!
G
DISTRONIC Plus works to maintain the
speed selected by the driver unless a mov-
ing obstacle proceeding directly ahead of it
i n t h e s am e t ra ve l di re ct io n i s de te c te d (e.g.
following another vehicle ahead of you at a
distance set by DISTRONIC Plus).
This means that:

Your vehicle can pass another vehicle
after you change lanes.


While in a sharp turn or if the vehicle in
front is in a sharp turn, DISTRONIC Plus
could lose sight of a vehicle traveling in
front of it, then your vehicle could accel-
erate to the previously selected speed.
DISTRONIC Plus regulates only the distance
between your vehicle and those directly
ahead of it. It may not register stationary ob-
jects in the road, e.g.:


a stopped vehicle in a traffic jam


a disabled vehicle


an oncoming vehicle
The driver must always be on the alert, ob-
serve all traffic and intercede as required by
steering or braking the vehicle.

466 Controls in detailDriving systemsThe most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grille), especially at times of snow
and ice or heavy rain. In such a case,
DISTRONIC Plus will switch off, and the
message:
“DISTRONIC PLUS
Currently Unavailable
See Oper. Manual”
appears in the multifunction display.
For cleaning and care of the
DISTRONIC Plus sensor, see “Cleaning the
DISTRONIC Plus*/ PRE-SAFE
® Brake*
system sensors (USA only)” (page 619).Another cause might be that the radar sen-
sors have been manually switched off in
the instrument cluster control system.
Please verify that the radar sensors are
switched on (
page 307).Turns and bends
In turns or bends, DISTRONIC Plus may not
detect a moving vehicle in front, or it may
detect one too soon. This may cause your
vehicle to brake late or unexpectedly.
Warning!
G
DISTRONIC Plus should not be used in
snowy or icy road conditions.
i
If the message:
“DISTRONIC PLUS
Currently Unavailable
See Oper. Manual”
disappears during driving and the last speed
stored flashes for approximately 5 seconds, the
dirt (e.g. slush) has dissolved; DISTRONIC Plus is
again available.

467 Controls in detail
Driving systems
Offset driving
A vehicle traveling in your lane but offset
from your direct line of travel may not be
detected by DISTRONIC Plus. There will be
insufficient distance to the vehicle ahead.Lane changing
DISTRONIC Plus has not yet detected the
vehicle changing lanes. There will be insuf-
ficient distance to the lane-changing vehi-
cle.Narrow vehicles
Because of their narrow profile, the vehi-
cles traveling near the outer edge of the
lane have not yet been detected by
DISTRONIC Plus. There will be insufficient
distance to the vehicles ahead.

468 Controls in detailDriving systemsObstacles and stationary vehicles
DISTRONIC Plus does not brake for obsta-
cles or stationary vehicles. If, for example,
the vehicle detected in front of you chang-
es lanes to bypass an obstacle or station-
ary vehicle in front of it, DISTRONIC Plus
will not brake for the obstacle or stationary
vehicle.Cross-traffic
DISTRONIC Plus may inadvertently detect
crossing vehicles. If you switch on DIS-
TRONIC Plus, for example, at a traffic light
with cross-traffic, the vehicle may sudden-
ly start to drive off.
Airmatic
Airmatic automatically selects the opti-
mum suspension tuning and ride height for
your vehicle.
Airmatic consists of two components:

Level control system


Adaptive Damping System (ADS)
The ADS automatically selects the opti-
mum damping for the respective driv-
ing conditions. At the same time the
suspension is set to either sporty or
comfort.

469 Controls in detail
Driving systems
Vehicle level control with Airmatic
Your vehicle automatically adjusts its ride
height to:

increase vehicle safety


reduce fuel consumption
The vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:


W it h inc re a sing s pe ed, ri de hei ght is re -
duced by up to approximately 0.8 in
(20 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.The following vehicle level settings can be
selected when the vehicle is stationary:
Select the “Raised” level setting only when
required by current driving conditions.
Otherwise:


Fuel consumption may increase.


Handling may be impaired.1Vehicle level control switch
2Indicator lamp

Start the engine.

Briefly press switch1 to change from
one level setting to the other.
The message:
“Vehicle Rising”
appears in the multifunction display
when changing from normal level to
raised level.
The indicator lamp2 is then lit. The
display switches off when the vehicle is
raised.
Warning!
G
To help avoid personal injury, keep hands
and feet away from wheel housing area, and
stay away from under the vehicle when low-
ering the vehicle chassis.
i
These height adjustments are so small that
you may not notice any change.
LevelNormal
For driving on normal roads.
The indicator lamp is off.
Raised
For driving on rough roads or
with snow chains. The indica-
tor lamp is on.


470 Controls in detailDriving systems
Press switch1 again to lower the ve-
hicle. The indicator lamp2 is off.Suspension tuning
The Adaptive Damping System (ADS) auto-
matically tunes shock absorbers and
springs.
The suspension tuning is set according to:


your driving style


road surface conditions


the vehicle loading


your choice of suspension style
The program mode selector switch (C/S)
(
page 436) is used to adjust the suspen-
sion tuning:

Start the engine.

Select the desired driving program.
Active Body Control (ABC)*
The ABC system is an active, comput-
er-controlled system that hydraulically ad-
justs the suspension at all four wheels in
response to various driving situations. It
automatically selects the optimum suspen-
sion tuning and ride height for your vehicle.
i
The selected vehicle level setting remains
stored in memory even if the engine is turned off
and restarted except when you


exceed a speed of 75 mph (120 km/h)
or


maintain a speed of between 50 mph
(80 km/h) and 75 mph (120 km/h) for more
than 3 minutes
The vehicle then lowers to regular level.
Driving program
Suspension tuning
CComfort
comfortable
(default setting)
SSport
sporty
for dynamic driving
Warning!
G
When you switch off the engine, the entire
vehicle is lowered. You should therefore
make sure that no one is near the wheel
housing or under the vehicle when you
switch off the engine. Otherwise, parts of
the individuals body could be trapped.!
When you switch off the engine, the entire
vehicle is lowered. When parking, position your
vehicle in such a way that it will not scrape
against a curb, for example, when it is lowered.
Your vehicle could otherwise be damaged.


471 Controls in detail
Driving systems
Vehicle level control with ABC
Your vehicle automatically adjusts its ride
height to:

increase vehicle safety


reduce fuel consumption
The vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:


W it h inc re a sing s pe ed, ri de hei ght is re -
duced by up to approximately 0.6 in
(15 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.
The following vehicle level settings can be
selected when the vehicle is stationary:
Select the “Raised” level setting only when
required by current driving conditions.
Otherwise:


Fuel consumption may increase.


Handling may be impaired.1Vehicle level control switch
2Indicator lamp
Selecting a higher level

Start the engine.
If indicator lamp2 is off:

Press switch1.
Indicator lamp2 comes on. The vehi-
cle is raised to a higher level.
i
S63AMG and S65AMG only:
When you switch off the engine, the entire vehi-
cle is lowered by 0.2 in (5 mm).
Warning!
G
To help avoid personal injury, keep hands
and feet away from wheel housing area, and
stay away from under the vehicle when low-
ering the vehicle chassis.
i
These height adjustments are so small that
you may not notice any change.
LevelNormal
For driving on normal roads.
The indicator lamp is off.
Raised
For driving on rough roads or
with snow chains. The indica-
tor lamp is on.
i
The selected vehicle level setting remains
stored in memory even if the engine is turned off
and restarted.
