17 Introduction
Where to find it
Where to find it
This Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color.At a glance
Here you will find an overview of your vehi-
cle’s interior and exterior main features.Safety and Security
Here you will find descriptions of the safety
and security features of your vehicle.Control systems
Here you will find detailed information
about the operation of the COMAND sys-
tem, instrument cluster control system
and Voice Control.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section also describes technical
innovations.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:

this Operator’s Manual


the Maintenance Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.

19 Introduction
Operating safety
Operating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:

the safety precautions in this manual


the “Technical data” section in this
manual


traffic rules and regulations


motor vehicle laws and safety stan-
dards
Warning!
G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are in-
terconnected, any modifications made may
produce an undesired effect on other sys-
tems. Electronic malfunctions could seri-
ously impair the operating safety of your
vehicle.
Contact an authorized Mercedes-Benz Cen-
ter for repairs or modifications to electronic
components.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore nev-
er turn off the engine while driving.
Warning!
G
Heavy blows against the vehicle underbody
or tires/wheels, for example when running
over an obstacle, road debris or a pothole,
may cause serious damage and impair the
o per at i ng s a fet y of yo ur veh ic l e. I f y ou f ee l a
sudden significant vibration or ride distur-
bance, or you suspect that damage to your
vehicle has occurred, you should turn on
your hazard warning flashers, carefully slow
down, and drive with caution to an area
which is a safe distance from the road.
Inspect the vehicle underbody and
tires/wheels for possible damage. If the ve-
hicle appears unsafe, have it towed to the
nearest authorized Mercedes-Benz Center
or other qualified maintenance or repair fa-
cility for further inspection or repairs.
Warning!
G
Various warning labels are attached to your
vehicle. These warning labels are intended
to make you and others aware of various
risks. You should not remove any of these
warning labels unless explicitly instructed to
do so by information on the label itself. Re-
moval of any of these labels may cause you
and others to be unaware of certain risks
which may result in an accident and/or per-
sonal injury.

565 Operation
Driving instructions
An electronic speed limiter prevents your
vehicle from exceeding a speed of

All models except S 63 AMG and
S65AMG:
130 mph (210 km/h)


S 63 AMG:
S 65 AMG:
155 mph (250 km/h)


S 63 AMG with Performance Package*:
S 63 AMG with increased top speed*:
S 65 AMG with increased top speed*:
186 mph (300 km/h)
The factory equipped tires on your vehicle
may have a tire speed rating above the
maximum speed permitted by the elec-
tronic speed limiter.
Make sure your tires have the required tire
speed rating as specified for your vehicle in
the “Technical data” section (
page 754),
for example when purchasing new tires.
For information on how to identify the tire
speed rating on a tire’s sidewall, see “Tire
size designation, load and speed rating”
(
page 598).If you are uncertain about the correct read-
ing of the information given on a tire’s side-
wall, any authorized Mercedes-Benz
Center will be glad to assist you.
Winter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
or DISTRONIC Plus* system under such
conditions.
When the vehicle is in danger of skidding,
move gear selector lever to neutral
positionN. Try to keep the vehicle under
control by corrective steering action.Road salts and chemicals can adversely af-
fect braking efficiency. Increased pedal
force may become necessary to produce
the normal braking effect.
Depressing the brake pedal periodically
when traveling at length on salt-strewn
roads can bring road-salt impaired braking
efficiency back to normal.
If the vehicle is parked after being driven
on salt-treated roads, the braking efficien-
cy should be tested as soon as possible af-
ter driving is resumed.i
For information on speed ratings for winter
tires, see (
page 601) and (
page 610).
i
For information on driving with snow chains,
see “Snow chains” (
page 611).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of control loss.

576 OperationEngine compartmentOne of the following messages will
subsequently appear in the multifunction
display:

“Engine Oil Level
OK”


“Add 1.0 qts. Engine Oil
At Next Refueling”
(Canada: “1.0 l”)


“Add 1.5 qts. Engine Oil
At Next Refueling”
(Canada: “1.5 l”)


“Add 2.0 qts. Engine Oil
At Next Refueling”
(Canada: “2.0 l”)

If necessary, add engine oil
(page 578).
For more information on engine oil, see the
“Technical data” section (
page 765) and
(
page 769).Other display messages
If the SmartKey or KEYLESS-GO* start/
stop button is not in position 2, the follow-
ing message will appear:
“For Engine Oil Level
Ignition Must be On”

Switch on the ignition (
page 370).
If you see the message
“Need More Time
to Check
Engine Oil Level”

If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message
“Engine Oil Level
Not Measurable
With Running Engine”

Turn off the engine.

If the engine is at operating tempera-
ture, wait 5 minutes before checking
oil.

If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.
If there is excess engine oil with the engine
at operating temperature, the following
message will appear:
“Reduce
Engine Oil Level”

Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 694).
i
If you want to interrupt the checking proce-
dure, press buttonL on the multifunction
steering wheel.
!
Excess oil must be siphoned or drained off.
It could cause damage to the engine and catalyt-
ic converter not covered by the Mercedes-Benz
Limited Warranty.


577 Operation
Engine compartment
Checking engine oil level with the oil
dipstick (all models except S 600 and
S65AMG)
To check the engine oil level with the oil
dipstick, do the following:
Open the hood (
page 573).
S 550 and S 63 AMG1Oil dipstick
2Upper mark
3Lower mark
S 450 4matic and S 550 4matic1Oil dipstick
2Upper mark
3Lower mark
Pull out oil dipstick1.

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube.

Pull out oil dipstick1 again after ap-
proximately 3 seconds to obtain accu-
rate reading.The oil level is correct when it is between
lower mark3 (min.) and upper mark2
(max.) of the oil dipstick.

If necessary, add engine oil.
For adding engine oil (
page 578).
For more information on engine oil, see the
“Technical data” section (page 765) and
(
page 769).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(page 642).
i
S 450 4MATIC, S 550 and S 550 4MATIC:
The filling quantity between the upper and lower
marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).
i
S 63 AMG only:
The filling quantity between the upper and lower
marks on the oil dipstick is approximately
1.6 US qt. (1.5 l).

578 OperationEngine compartmentAdding engine oil
Example illustration from S 550
S63 AMG1Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 765) and
(
page 769).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.
!
Only use approved engine oils and oil filters
required for vehicles with Maintenance System.
For a listing of approved engine oils and oil fil-
ters, refer to the Factory Approved Service Prod-
ucts pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the Main-
tenance System, or changing of oil and oil filter
at change intervals longer than those called for
by the Maintenance System will result in engine
or emission control system damage not covered
by the Mercedes-Benz Limited Warranty.
!
Excess oil must be siphoned or drained off.
It will cause damage to the engine and emission
control system not covered by the
Mercedes-Benz Limited Warranty.

580 OperationEngine compartment
Using a rag, turn cap1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.

Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level


for cold coolant: reaches the white
marking (plastic bridge) inside the cool-
ant expansion tank


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap1.
For more information on coolant, see the
“Technical data” section (
page 771). Windshield washer system and
headlamp cleaning system
The washer fluid reservoir is located on the
left-hand side of the engine compartment
when looking in the direction of travel. It
supplies the windshield washer system
and headlamp cleaning system with wash-

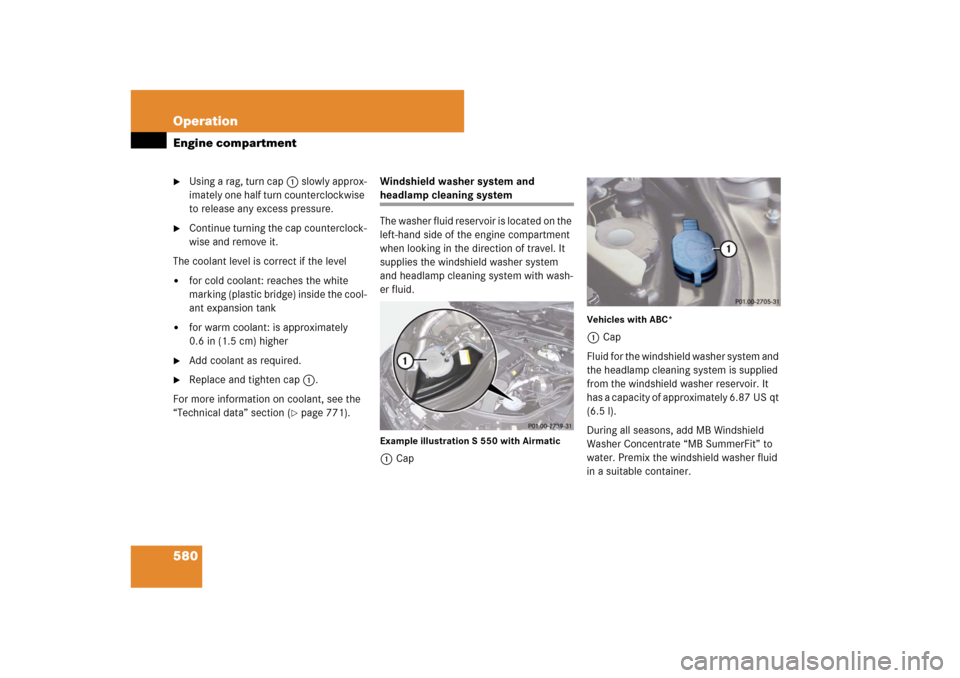

er fluid.Example illustration S 550 with Airmatic1Cap
Vehicles with ABC*1Cap
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately 6.87 US qt
(6.5 l).
During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the windshield washer fluid
in a suitable container.
