2008 MERCEDES-BENZ S-Class technical data

751 Technical data
Engine
Engine
Model
S 450 4MATIC (221.184)
1,2
1The quoted data apply only to the standard vehicle. Contact an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equip-
ment.2Canada only
S 550 (221.171)
1
Engine
273
273
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.66 in (92.90 mm)
3.86 in (98.00 mm)
Stroke
3.39 in (86.00 mm)
3.56 in (90.50 mm)
Total piston displacement
284.6 cu in (4 663 cm
3)
333.3 cu in (5 461 cm
3)
Compression ratio
10.5:1
10.7:1
Output acc. to SAE J 1349
3
3Premium fuel required. Performance may vary with fuel octane rating.
335 hp/6 000 rpm
(250 kW/6 000 rpm)
382 hp/6 000 rpm
(285 kW/6 000 rpm)
Maximum torque
acc. to SAE J 1349
391 lb-ft/2 700 - 5 000 rpm
(460 Nm/2 700 - 5 000 rpm)
391 lb-ft/3 000 rpm
(530 Nm/3 000 rpm)
Maximum engine speed
6 500 rpm
6500 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2 404 mm
2404 mm

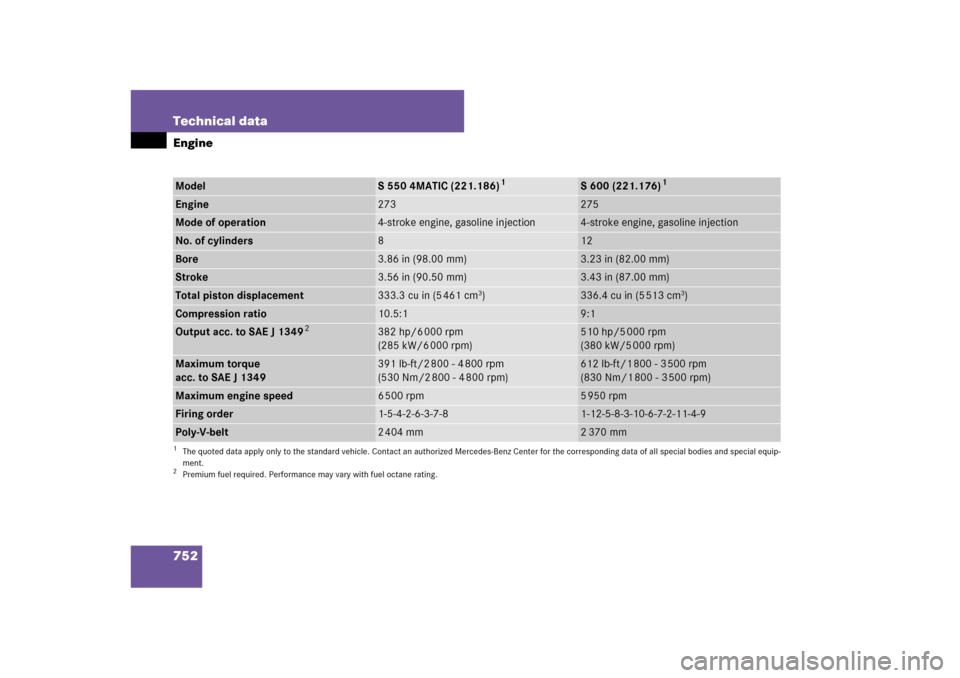

752 Technical dataEngineModel
S 550 4MATIC (221.186)
1
S 600 (221.176)
1
1The quoted data apply only to the standard vehicle. Contact an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equip-
ment.Engine
273
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
3.86 in (98.00 mm)
3.23 in (82.00 mm)
Stroke
3.56 in (90.50 mm)
3.43 in (87.00 mm)
Total piston displacement
333.3 cu in (5 461 cm
3)
336.4 cu in (5 513 cm
3)
Compression ratio
10.5:1
9:1
Output acc. to SAE J 1349
2
2Premium fuel required. Performance may vary with fuel octane rating.
382 hp/6 000 rpm
(285 kW/6 000 rpm)
510 hp/5 000 rpm
(380 kW/5 000 rpm)
Maximum torque
acc. to SAE J 1349
391lb-ft/2800-4800rpm
(530 Nm/2 800 - 4 800 rpm)
612 lb-ft/1 800 - 3 500 rpm
(830 Nm/1 800 - 3 500 rpm)
Maximum engine speed
6500 rpm
5 950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2404 mm
2 370 mm

753 Technical data
Engine
Model
S 63 AMG (221.077)
1
S 65 AMG (221.179)
1
1The quoted data apply only to the standard vehicle. Contact an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equip-
ment.Engine
156
275
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
12
Bore
4.02 in (102.20 mm)
3.25 in (82.60 mm)
Stroke
3.72 in (94.60 mm)
3.66 in (93.00 mm)
Total piston displacement
378.8 cu in (6 208 cm
3)
364.9 cu in (5 980 cm
3)
Compression ratio
11.3:1
9:1
Output acc. to SAE J 1349
2
2Premium fuel required. Performance may vary with fuel octane rating.
518 hp/6 800 rpm
(386 kW/6 800 rpm)
603 hp/4 800 - 5 100 rpm
(450 kW/4 800 - 5 100 rpm)
Maximum torque
acc. to SAE J 1349
465 lb-ft/5 200 rpm
(630 Nm/5 200 rpm)
738 lb-ft/2 000 - 4 000 rpm
(1 000 Nm/2 000 - 4 000 rpm)
Maximum engine speed
7 200 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
2360 mm
2370 mm

754 Technical dataRims and tires!
Only use tires which have been tested and
approved by Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to provide best
possible performance in conjunction with the
driving safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed for your
vehicle and tested and approved by
Mercedes-Benz can be identified by finding the
following on the tire’s sidewall:


MO = M
ercedes-Benz O
riginal equipment
tires
AMG vehicles:
Does not apply to all approved tires on AMG
vehicles. For information on tested and
approved tires for AMG vehicles, contact an
authorized Mercedes-Benz Center.
Using tires other than those approved by
Mercedes-Benz may result in damage that is not
covered by the Mercedes-Benz Limited
Warranty.
!
Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as


poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
Damage to the tires or the vehicle may be the
result.
i
Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. A placard with the recommended tire in-
flation pressures is located on the driver’s door
B-pillar (
page 585). Some vehicles may have
supplemental tire inflation pressure information
for driving at high speeds (
page 591) or for ve-
hicle loads less than the maximum loaded
vehicle condition (
page 598). If such informa-
tion is provided, it can be found on the placard lo-
cated on the inside of the fuel filler flap. The tire inflation pressure should be checked
regularly and should only be adjusted on cold
tires. Follow tire manufacturer’s maintenance
recommendation included with vehicle.
i
The following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Appearance Package,
Sport Package etc.), equipping your vehicle with
winter tires approved for your vehicle model may
also require the purchase of two or four wheel
rims of the recommended size for use with these
winter tires. Contact an authorized
Mercedes-Benz Center for more information.

755 Technical data
Rims and tires
Same size tiresModel
S 450 4MATIC
S 550
S 550 4MATIC
S 450 4MATIC*
S 550 4MATIC*
S600
S550 (Sport Package*)
S600 (Sport Package*)
Rims (light alloy)
8.5 J x18 H2
8.5 J x 19 H2
8.5 J x18 H2
Wheel offset
1.69 in (43 mm)
1.69 in (43 mm)
1.69 in (43 mm)
Summer tires
1
1Radial-ply tires.
–
255/40 R19 96Y
–

756 Technical dataRims and tiresModel
S63AMG
S 63 AMG (Performance Package*)
S65AMG
Rims (light alloy)
8.5 J x19 H2
Wheel offset
1.69 in (43 mm)
Winter tires
1,2,3

1Radial-ply tires.2For use with snow chains contact an authorized Mercedes-Benz Center.3Not available as factory equipment.
255/40 R19 100V XL (Extra Load) M+S.

757 Technical data
Rims and tires
Mixed size tiresModel
S550*
S600
S550*
S600*
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 19 H2
Wheel offset
1.69 in (43 mm)
1.69 in (43 mm)
Summer tires
1
1Radial-ply tires.
255/45 R18 99V
255/40 R19 96Y
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
9.5 J x 19 H2
Wheel offset
1.69 in (43 mm)
1.69 in (43 mm)
Summer tires
1
275/45 R18 103V
275/40 R19 101Y

758 Technical dataRims and tiresModel
S550 (SportPackage*)
S600 (SportPackage*)
S63AMG*
S65AMG*
S 63 AMG (Performance Package*)
Front axle:
AMG rims (light alloy)
8.5 J x 19 H2
8.5 J x 20 H2
Wheel offset
1.69 in (43 mm)
1.69 in (43 mm)
Summer tires
1
1Radial-ply tires.
255/40 R19 96Y
255/35 ZR20 XL (Extra Load)
Rear axle:
AMG rims (light alloy)
9.5 J x 19 H2
9.5 J x 20 H2
Wheel offset
1.69 in (43 mm)
1.69 in (43 mm)
Summer tires
1
275/40 R19 101Y
275/35 ZR20 XL (Extra Load)
2
2Must not be used with snow chains.
