2008 CHRYSLER CROSSFIRE Owners Manual

CAUTION!
To avoid damage to either the top or the rear window,
check the tonneau cover area at the rear of the vehicle
interior to be sure that it is clear of debris or other
items. Do not use the tonneau cover area for other
storage purposes.
CAUTION!
To fully ensure that no damage occurs, be sure that
the vehicle is at a complete stop before attempting to
lower or raise the top.NOTE:If the top stops during the raising or lowering
procedure, start the engine and continue operation.
1. Make sure the rear cargo compartment divider is
unfolded and secured in the vertical position.
If the divider is in its stowed position, first unfold the
panels towards the rear of the vehicle. Pull up on the
vertical panel using the center cutout shown, and hook
the pins at the top into the brackets mounted to the cargo
compartment trim on each side near the forward edge of
the decklid opening. The pins must be hooked in these
brackets in order for the top to operate.
NOTE:See label attached to underside of decklid.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3

2. Make sure the decklid is closed.
CAUTION!
Be sure to turn the ignition to the ON/RUN position
before releasing the top from the windshield header.
The windows will not go down if the top is released
from the header without the ignition turned ON. The
side windows can be damaged if the doors are
opened or closed with the windows up and the top
released from the windshield header.
3. Turn the ignition key to the ON/RUN position.
4. Unlock the top from the windshield header by pulling
the latch handle down and turning it clockwise just over
one quarter turn.
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Once the release handle is rotated, the windows
will automatically go down.
5. Push up on the convertible top latch handle to create a
gap between the header and top of approximately 8 in
(200 mm). As soon as the top is free, rotate the latch
handle counterclockwise just over one quarter turn and
push it up into the stored position.NOTE:Failure to perform any of these steps will
prevent the top from operating with the convertible top
switch and will cause an audible information signal to
sound.
6. Push down on the rear of the convertible top switch to
begin top operation. The rear of the top will unlatch and
the tonneau cover will open before the top begins to fold.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3

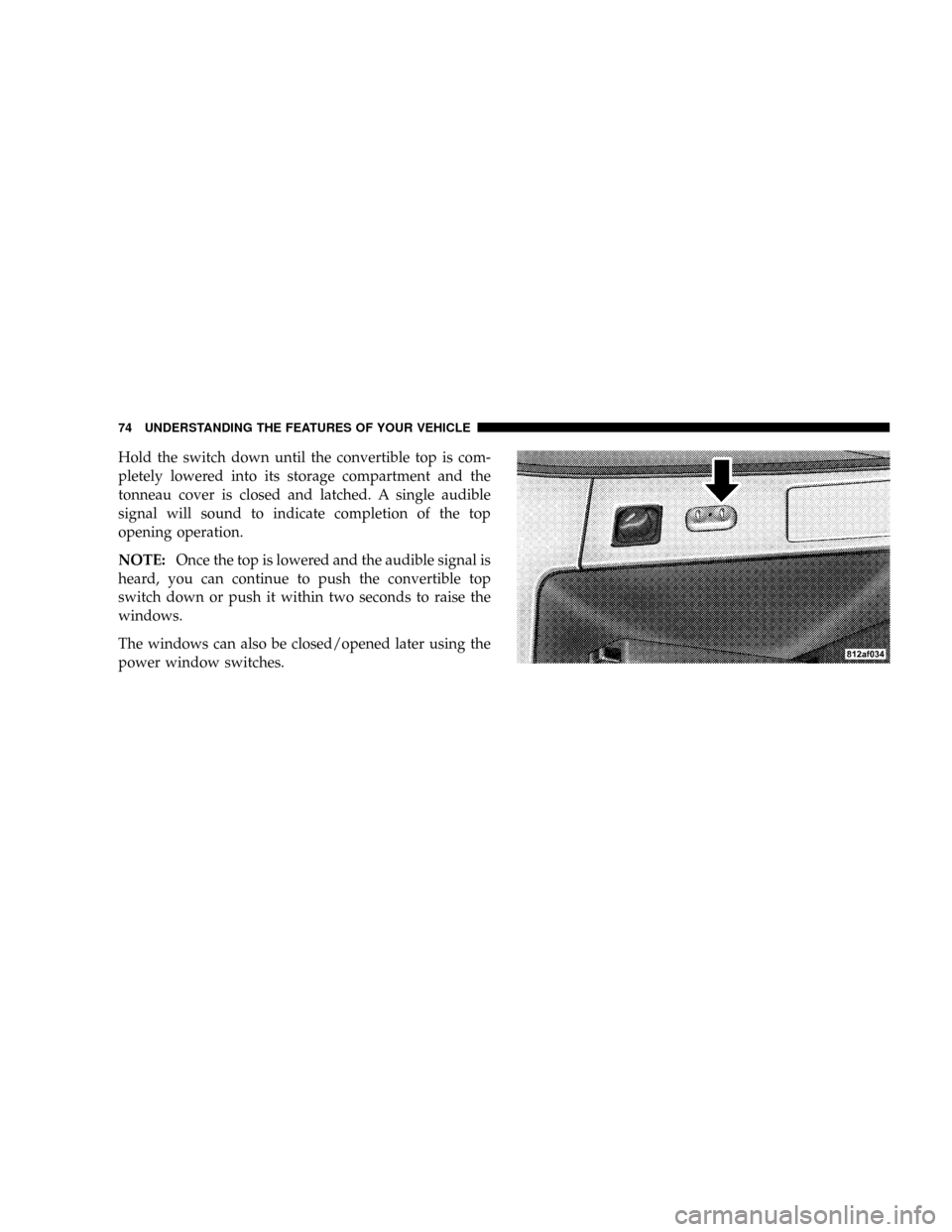

Hold the switch down until the convertible top is com-
pletely lowered into its storage compartment and the
tonneau cover is closed and latched. A single audible
signal will sound to indicate completion of the top
opening operation.
NOTE:Once the top is lowered and the audible signal is
heard, you can continue to push the convertible top
switch down or push it within two seconds to raise the
windows.
The windows can also be closed/opened later using the
power window switches.
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To prevent mildew, the convertible top must be dry
before lowering it into the storage compartment.
Do not lower a frozen convertible top until thawed
and dry. Doing so may result in damage not covered
by the DaimlerChrysler Limited Warranty.
CAUTION!
Do not place anything on the tonneau cover.
The tonneau cover must never be used as a seating
area.
To Raise The Top:
1. Make sure the rear cargo compartment divider is still
secured in the vertical position.
2. Make sure the decklid is closed.
3. Turn the ignition key to the ON/RUN position and
press down on the front of the convertible top switch.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

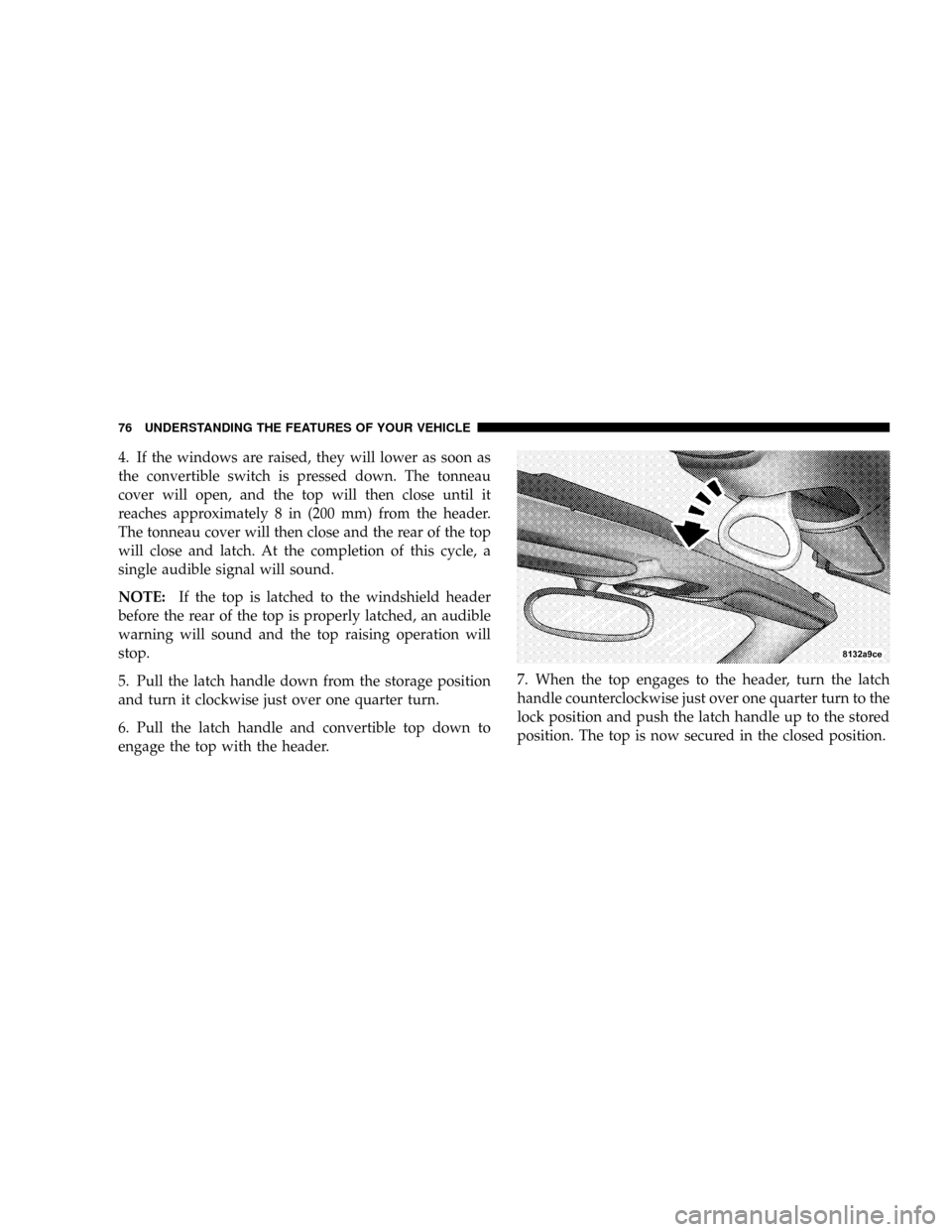

4. If the windows are raised, they will lower as soon as
the convertible switch is pressed down. The tonneau
cover will open, and the top will then close until it
reaches approximately 8 in (200 mm) from the header.
The tonneau cover will then close and the rear of the top
will close and latch. At the completion of this cycle, a
single audible signal will sound.
NOTE:If the top is latched to the windshield header
before the rear of the top is properly latched, an audible
warning will sound and the top raising operation will
stop.
5. Pull the latch handle down from the storage position
and turn it clockwise just over one quarter turn.
6. Pull the latch handle and convertible top down to
engage the top with the header.7. When the top engages to the header, turn the latch
handle counterclockwise just over one quarter turn to the
lock position and push the latch handle up to the stored
position. The top is now secured in the closed position.
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:The convertible top switch indicator will light
up and an audible warning will be heard if you start
driving the vehicle without the top fully locked in the
closed position.WARNING!
To prevent possible accidents, drive the vehicle only
with the convertible top either completely closed and
locked, or fully lowered into its storage
compartment.
8. Once the top has been raised and locked, the cargo
compartment divider can be unhooked and folded for-
ward to increase the cargo compartment capacity. Follow
the steps shown on the label affixed to the decklid trim.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

CAUTION!
Once the cargo compartment divider is folded for-
ward to increase the cargo compartment capacity, the
tonneau cover flaps are exposed and can be damaged
by long items being put into the cargo compartment.
