OCM to ensure that the resultant bladder pressure in-
crease due to applied lap belt tension does not cause a
small occupant to be classified as a larger occupant
How the Bladder Mat and Pressure Sensor Works
The Bladder Mat and Pressure Sensor are located beneath
the seat cushion foam. The pressure sensor sends a signal
to the OCM. The passenger seat assembly contains criti-
cal components that affect the passenger airbag deploy-
ment. Correctly functioning passenger seat components
are critical for the Occupant Classification System (OCS)
to properly classify the passenger and calculate the
proper airbag deployment. Do not make any modifica-
tions to the passenger seat components, assembly, or to
the seat cover.
How the Driver/Passenger Inflatable Knee
Blockers Works
When the ORC and the impact sensors detect a collision
requiring the Driver/Passenger Inflatable Knee Blockers,it signals the inflator unit. A quantity of nontoxic gas is
generated to inflate the Driver/Passenger Inflatable Knee
Blockers. The Driver/Passenger Inflatable Knee Blockers
inflates rearward towards the driver 's knees to help
protect the knees and position you for the best interaction
with the front airbag. The Driver/Passenger Inflatable
Knee Blockers fully inflates in about 50 milliseconds, this
is only about half of the time it takes you to blink your
eyes. It then quickly deflates while helping to protect the
driver 's knees.
The Knee Impact Blockers help protect the knees and
position the occupant.
Passenger Front Airbag On/Off Switch
The ON/OFF switch is located at the right end of the
instrument panel and is accessible by opening the pas-
senger door.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47
2

NOTE:When using certain types of child seats, the
passenger airbag light will remain off even though the
passenger front airbags are disabled.
It is always recommended to turn off the passenger front
air bags using the passenger front airbags on/off switch
located at the right end of the instrument panel when the
passenger is:
²an infant (less than 1 year old),
²a child, age 1 to 12,
²an adult with a medical condition which makes pas-
senger airbag inflation (deployment) a greater risk for
the passenger than the risk of hitting the dashboard
(instrument panel) or windshield in a crash.
The on/off switch is accessible by opening the passenger
door.If the airbag is turned off when there is any other
occupant at that position, the supplemental restraint
provided by the airbag will not be available.
To turn OFF the passenger front airbag, use the on/off
switch located on the instrument panel.
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:When the passenger airbag is turned off, the
yellow airbag off light will illuminate.
To Shut Off the Passenger Airbag:
²Place the ignition key in the on/off switch, turn the
key clockwise, and remove the key from the switch.
This will shut off the passenger front airbag.
²The air bag will remain off until the switch is turned
back to the ON position.
²The switch does NOT turn off the side airbag.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

To Turn On the Passenger Airbag:
²Place the ignition key in the on/off switch, turn the
key counterclockwise, and remove the key from the
switch. This will turn on the passenger airbag. The
Passenger Airbag Off light on the console will turn off,
or will not be illuminated when the ignition is turned
to the ON position.
WARNING!
The airbag may malfunction and serious injury could
result if key is left in the airbag shut off switch.
Always remove the key.
Maintaining Your Airbag System
WARNING!
²Unapproved modifications or service procedures to
the front passenger seat assembly, its related compo-
nents, or seat cover may inadvertently change the
airbag deployment in case of a frontal crash. This
could result in death or serious injury to the front seat
passenger if the vehicle is involved in an accident. A
modified vehicle may not comply with required Fed-
eral Motor Vehicle Safety Standards (FMVSS).
²You need proper knee impact protection in a collision.
Do not mount or locate any aftermarket equipment on
or behind the knee impact blocker.
²You can be injured if you are too close to either airbag
cover when the airbags inflate. It is dangerous to try
to repair any part of the airbag system yourself. Don't
try to repair the airbag system. Be sure to tell anyone
who works on your vehicle that it has airbags.
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The following requirements must be strictly adhered to:
²Do not modify the front passenger seat assembly or
components in any way.
²Do not modify the front seat center console or center
position seat in any way.
²Do not use prior or future model year seat covers not
designated for the specific model being repaired.
²Always use the correct seat cover specified for the
vehicle.
²Do not replace the seat cover with an aftermarket seat
cover.
²Do not add a secondary seat cover other than those
approved by DaimlerChrysler/Mopart.
²At no time should any supplemental restraint system
(SRS) component or SRS related component or fastenerbe modified or replaced with any part except those
which are approved by DaimlerChrysler/Mopart.
Airbag Light
You will want to have the airbags ready for
your protection in case of a collision. While the
airbag Supplemental Restraint System (SRS) is
designed to be maintenance free, if any of the
following occurs, have an authorized dealer service the
system immediately.
²The AIRBAG light does not come on or flickers during
the four seconds when the ignition switch is first
turned on.
²The light remains on or flickers after the four second
interval.
²The light flickers or comes on and remains on while
driving.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51
2

Child Restraint
Everyone in your vehicle needs to be buckled up all the
time, including babies and children. Every state in the
United States and all Canadian provinces require that
small children ride in proper restraint systems. This is the
law, and you can be prosecuted for ignoring it.
WARNING!
In a collision, an unrestrained child, even a tiny baby,
can become a missile inside the vehicle. The force
required to hold even an infant on your lap could
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child's
size.
Infants and Child Restraints
There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat Owner's Manual to ensure you have the right seat
for your child. Use the restraint that is correct for your
child:
²Safety experts recommend that children ride
rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and convertible child seats.
²The infant carrier is only used rearward-facing in the
vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). Convertible child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

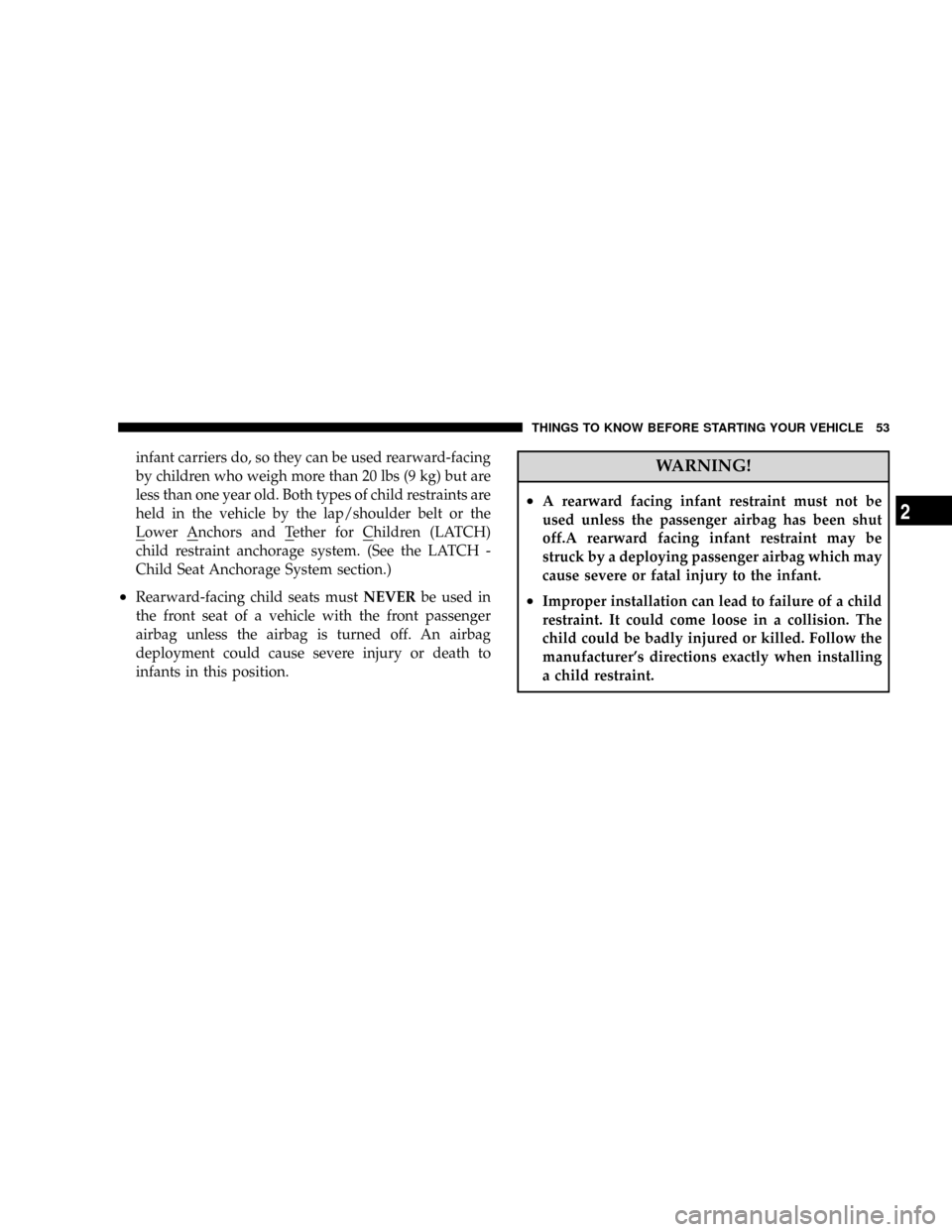

infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old. Both types of child restraints are
held in the vehicle by the lap/shoulder belt or the
Lower Anchors and Tether for Children (LATCH)
child restraint anchorage system. (See the LATCH -
Child Seat Anchorage System section.)
²Rearward-facing child seats mustNEVERbe used in
the front seat of a vehicle with the front passenger
airbag unless the airbag is turned off. An airbag
deployment could cause severe injury or death to
infants in this position.
WARNING!
²A rearward facing infant restraint must not be
used unless the passenger airbag has been shut
off.A rearward facing infant restraint may be
struck by a deploying passenger airbag which may
cause severe or fatal injury to the infant.
²Improper installation can lead to failure of a child
restraint. It could come loose in a collision. The
child could be badly injured or killed. Follow the
manufacturer's directions exactly when installing
a child restraint.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53
2

Here are some tips on getting the most out of your child
restraint:
²Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.
²The restraint must be appropriate for your child's
weight and height. Check the label on the restraint for
weight and height limits.
²Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
²Buckle the child into the seat according to the seat
manufacturer's directions.
²When your child restraint is not in use, secure it in the
vehicle with the seat belt or remove it from the vehicle.Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants and cause
serious personal injury.
NOTE: For additional information refer to
www.seatcheck.org or call 1±866±SEATCHECK.
Older Children and Child Restraints
Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who weigh 20 to 40 lbs (9 to 18 kg) and who are older
than one year. These child seats are also held in the
vehicle by the lap/shoulder belt or the LATCH child
restraint anchorage system. (See LATCH - Child Seat
Anchorage System section.)
The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
the vehicle's seat belts properly. If the child cannot sit
