2008 CHRYSLER CROSSFIRE Owners Manual

Towing Eyes
The vehicle is equipped with front and rear towing eyes
to allow towing with the wheels on the ground or to
allow the vehicle to be easily drawn up on a flatbed tow
truck. The rear towing eye is located on the right side of
the vehicle below the rear fascia. The front hook is
located behind the lower grille in the fascia. For access, a
snap-in grille must be removed using the multifunction
tool from the glovebox.
WHAT TO DO IN EMERGENCIES 247
6

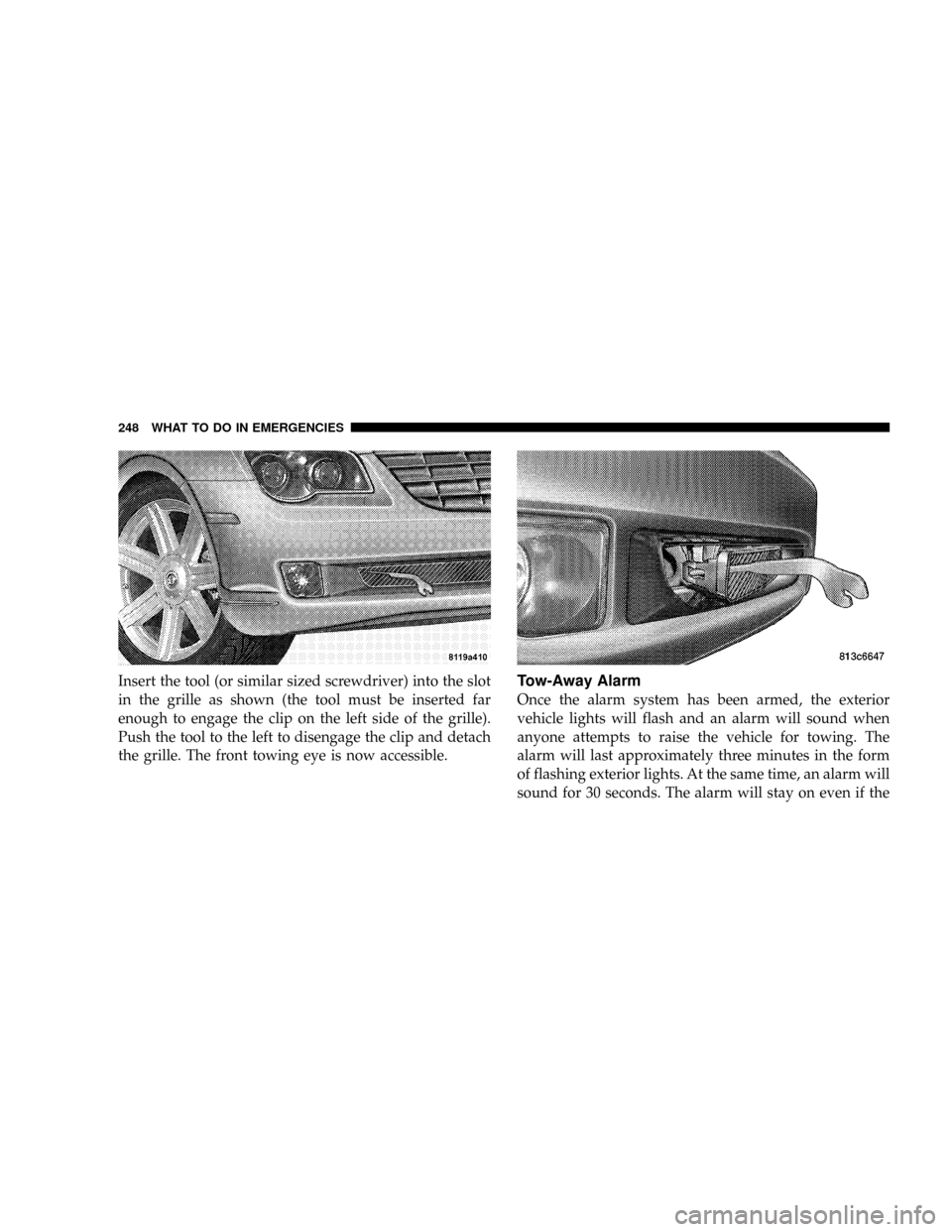

Insert the tool (or similar sized screwdriver) into the slot
in the grille as shown (the tool must be inserted far
enough to engage the clip on the left side of the grille).
Push the tool to the left to disengage the clip and detach
the grille. The front towing eye is now accessible.Tow-Away Alarm
Once the alarm system has been armed, the exterior
vehicle lights will flash and an alarm will sound when
anyone attempts to raise the vehicle for towing. The
alarm will last approximately three minutes in the form
of flashing exterior lights. At the same time, an alarm will
sound for 30 seconds. The alarm will stay on even if the
248 WHAT TO DO IN EMERGENCIES

vehicle is immediately lowered. To cancel the alarm,
insert the key in the ignition switch or press the TRANS-
MIT button on the key fob.
To prevent triggering the tow-away alarm feature, press
the tow-away alarm switch to turn off the tow-away
alarm before towing the vehicle, or when parking on a
surface subject to movement, such as a ferry or auto train.To do so, turn the key in the ignition switch to the
OFF/LOCK or ACC positions, or remove key from the
ignition switch. Press the upper half of the tow-away
alarm switch. The indicator light will illuminate briefly.
Then, exit the vehicle and lock with a key or the remote
control. The tow-away alarm remains switched off until
the vehicle is locked again with a key or the remote
control, at which time it is automatically reactivated.
CONVERTIBLE TOP EMERGENCY OPERATION
If the convertible top cannot be closed using the convert-
ible top switch, check the following:
²Is the decklid closed properly?
²Is there sufficient battery voltage? Start the engine if
necessary.
²Is the rear cargo compartment divider secured in the
vertical position?
WHAT TO DO IN EMERGENCIES 249
6

If the power convertible top operation does not function
properly, you can close the convertible top manually.
NOTE:The multifunction tool from the glovebox is
required for this job.CAUTION!
Manually closing the convertible top is a complicated
and technically demanding procedure. Closing the
convertible top manually should be performed with
great care by two people. Close the convertible top
manually in emergency cases only. Otherwise, visit
an authorized DaimlerChrysler dealer.
Relieving Hydraulic Pressure
NOTE:The hydraulic pressure must be relieved before
the top can manually be raised or lowered.
1. Turn the ignition to the ON position.
2. Push down on the convertible top switch and hold in
that position.
250 WHAT TO DO IN EMERGENCIES

3. Turn the ignition OFF and continue to push down on
the switch for five seconds.
4. After five seconds the hydraulic system pressure will
be relieved.
WARNING!
It is important that a second person assist you to close
the convertible top manually to prevent injuries.
1. Lower the windows and open the doors.
2. Turn the ignition key OFF.
CAUTION!
Ensure that the decklid is closed while raising the
convertible top manually to prevent the possibility of
contact between the decklid and the tonneau cover.
WARNING!
Do not place your hands near the convertible top
frame, upper windshield area, or the convertible top
storage compartment while the convertible top is
being raised and locked. Serious personal injury may
occur.
WHAT TO DO IN EMERGENCIES 251
6

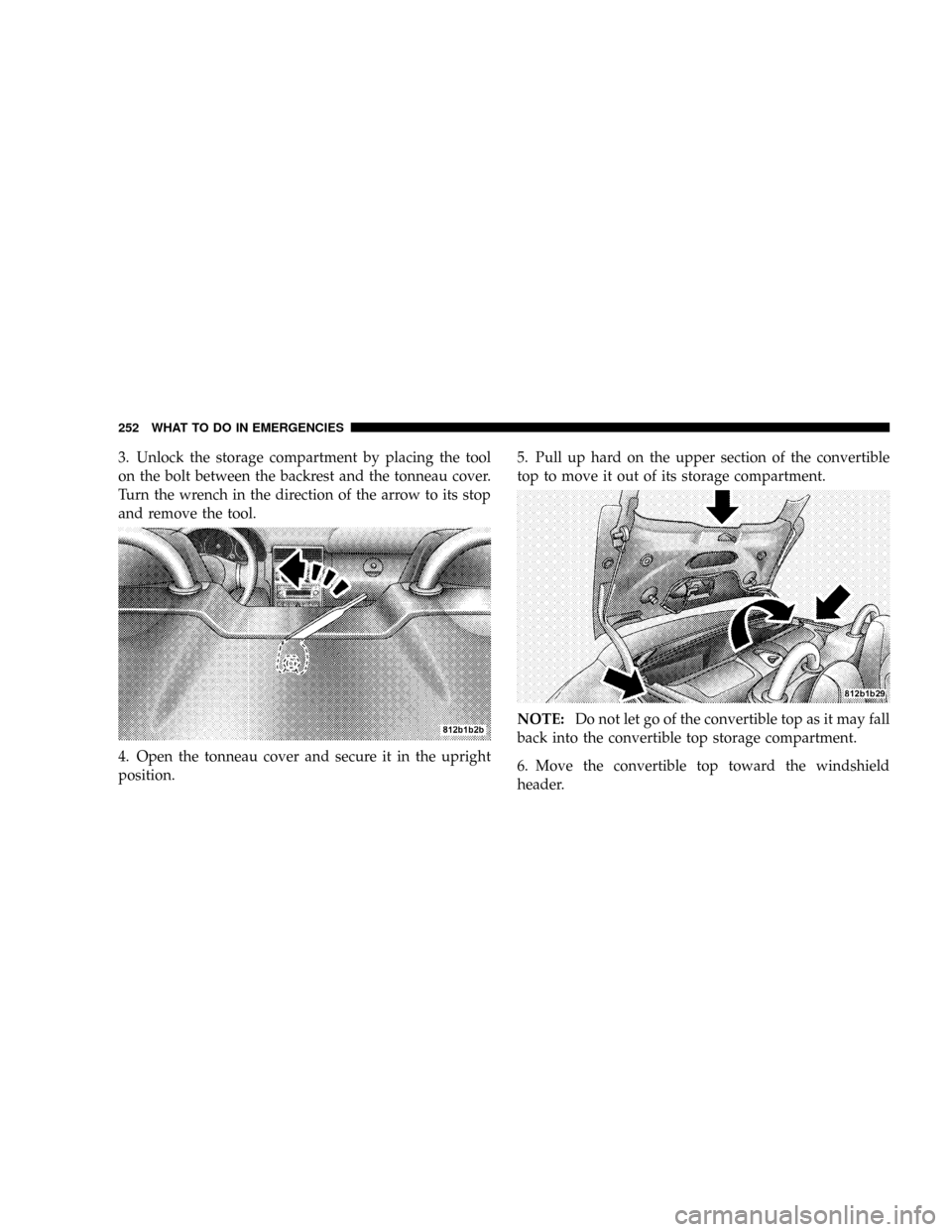

3. Unlock the storage compartment by placing the tool
on the bolt between the backrest and the tonneau cover.
Turn the wrench in the direction of the arrow to its stop
and remove the tool.
4. Open the tonneau cover and secure it in the upright
position.5. Pull up hard on the upper section of the convertible
top to move it out of its storage compartment.
NOTE:Do not let go of the convertible top as it may fall
back into the convertible top storage compartment.
6. Move the convertible top toward the windshield
header.
252 WHAT TO DO IN EMERGENCIES

WARNING!
Do not place your hands in the convertible top frame
areas. Serious personal injury may occur.

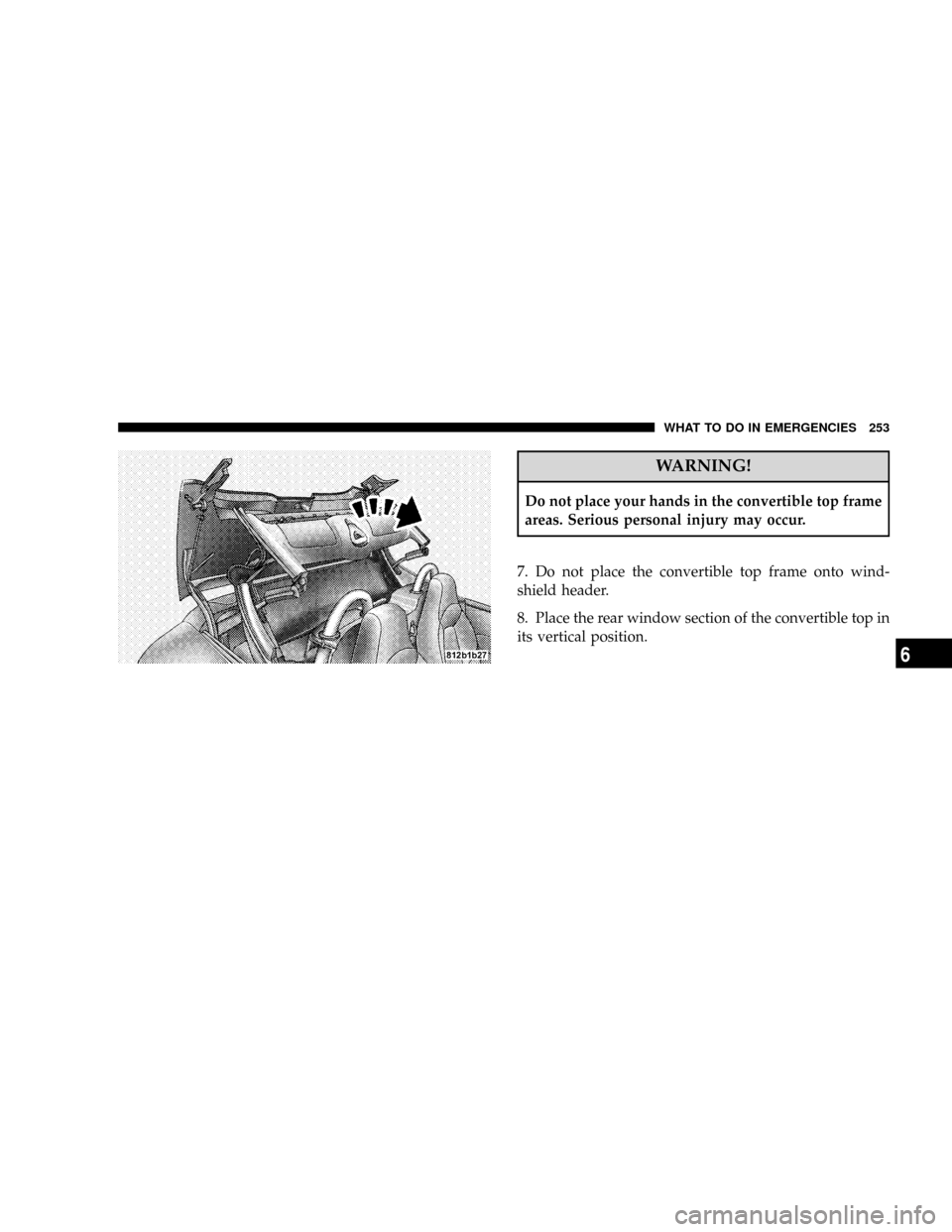

7. Do not place the convertible top frame onto wind-
shield header.
8. Place the rear window section of the convertible top in
its vertical position.
WHAT TO DO IN EMERGENCIES 253
6

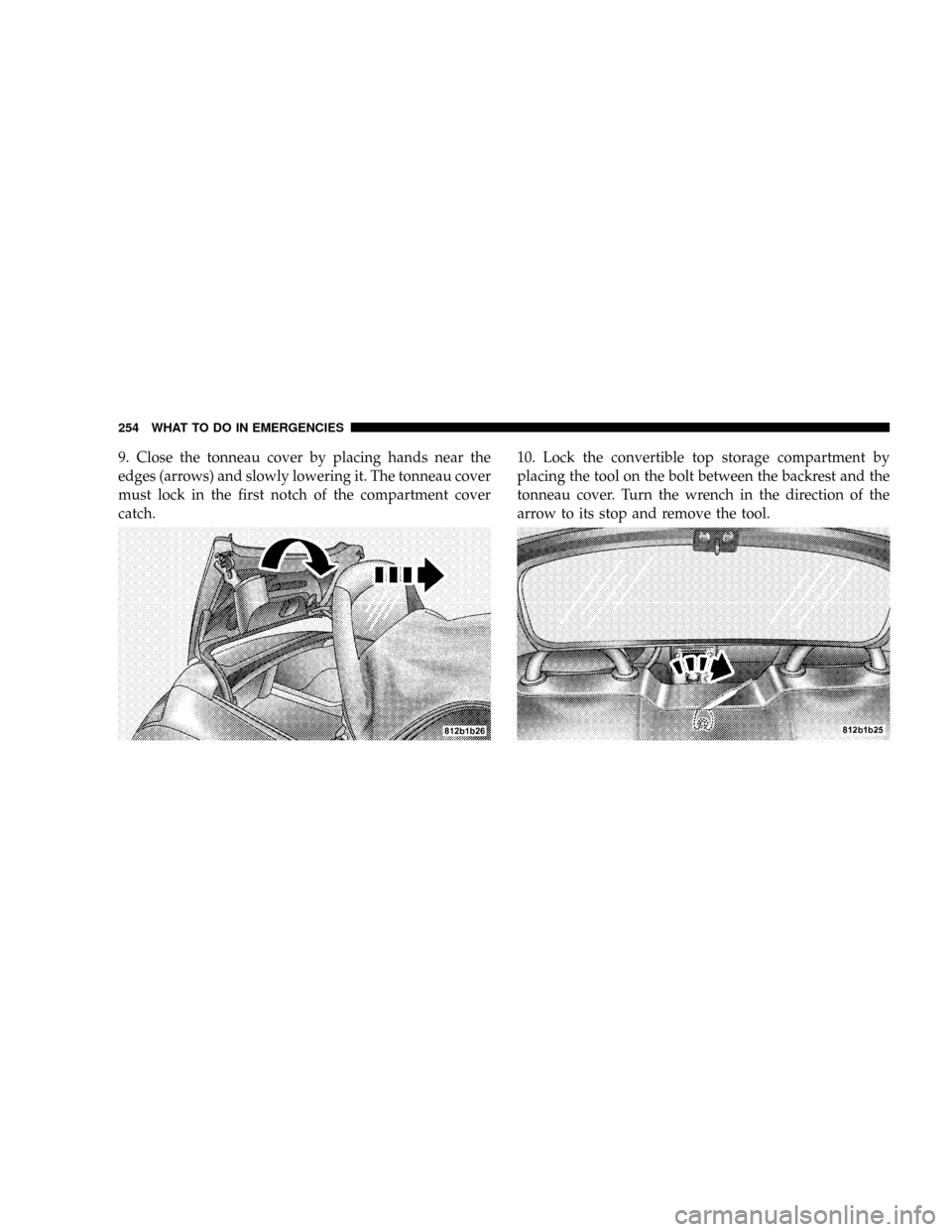

9. Close the tonneau cover by placing hands near the
edges (arrows) and slowly lowering it. The tonneau cover
must lock in the first notch of the compartment cover
catch.10. Lock the convertible top storage compartment by
placing the tool on the bolt between the backrest and the
tonneau cover. Turn the wrench in the direction of the
arrow to its stop and remove the tool.
254 WHAT TO DO IN EMERGENCIES
