UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

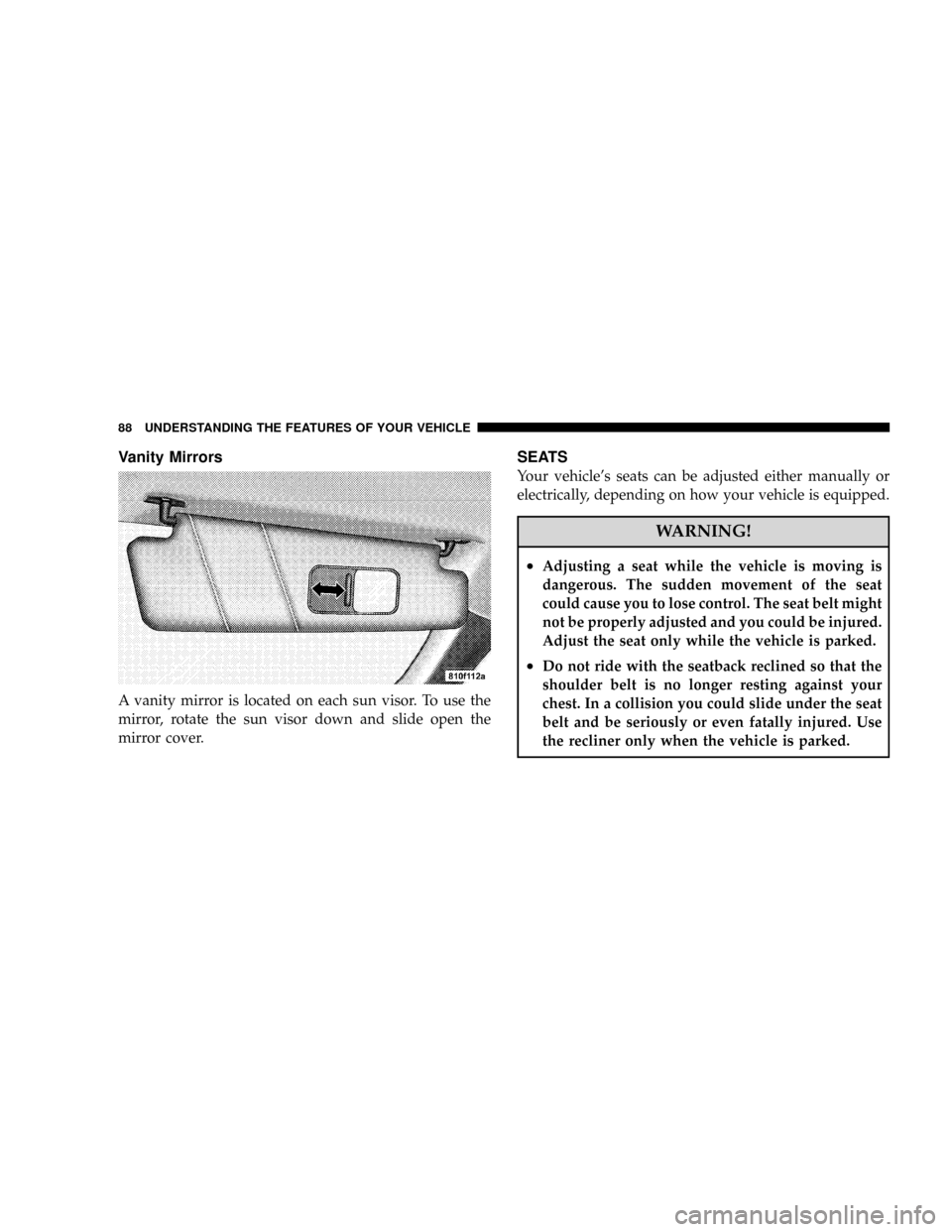

Vanity Mirrors
A vanity mirror is located on each sun visor. To use the
mirror, rotate the sun visor down and slide open the
mirror cover.
SEATS
Your vehicle's seats can be adjusted either manually or
electrically, depending on how your vehicle is equipped.
WARNING!
²Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
²Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:When moving the seat, be sure that there are no
items in the footwell or behind the seats. Otherwise you
could damage the seats.Manual Seat Adjustments (If Equipped)
Seat Height (Drivers Seat Only)
²
Pull up on handle 3.
²To lower the seat, use your body weight to push the
seat downward.
²To raise the seat, lift your body weight off the seat to
obtain a higher seat position.
²Release handle 3 when you are at your desired seat
level.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

Forward/Rearward
²
Pull up on handle 4.
²Move the seat forward or backward to your desired
position which allows you to reach the pedals com-
fortably.
²Let go of handle 4. The seat should make an audible
click when positioned properly.
²Check for proper engagement before driving.
Backrest Tilt
²
Turn handwheel 2 forward or backward to adjust the
backrest tilt to your desired position which allows
your arms to slightly bend when holding the steering
wheel.
Head Restraint Height
WARNING!
For your protection, drive only with properly posi-
tioned head restraints.
Adjust head restraint to support the back of the head
approximately at ear level.
Do not drive the vehicle without the seat head
restraints. Head restraints are intended to help re-
duce injuries during and accident.
²Adjust the height of the head restraints by pulling
them upwards manually.
²For a lower position, press release button 1 and push
down on the head restraints manually.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

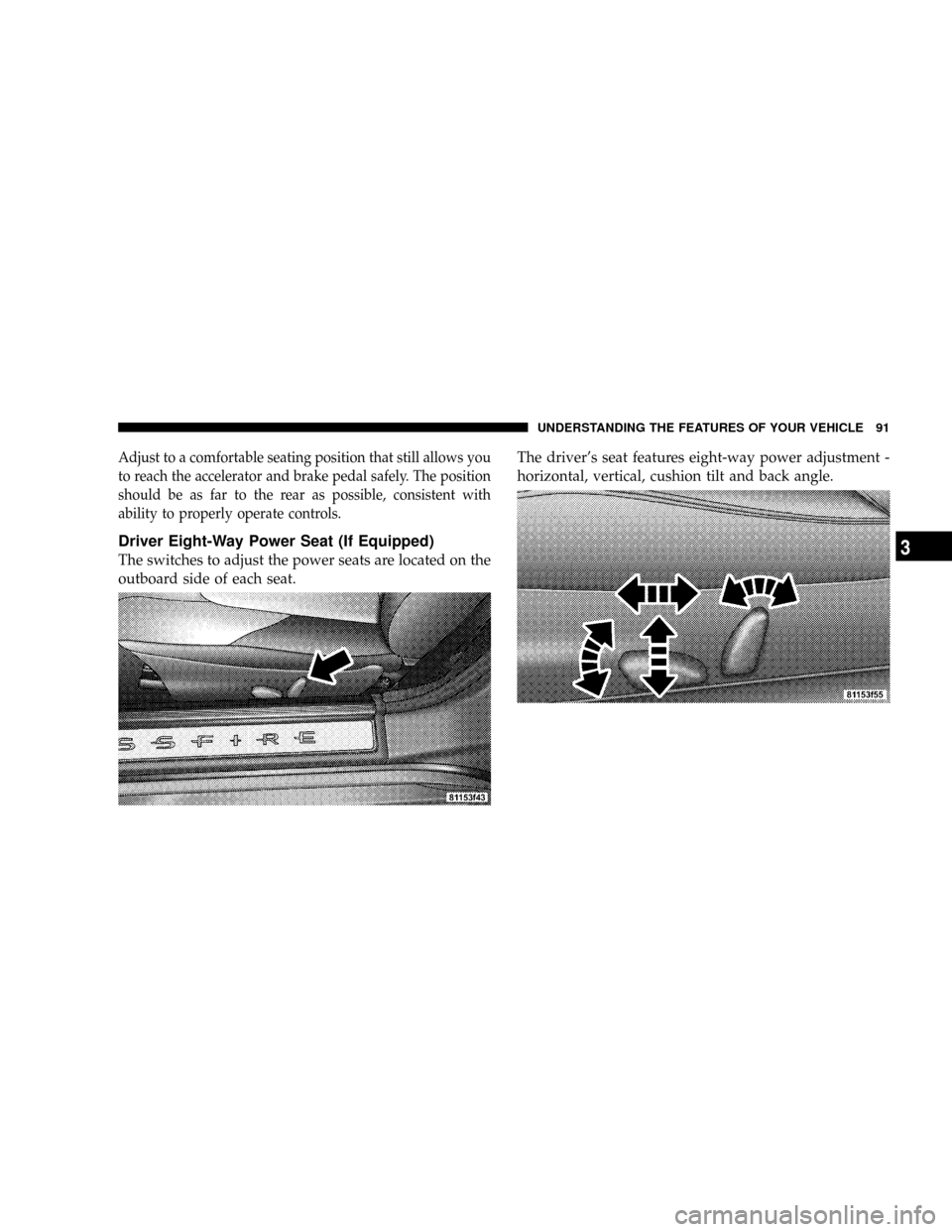

Adjust to a comfortable seating position that still allows you
to reach the accelerator and brake pedal safely. The position
should be as far to the rear as possible, consistent with
ability to properly operate controls.
Driver Eight-Way Power Seat (If Equipped)
The switches to adjust the power seats are located on the
outboard side of each seat.The driver's seat features eight-way power adjustment -
horizontal, vertical, cushion tilt and back angle.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

Passenger Four-Way Power Seat (If Equipped)
The switches to adjust the passenger seat are also on the
outboard side of the seat. The passenger seat provides
four-way adjustment - horizontal and back angle.
Heated Seats (If Equipped)
This feature heats the driver and passenger seats. The
controls for the heated seats are located on the instrument
panel, below the radio.
After turning the ignition switch ON, you can choose the
HI, LO, or OFF setting. Indicators on the switches show
which setting has been selected.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The heated seats setting will automatically switch from
HI to LO after approximately five minutes.
TO OPEN AND CLOSE THE HOOD
To open the hood, pull the release lever located inside
your vehicle, below the instrument panel.Then, reach under the hood and pull upward on the
safety latch and lift the hood.
To prevent possible damage, close the hood by dropping
it from approximately 12 in (30 cm).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving, and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
INTERIOR LIGHTS
A two-position mode selector switch controls the interior
lights located in the overhead console.
The AUTO mode turns the lights on when a door is open
or ajar, or when locking or unlocking the vehicle. AUTO
mode also has a ªfade to offº feature. When the doors are
closed or locked, they gradually ªfadeº off.
The OFF position turns off the interior lights feature.
