11. Lower the rear window section of the convertible top
down and lock into the tonneau cover.12. Fold down the locking latch handle.
13. Turn the latch handle just past one-quarter turn
clockwise and pull the convertible top frame carefully
down until it meets the windshield header attachment
points.
WHAT TO DO IN EMERGENCIES 255
6

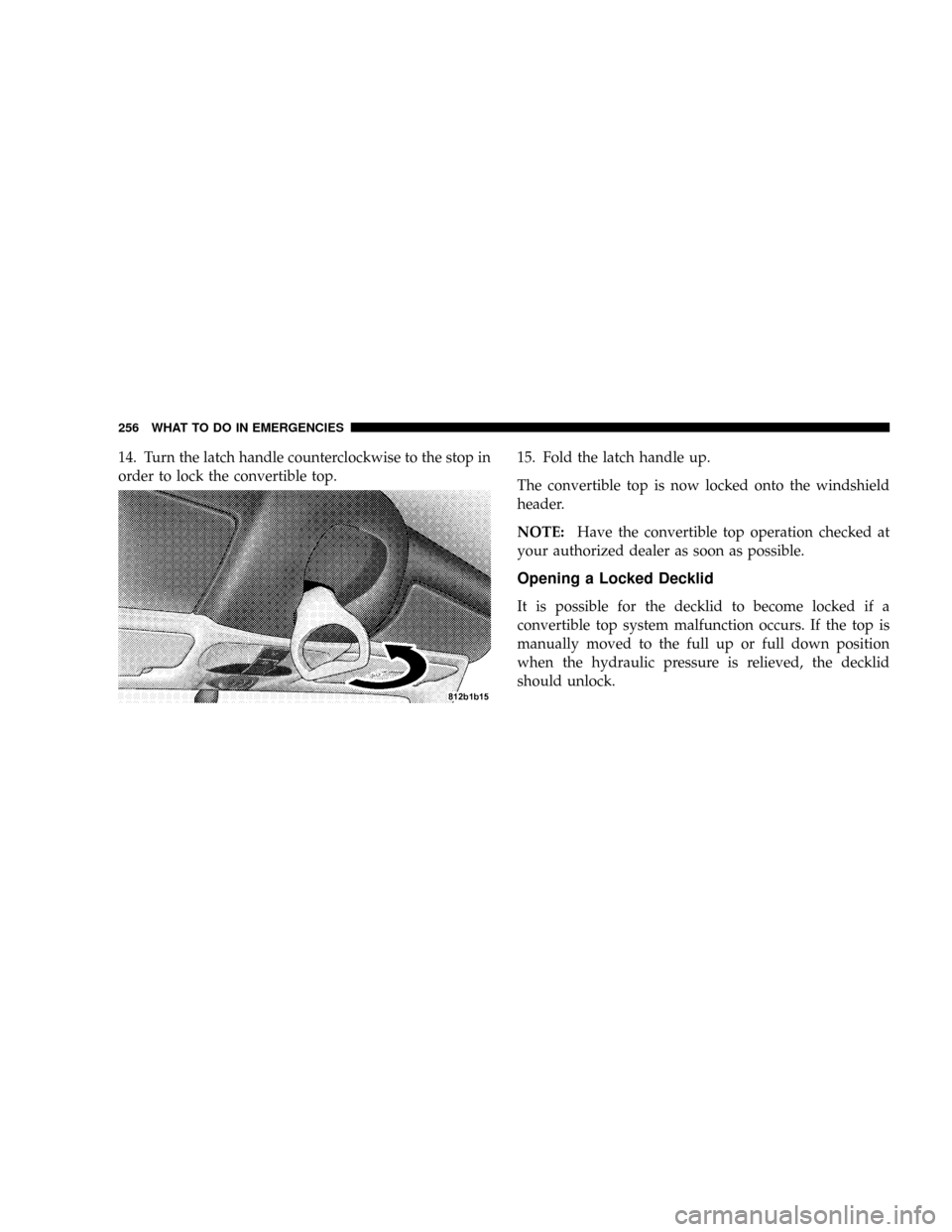

14. Turn the latch handle counterclockwise to the stop in
order to lock the convertible top.15. Fold the latch handle up.
The convertible top is now locked onto the windshield
header.
NOTE:Have the convertible top operation checked at
your authorized dealer as soon as possible.
Opening a Locked Decklid
It is possible for the decklid to become locked if a
convertible top system malfunction occurs. If the top is
manually moved to the full up or full down position
when the hydraulic pressure is relieved, the decklid
should unlock.
256 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
m3.2L Engine...........................260
mOnboard Diagnostic System (OBD II).........261
mEmissions Inspection And Maintenance
Programs............................262
mReplacement Parts......................263
mAuthorized Dealer Service................263
mMaintenance Procedures..................264
NEngine Oil..........................264
NIgnition Wiring System.................271NCrankcase Emission Control System........271
NMaintenance-Free Battery................271
NAir Conditioner......................273
NPower Steering Fluid...................274
NChassis Lubrication....................275
NBody Lubrication.....................276
NWindshield Wiper Blades................276
NWindshield Wiper Blade Replacement.......277
NWindshield Washer Reservoir.............278
7

NExhaust System......................279
NCooling System.......................280
NHoses And Vacuum/Vapor Harnesses.......284
NBrakes.............................285
NAutomatic Transmission................288
NManual Transmission..................289
NAppearance Care And Protection From
Corrosion...........................290
mConvertible Top Care....................295
NWashing............................296
NGeneral Cleaning.....................296
NWeather Strip Care....................297
mFuses...............................297NUnderhood Accessory Fuse Block Fuses.....297
NRelay Control Module Fuses.............302
NInterior Fuses........................303
mReplacement Bulbs......................305
NInterior Light Bulbs....................305
NExterior Light Bulbs...................305
mExterior Light Bulb Service................306
NHeadlights..........................306
NFront Turn Signal And Parking/Standing
Lights.............................307
NFront And Rear Sidemarker Lights.........307
NTail, Stop, Back Up And Turn Signal Lights . . . 308
NLicense Plate Light....................309
258 MAINTAINING YOUR VEHICLE

NHeadlight Aiming.....................310
mVehicle Storage........................311
mSpecifications..........................313
mFluid Capacities........................315mRecommended Fluids, Lubricants And Genuine
Parts................................316
NEngine.............................316
NChassis............................317
NBody..............................318
MAINTAINING YOUR VEHICLE 259
7

3.2L ENGINE
260 MAINTAINING YOUR VEHICLE

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
To meet new government regulations and promote
cleaner air, your Crossfire is equipped with a sophisti-
cated Onboard Diagnostic system called OBD II. This
system monitors the performance of the emissions and
engine control systems. When these systems are operat-
ing properly, your vehicle will provide excellent perfor-
mance and fuel economy, as well as engine emissions
well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the CHECK ENGINE Light. It will also store
diagnostic codes and other information to assist your
service technician in making repairs. Although your
vehicle will usually be drivable and not need towing, see
your authorized dealer for service as soon as possible.CAUTION!
Prolonged driving with the CHECK ENGINE light
on could cause further damage to the emission con-
trol system. It could also affect fuel economy and
drivability. The vehicle must be serviced before any
state emissions tests can be performed.
If the CHECK ENGINE light is flashing, severe catalytic
converter damage and power loss will soon occur. Im-
mediate service is required.
If the gas cap is not tightened properly, the CHECK
ENGINE light may come on. Be sure the gas cap is
tightened every time you add fuel. Tighten the cap until
you hear it ªclickº once.
MAINTAINING YOUR VEHICLE 261
7

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle's emissions control system.
Failure to pass could prevent vehicle registration.
For states which have an I/M (Inspection and
Maintenance) requirement, this check verifies
the following: the CHECK ENGINE Light is functioning
and is not on when the engine is running, and that the
Onboard Diagnostic system (OBD II) is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, if you recently had a dead battery, or a battery
replacement. If the OBD II system should be determined
not ready for the I/M test, your vehicle may fail the test.Your vehicle has a simple ignition key actuated test
which you can use prior to going to the test station. To
check if your vehicle's OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON/RUN position, but do not
crank or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON/RUN
position, you will see your CHECK ENGINE light come
on as part of a normal bulb check.
5. Approximately 15 seconds later, one of two things will
happen:
a. The CHECK ENGINE light will flash for about 10
seconds and then return to being fully illuminated
