2008 CHRYSLER CROSSFIRE Owners Manual

Periodic Safety Checks You Should Make Outside
the Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness and tires for
proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
water, oil, or other fluid leaks. Also, if gasoline fumes are
present, the cause should be corrected immediately.
NOTE:Use of the air conditioning may cause puddles
of water to form under the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63
2

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
mConvertible Top Operation.................68
NTo Lower The Top......................70
NTo Raise The Top......................75
NConvertible Top Lamp And Audible Signal
Chart...............................79
mConsole Features........................80
NStorage Compartments (If Equipped)........80
NAshtray.............................82
NCoin Holder..........................83NPower Outlet/Cigar Lighter...............83
NGlove Compartment....................84
mCupholder (If Equipped)..................84
mMirrors...............................85
NInside Day/Night Mirror.................85
NExterior Mirrors Folding Feature...........86
N
Heated Remote Control Mirrors (If Equipped)...86
NOutside Mirrors.......................86
NPower Remote Control Outside Mirrors......86
3

NVanity Mirrors........................88
mSeats.................................88
NManual Seat Adjustments (If Equipped)......89
NDriver Eight-Way Power Seat (If Equipped)....91
NPassenger Four-Way Power Seat (If Equipped) . .92
NHeated Seats (If Equipped)...............92
mTo Open And Close The Hood..............93
mInterior Lights..........................94
NFront Map/Reading Lights...............95
NBattery Saver Feature...................95
NInstrument Panel Lighting................96
NNight Security Illumination...............96mExterior Lights..........................97
NHeadlights And Parking Lights............97
NDaytime Running Lights (Where Applicable) . . .97
NFog Lights (If Equipped).................98
NStanding Lights.......................98
mMultifunction Control Lever................99
NTurn Signals..........................99
NHeadlight Dimmer Switch...............100
NPassing Light........................101
NWindshield Wipers And Washer...........101
NMist Function........................103
mTelescoping Steering Column..............104
mRear Spoiler..........................106
66 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

mBrake Assist System (BAS)................108
mElectronic Stability Program (ESP)...........110
NSynchronizing ESP....................113
mElectronic Speed Control..................113
NTo Vary The Speed Setting...............115
NTo Deactivate........................115
NTo Resume Speed.....................116
NUsing Speed Control On Hills............116mGarage Door Opener (If Equipped)..........117
NProgramming The Universal Transceiver.....118
NGate Operator/Canadian Programming.....121
NUsing The Universal Transceiver..........122
NErasing Universal Transceiver Buttons.......122
NReprogramming a Single Button...........122
NSecurity............................122
mUmbrella Hook........................123
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 67
3

CONVERTIBLE TOP OPERATION
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection of
the occupants of a vehicle in a collision. Therefore, it is
important that all occupants wear their seat belts at all
times when riding in a convertible. Studies have shown
that it is generally safer to remain inside a vehicle
during a collision than to be ejected from the vehicle.
For safety reasons, the convertible top should only be
opened and closed when the vehicle is standing still. Top
operation is allowed up to a maximum of 9 mph (15
km/h). Above this speed, top operation will cease and an
audible warning will sound. The top operation can be
resumed after the vehicle is below the maximum speed
by pressing the convertible top switch again.
WARNING!
Before operating the switch for the convertible top,
make sure that no persons can be injured by the
moving parts (convertible top frame and tonneau
cover).
Hands must never be placed near the sport bar,
convertible top frame, upper windshield area, shelf
behind sport bar, or convertible top storage compart-
ment while the convertible top is being raised or
lowered. Serious personal injury may occur.
If potential danger exists, release the convertible top
switch. This immediately interrupts the raising or
lowering procedure. You then can operate the con-
vertible top switch to raise or lower the convertible
top away from the danger zone.
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
When opening and closing the convertible top, make
sure that:
²There is sufficient clearance of at least 6 ft. (1.8m)
for the convertible top to move up.
²Nothing is placed on the tonneau cover.
²The outside temperature is above 32ÉF (0ÉC).
Otherwise the convertible top and other parts of the
vehicle could be damaged.
CAUTION!
Use caution when putting items into the storage
compartment with the top in the closed position. The
tonneau cover extensions are exposed and can be
damaged if luggage or other items are pushed too far
into the storage compartment.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 69
3

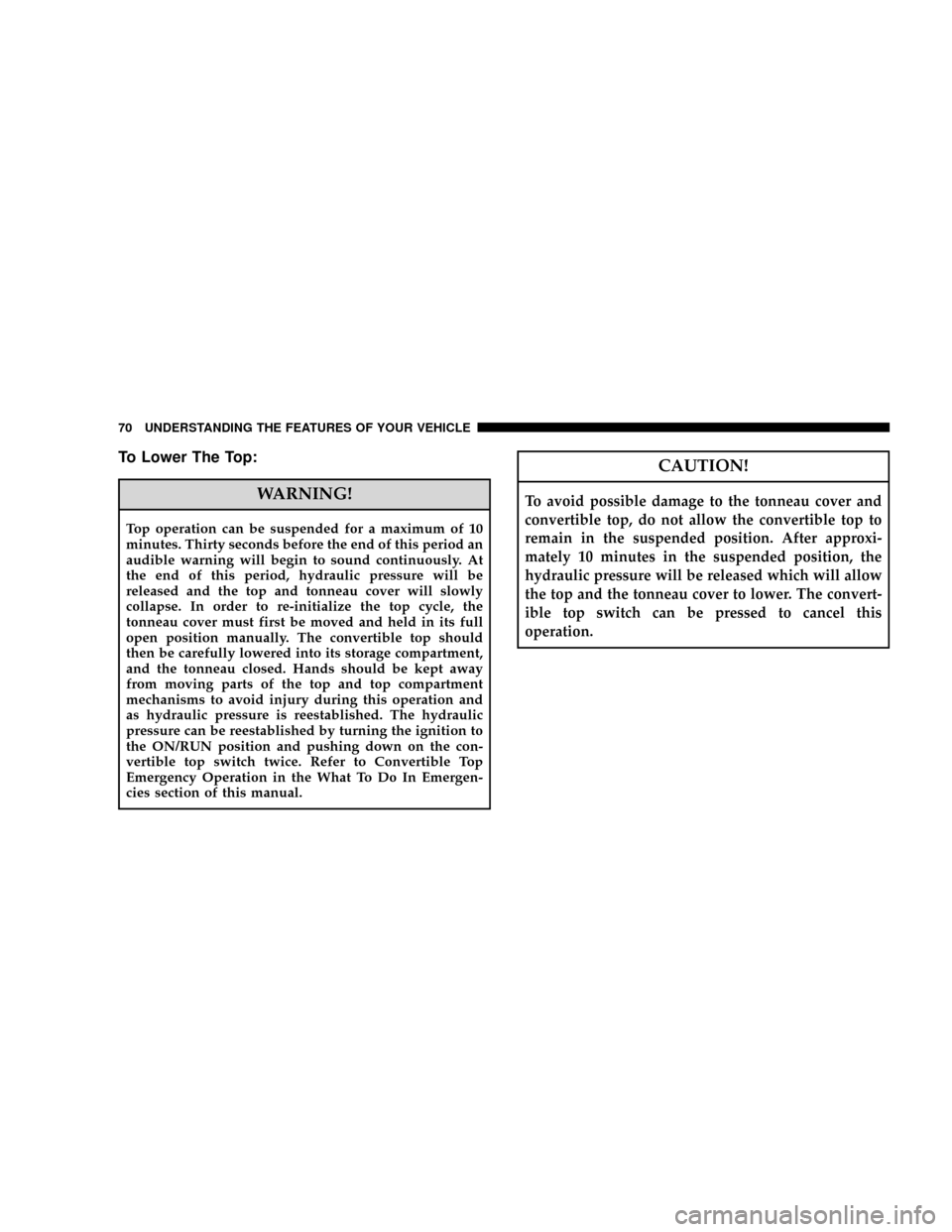

To Lower The Top:
WARNING!
Top operation can be suspended for a maximum of 10
minutes. Thirty seconds before the end of this period an
audible warning will begin to sound continuously. At
the end of this period, hydraulic pressure will be
released and the top and tonneau cover will slowly
collapse. In order to re-initialize the top cycle, the
tonneau cover must first be moved and held in its full
open position manually. The convertible top should
then be carefully lowered into its storage compartment,
and the tonneau closed. Hands should be kept away
from moving parts of the top and top compartment
mechanisms to avoid injury during this operation and
as hydraulic pressure is reestablished. The hydraulic
pressure can be reestablished by turning the ignition to
the ON/RUN position and pushing down on the con-
vertible top switch twice. Refer to Convertible Top
Emergency Operation in the What To Do In Emergen-
cies section of this manual.
CAUTION!
To avoid possible damage to the tonneau cover and
convertible top, do not allow the convertible top to
remain in the suspended position. After approxi-
mately 10 minutes in the suspended position, the
hydraulic pressure will be released which will allow
the top and the tonneau cover to lower. The convert-
ible top switch can be pressed to cancel this
operation.
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
