2008 CHRYSLER CROSSFIRE CD player

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
mInstruments And Controls.................127
mInstrument Cluster......................128
mInstrument Cluster Description.............129
mªInfinity Modulusº AM/FM Stereo Radio With
Single-Disc CD Player And GPS Navigation....143
mAM/FM Stereo Radio With Single-Disc CD
Player...............................144
NInfinity Modulus Entertainment Systems.....144
NCD Player Operation...................149
NUser Menu..........................151NUser Memory (User ± 1, 2, 3).............152
NMono/Stereo........................152
NDriver ± L/R........................153
NTelephone Mute Characteristics...........153
mCompact Disc Maintenance................154
mRadio Antenna........................154
mRadio Operation And Cellular Phones........155
mClimate Controls.......................155
NTemperature Control...................1564

position, press the knob to the left of the speedometer
once and wait seven seconds. An ISO oil level icon
appears in the trip odometer window and a ªclockº icon
in the cumulative odometer display. Pressing the knob to
the left of the speedometer twice within one second
displays one of the following messages:
²OK
²-1.0 Q (-1.0L)
²-1.5 Q (-1.5L)
²-2.0 Q (-2.0L)
²HI
The indicated amount of oil must be added to the engine
if the message -2.0 Q (-2.0L) blinks and a signal sounds.
The HI message indicates that the excess oil must be
removed from the pan to avoid possible engine or
catalytic converter damage. If the ISO oil level icon andªclockº icon remain on when attempting to check oil
level and no message follows, or if the low engine oil
level warning lamp comes on, a malfunction in the
engine oil level system is indicated. A conveniently
located dipstick allows manual checking of the oil level.
If no leaks are noted, continue to drive to the nearest
service station where the engine oil should be topped to
the ªfullº mark on the dipstick with an approved oil.
29. Low Fuel Warning Light
When the fuel level drops to about 2 gal (7.5 L), this
symbol will light and remains lit until fuel is added.
ªINFINITY MODULUSº AM/FM STEREO RADIO
WITH SINGLE-DISC CD PLAYER AND GPS
NAVIGATION
(OPTIONAL - See separate User's Manual)
UNDERSTANDING YOUR INSTRUMENT PANEL 143
4

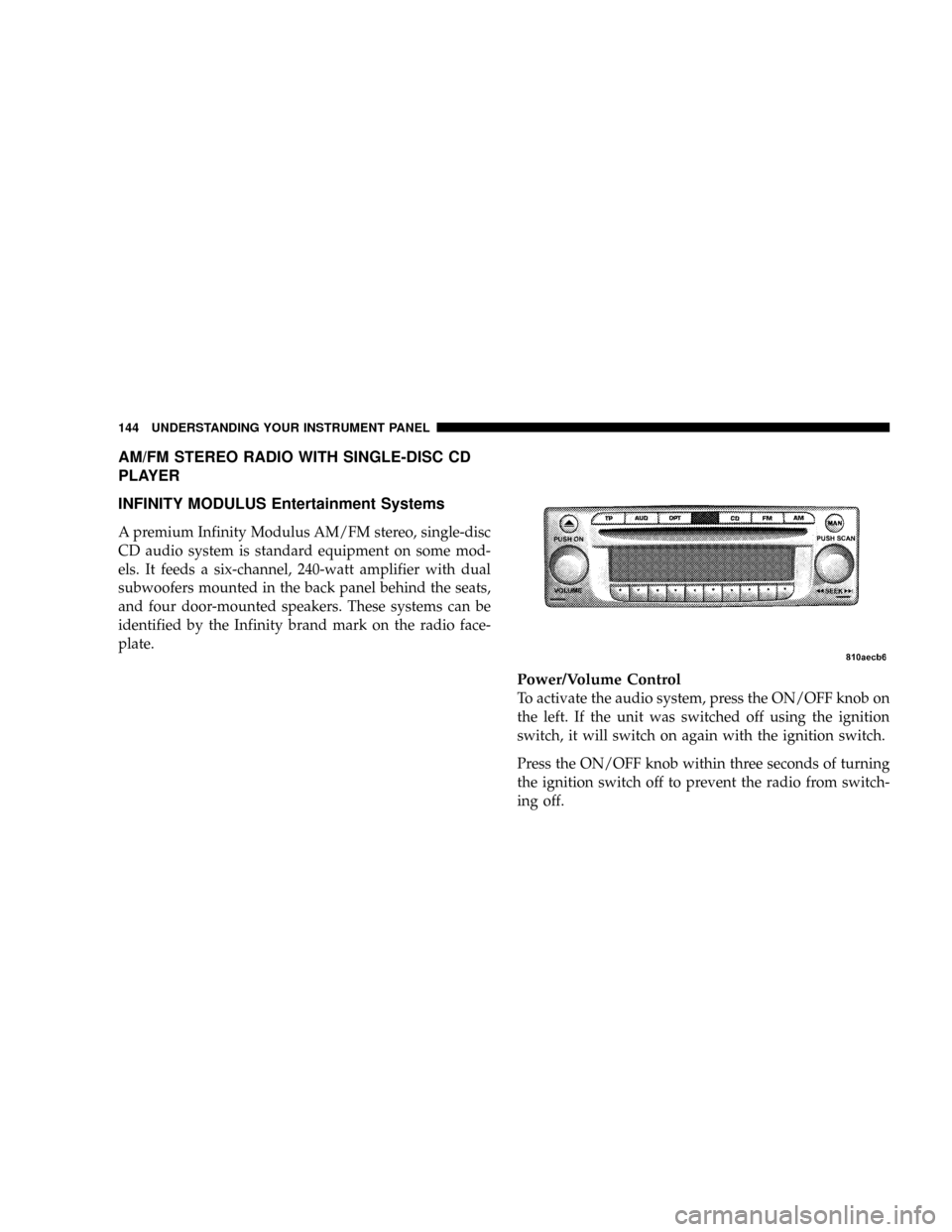

AM/FM STEREO RADIO WITH SINGLE-DISC CD
PLAYER
INFINITY MODULUS Entertainment Systems
A premium Infinity Modulus AM/FM stereo, single-disc
CD audio system is standard equipment on some mod-
els. It feeds a six-channel, 240-watt amplifier with dual
subwoofers mounted in the back panel behind the seats,
and four door-mounted speakers. These systems can be
identified by the Infinity brand mark on the radio face-
plate.
Power/Volume Control
To activate the audio system, press the ON/OFF knob on
the left. If the unit was switched off using the ignition
switch, it will switch on again with the ignition switch.
Press the ON/OFF knob within three seconds of turning
the ignition switch off to prevent the radio from switch-
ing off.
144 UNDERSTANDING YOUR INSTRUMENT PANEL

Once the scan search begins, it will continue until either
a station is retained or until another mode is selected.
Tuning AM stations ± Rotating the right rotary control to
the right or left will change the AM frequency to the next
higher or lower station with a strong signal. To manually
step through each frequency or tune in a station with a
weaker signal, press the MAN button first, and then
rotate the rotary control right or left.
Storing AM stations ± 10 frequencies can be stored on AM
by pressing a multifunction button for three seconds; a
tone will confirm that the selection was set.
AM AS ± An autostore feature will store the 9 current
stations with the strongest signal on station buttons 1-9 in
the order of their signal quality. Press the AM button
repeatedly until AM AS is displayed to perform an
autostore scan. Press the multifunction button labeled AS
repeatedly until AS-SEEK is displayed. To select the
stored stations, press the 1-9 buttons.General Information
This radio complies with Part 15 of FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference,
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user's authority to operate the equipment.
CD Player Operation
To activate the CD function, press the CD button; CDS is
shown in the display. If no CD disc is present, the display
briefly shows NO CDS and the radio mode remains
active.
UNDERSTANDING YOUR INSTRUMENT PANEL 149
4

CAUTION!
Before inserting a CD, assure that a CD is not already
in the player. Press the CD button; if the display
shows NO CDS, a new CD can be inserted. If a CD is
already loaded, press and release the EJT button and
allow time for the current CD to be ejected. Loading
a new CD into the player while another CD is already
loaded can result in a jammed mechanism which may
require service at an authorized dealer.
Insert the CD into the slot with the printed side up. The
unit will display the number of tracks and total playback
time. After the last track has been played back, the unit
automatically begins to play the first track again.To eject a disc, briefly press and release the
EJT button.
If the power is turned off, the disc will remain in the CD
slot for protection.
Features of the CD player:
²Skipping Tracks
Turn the right rotary control/push button. Turn fur-
ther to the left or right to skip multiple tracks. If a track
was played for less than eight seconds, the system will
skip to the next track.
150 UNDERSTANDING YOUR INSTRUMENT PANEL

Brake System........................186,285
Anti-Lock (ABS)....................... 186
Hoses.............................. 285
Master Cylinder....................... 286
Break-In Recommendations, New Vehicle.....61,196
Bulbs, Light............................ 305
Capacities, Fluid........................ 313
Capacity, Cargo Weight................... 227
Carbon Monoxide Warning................. 61
Cargo Compartment
Capacity............................ 227
Catalytic Converter...................... 269
CD (Compact Disc) Player...............144,149
Chains, Tire............................ 219
Changing A Flat Tire..................... 234
Charging System Light.................... 135
Chart, Tire Sizing........................ 199
Checks, Safety........................... 61Child Restraint.......................... 52
Child Restraint Tether Anchors............... 59
Cigar Lighter........................... 83
Circuit Breakers......................... 297
Clean Air Gasoline....................... 223
Cleaning
Glass............................... 294
Headlights........................... 294
Climate Control......................... 155
Coin Holder............................ 83
Compact Disc (CD) Maintenance............. 154
Console............................... 80
Contract, Service........................ 335
Converter, Catalytic...................... 237
Convertible............................. 68
Convertible Top.......................... 68
Convertible Top Maintenance............... 295
Convertible Top Manual Override............ 249
Coolant (Antifreeze)...................281,329
INDEX 343
