2008 CHRYSLER CROSSFIRE Owners Manual

At Each Stop for Fuel
²Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. See the procedure
described in Checking Your Engine Oil in the Under-
standing Your Instrument Panel section or under En-
gine Oil in the Maintaining Your Vehicle section. Add
oil only when the level is at or below the ADD or MIN
mark.
²Check the windshield washer solvent and add if
required.
²Inspect wiper blade condition.
²Check operation of lighting systems.
²Inspect tires for unusual wear, damage, and pressure
(at least every 14 days).
²Mechanical assemblies (e.g., engine, transmission, etc.)
- check for leaks.
Once a Month
²Inspect the battery and clean and tighten the terminals
as required.
²Check the fluid levels of coolant reservoir, brake
master cylinder and power steering and add as
needed.
²Check all lights and all other electrical items for correct
operation.
Additional Periodic Maintenance
The following maintenance items should be performed
during the scheduled maintenance nearest the time
elapsed and/or distance shown. Follow the interval that
occurs first.
MAINTENANCE SCHEDULES 327
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Every 2 years:
²Inspect body for paint damage.
²Check chassis and supporting body parts for damage
and corrosion.
At approximately every 50,000 mi (80 000 km) or 4 years:
²Check condition of driveshaft flex discs.
²Retighten locking bolts for steering (observe torque).
At approximately every 60,000 mi (96 000 km) or 4 years:
²Replace fuel filter.
²Replace air cleaner filter element.At approximately 80,000 mi (128 000 km):
²Change the automatic transmission fluid and filter.
Use the recommended automatic transmission fluid.
After this change it is filled for life. The manual
transmission comes filled for life from the factory.
At approximately every 100,000 mi (160 000 km) or 5
years:
²Replace spark plugs.
Every 100,000 mi (160 000 km) or 5 years:
²Replace engine coolant using coolant approved to MB
325.0, such as Valvoline GO5, or an equivalent ex-
tended life coolant.
328 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
maintenance service, take your vehicle to a compe-
tent technician.
SPECIAL MAINTENANCE REQUIREMENTS
Coolant
Have the corrosion inhibitor/antifreeze concentration in
the coolant checked before the onset of winter (once a
year in countries with high prevailing temperatures).
Have the coolant replaced every five years or 100,000 mi
(160 000 km).
Dust Filter for Heating/Ventilation Replacement (If
Equipped)
The dust filter is replaced during routine maintenance
service. The filter element must be replaced with ªBº
Schedule service or every 18,500 mi (30 000 km) to
maintain effectiveness. However, if operating conditions
are dusty, these filters should be replaced more fre-
quently. A cover in the HVAC unit that can be reached
from the passenger foot well provides access to the filter
element.
MAINTENANCE SCHEDULES 329
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

ENGINE OIL CHANGE AND FILTER
REPLACEMENT
The recommended oil and filter change interval is based
on FSS or 1 year. Please refer to the heading FSS System
in this section for a full description of the use and
interpretation of symbols in the FSS system. Only use
synthetic engine oils, approved to MB 229.3 or MB 229.5,
such as Mobil 1 SAE 0W-40. The FSS may not alert for an
oil change at the proper interval if an unapproved engine
oil is used; engine damage and reduced engine life may
result. Information is available from your authorized
dealer. The oil filter should always be changed when the
oil is changed.
330 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

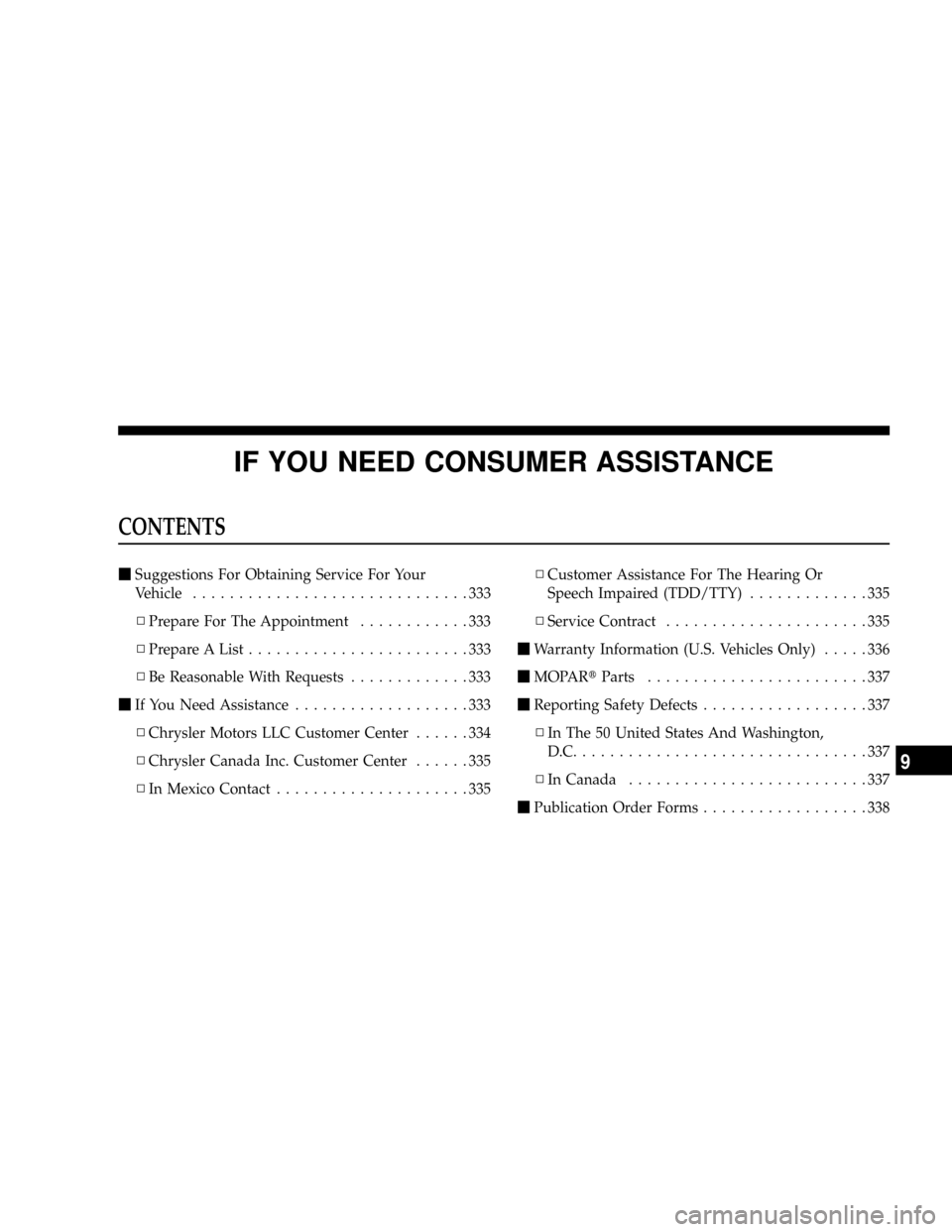

IF YOU NEED CONSUMER ASSISTANCE
CONTENTS
mSuggestions For Obtaining Service For Your
Vehicle..............................333
NPrepare For The Appointment............333
NPrepare A List........................333
NBe Reasonable With Requests.............333
mIf You Need Assistance...................333
NChrysler Motors LLC Customer Center......334
NChrysler Canada Inc. Customer Center......335
NIn Mexico Contact.....................335NCustomer Assistance For The Hearing Or
Speech Impaired (TDD/TTY).............335
NService Contract......................335
mWarranty Information (U.S. Vehicles Only).....336
mMOPARtParts........................337
mReporting Safety Defects..................337
NIn The 50 United States And Washington,
D.C................................337
NIn Canada..........................337
mPublication Order Forms..................338
9

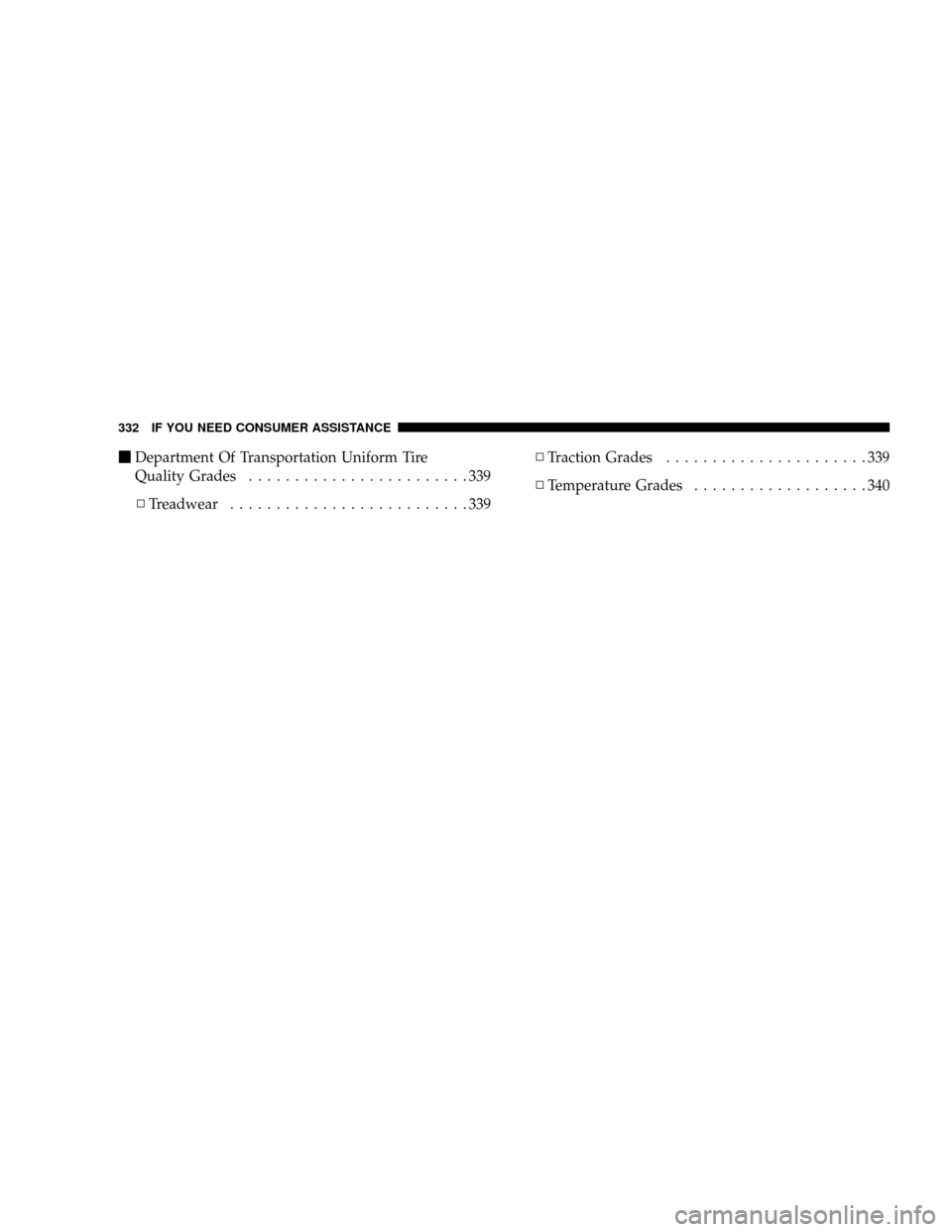

mDepartment Of Transportation Uniform Tire
Quality Grades........................339
NTreadwear..........................339NTraction Grades......................339
NTemperature Grades...................340
332 IF YOU NEED CONSUMER ASSISTANCE

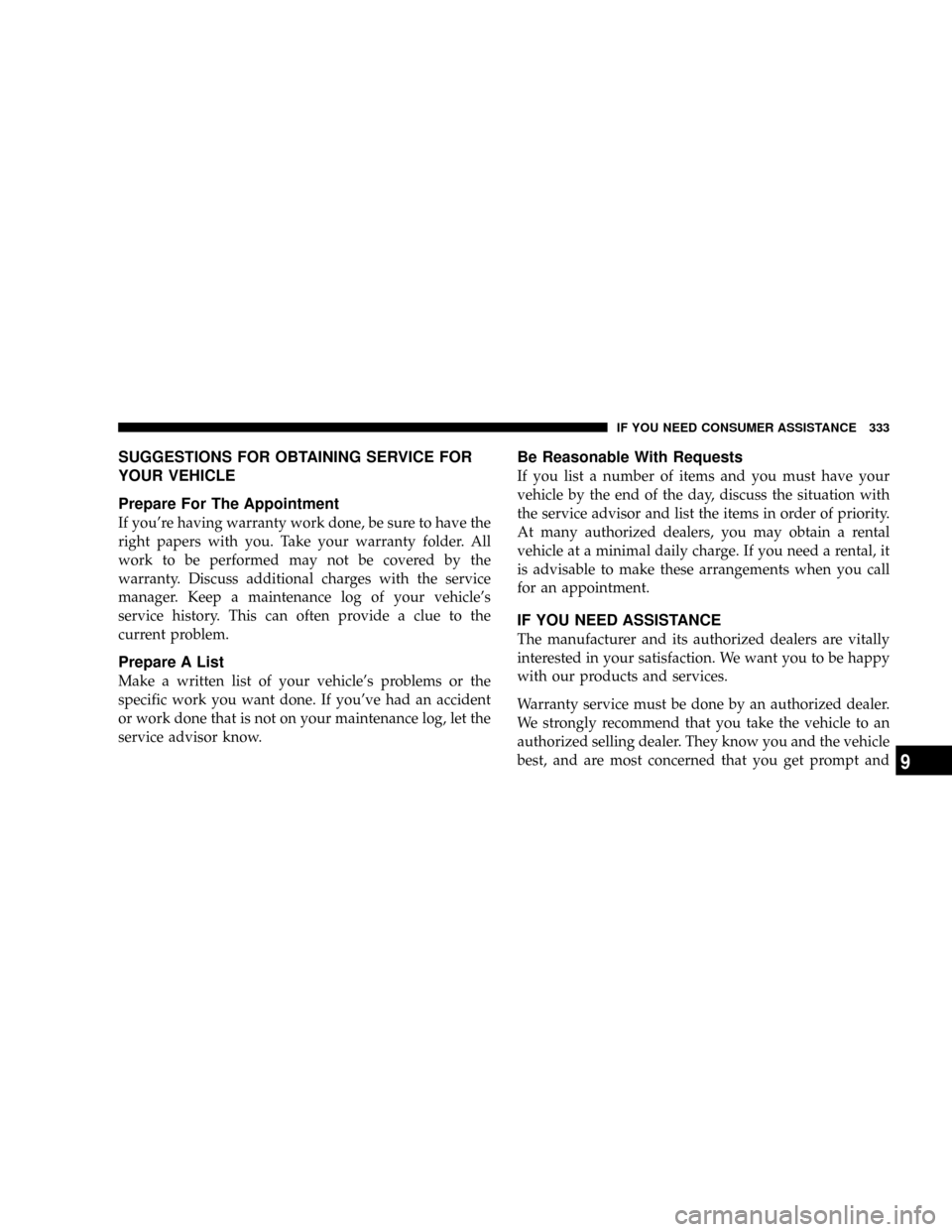

SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE
Prepare For The Appointment
If you're having warranty work done, be sure to have the
right papers with you. Take your warranty folder. All
work to be performed may not be covered by the
warranty. Discuss additional charges with the service
manager. Keep a maintenance log of your vehicle's
service history. This can often provide a clue to the
current problem.
Prepare A List
Make a written list of your vehicle's problems or the
specific work you want done. If you've had an accident
or work done that is not on your maintenance log, let the
service advisor know.
Be Reasonable With Requests
If you list a number of items and you must have your
vehicle by the end of the day, discuss the situation with
the service advisor and list the items in order of priority.
At many authorized dealers, you may obtain a rental
vehicle at a minimal daily charge. If you need a rental, it
is advisable to make these arrangements when you call
for an appointment.
IF YOU NEED ASSISTANCE
The manufacturer and its authorized dealers are vitally
interested in your satisfaction. We want you to be happy
with our products and services.
Warranty service must be done by an authorized dealer.
We strongly recommend that you take the vehicle to an
authorized selling dealer. They know you and the vehicle
best, and are most concerned that you get prompt and
IF YOU NEED CONSUMER ASSISTANCE 333
9

high quality service. The manufacturer's authorized deal-
ers have the facilities, factory-trained technicians, special
tools, and the latest information to ensure the vehicle is
fixed correctly and in a timely manner.
This is why you should always talk to an authorized
dealer's service manager first. Most matters can be re-
solved with this process.
²If for some reason you are still not satisfied, talk to the
general manager or owner of the authorized dealer-
ship. They want to know if you need assistance.
²If an authorized dealership is unable to resolve the
concern, you may contact the Manufacturer's Cus-
tomer Center.Any communication to the Manufacturer's Customer
Center should include the following information:
²Owner's name and address
²Owner's telephone number (home and office)
²Authorized dealership name
²Vehicle Identification Number (VIN)
²Vehicle delivery date and mileage
Chrysler Motors LLC Customer Center
P.O. Box 21±8004
Auburn Hills, MI 48321±8004
Phone: (800) 992-1997
334 IF YOU NEED CONSUMER ASSISTANCE
