2007 PORSCHE CAYMAN Owners Manual

CentralWarningLight
WarningmessagesintheINFOmenu
ThecentralwarninglightontheinstrumentpanellightsupiftherearewarningmessagesintheINFOmenu.
Themessagescanbecalledintheon-boardcomputerINFOmenu:
Pleaseobservethechapter”INFOWARNINGMESSAGES”onpage111.
Controls,Instruments103

BrakeWarningLight
Indication
BrakewarninglightUSA
BrakewarninglightCanada
Thewarninglightontheinstrumentpanellightsup:
–ifthehandbrakeison,
–ifthebrakefluidlevelislow,
–ifthebrakepadshavereachedthewearlimit,
–ifthebrakecircuitdivisionisdefective.
Additionally,awarningisdisplayedbytheon-boardcomputer.
Pleaseobservethechapter”WARNINGSONTHEINSTRUMENTPANELANDTHEON-BOARDCOMPUTER”onpage138.
104Controls,Instruments

On-BoardComputer(BC)
Displayeld
Thedisplayfieldisbeneaththetachometer.
Readinessforoperation
–Withignitionswitchedon,
–withenginerunning.
Operation,controls
Itisnotpossibletodescribealldetailsoftheon-boardcomputerfunctionsinthisOwner’sManual.However,theexampleswillquicklyfamiliarizeyouwiththeoperationalprincipleandhelpyoutonavigatethroughthemenustructure.
Youcanrestorethefactorydefaultsettingsatanytimebyusingthe“SET”menu.
Operatinglever
Operation
Theon-boardcomputerisoperatedwiththelowerleftleveronthesteeringcolumn.
Selectingfunctionsoftheon-boardcomputer
Pushleverup3ordown4.
Conrmingselection(Enter)
Pushtheleverforward1.
Movingbackoneorseveralselectionlevels
Pulltheleverback2onceorseveraltimesor
Selectthearrowontheon-boardcomputerdisplaywiththeoperatingleverandpushtheoperatingleverforward1.
Note
Youcanalwaysreturntothebasicmenubypullingtheoperatingleverseveraltimes.
Controls,Instruments105

A-DigitalspeedometerB-CentraldisplayC-Bottomdisplay
Functionsanddisplaypossibilities
Options
Note
Theavailableitemsanddisplaysintheon-boardcomputerdependontheequipmentofyourvehicle.Forthisreasonitispossiblethatsomeoftheitemsanddisplaysshownherearenotavailableinyouron-boardcomputer.
Basicsetting
–Centraldisplay:....Radiostation
ThecentrallineBoftheon-boardcomputercanbeselectedintheSETmenu.
Callingon-boardcomputerfunctionsindisplay
“C”
Pushoperatingleverupordown(selectionfieldDmustbeswitchedoff).
Thefollowingdisplayscanbecalledstepbystep:
–Averagespeed(ømph),
–Averageconsumption(ømpg),
–Rangeonremainingfuel(mls).
–Tirepressure
–Navigationinformation(ifactivatedintheSETmenu).
Note
Thevalues“Averagespeed”,“Averageconsump-tion”and“Dailytripmileage”canberesettozerointheSETmenu.
Switchingselectioneld“D”onoroff
Pushoperatingleverforwardorback.
Arrowsymbol“E”forcontinuation
Arrowsymbol
Pushoperatingleverdowninordertopagethroughthemenu.
Arrowsymbol
Pushoperatingleverupinordertopagethroughthemenu.
106Controls,Instruments

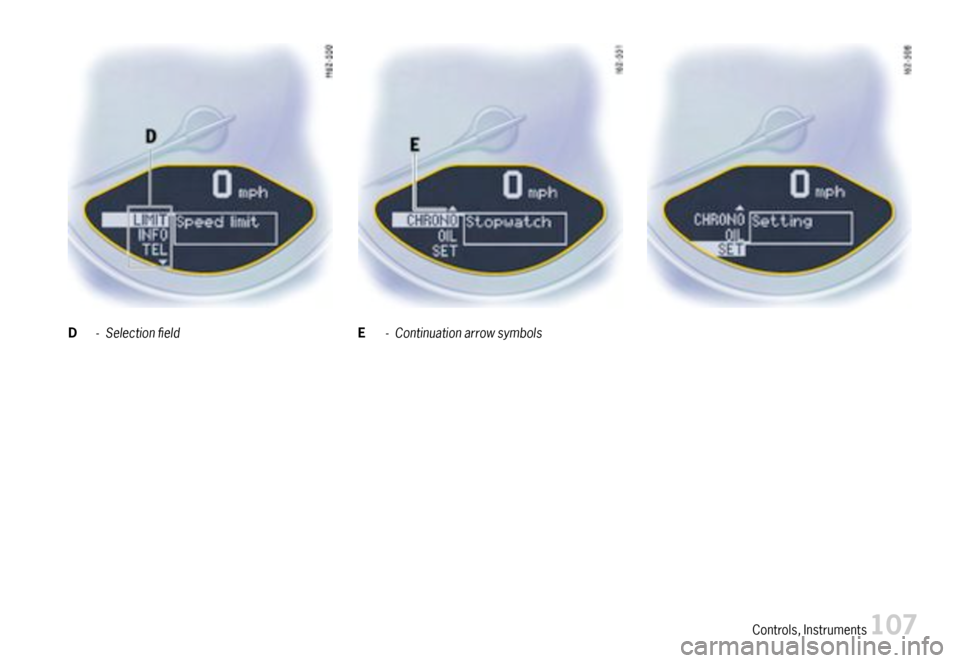

D-SelectioneldE-Continuationarrowsymbols
Controls,Instruments107

LIMITAcousticwarningsignalfor
speedlimit
Function
Theacousticwarningsignalcanbeactivatedforspeedsabove6mph(10km/h).Thesignalsoundswhenthepresetspeedisexceeded.Forthesignaltosoundagain,thedrivingspeedmustfallbelowthepresetspeedbyatleast3mph(5km/h).
Switchingonselectioneld“D”
Pushoperatingleverforward.
Settingthespeed
SelectLIMITwiththeoperatinglever.
Pushoperatingleverforward.
108Controls,Instruments

Option1:Acceptingcurrentspeed
Pushoperatingleverforward.
Theacousticwarningsignalisactivatedforthecurrentspeed.
Display:
Option2:Presettingspeed
Select“LIMITactive”withtheoperatinglever:
notactive
active
If“notactive”,pushtheoperatingleverforward.
Select“xxmph”withtheoperatinglever.
Pushoperatingleverforward.
Controls,Instruments109

Pushoperatingleverslightlyupordownuntilthedesiredspeedisreached.
upwards:speedisincreaseddownwards:speedisdecreased
Note
Holdingtheleverupordownforalongerperiodwilladjustthespeedinstepsof6mph(10km/h).
Pushoperatingleverforward.
Switchingtheacousticwarningsignaloff
Select“LIMITactive”withtheoperatinglever.
Pushoperatingleverforward.
Display:
